Feidi V3 Series 157hp 4X2(6 wheels) 4.2m Dump Truck
EXW
Export quote
Feidi Aochi V Series Light Truck Dump Trucks
Main model photos
206 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Feidi V3 Series 157hp 4X2(6 wheels) 4.2m Dump Truck | 4x2 / 156hp / China V | ||
| Feidi V1 series 160hp 4X2(6 wheels) 3.83m dump truck | 4x2 / 160hp / China VI | From $12,917 |

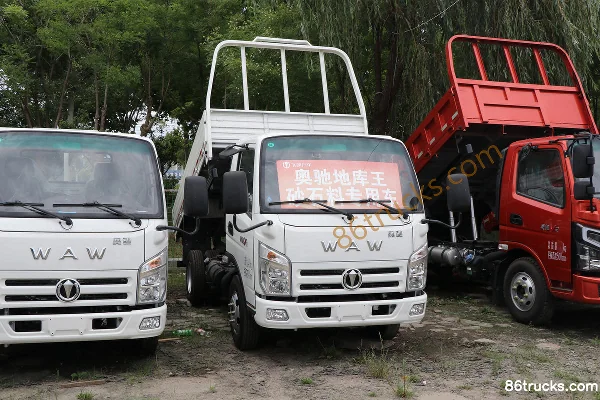

Feidi V1 series 160hp 4X2(6 wheels) 3.83m dump truck
EXW
From $12,917
Export quote
Series Specs
Basic Info
Drive type: 4X2
Wheelbase: 3360 / 3300mm
Engine Model: Yunnei PowerD30TCIE4 / YuchaiYCF25160-66B / YCF25160-66B
Transmission Model: 8-speed gearbox / WLY 5-speed
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2.1 / 1750m
Cab height: 2.25m
Front track width: 1690mm
rear track: 1590mm
Curb Weight: 2.565ton
Rated payload: 1.735ton
GVWR: 4.495 / 4.489ton
Origin: Rizhao, Shandong
tonnage class: Light Truck
Approach angle: 21°
departure angle: 16°
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power / Yuchai
Number of cylinders: 4cylinder
Displacement: 2.977 / 2.488L
Emission standard: China V / China VI
Max output power: 115 / 116kW
Max hp: 156 / 160Horsepower
Max torque: 450N·m
Max torque speed: 1500-2700rpm
Rated speed: 3200rpm
Transmission Parameters
Transmission Brand: WLY
shift method: Manual
Forward gears: 8 / 5Gear
Number of Reverse Gears: 2 / 1pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 4.17 / 3.83m
Cargo box width: 2.11 / 2m
Cargo box height: 0.5 / 0.4m
Cab parameters
seating capacity: 2Personnel
Chassis Specs
Front axle allowable load: 1850kg
rear axle allowable load: 2645kg
Axle ratio: 4.875
FAQ
What kind of truck is Feidi Aochi V Series Light Truck Dump Trucks?
Feidi Aochi V Series Light Truck is an export-oriented Dump Trucks lineup with about 2 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Feidi Aochi V Series Light Truck Dump Trucks?
Feidi Aochi V Series Light Truck Dump Trucks export reference is about From $12,917. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Feidi Aochi V Series Light Truck Dump Trucks cover?
Feidi Aochi V Series Light Truck Dump Trucks mainly covers: Drive: 4x2; Horsepower: 156 hp / 160 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Feidi Aochi V Series Light Truck Dump Trucks?
For Feidi Aochi V Series Light Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Feidi Aochi V Series Light Truck Dump Trucks include?
Feidi Aochi V Series Light Truck Dump Trucks currently lists about 2 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Feidi Aochi V Series Light Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
