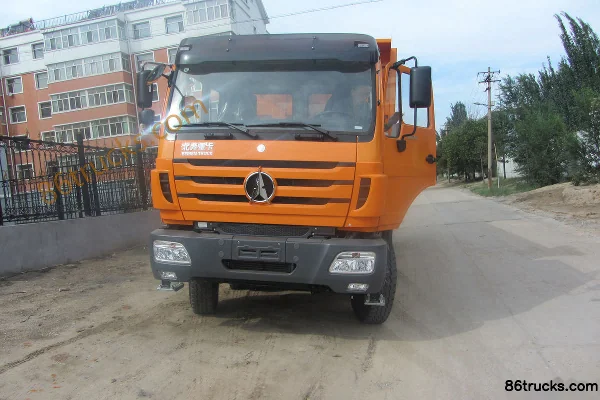

Beiben NG80B Heavy Truck 375hp 8X4(12 wheels) 7.4m Dump Truck
EXW
From $49,472
Export quote
Beiben NG80 Heavy Truck Dump Trucks
Main model photos
173 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Beiben NG80B Heavy Truck 375hp 8X4(12 wheels) 7.4m Dump Truck | 8x4 / 375hp / China V | From $49,472 | |
| Beiben NG80B Heavy Truck 375hp 8X4(12 wheels) 7.2m Dump Truck | 8x4 / 375hp / China V | From $49,472 | |
| Beiben NG80B Heavy Truck 375hp 8X4(12 wheels) 7m Dump Truck | 8x4 / 375hp / China V | From $49,333 | |
| Beiben NG80B Heavy Truck 375hp 8X4(12 wheels) 6.8m Dump Truck | 8x4 / 375hp / China V | From $49,333 | |
| Beiben NG80B Heavy Truck 375 hp 8X4(12 wheels) 6.5m Dump Truck | 8x4 / 375hp / China V | From $49,194 |
Beiben NG80B Heavy Truck 375hp 8X4(12 wheels) 7.2m Dump Truck
EXW
From $49,472
Export quote
Beiben NG80B Heavy Truck 375hp 8X4(12 wheels) 7m Dump Truck
EXW
From $49,333
Export quote
Beiben NG80B Heavy Truck 375hp 8X4(12 wheels) 6.8m Dump Truck
EXW
From $49,333
Export quote
Beiben NG80B Heavy Truck 375 hp 8X4(12 wheels) 6.5m Dump Truck
EXW
From $49,194
Export quote
Series Specs
Basic Info
Model code (announced): ND3310DD5J6Z08 / ND3250BD5J6Z12 / ND3250BD5J6Z10 / ND5250ZLJZ13 / ND3250BD5J6Z09 / ND3250BD5J6Z01 / ND3250BD5J6Z00 / ND3250BD5J6Z08 / ND3250BD5J6Z07 / ND3310DD5J6Z05 / ND3310DD5J6Z02 / ND5250ZLJZ11 / ND3310DD5J6Z04 / ND3310DD5J6Z00
Drive type: 8X4 / 6X4
Wheelbase: 1950+3750+1350 / 1950+3450+1350 / 1950+3150+1350 / 4150+1350 / 3850+1350 / 4750+1450 / 3800+1450 / 4400+1450 / 4100+1450 / 1950+4300+1450 / 1950+3900+1450 / 1950+3700+1450 / 1950+3400+1450 / 1950+3100+1450 / 4450+1450 / 4300+1450mm
Engine Model: WeichaiWP10H375E50 / WeichaiWP12.375E50 / WeichaiWP10.350E53 / WeichaiWP10NG336E51 / WeichaiWP12NG380E51
Transmission Model: Fast Gear12JSD180T / Fast Gear12JS200T / Fast Gear12JS160T / Fast Gear12JS160 / Fast Gear10JSD160 / Fast Gear10JSD180 / Fast Gear12JSD / Fast Gear12JSD200T
Rear Axle Ratio: 5.263 / 5.921 / 4.2
Cab length: 10.555 / 10.475 / 10.375 / 9.975 / 9.605 / 8.825 / 8.575 / 9.675 / 8.375 / 9.175 / 8.955 / 8.695 / 8.905 / 8.555 / 11.125 / 10.855 / 10.485 / 8.45 / 8.35 / 10.205 / 9.505 / 9.305m
Cab width: 2.55 / 2.5m
Cab height: 3.484 / 3.43m
Front track width: 2004/2004 / 2004 / 2042/2042mm
rear track: 1874/1874 / 1878/1878mm
Curb Weight: 15.5 / 15.4 / 15.3 / 15.2 / 12.45 / 12.35 / 12.26 / 12.28 / 12.3 / 12.11 / 15.08 / 14.87 / 14.77 / 15.28ton
Rated payload: 15.37 / 15.57 / 15.67 / 12.42 / 12.52 / 12.61 / 12.59 / 12.57 / 12.505 / 12.76 / 15.79 / 16 / 16.1 / 15.525ton
GVWR: 31 / 25ton
Origin: Baotou, Inner Mongolia
tonnage class: Heavy truck
Approach angle: 17 / 26°
departure angle: 36 / 35 / 25 / 14 / 16 / 15 / 24 / 28°
Remarks: QH50 PTO, optional 13T Beiben double reduction axle 5.921 / QH50 PTO, optional ratio 5.921 / QH50 PTO
Version: LNG Edition
Energy Type: Diesel / LNG (liquefied natural gas)
Engine parameters
Engine Brand: Weichai
Number of cylinders: 6cylinder
Displacement: 9.5 / 11.596 / 9.726L
Emission standard: China V / China V (Beijing)
Max output power: 276 / 257 / 247 / 280kW
Max hp: 375 / 350 / 336 / 380Horsepower
Max torque: 1800 / 1600 / 1450 / 1700N·m
Max torque speed: 1000-1400 / 1200-1600 / 1200-1500rpm
Rated speed: 1900rpm
Engine Type: Electronic high-pressure common rail + SCR / Inline, water-cooled, six-cylinder, electronically controlled high-pressure common rail SCR / Inline 6-cylinder, 4-stroke, single-point injection + oxidation catalyst / Single-point injection + oxidation catalyst / Inline, water-cooled, six-cylinder, electronically controlled high-pressure common rail + SCR
Transmission Parameters
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12 / 10Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum housing
Cargo box parameters
Unloading Type: Rear-dump body / Dump type
Cargo box type: U-shaped box / Rear-dump body / Dump type
Cargo box length: 7.4 / 7.2 / 7 / 6.8 / 6.5 / 5.8 / 5.6 / 6 / 6.2 / 8.2 / 8 / 5.4m
Cargo box width: 2.35 / 2.3m
FAQ
What kind of truck is Beiben Truck Beiben NG80 Heavy Truck Dump Trucks?
Beiben Truck Beiben NG80 Heavy Truck is an export-oriented Dump Trucks lineup with about 179 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Beiben NG80 Heavy Truck Dump Trucks?
Beiben NG80 Heavy Truck Dump Trucks export reference is about $43,069 – $62,333. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Beiben NG80 Heavy Truck Dump Trucks cover?
Beiben NG80 Heavy Truck Dump Trucks mainly covers: Drive: 8x4; Horsepower: 375 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Beiben NG80 Heavy Truck Dump Trucks?
For Beiben NG80 Heavy Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Beiben NG80 Heavy Truck Dump Trucks include?
Beiben NG80 Heavy Truck Dump Trucks currently lists about 179 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Beiben NG80 Heavy Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
