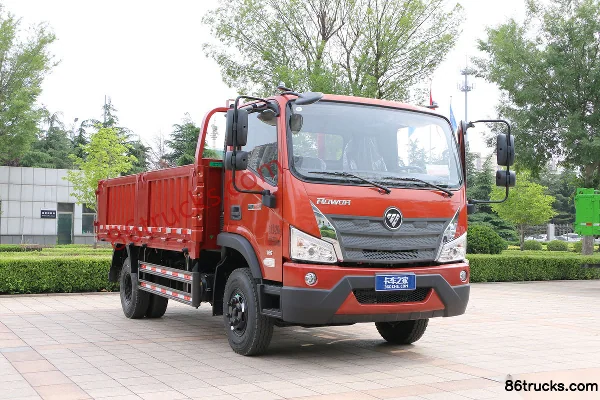

Foton Ruowo ES3 160hp 4X2(6 wheels) 4.15m Dump Truck
EXW
From $23,333
Export quote
Foton ES3 Light Truck Dump Trucks
Main model photos
234 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton Ruowo ES3 160hp 4X2(6 wheels) 4.15m Dump Truck | 4x2 / 160hp / China V | From $23,333 | |
| Foton Ruivo ES3 200 hp 4X2(6 wheels) 4m Dump Truck | 4x2 / 200hp / China VI | From $25,389 | |
| Foton Ruivo ES3 190 hp 4X2(6 wheels) 4m Dump Truck | 4x2 / 190hp / China VI | From $27,153 | |
| Foton Ruowo ES3 190hp 4X2(6 wheels) 4m dump truck (China VI) | 4x2 / 190hp / China VI | From $29,861 | |
| Foton Ruowo ES3 131 hp 4X2(6 wheels) 3.4m dump truck (China VI) | 4x2 / 131hp / China VI |
Foton Ruivo ES3 200 hp 4X2(6 wheels) 4m Dump Truck
EXW
From $25,389
Export quote
Foton Ruivo ES3 190 hp 4X2(6 wheels) 4m Dump Truck
EXW
From $27,153
Export quote
Foton Ruowo ES3 190hp 4X2(6 wheels) 4m dump truck (China VI)
EXW
From $29,861
Export quote

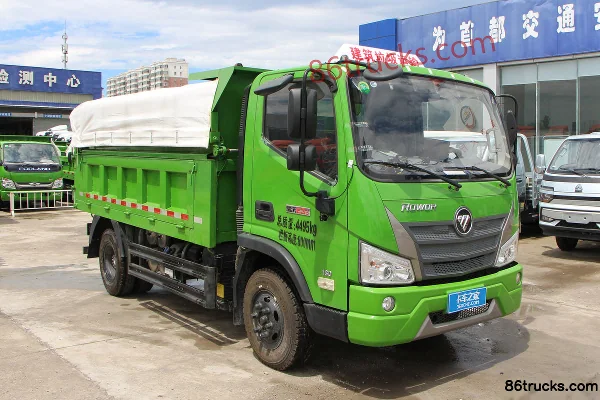

Foton Ruowo ES3 131 hp 4X2(6 wheels) 3.4m dump truck (China VI)
EXW
Export quote
Series Specs
Basic Info
Model code (announced): BJ3103DGJEA-FB / BJ3184DKPFA-01 / BJ3184DLPEA-01 / BJ3044D9JDA-01 / BJ3143DJPED-AB / BJ3163DKPED-AC / BJ3164DJPFA-01 / BJ3243DMPFB-FA / BJ3243DMPFB-FC / BJ3243DMPFB-FB / BJ3243DMPFB-FD / BJ3244DMPFB-01 / BJ3183DKPEA-FB / BJ3043D8PEA-FB / BJ3103DEPDA-FB / BJ3043D9JDA-FA / BJ3163DJPEA-FC / BJ3043D8PDA-FB
Drive type: 4X2 / 6X2
Wheelbase: 3460 / 3400 / 3200 / 3950 / 4300 / 3700 / 1800+2600 / 1800+3800 / 1800+3900 / 1800+3000 / 3300mm
Engine Model: YuchaiYC4S160-50 / YuchaiYCS04200-68 / WeichaiWP4.1NQ190E61 / FotonF3.8NS6B190 / FotonF2.8NS6B131 / YuchaiYC4S170-50 / YuchaiYC4EG220-50 / WeichaiWP4.6NQ220E61 / FotonISF3.8s5154 / YuchaiYC4FA120-50 / WeichaiWP3.7Q130E50
Transmission Model: Fast Gear8JS75TE / Fast Gear8JS85F / 8-speed gearbox / WLY7TS40 / Fast Gear10JS90A-B / Fast Gear 10-Speed / Fast Gear10JS90 / WLYWLY545ZHF / Jinhua Tangchi 545ZHF / Fast Gear 8-speed
Rear Axle Ratio: 5.571 / 5.286 / 5.833 / 4.33 / 6.167 / 6.833 / 6.33
Cab length: 5.995 / 6.285 / 5.41 / 5.71 / 7.415 / 5.61 / 6.635 / 7.41 / 9.2 / 9.42 / 7.21 / 6.485 / 7.35 / 6.35 / 5.795 / 5.965 / 6.44 / 6.7 / 5.84 / 6.59m
Cab width: 2.55 / 2.41 / 2.2 / 2.13 / 2.51 / 2.31 / 2.3 / 2.45 / 2.5 / 2.43 / 2.4 / 2.1/2.2 / 2.35 / 1.99 / 2.18 / 2060 / 1880m
Cab height: 2.57 / 2.725 / 2.75 / 2.4 / 2.67 / 2.69 / 2.8 / 2.95 / 2.7 / 3.4 / 2.55 / 2.56 / 2.3 / 2.54 / 2.79m
Front track width: 1795 / 1740 / 1760 / 1586 / 1830 / 1800 / 1755 / 1760/1760 / 1797 / 1650 / 1759,1797 / 1759mm
rear track: 1800 / 1755 / 1740 / 1625 / 1812 / 1864 / 1720 / 1728 / 1634 / 1669 / 1600mm
Curb Weight: 5.3 / 7.81 / 5.8 / 2.72 / 6.4 / 7.2 / 7.615 / 8.8 / 9.2 / 9.9 / 9.5 / 7.9 / 2.6 / 5.05 / 8.5ton
Rated payload: 4.505 / 9.995 / 12 / 1.58 / 7.465 / 8.805 / 7.99 / 14.63 / 14.705 / 14.405 / 16.005 / 15.305 / 9.9 / 1.495 / 4.755 / 9.3ton
GVWR: 10 / 18 / 17.995 / 4.495 / 14.06 / 16.2 / 15.8 / 24.5 / 4.29ton
Origin: Shandong Zhucheng / Beijing
tonnage class: Light Truck / Medium-duty truck / Heavy truck
Approach angle: 20 / 19 / 21 / 17°
departure angle: 19 / 18 / 21 / 15 / 16 / 17 / 12 / 13°
Remarks: Power steering, clutch booster, hydraulic damping seat / Optional rear axle ratio 153/5.571, power steering, clutch assist, hydraulic suspension seat / MP3, adjustable steering wheel, electronic engine stop, selectable ratio 6.33, optional 153 rear axle with ratio 5.571 / Urban Construction Engineering Truck / Power steering, clutch booster, optional A/C, metallic paint, power windows / A/C optional, power steering, clutch booster, heavy-duty cargo body with canopy, three-way drop sides, grid pattern, straight canopy, channel steel floor frame, full channel steel side panels, double longitudinal beams, non-overhanging four-way flip, single-side through shaft, channel steel rear posts, rear door with center-opening side gate
Version: Heavy-duty type
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai / Weichai / Foton
Number of cylinders: 4cylinder
Displacement: 3.767 / 4.16 / 4.088 / 3.8 / 2.78 / 4.73 / 4.6 / 3.76 / 2.982 / 3.66L
Emission standard: China V / China VI
Max output power: 118 / 147 / 140 / 96 / 125 / 160 / 162 / 115 / 88kW
Max hp: 160 / 200 / 190 / 131 / 170 / 220 / 154 / 120 / 130Horsepower
Max torque: 550 / 720 / 680 / 700 / 310 / 600 / 800 / 491 / 320 / 380N·m
Max torque speed: 1300-1800 / 1200-1600 / 1300-1900 / 1300-1700 / 1100-2800 / 1200-1800 / 1200-1900 / 1600-2400 / 1400-1800rpm
Rated speed: 2600 / 2300 / 2900 / 2500 / 3200rpm
Engine Type: Vertical, inline, water-cooled, four-stroke / High-pressure common rail + EGR + DOC + DPF + SCR + ASC / High-pressure common rail, EGR+DOC+DPF+SCR / Vertical, inline, water-cooled, four-stroke, high-pressure common rail / 4-valve, high-pressure common rail, turbocharged intercooled, EGR+DPF+DOC+SCR / Electronically controlled high-pressure common rail / Common Rail+SCR
Transmission Parameters
Transmission Brand: Fast Gear / WLY / Jinhua Tangchi
shift method: Manual
Forward gears: 8 / 7 / 10 / 5Gear
Number of Reverse Gears: 2 / 1pcs
Cargo box parameters
Seal cover type: none
Unloading Type: Dump type / Rear-dump body
Cargo box type: square box / Dump type / Rear-dump body
Cargo box length: 4.15 / 4 / 3.4 / 3.6 / 4.85 / 5.2 / 4.35 / 4.8 / 6.8 / 4.6 / 4.2 / 3.75 / 3.8 / 4.18m
Body Parameters
Lifting type: Construction top / Front lift with rear dump / Front lift cylinder
FAQ
What kind of truck is Foton Foton ES3 Light Truck Dump Trucks?
Foton Foton ES3 Light Truck is an export-oriented Dump Trucks lineup with about 41 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Foton ES3 Light Truck Dump Trucks?
Foton ES3 Light Truck Dump Trucks export reference is about $18,667 – $38,889. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Foton ES3 Light Truck Dump Trucks cover?
Foton ES3 Light Truck Dump Trucks mainly covers: Drive: 4x2; Horsepower: 131 hp / 160 hp / 190 hp / 200 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Foton ES3 Light Truck Dump Trucks?
For Foton ES3 Light Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Foton ES3 Light Truck Dump Trucks include?
Foton ES3 Light Truck Dump Trucks currently lists about 41 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Foton ES3 Light Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
