Foton Ruowo ES3 131 hp 4X2(6 wheels) 3.4m dump truck (China VI)

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Transmission: WLY
Curb Weight:: 2.72ton
Wheelbase:: 3200mm
Tire Size:: 7.50R16LT 8PR
Rated payload: 1.58ton
Drive 4X2 (6 wheels)
Horsepower 131
Cargo box type: Dump type

Overview

The Foton Ruowo ES3 131 hp 4X2(6 wheels) 3.4m dump truck (China VI) is a Light Truck featuring 1.58t payload, 4.495t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a FotonF2.8NS6B131 engine, 131 hp, China VI emissions and WLY transmission.

China VI 131 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ3044D9JDA-01
Drive type: 4X2
Wheelbase: 3200mm
engine: FotonF2.8NS6B131
transmission: WLY7TS40
Rear Axle Ratio: 5.286
Cab length: 5.41m
Cab width: 2.2m
Cab height: 2.4m
Front track width: 1586mm
rear track: 1625mm
Curb Weight: 2.72ton
Rated payload: 1.58ton
GVWR: 4.495ton
Origin: Shandong Zhucheng
tonnage class: Light Truck
Approach angle: 19°
departure angle: 21°
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonF2.8NS6B131
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.78L
Emission standard: China VI
Max output power: 96kW
Max hp: 131Horsepower
Max torque: 310N·m
Max torque speed: 1100-2800rpm
Rated speed: 2900rpm
Transmission Parameters
Transmission Model: WLY7TS40
Transmission Brand: WLY
Forward gears: 7Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.4m
Cargo box width: 2m
Cargo box height: 0.8m
Body Parameters
Lifting type: Construction top
Cab parameters
Cab: Foton Ruiwo Flat Roof
Cab width: 1880mm
Chassis Specs
Front axle allowable load: 1800kg
Frame Dimensions: 201×65×8+4mm
rear axle description: 1092Z
rear axle allowable load: 2695kg
Axle ratio: 5.286
Leaf spring count: 8/8+5
Tire
Tire Size: 7.50R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration

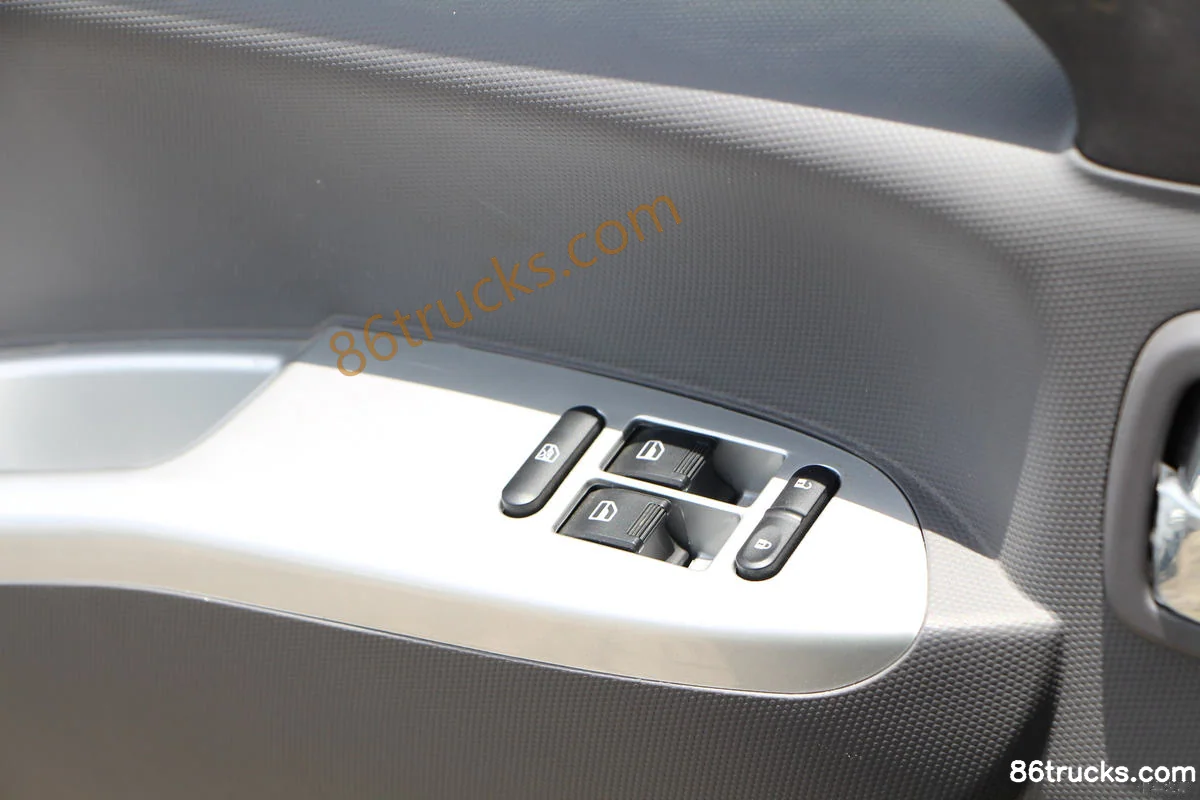

Power Windows:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:

Photos

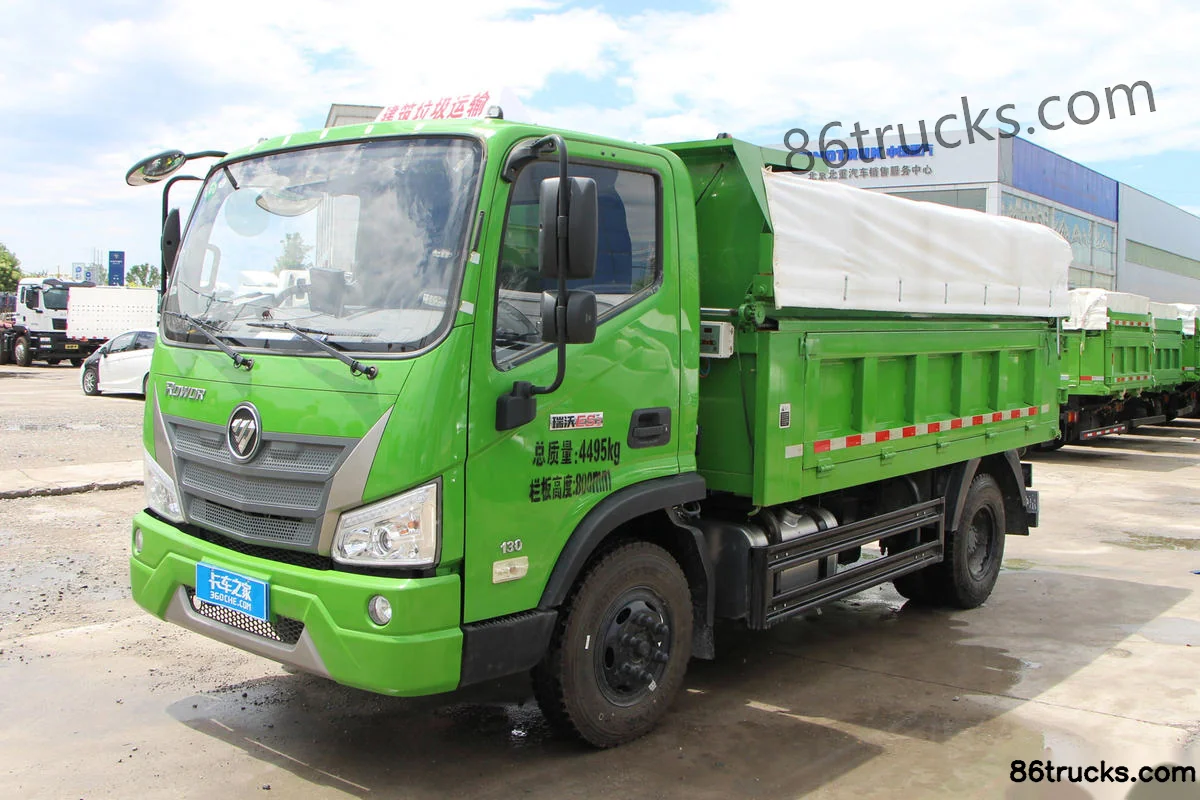

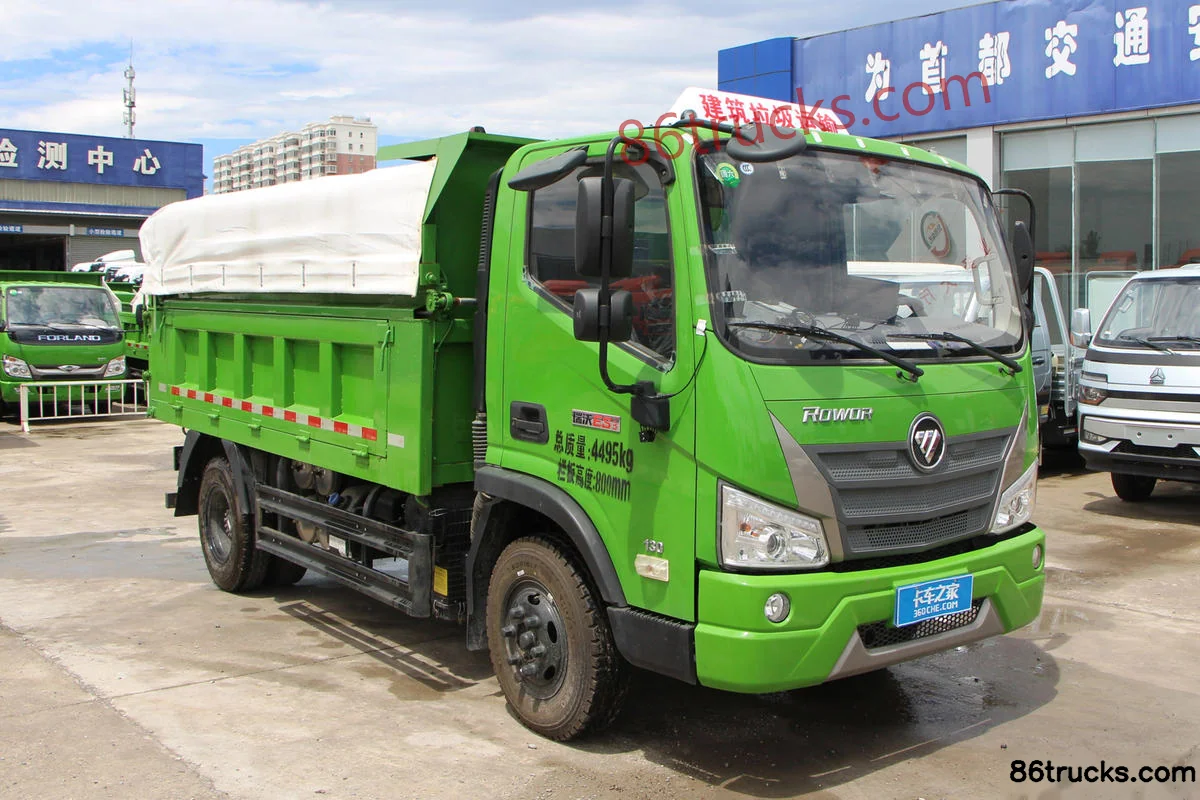

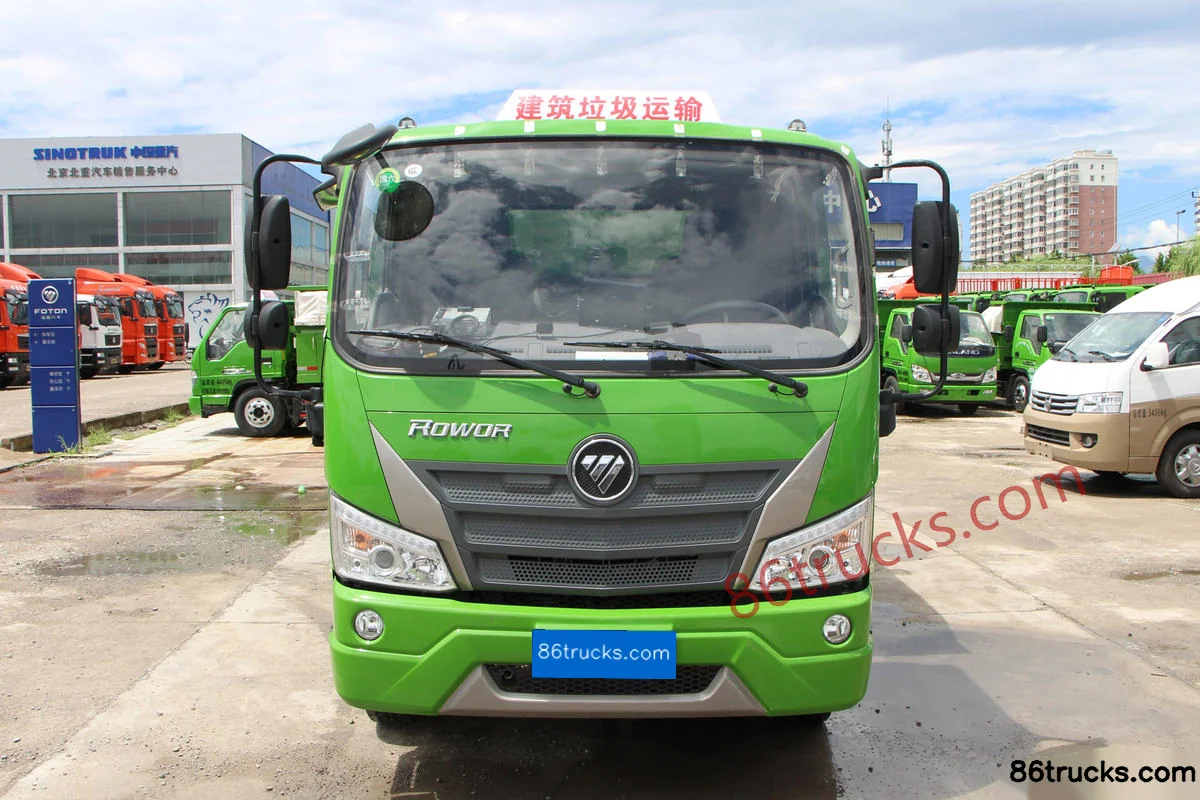

Exterior3

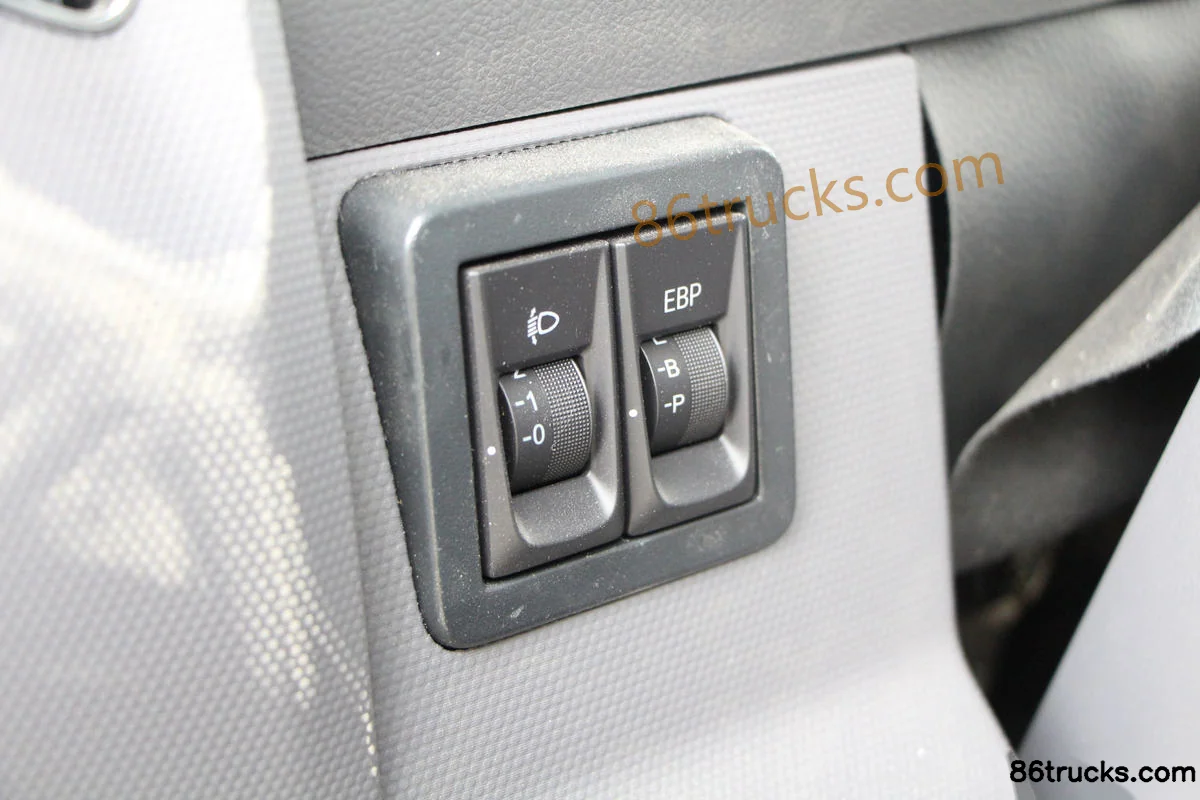

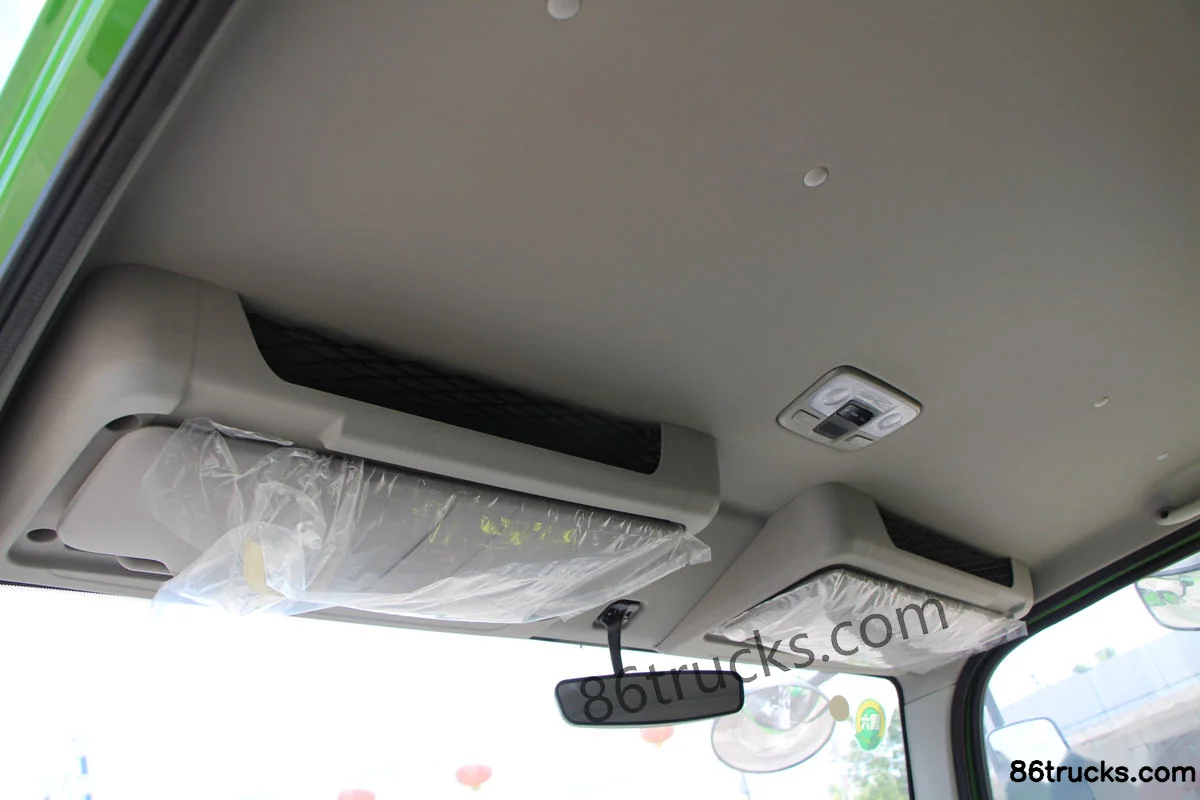

Cab3

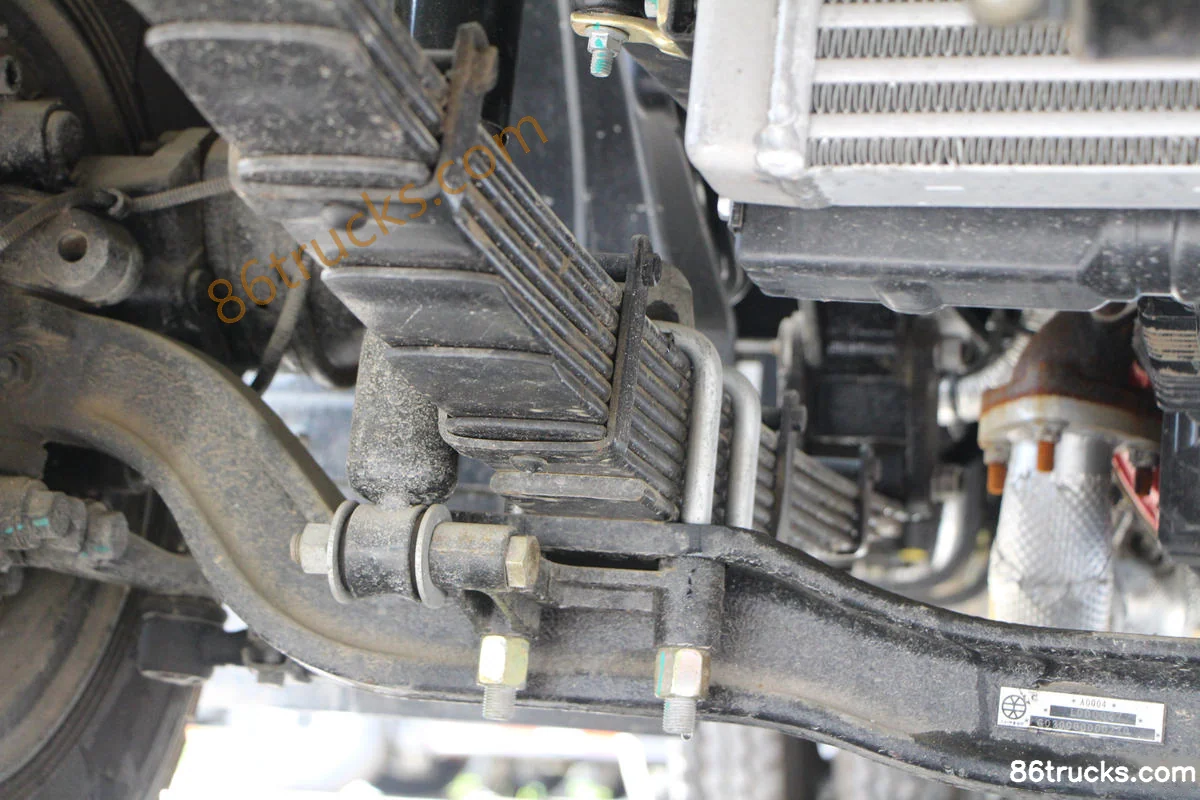

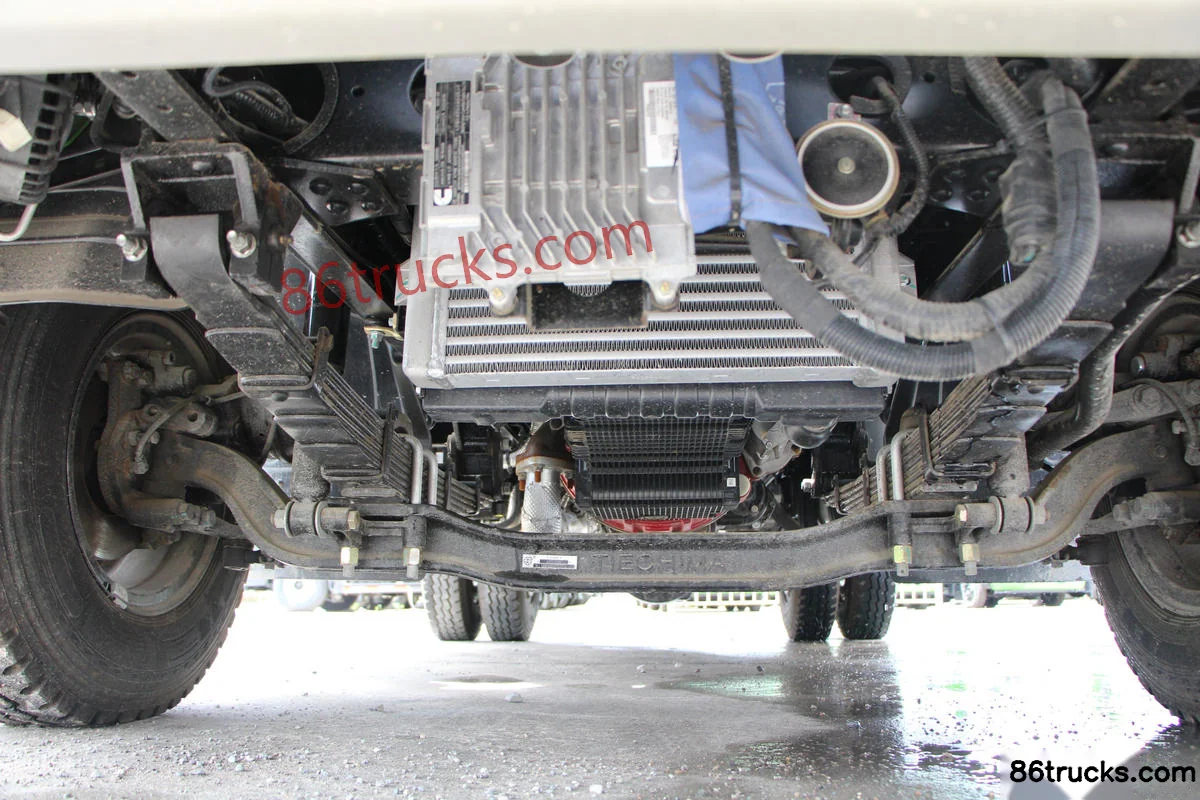

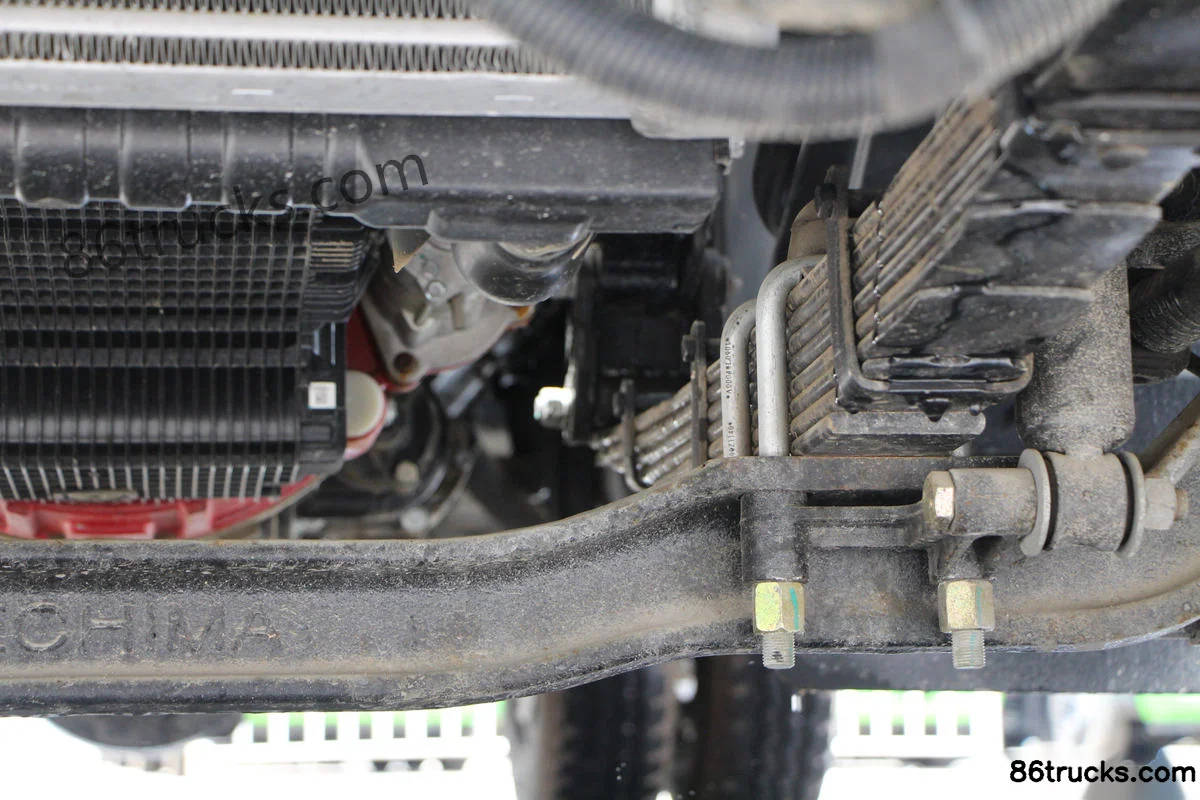

Chassis3

9 photos

FAQ

What emission standard does Foton Ruowo ES3 131 hp 4X2(6 wheels) 3.4m dump truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Ruowo ES3 131 hp 4X2(6 wheels) 3.4m dump truck (China VI)?

Key specs of Foton Ruowo ES3 131 hp 4X2(6 wheels) 3.4m dump truck (China VI): Drive: 4x2; Horsepower: 131 hp; Emission: China VI; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Ruowo ES3 131 hp 4X2(6 wheels) 3.4m dump truck (China VI) suited for?

Foton Ruowo ES3 131 hp 4X2(6 wheels) 3.4m dump truck (China VI) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Foton Ruowo ES3 131 hp 4X2(6 wheels) 3.4m dump truck (China VI) differ from other variants in the same series?

Foton Ruowo ES3 131 hp 4X2(6 wheels) 3.4m dump truck (China VI) belongs to Foton ES3 Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Ruowo ES3 131 hp 4X2(6 wheels) 3.4m dump truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Ruowo ES3 131 hp 4X2(6 wheels) 3.4m dump truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
