Huanghai Truck 130hp 4X2(6 wheels) 6.5m dump truck
EXW
Export quote
Huanghai Auto Huanghai medium truck Dump Trucks
Main model photos
5 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Huanghai Truck 130hp 4X2(6 wheels) 6.5m dump truck | 4x2 / 130hp / China III / Euro III | ||
| Huanghai Truck 125hp 4X2(6 wheels) 5.2m Dump Truck | 4x2 / 125hp / China III / Euro III |

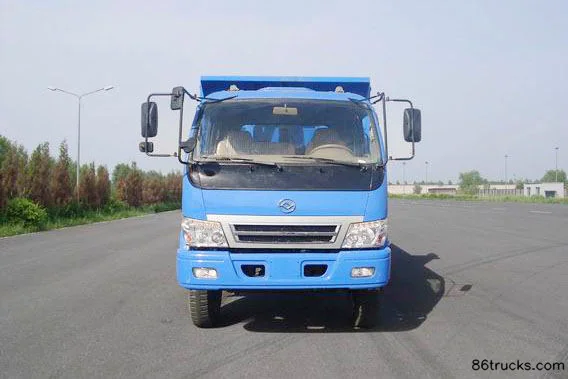

Huanghai Truck 125hp 4X2(6 wheels) 5.2m Dump Truck
EXW
Export quote
Series Specs
Basic Info
Model code (announced): DD3163P01 / DD3140BCK1
Drive type: 4X2
Wheelbase: 5280 / 4150mm
Engine Model: XichaiCA4DF3-13E3F / YangchaiYZ4DB2-30
Transmission Model: Shaochi SC6J53F / SC5D45F
Rear Axle Ratio: 6.5 / 6.83
Cab length: 8.8 / 7.62m
Cab width: 2.38 / 2.3m
Cab height: 2.76 / 2.85m
Front track width: 1750 / 1675mm
rear track: 1750mm
Curb Weight: 6.5 / 6.485ton
Rated payload: 2.2 / 6.9ton
GVWR: 0.6 / 13.58ton
Origin: Dandong, Liaoning
tonnage class: Medium-duty truck
Approach angle: 28°
departure angle: 14 / 21°
Remarks: Material: Q235, Connection: bolted
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai / Yangchai
Number of cylinders: 4cylinder
Displacement: 4.75 / 4.087L
Emission standard: China III / Euro III
Max output power: 96 / 92kW
Max hp: 130 / 125Horsepower
Max torque: 450N·m
Max torque speed: 1300-1500rpm
Rated speed: 2500 / 2600rpm
Engine Type: 4-cylinder inline, direct injection, turbocharged intercooled, inline pump + EGR
Transmission Parameters
Transmission Brand: Shaochi
Forward gears: 6 / 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 6.5 / 5.2m
Cargo box width: 2.2 / 2.08m
Cargo box height: 0.6 / 0.8m
Chassis Specs
rear axle allowable load: 10000 / 9000kg
Leaf spring count: 9/12+8
FAQ
What kind of truck is Huanghai Auto Huanghai medium truck Dump Trucks?
Huanghai Auto Huanghai medium truck is an export-oriented Dump Trucks lineup with about 2 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Huanghai Auto Huanghai medium truck Dump Trucks cover?
Huanghai Auto Huanghai medium truck Dump Trucks mainly covers: Drive: 4x2; Horsepower: 125 hp / 130 hp; Emission: China III / Euro III; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Huanghai Auto Huanghai medium truck Dump Trucks?
For Huanghai Auto Huanghai medium truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Huanghai Auto Huanghai medium truck Dump Trucks include?
Huanghai Auto Huanghai medium truck Dump Trucks currently lists about 2 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Huanghai Auto Huanghai medium truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
