Huanghai Truck 130hp 4X2(6 wheels) 6.5m dump truck

Export reference
MSRP N/A
Emission: China III / Euro III
Fuel: Diesel
Transmission: Shaochi
Curb Weight:: 6.5ton
Wheelbase:: 5280mm
Tire Size:: 9.00-20,10.00-20
Rated payload: 2.2ton
Drive 4X2 (6 wheels)
Horsepower 130
Cargo box type: Dump type

Overview

The Huanghai Auto Huanghai Truck 130hp 4X2(6 wheels) 6.5m dump truck is a Medium-duty truck featuring 2.2t payload, 0.6t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a XichaiCA4DF3-13E3F engine, 130 hp, China III / Euro III emissions and Shaochi transmission.

China III / Euro III 130 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DD3163P01
Drive type: 4X2
Wheelbase: 5280mm
engine: XichaiCA4DF3-13E3F
transmission: Shaochi SC6J53F
Rear Axle Ratio: 6.5
Cab length: 8.8m
Cab width: 2.38m
Cab height: 2.76m
Front track width: 1750mm
rear track: 1750mm
Curb Weight: 6.5ton
Rated payload: 2.2ton
GVWR: 0.6ton
Origin: Dandong, Liaoning
tonnage class: Medium-duty truck
Approach angle: 28°
departure angle: 14°
Remarks: Material: Q235, Connection: bolted
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA4DF3-13E3F
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.75L
Emission standard: China III / Euro III
Max output power: 96kW
Max hp: 130Horsepower
Max torque: 450N·m
Max torque speed: 1300-1500rpm
Rated speed: 2500rpm
Engine Type: 4-cylinder inline, direct injection, turbocharged intercooled, inline pump + EGR
Transmission Parameters
Transmission Model: Shaochi SC6J53F
Transmission Brand: Shaochi
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 6.5m
Cargo box width: 2.2m
Cargo box height: 0.6m
Chassis Specs
rear axle allowable load: 10000kg
Axle ratio: 6.5
Leaf spring count: 9/12+8
Tire
Tire Size: 9.00-20,10.00-20
Number of tires: 6pcs

Photos

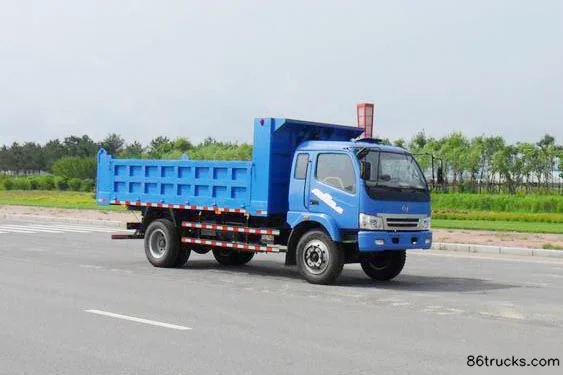

Exterior1

1 photos

FAQ

What emission standard does Huanghai Truck 130hp 4X2(6 wheels) 6.5m dump truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Huanghai Truck 130hp 4X2(6 wheels) 6.5m dump truck?

Key specs of Huanghai Truck 130hp 4X2(6 wheels) 6.5m dump truck: Drive: 4x2; Horsepower: 130 hp; Emission: China III / Euro III; Fuel: Diesel; Transmission: Shaochi. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Huanghai Truck 130hp 4X2(6 wheels) 6.5m dump truck suited for?

Huanghai Truck 130hp 4X2(6 wheels) 6.5m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Huanghai Truck 130hp 4X2(6 wheels) 6.5m dump truck differ from other variants in the same series?

Huanghai Truck 130hp 4X2(6 wheels) 6.5m dump truck belongs to Huanghai medium truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Huanghai Truck 130hp 4X2(6 wheels) 6.5m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Huanghai Truck 130hp 4X2(6 wheels) 6.5m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
