FAW Jiefang Hu V 190 hp 4X2(6 wheels) 5.2m dump truck

Export reference
From $34,278
MSRP ¥24.68M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 6.58ton
Wheelbase:: 4200mm
Tire Size:: 9.00R20 16PR
Rated payload: 9.255ton
Drive 4X2 (6 wheels)
Horsepower 190
Cargo box type: Dump type

Overview

The FAW Jiefang Hu V 190 hp 4X2(6 wheels) 5.2m dump truck is a Light Truck featuring 9.255t payload, 16t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a WeichaiWP4.1NQ190E61 engine, 190 hp, China VI emissions and Fast Gear transmission.

China VI 190 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA3161P40K62L4E6A85
Drive type: 4X2
Wheelbase: 4200mm
engine: WeichaiWP4.1NQ190E61
transmission: Fast Gear8JS75
Cab length: 7.61m
Cab width: 2.4m
Cab height: 2.63m
Front track width: 1751mm
rear track: 1740mm
Curb Weight: 6.58ton
Rated payload: 9.255ton
GVWR: 16ton
Origin: Qingdao/Chengdu
tonnage class: Light Truck
Approach angle: 20°
departure angle: 13°
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP4.1NQ190E61
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.088L
Emission standard: China VI
Max output power: 140kW
Max hp: 190Horsepower
Max torque: 680N·m
Max torque speed: 1300-1900rpm
Rated speed: 2600rpm
Engine Type: High-pressure common rail, EGR+DOC+DPF+SCR
Transmission Parameters
Transmission Model: Fast Gear8JS75
Transmission Brand: Fast Gear
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5.2m
Cargo box width: 2.35m
Cargo box height: 0.8m
fuel tank
Fuel tank material: aluminum alloy
Chassis Specs
Front axle allowable load: 5600kg
rear axle allowable load: 10400kg
Leaf spring count: 10/10+9
Tire
Tire Size: 9.00R20 16PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

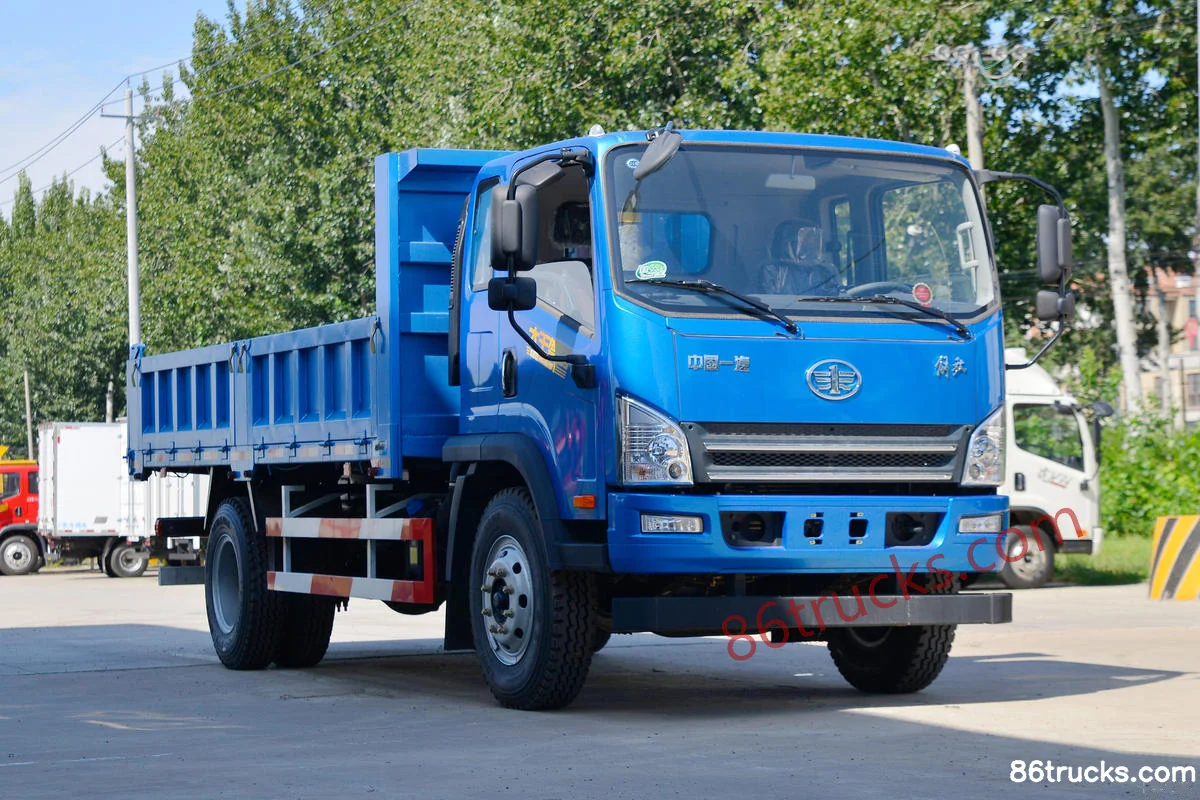

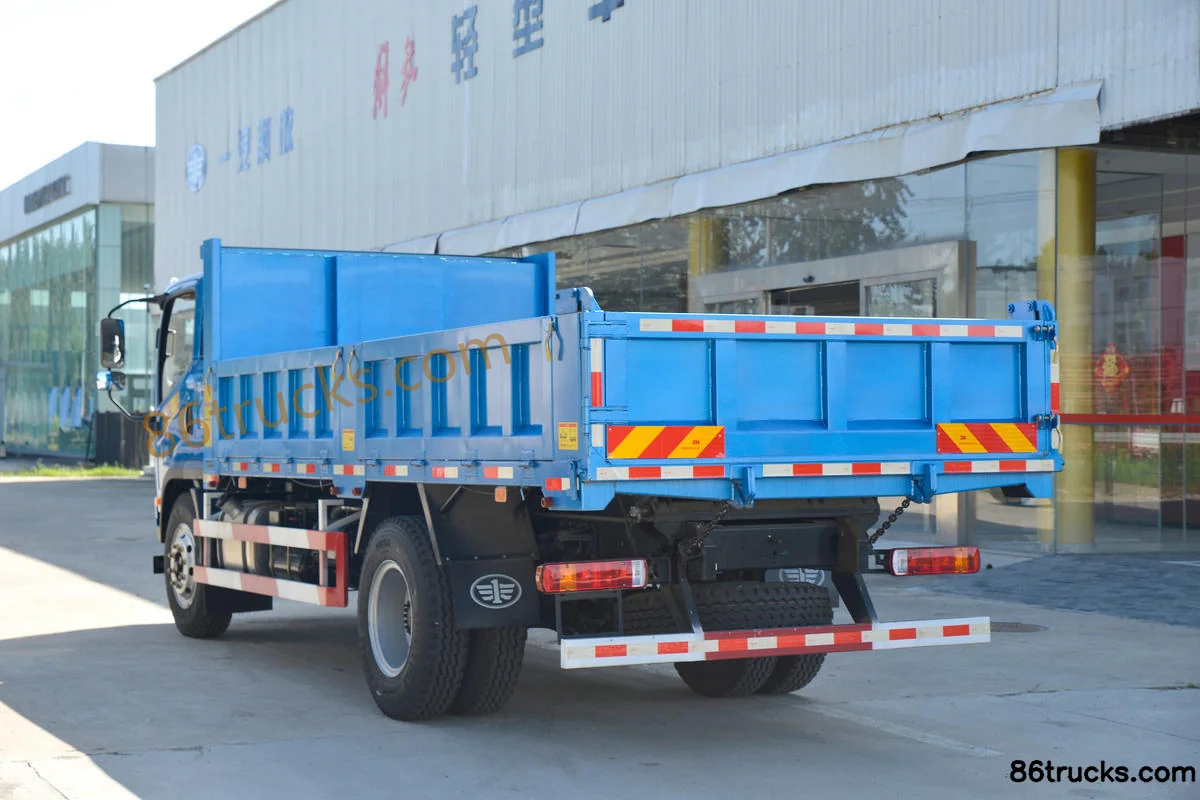

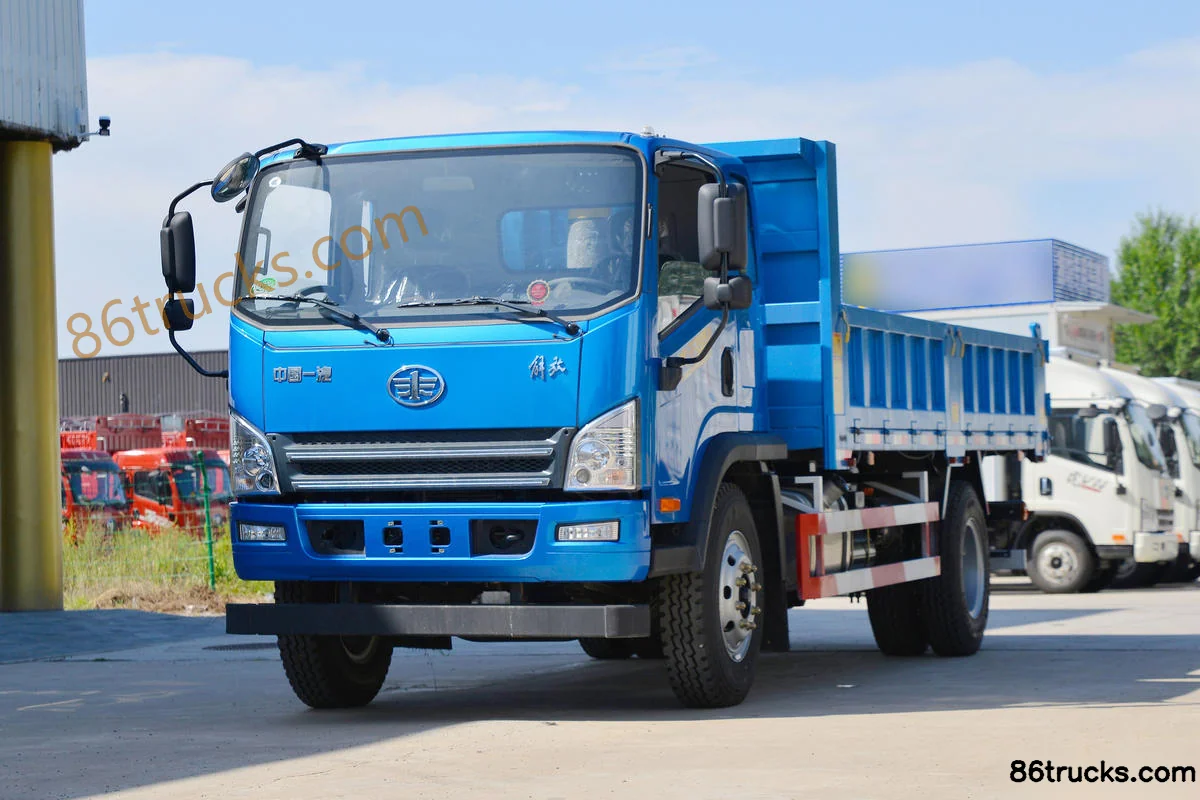

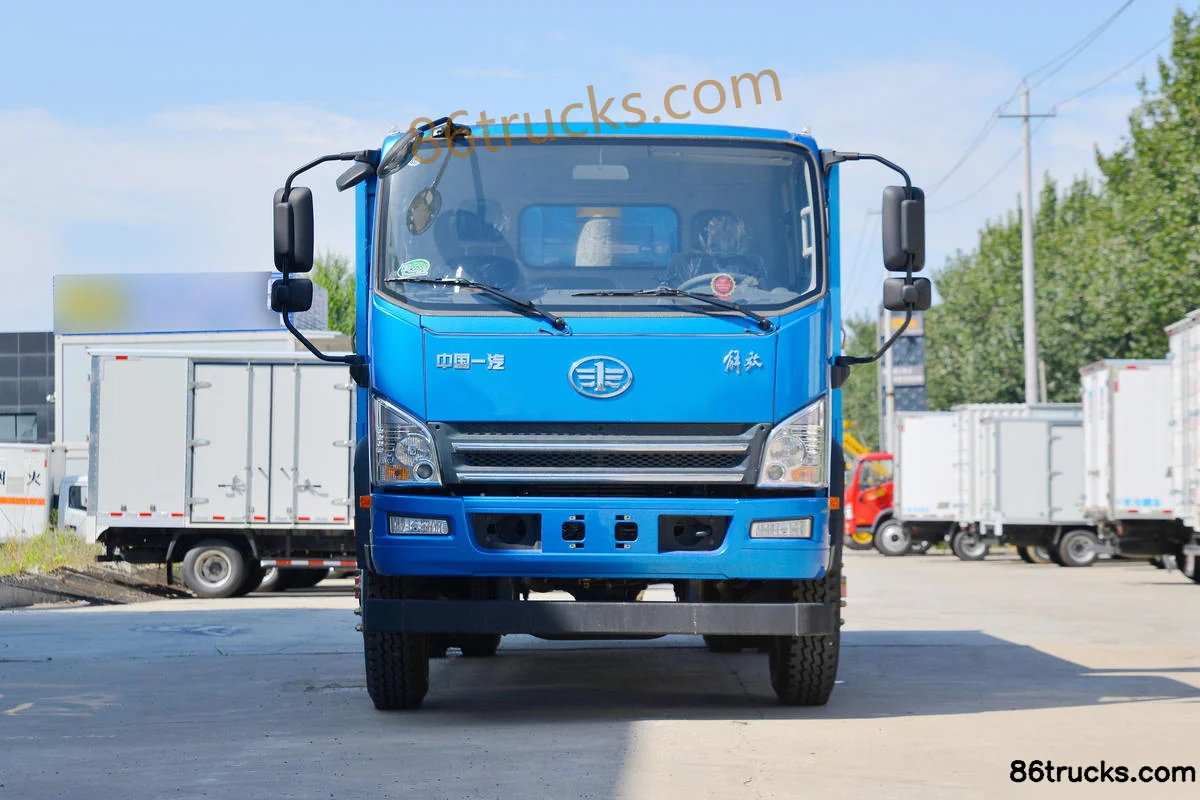

Exterior3

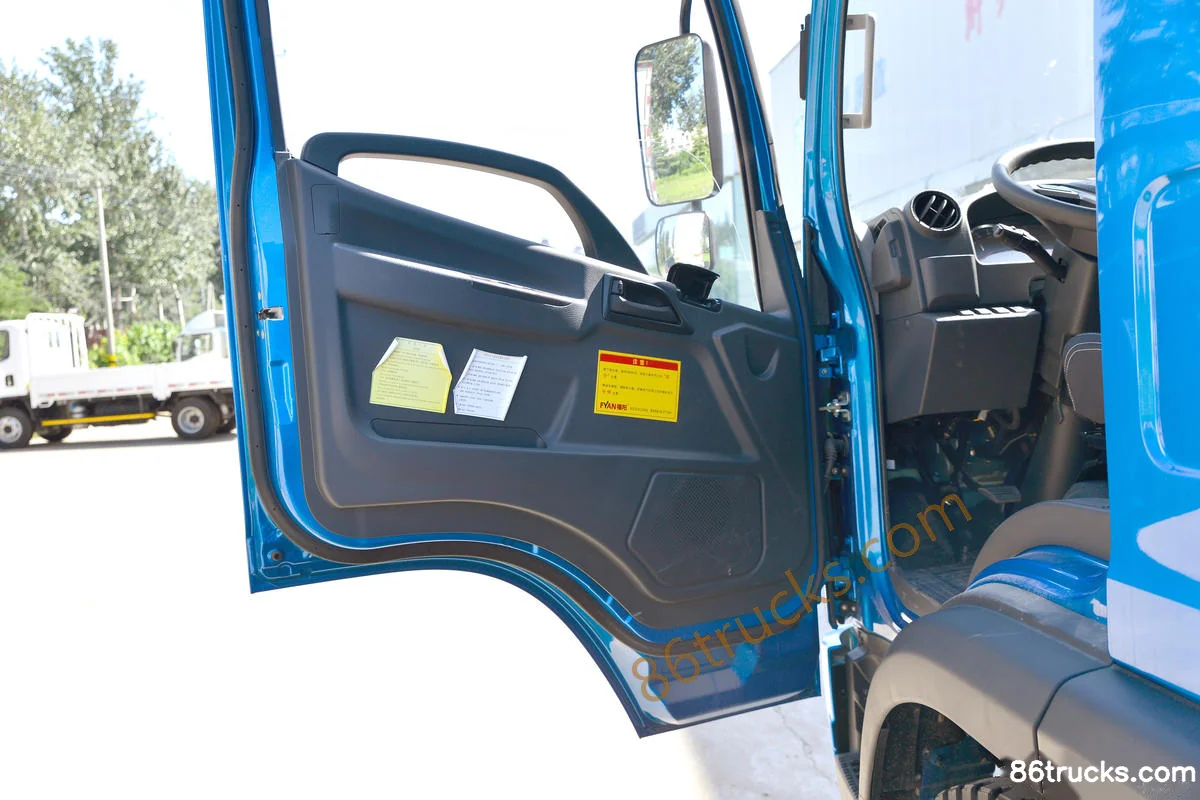

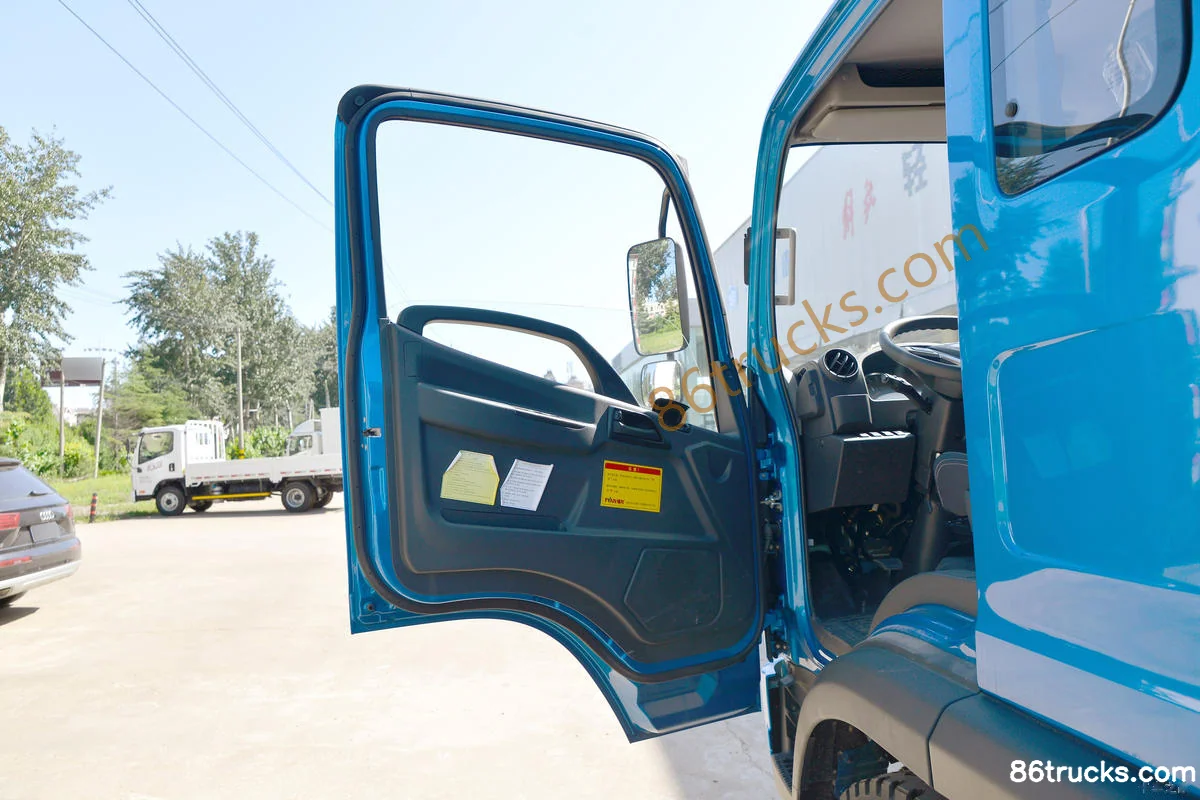

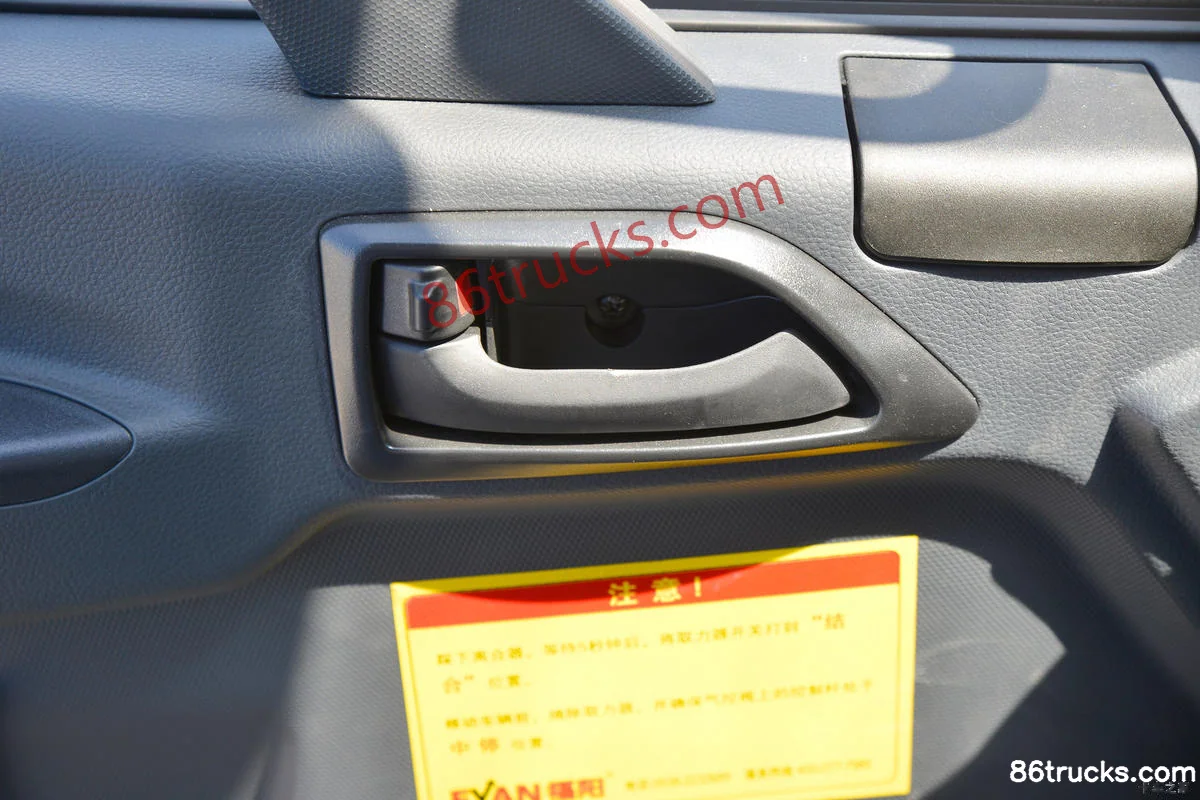

Cab3

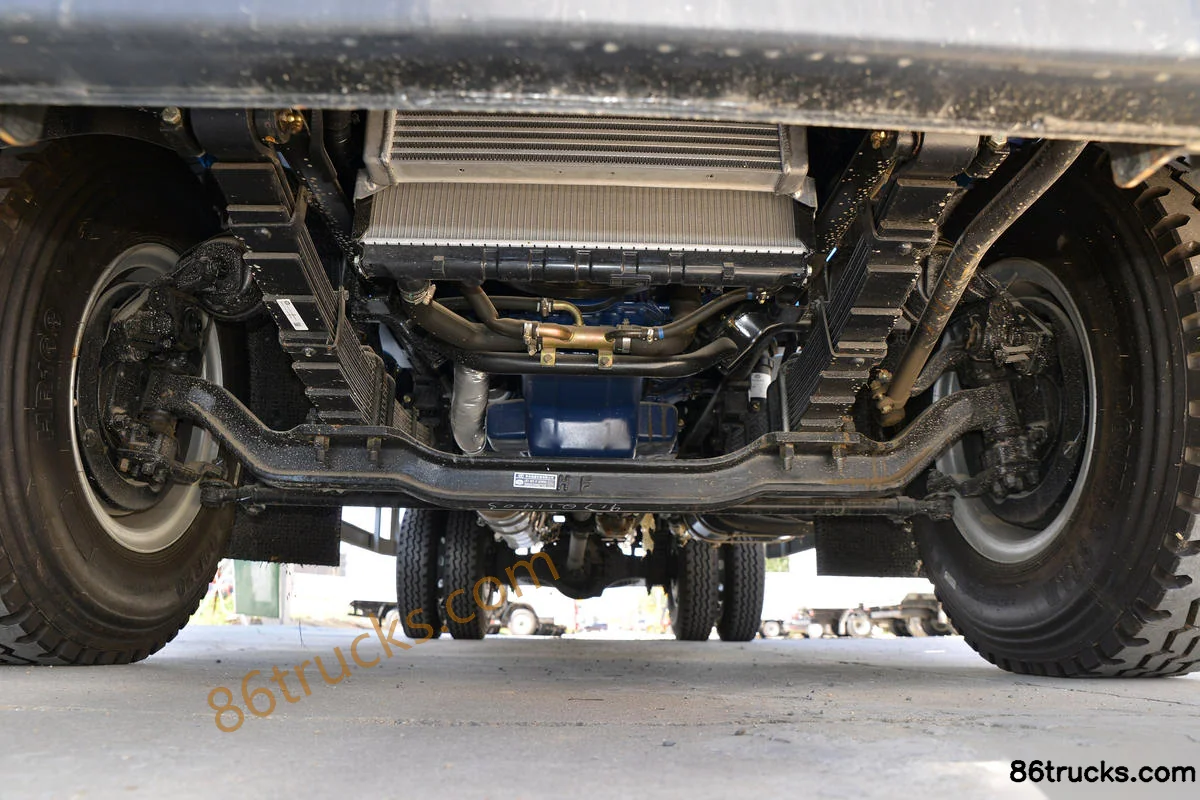

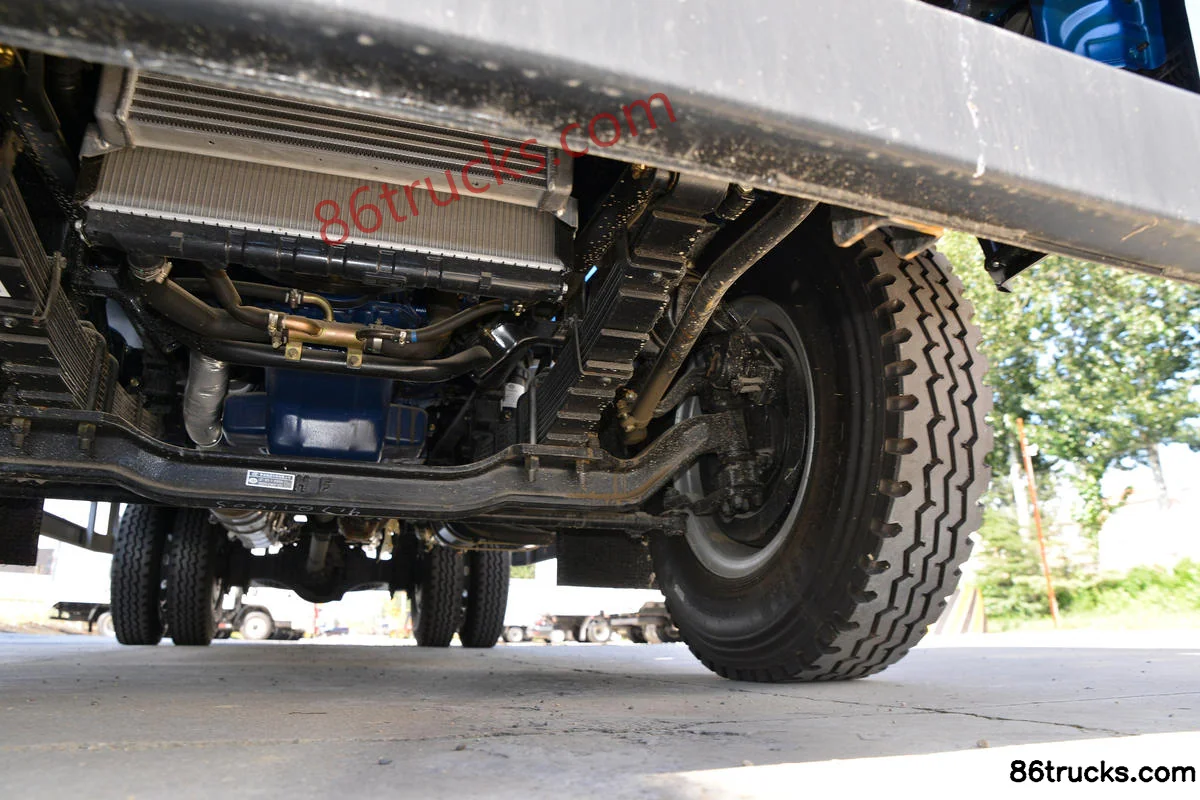

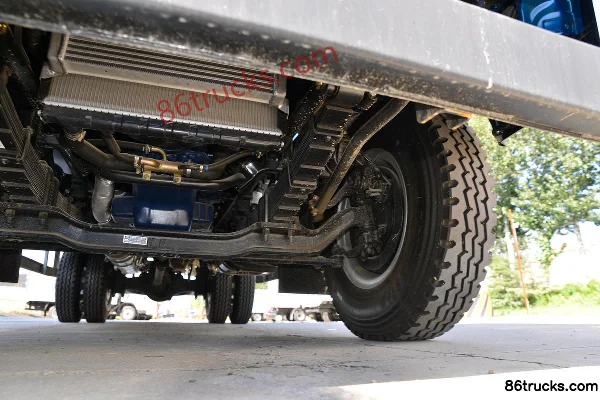

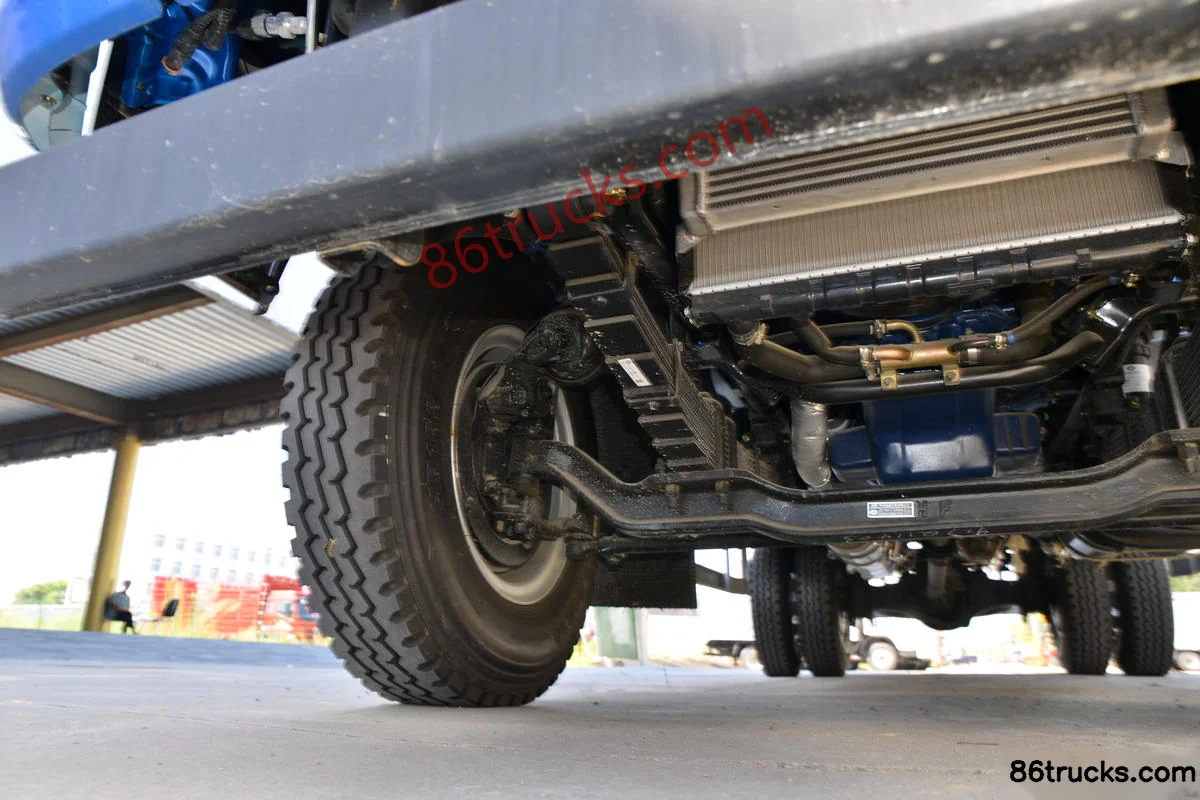

Chassis3

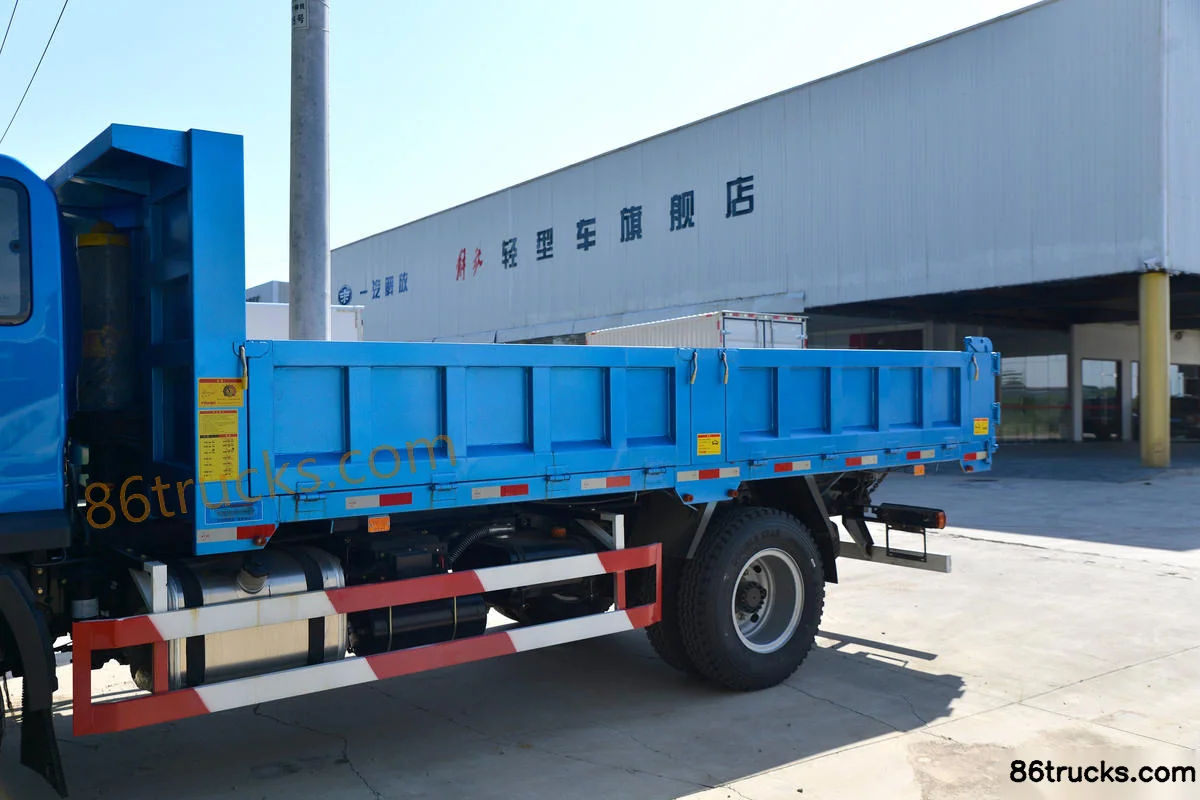

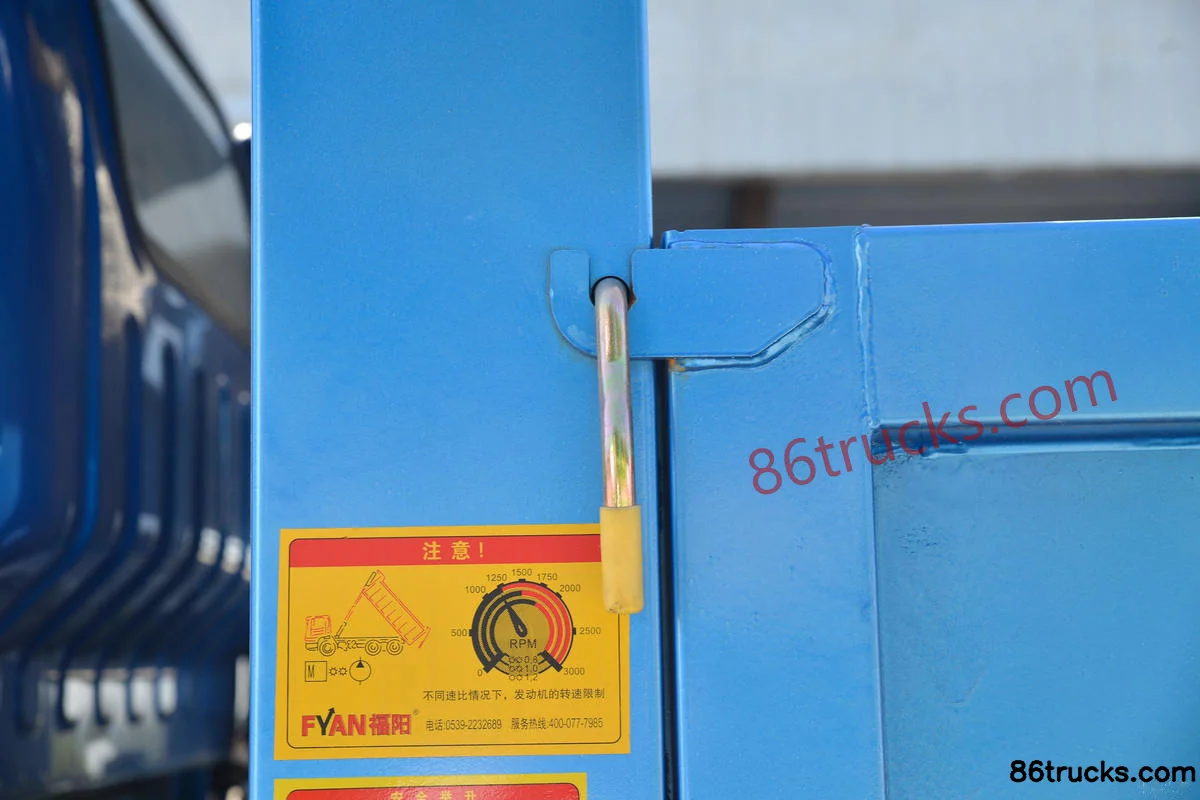

Body3

12 photos

FAQ

What is the export price of FAW Jiefang Hu V 190 hp 4X2(6 wheels) 5.2m dump truck, and what does it include?

FAW Jiefang Hu V 190 hp 4X2(6 wheels) 5.2m dump truck export reference is about From $34,278; MSRP is ¥24.68M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Hu V 190 hp 4X2(6 wheels) 5.2m dump truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Hu V 190 hp 4X2(6 wheels) 5.2m dump truck?

Key specs of FAW Jiefang Hu V 190 hp 4X2(6 wheels) 5.2m dump truck: Drive: 4x2; Horsepower: 190 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Hu V 190 hp 4X2(6 wheels) 5.2m dump truck suited for?

FAW Jiefang Hu V 190 hp 4X2(6 wheels) 5.2m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang Hu V 190 hp 4X2(6 wheels) 5.2m dump truck differ from other variants in the same series?

FAW Jiefang Hu V 190 hp 4X2(6 wheels) 5.2m dump truck belongs to FAW Jiefang Hu V Light-duty Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Hu V 190 hp 4X2(6 wheels) 5.2m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Hu V 190 hp 4X2(6 wheels) 5.2m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
