FAW Jiefang Hu VH 160 hp 4X2(6 wheels) 4.2m Dump Truck (10-speed)

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 8.19ton
Wheelbase:: 3800mm
Tire Size:: 10.00R20 18PR
Rated payload: 9.615ton
Drive 4X2 (6 wheels)
Horsepower 160
Cargo box type: Dump type

Overview

The FAW Jiefang Hu VH 160 hp 4X2(6 wheels) 4.2m Dump Truck (10-speed) is a Light Truck featuring 9.615t payload, 18t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYC4E160-56 engine, 160 hp, China V emissions and Fast Gear transmission.

China V 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA3181P40K62L3E5A90
Drive type: 4X2
Wheelbase: 3800mm
engine: YuchaiYC4E160-56
transmission: Fast Gear 10-Speed
Rear Axle Ratio: 6.5
Cab length: 6.78m
Cab width: 2.4m
Cab height: 2.8m
Front track width: 1770mm
rear track: 1750mm
Curb Weight: 8.19ton
Rated payload: 9.615ton
GVWR: 18ton
Origin: Qingdao/Chengdu
tonnage class: Light Truck
Approach angle: 20°
departure angle: 19°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4E160-56
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.26L
Emission standard: China V
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 600N·m
Max torque speed: 1300-1600rpm
Rated speed: 2600rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Fast Gear 10-Speed
Transmission Brand: Fast Gear
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.2m
Cargo box width: 2.2m
Cargo box height: 0.8m
Cab parameters
Cab: Tiger V flat-top
Chassis Specs
Front axle allowable load: 6500kg
rear axle allowable load: 11500kg
Axle ratio: 6.5
Leaf spring count: 12/10+9

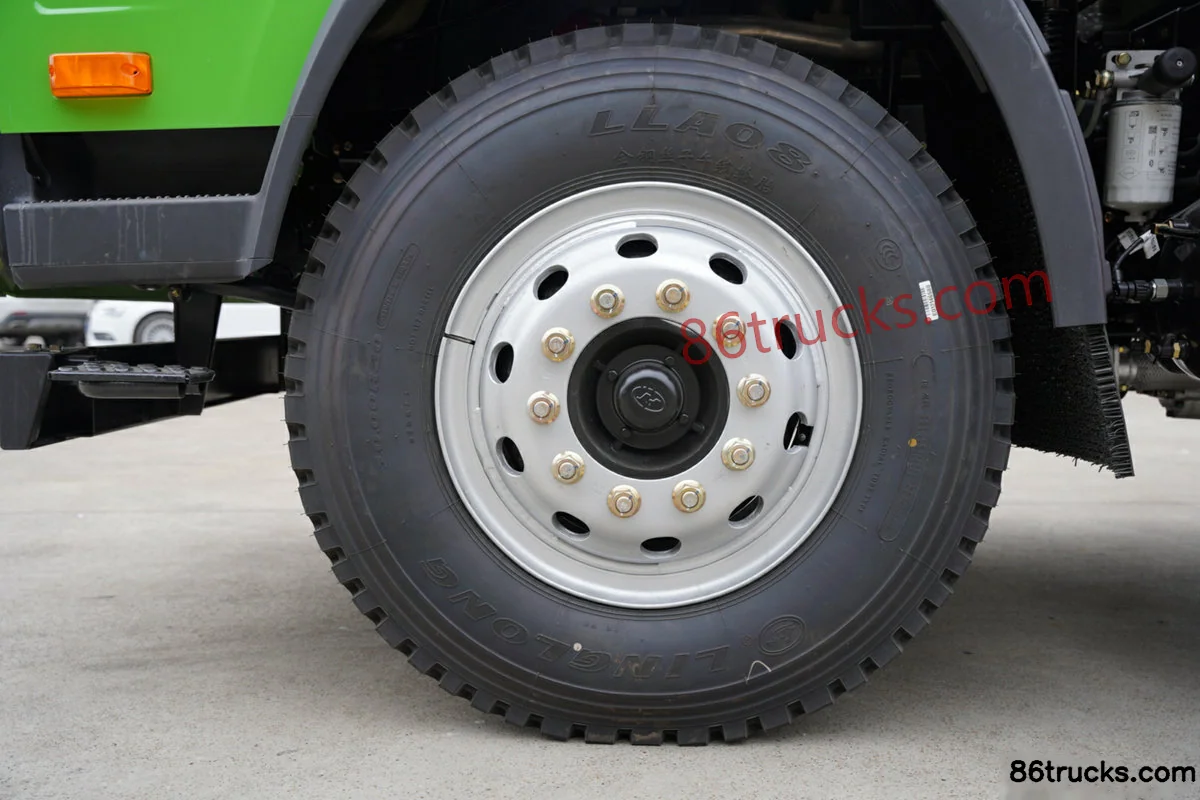

Tire
Tire Size: 10.00R20 18PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

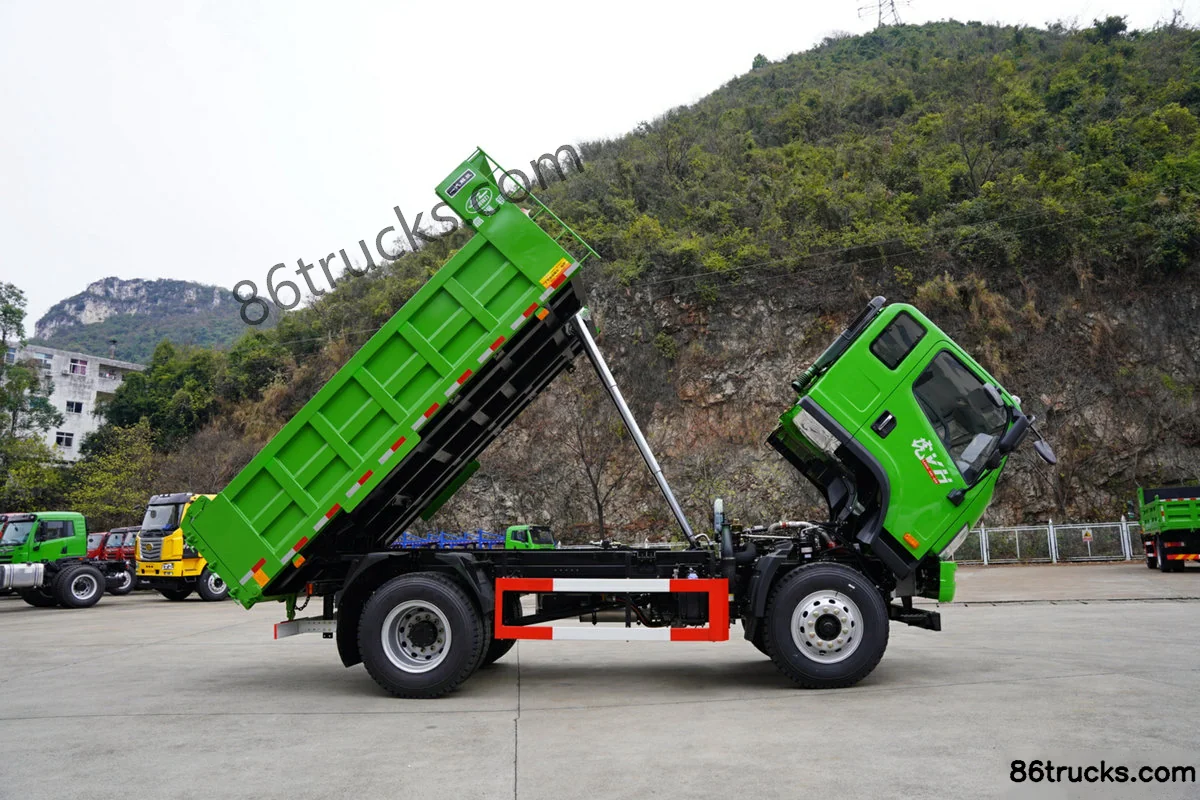

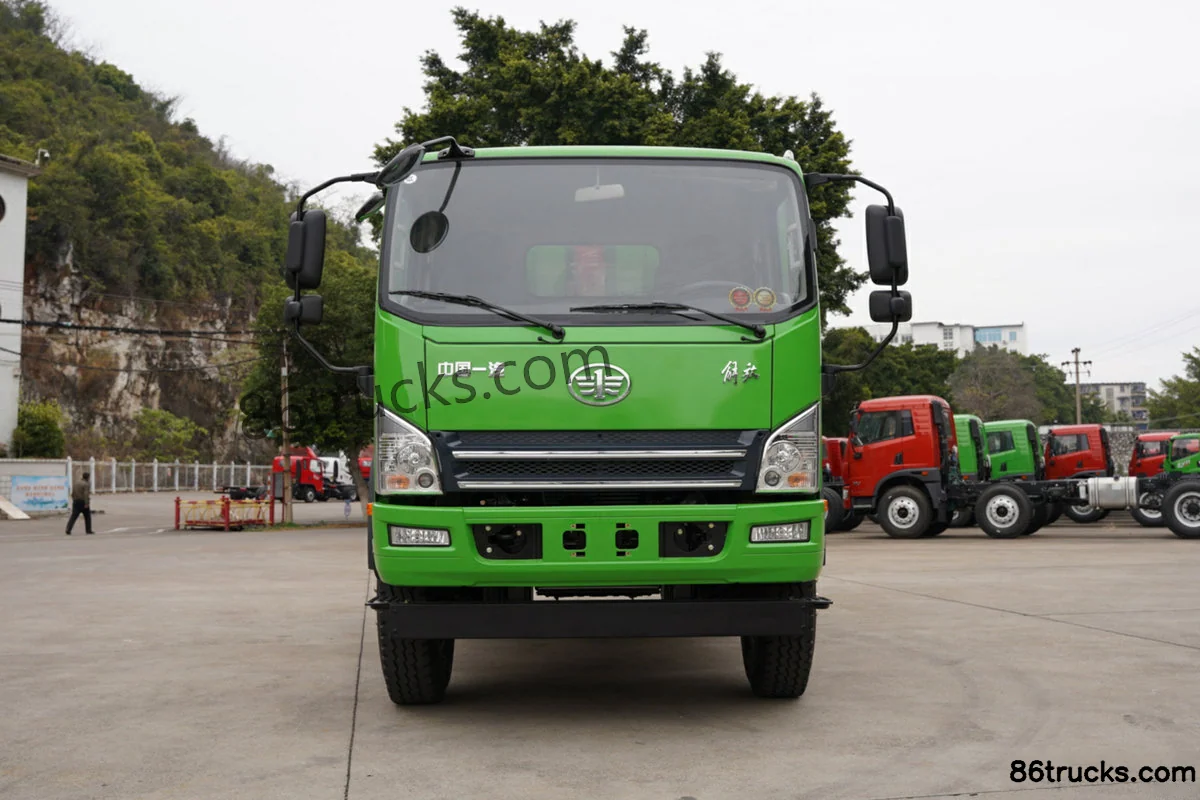

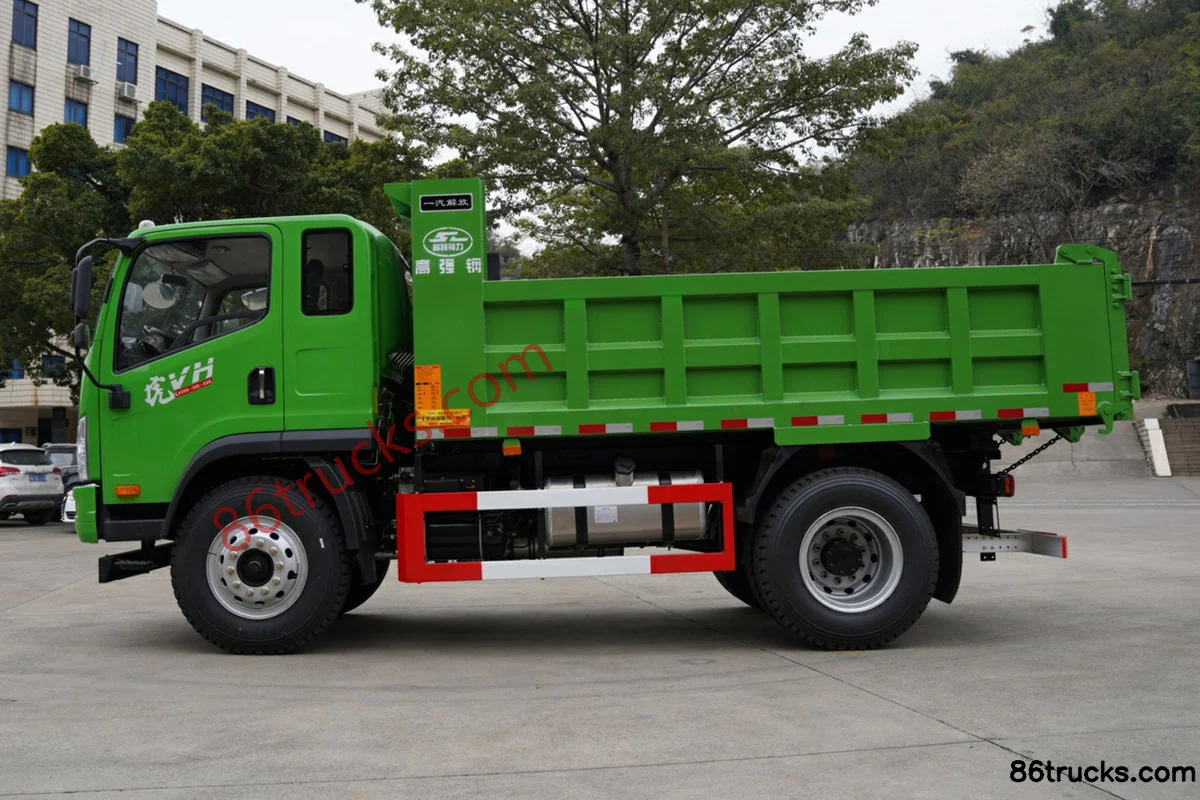

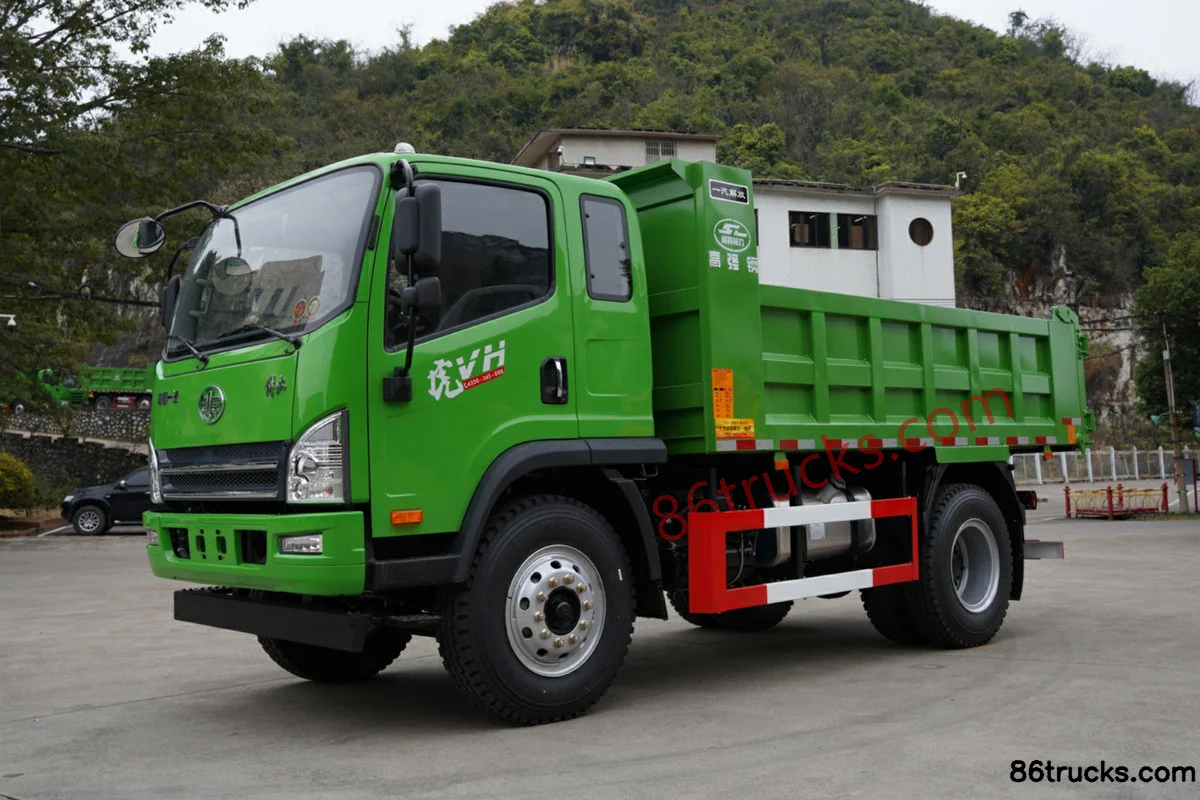

Exterior3

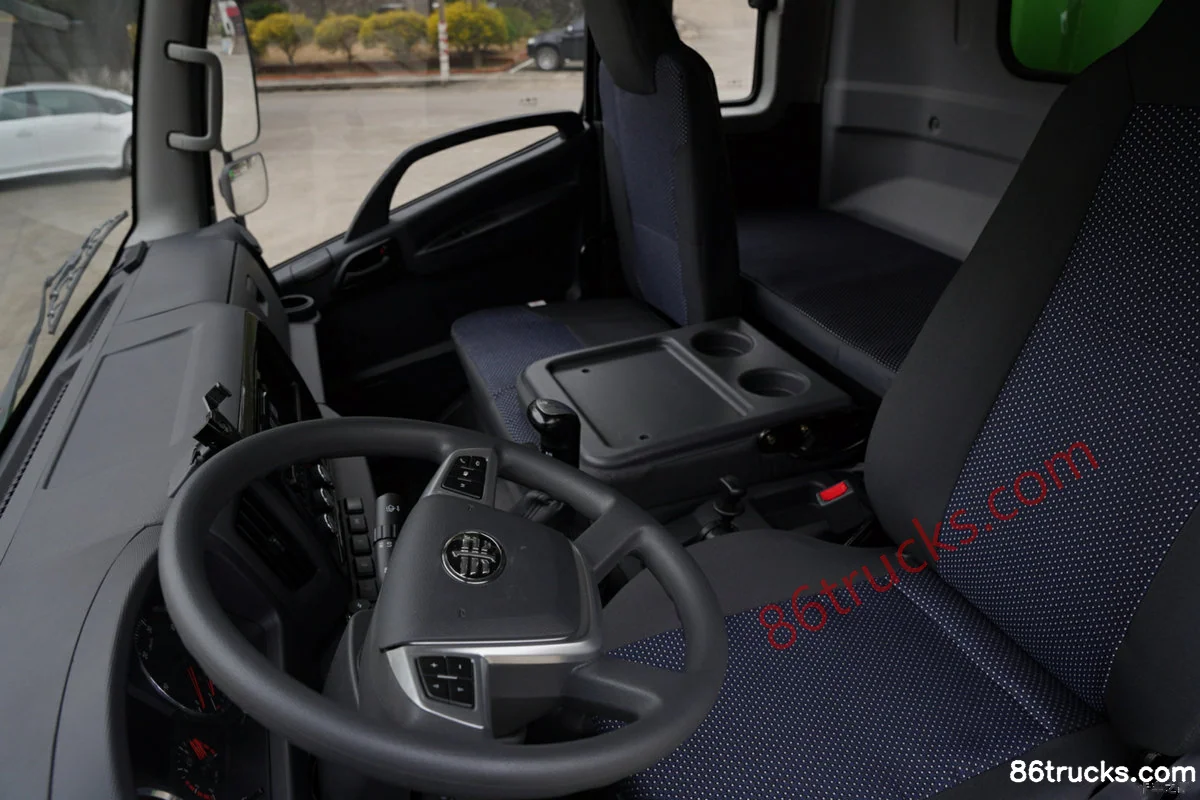

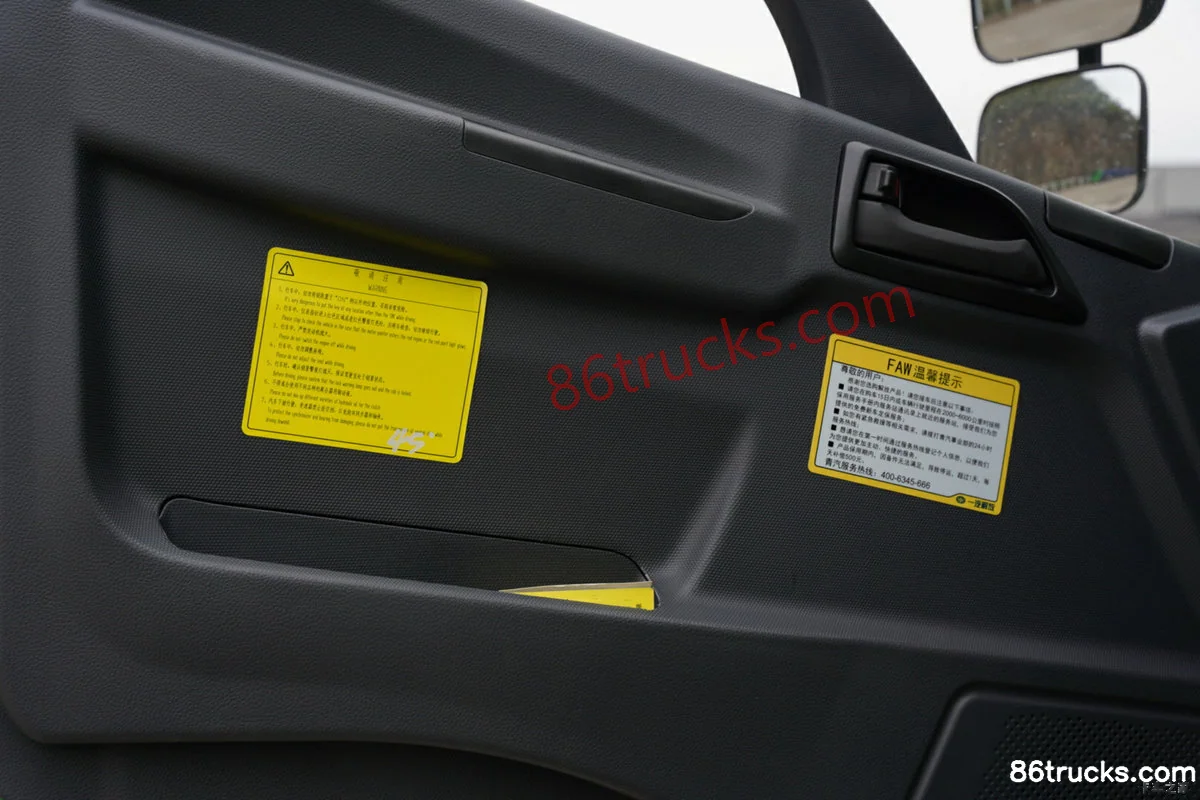

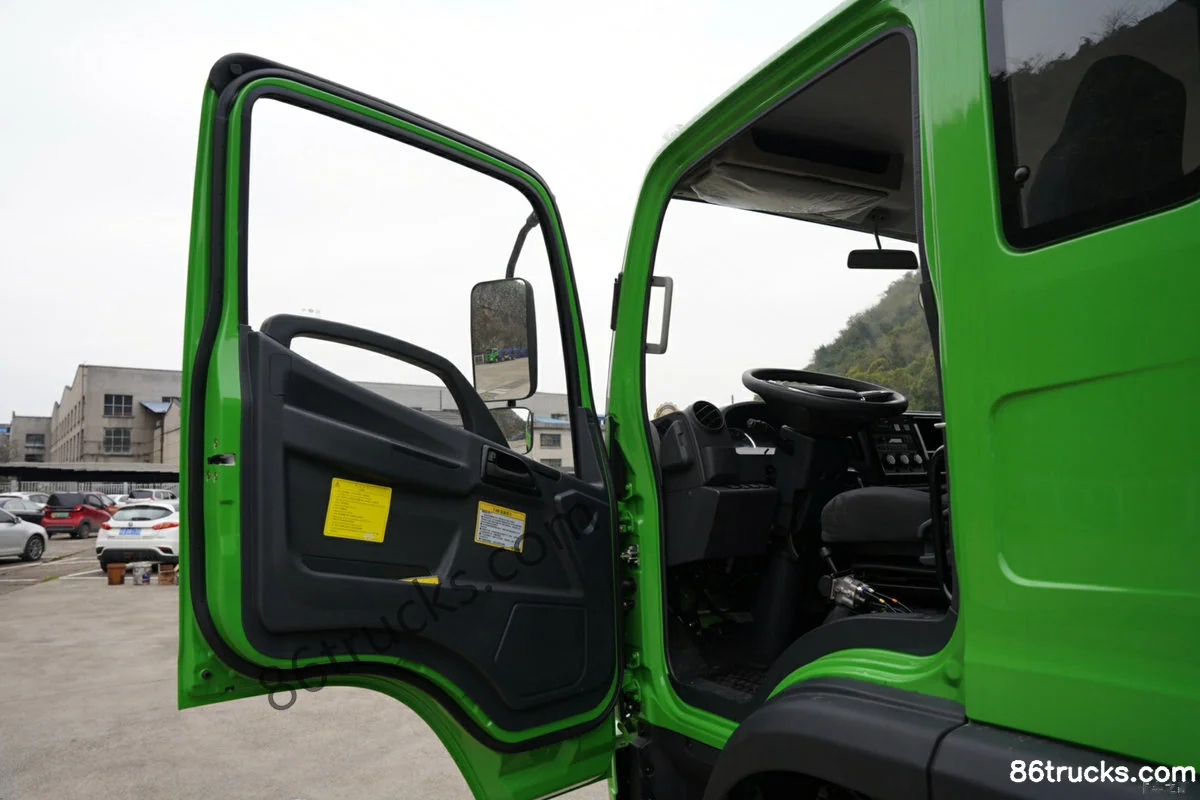

Cab3

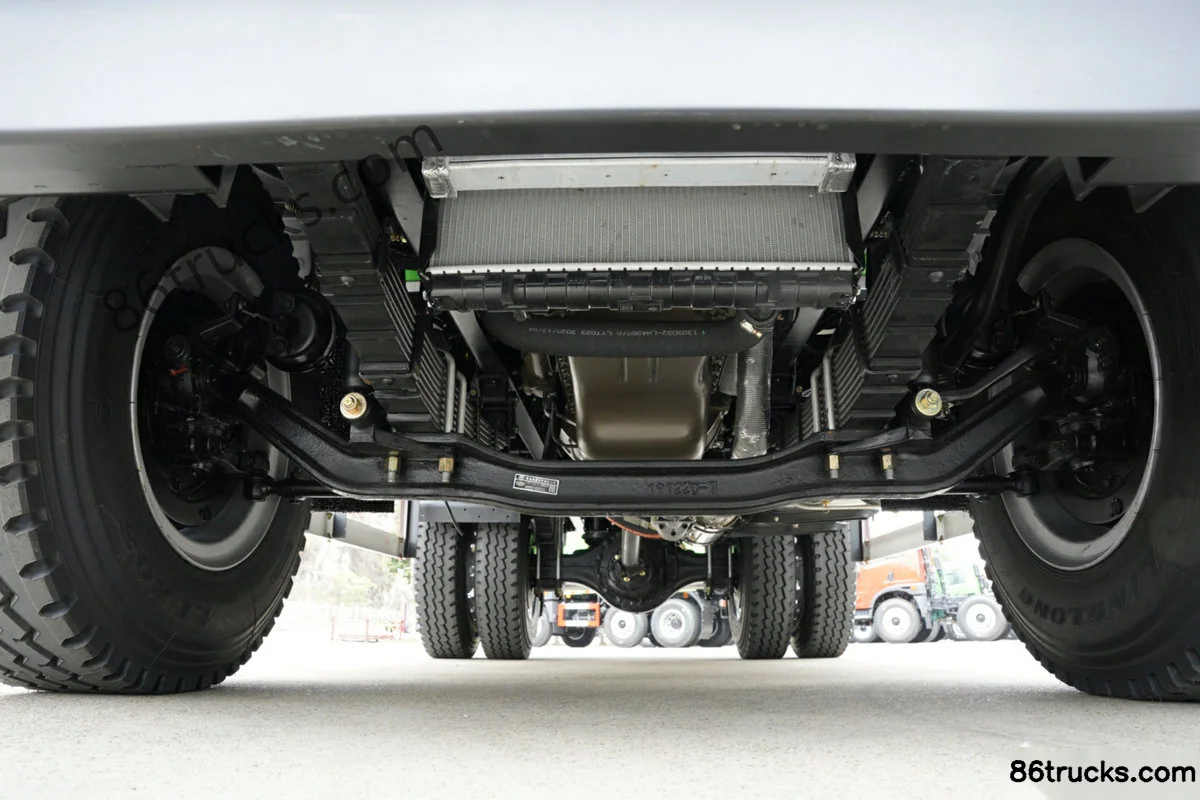

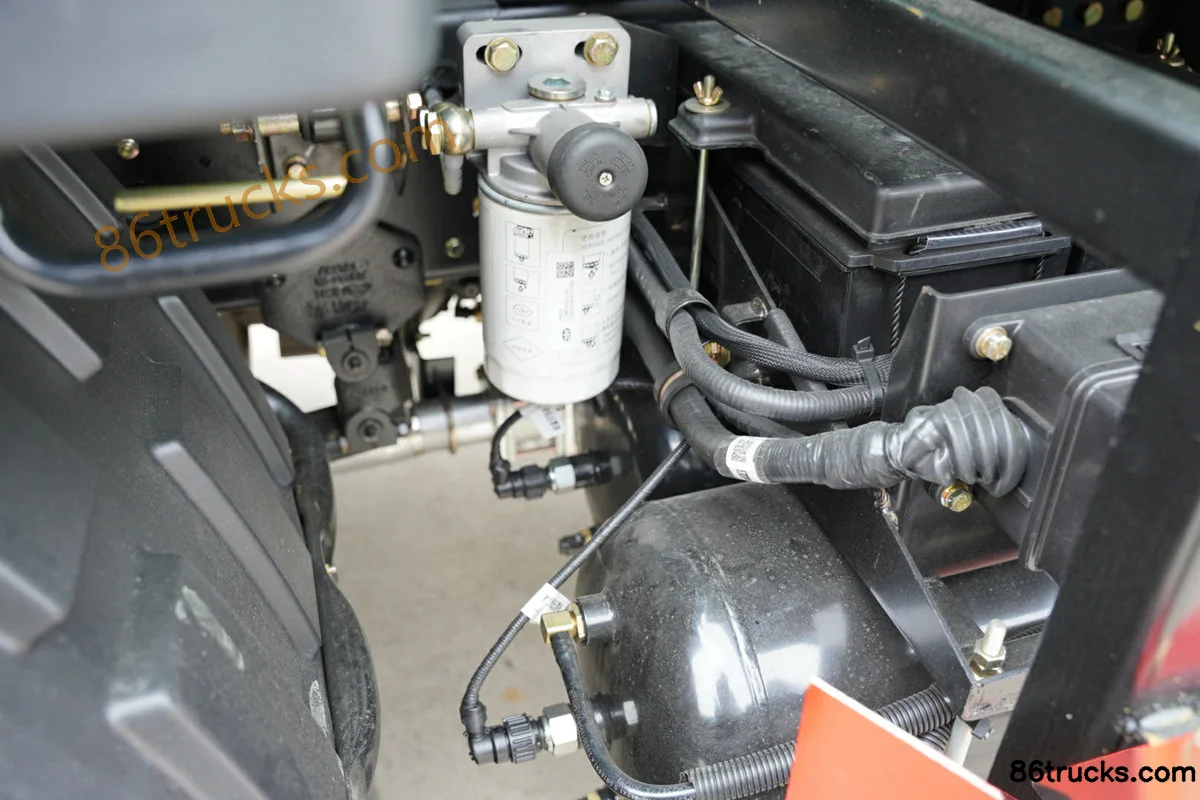

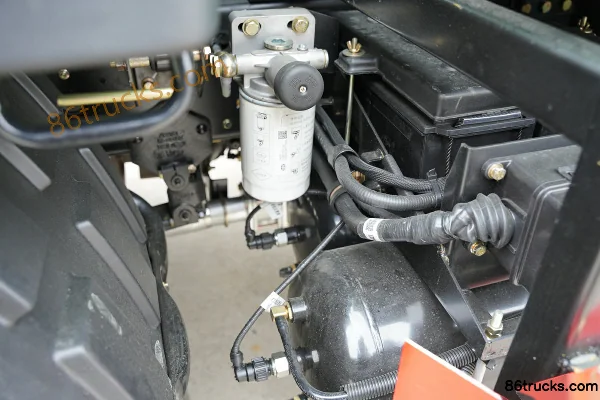

Chassis3

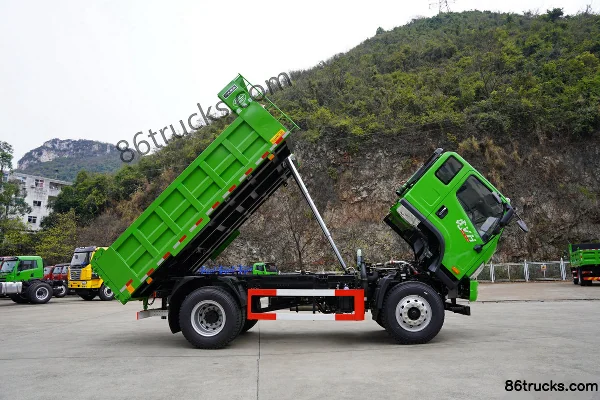

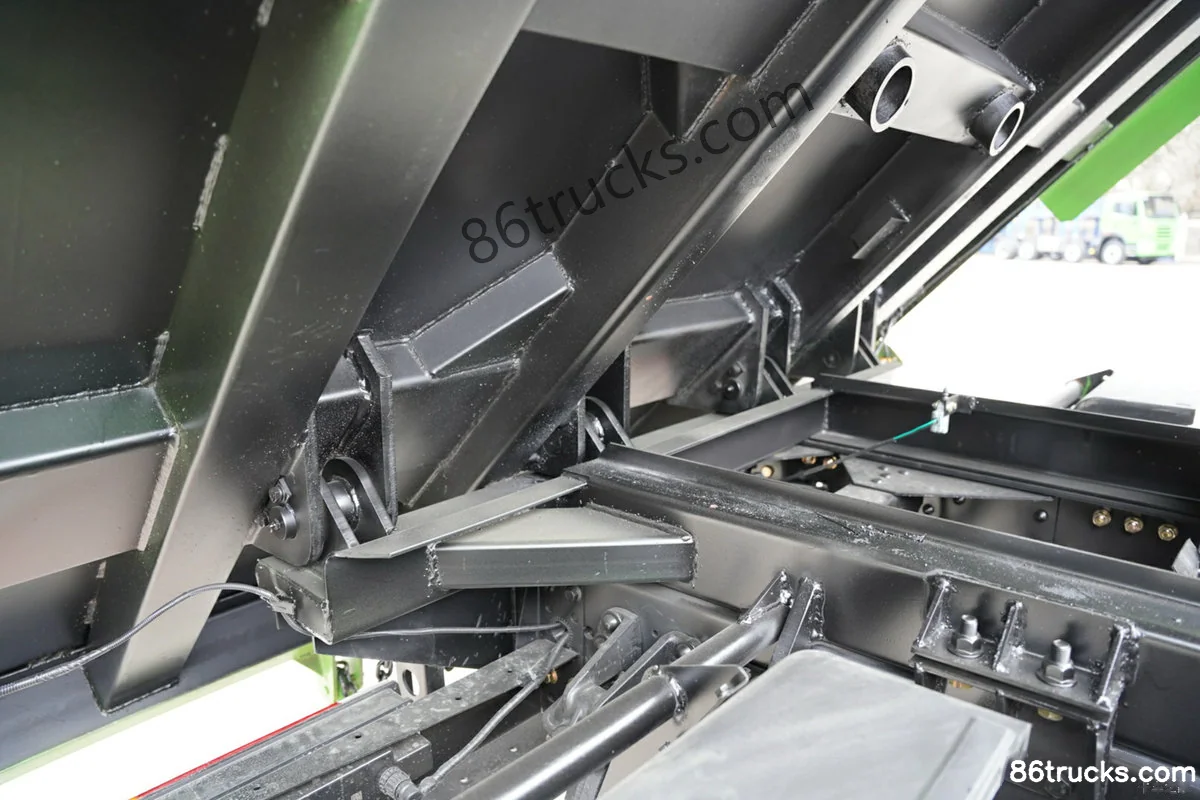

Body2

11 photos

FAQ

What emission standard does FAW Jiefang Hu VH 160 hp 4X2(6 wheels) 4.2m Dump Truck (10-speed) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Hu VH 160 hp 4X2(6 wheels) 4.2m Dump Truck (10-speed)?

Key specs of FAW Jiefang Hu VH 160 hp 4X2(6 wheels) 4.2m Dump Truck (10-speed): Drive: 4x2; Horsepower: 160 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Hu VH 160 hp 4X2(6 wheels) 4.2m Dump Truck (10-speed) suited for?

FAW Jiefang Hu VH 160 hp 4X2(6 wheels) 4.2m Dump Truck (10-speed) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang Hu VH 160 hp 4X2(6 wheels) 4.2m Dump Truck (10-speed) differ from other variants in the same series?

FAW Jiefang Hu VH 160 hp 4X2(6 wheels) 4.2m Dump Truck (10-speed) belongs to FAW Jiefang Hu V Light-duty Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Hu VH 160 hp 4X2(6 wheels) 4.2m Dump Truck (10-speed)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Hu VH 160 hp 4X2(6 wheels) 4.2m Dump Truck (10-speed)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
