Sinotruk Haohan J5G 340hp 8X4(12 wheels) 5.6m AMT automatic dump truck
EXW
Export quote
Sinotruk J5G Heavy Truck Dump Trucks
Main model photos
361 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk Haohan J5G 340hp 8X4(12 wheels) 5.6m AMT automatic dump truck | 8x4 / 340hp / China V | ||
| Sinotruk Haohan J5G 340hp 8X4(12 wheels) 5.6m dump truck | 8x4 / 340hp / China V | ||
| Sinotruk Hohan J5G 340 hp 8X4(12 wheels) Dump Truck | 8x4 / 340hp / China V | From $46,542 | |
| Sinotruk Hohan J5G 280 hp 4X2(6 wheels) 5.4 m Dump Truck | 4x2 / 280hp / China V | ||
| Sinotruk Haohan J5G 310 hp 8X4(12 wheels) 5.8m dump truck | 8x4 / 310hp / China V |
Sinotruk Haohan J5G 340hp 8X4(12 wheels) 5.6m dump truck
EXW
Export quote
Sinotruk Hohan J5G 340 hp 8X4(12 wheels) Dump Truck
EXW
From $46,542
Export quote

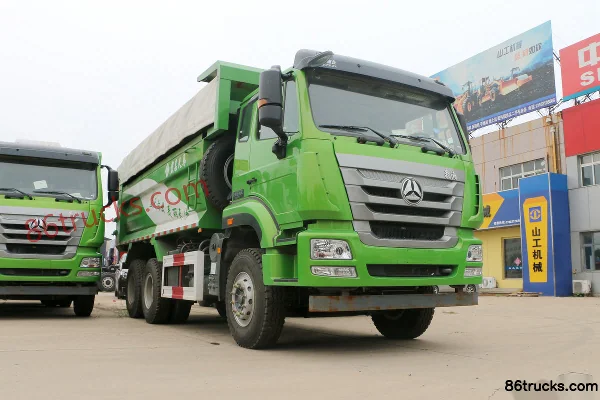

Sinotruk Hohan J5G 280 hp 4X2(6 wheels) 5.4 m Dump Truck
EXW
Export quote
Sinotruk Haohan J5G 310 hp 8X4(12 wheels) 5.8m dump truck
EXW
Export quote
Series Specs
Basic Info
Model code (announced): ZZ3315N3063E1 / ZZ3315N2863E1 / ZZ3315N3863E1 / ZZ1165M5113E1 / ZZ3255N4043E1 / ZZ3255N3843E1 / ZZ3255N3846E1 / ZZ3255N3846E1L / ZZ3315N3063D1 / ZZ3255N4346D1 / ZZ3315M3563E1L / ZZ3255M3843E1L / ZZ3315N3863D1 / ZZ3315N3563D1 / ZZ3315N3263D1 / ZZ3315N2863D1 / ZZ3315N2563D1 / ZZ3315N3563E1
Drive type: 8X4 / 4X2 / 6X4
Wheelbase: 1800+2800+1350 / 1800+3800+1350 / 4700 / 4000+1350 / 3800+1350 / 1800+3000+1350 / 1800+2975+1400 / 3825+1350 / 4325+1350 / 1800+3500+1350 / 1800+3200+1350 / 1800+2500+1350mm
Engine Model: SinotrukMC07.34-50 / SinotrukMC07.34-52 / SinotrukMC07.28-50 / SinotrukMC07.31-50 / SinotrukD10.34-50 / SinotrukMC07.35-50 / SinotrukT10.34-50 / SinotrukMC07.34-40 / SinotrukMC07.31-40 / SinotrukMT07.29-50 / SinotrukMC07.35-40
Transmission Model: SinotrukHW19710A / SinotrukHW10 / SinotrukHW19712 / SinotrukHW13710 / SinotrukHW19710 / SinotrukHW19712C / SinotrukHW13710C2 / SinotrukHW15710
Rear Axle Ratio: 5.571 / 5.286 / 4.8 / 4.42 / 4.875 / 6.5 / 6.3 / 5.73
Cab length: 8.98 / 10.41 / 8.3 / 8.69 / 8.6 / 8.45 / 9.36 / 9.56 / 8.375 / 8.635 / 8.957 / 10.06 / 9.96 / 9.76 / 10.61 / 8.68m
Cab width: 2.496 / 2.55m
Cab height: 3.55 / 3.45 / 3.5 / 2.8 / 3.13 / 3.59 / 3.49m
Front track width: 2022/2022 / 2041/2041 / 2020 / 2022 / 2041mm
rear track: 1830/1830 / 1860/1860 / 1850mm
Curb Weight: 14.83 / 15.12 / 7.81 / 12.17 / 12.1 / 14.87 / 10.02 / 12.26 / 15.04 / 14.96 / 14.77 / 15.21ton
Rated payload: 16.04 / 15.75 / 8.06 / 12.7 / 12.77 / 16 / 12.61 / 15.83 / 15.91 / 16.1ton
GVWR: 31 / 16 / 25ton
Origin: Jinan, Shandong
tonnage class: Heavy truck
Approach angle: 20 / 21°
departure angle: 16 / 20 / 14 / 24 / 51 / 22 / 21°
Remarks: Tires 12.00R20 295/80R22.5, front underrun protection, automatic slack adjuster, reflective vest, Triangle warning triangle, wheel chocks, AC, oil pan guard, automatic transmission / Axle ratio (H457, 153 cast optional 5.286); tires 12.00R20 295/80R22.5, front underrun protection, automatic slack adjuster, reflective vest, Triangle warning triangle, wheel chocks, A/C, oil pan guard / Front axle optional HF9; tires optional 11.00R20, front underrun protection, automatic slack adjuster, reflective vest, Triangle warning triangle, wheel chock, A/C, oil pan guard / Rear axle optional 153 cast / Ratio (H457 optional 5.833, ST16 optional 5.73) / Tire optional: 12.00R20; ratio optional: 5.73 / Ratio H457 optional 5.833, ST16 optional 5.73 / Ratio H457 optional 5.833 / Optional ratio 5.73 / Optional ratio 5.45 / Ratio (H457 optional 5.833); Tires 12.00R20 295/80R22.5 / Ratio (H457 optional 5.286); Tires 12.00R20 295/80R22.5, front underrun protection, automatic slack adjuster, reflective vest, Triangle warning triangle, wheel chock, A/C / Ratio (H457 optional 5.833, 153 cast optional 5.286); Tires 12.00R20 295/80R22.5
Version: Heavy-duty version / composite version / Lightweight version / Light-Duty Edition / LNG Edition
Energy Type: Diesel / LNG (liquefied natural gas)
Engine parameters
Engine Brand: Sinotruk
Number of cylinders: 6cylinder
Displacement: 6.87 / 9.726L
Emission standard: China V / China IV
Max output power: 248 / 206 / 228 / 254 / 225 / 250 / 213 / 245kW
Max hp: 340 / 280 / 310 / 350 / 290Horsepower
Max torque: 1250 / 1100 / 1230 / 1490 / 1300 / 1350N·m
Max torque speed: 1200-1800 / 1200-1500rpm
Rated speed: 2300 / 1900 / 2200rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler / Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail / Inline 6-cylinder, water-cooled, 4-stroke / Inline, water-cooled, 4-stroke, turbocharged with intercooler, electronically controlled pressure regulation, spark plug ignition / Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, electronic premix, spark ignition, lean burn / Inline 6-cylinder, water-cooled, 4-stroke, two-stage turbocharged intercooled, high-pressure common rail
Transmission Parameters
Transmission Brand: Sinotruk
shift method: AMT manual/auto / Manual
Forward gears: 10 / 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type / Rear-dump body
Cargo box length: 5.6 / 7.8 / 5.4 / 5.8 / 6.5 / 6.8 / 6.3 / 7.3 / 7.2 / 7.6 / 7m
Cargo box width: 2.3 / 2.35m
Cargo box height: 0.9 / 1.07 / 0.8 / 1.435 / 1.15 / 1.12 / 1.5 / 1.23 / 1.2 / 1.06 / 1.14 / 1.19 / 1.48m
Cab parameters
Cab: H16 flat top / Semi-high roof single bunk / H16
FAQ
What kind of truck is Sinotruk Sinotruk J5G Heavy Truck Dump Trucks?
Sinotruk Sinotruk J5G Heavy Truck is an export-oriented Dump Trucks lineup with about 101 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Sinotruk J5G Heavy Truck Dump Trucks?
Sinotruk J5G Heavy Truck Dump Trucks export reference is about $37,042 – $55,556. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Sinotruk J5G Heavy Truck Dump Trucks cover?
Sinotruk J5G Heavy Truck Dump Trucks mainly covers: Drive: 4x2 / 8x4; Horsepower: 280 hp / 310 hp / 340 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Sinotruk J5G Heavy Truck Dump Trucks?
For Sinotruk J5G Heavy Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Sinotruk J5G Heavy Truck Dump Trucks include?
Sinotruk J5G Heavy Truck Dump Trucks currently lists about 101 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Sinotruk J5G Heavy Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
