Sinotruk Hohan J5G 280 hp 4X2(6 wheels) 5.4 m Dump Truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Sinotruk
Curb Weight:: 7.81ton
Wheelbase:: 4700mm
Tire Size:: 10.00R20
Sinotruk Hohan J5G 280 hp 4X2(6 wheels) 5.4 m Dump Truck exterior
View more photos (12)
Rated payload: 8.06ton
Drive 4X2 (6 wheels)
Horsepower 280
Cargo box type: Rear-dump body

Overview

The Sinotruk Hohan J5G 280 hp 4X2(6 wheels) 5.4 m Dump Truck is a Heavy truck featuring 8.06t payload, 16t GVW, Rear-dump body cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a SinotrukMC07.28-50 engine, 280 hp, China V emissions and Sinotruk transmission.

China V 280 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): ZZ1165M5113E1
Drive type: 4X2
Wheelbase: 4700mm
engine: SinotrukMC07.28-50
transmission: SinotrukHW10
Rear Axle Ratio: 4.42
Cab length: 8.3m
Cab width: 2.55m
Cab height: 3.45m
Front track width: 2020mm
rear track: 1850mm
Curb Weight: 7.81ton
Rated payload: 8.06ton
GVWR: 16ton
Origin: Jinan, Shandong
tonnage class: Heavy truck
Approach angle: 21°
departure angle: 14°
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC07.28-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.87L
Emission standard: China V
Max output power: 206kW
Max hp: 280Horsepower
Max torque: 1100N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Transmission Parameters
Transmission Model: SinotrukHW10
Transmission Brand: Sinotruk
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 5.4m
Cargo box width: 2.35m
Cargo box height: 0.8m
Chassis Specs
Front axle allowable load: 5500kg
rear axle allowable load: 10500kg
Axle ratio: 4.42
Leaf spring count: 4/-,4/2+-,4/5,4/9+8,11/-,11/2+-,11/9+8
Tire
Tire Size: 10.00R20
Number of tires: 6pcs
Control configuration
ABS:

Photos

Exterior3

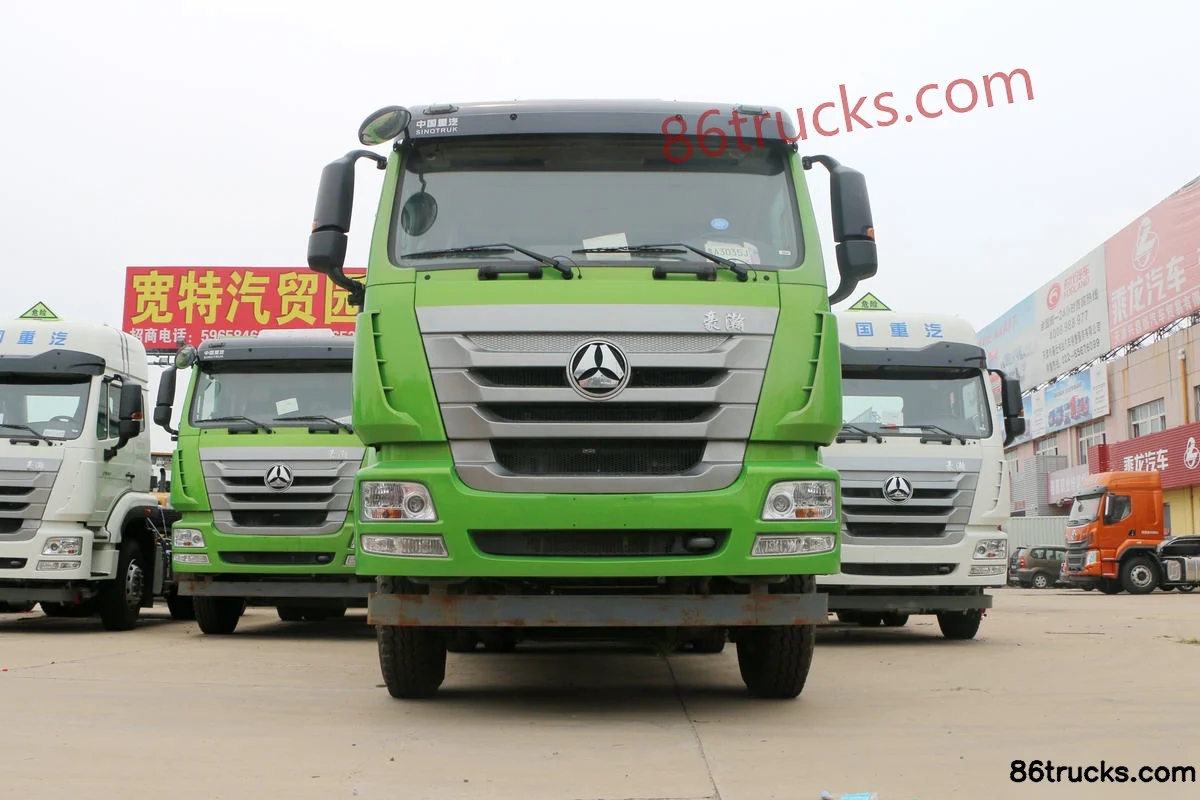

Sinotruk Hohan J5G 280 hp 4X2(6 wheels) 5.4 m Dump Truck Exterior (1) | 86Trucks Sinotruk Hohan J5G 280 hp 4X2(6 wheels) 5.4 m Dump Truck Exterior (2) | 86Trucks Sinotruk Hohan J5G 280 hp 4X2(6 wheels) 5.4 m Dump Truck Exterior (3) | 86Trucks

Cab3

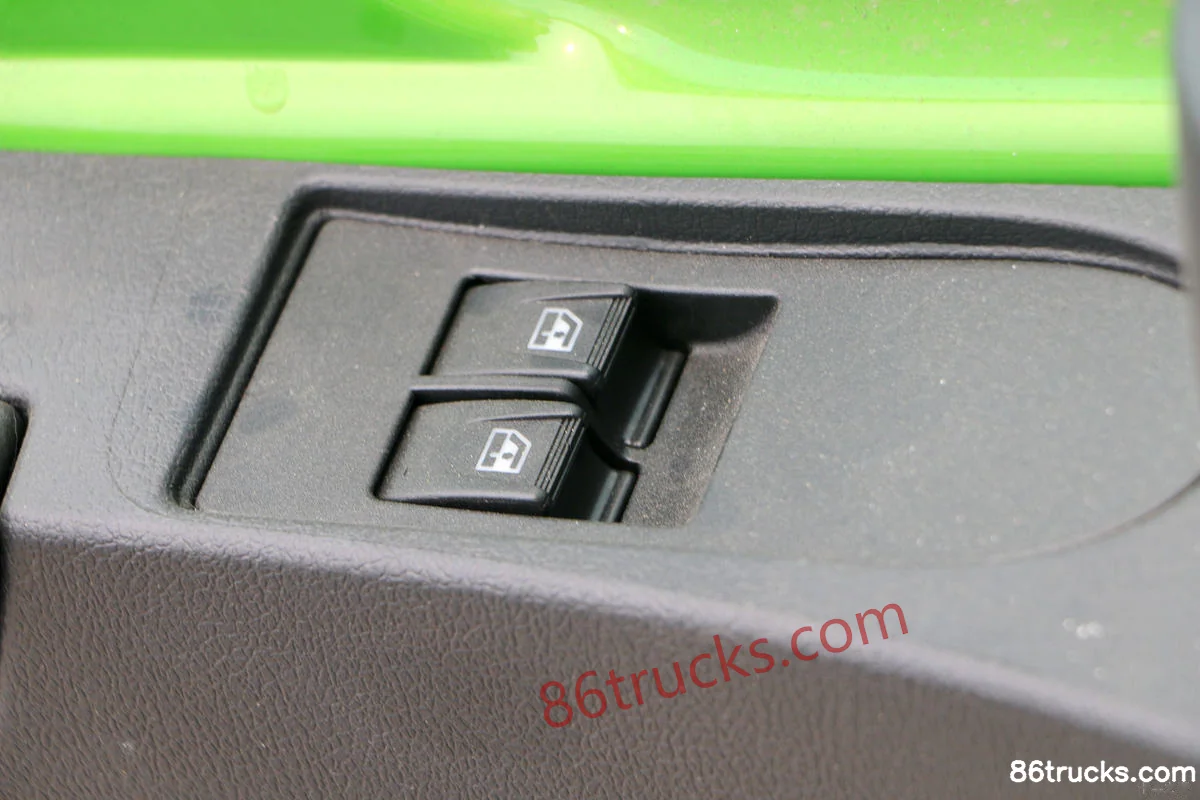

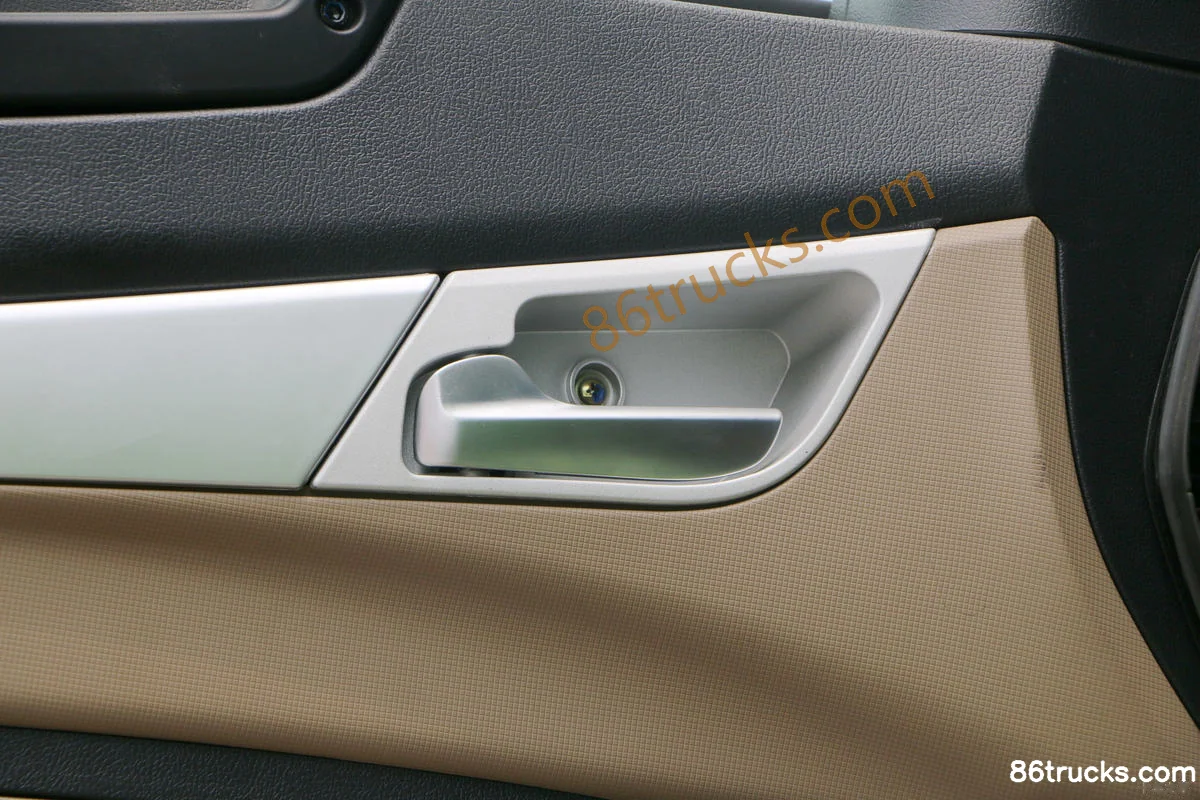

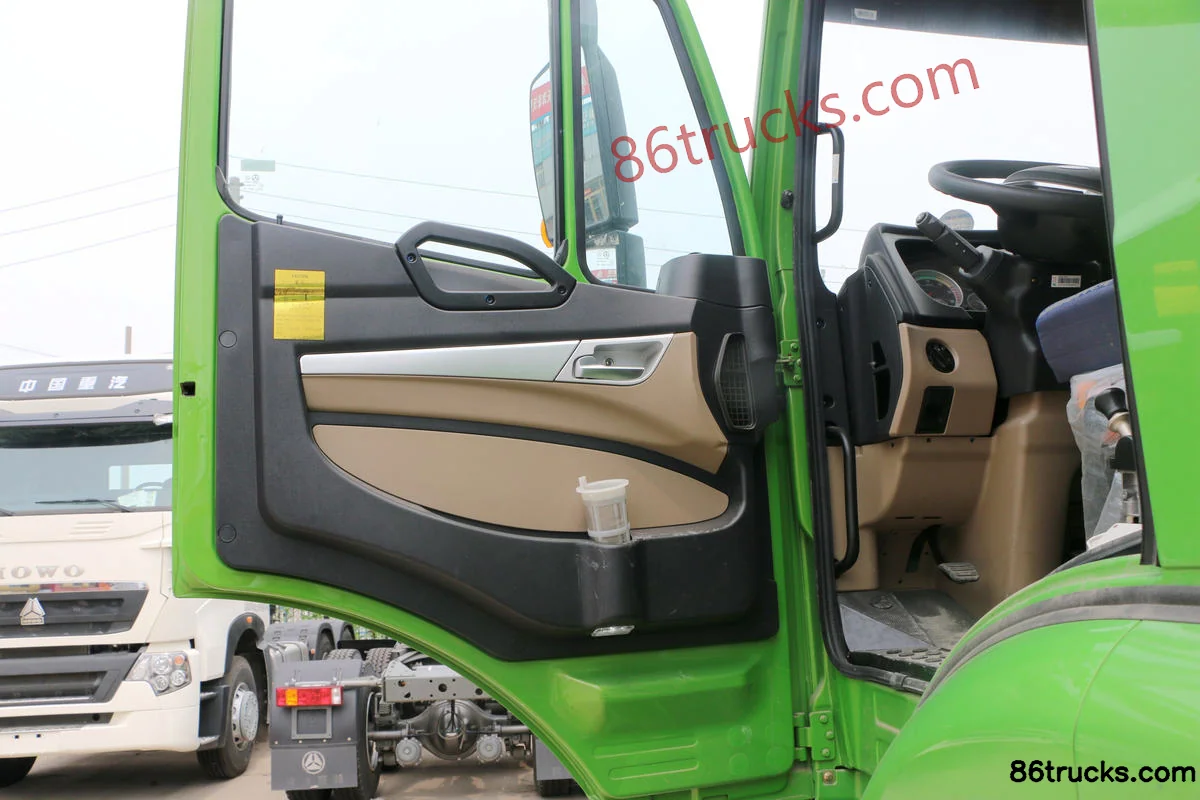

Sinotruk Hohan J5G 280 hp 4X2(6 wheels) 5.4 m Dump Truck Cab (1) | 86Trucks Sinotruk Hohan J5G 280 hp 4X2(6 wheels) 5.4 m Dump Truck Cab (2) | 86Trucks Sinotruk Hohan J5G 280 hp 4X2(6 wheels) 5.4 m Dump Truck Cab (3) | 86Trucks

Chassis3

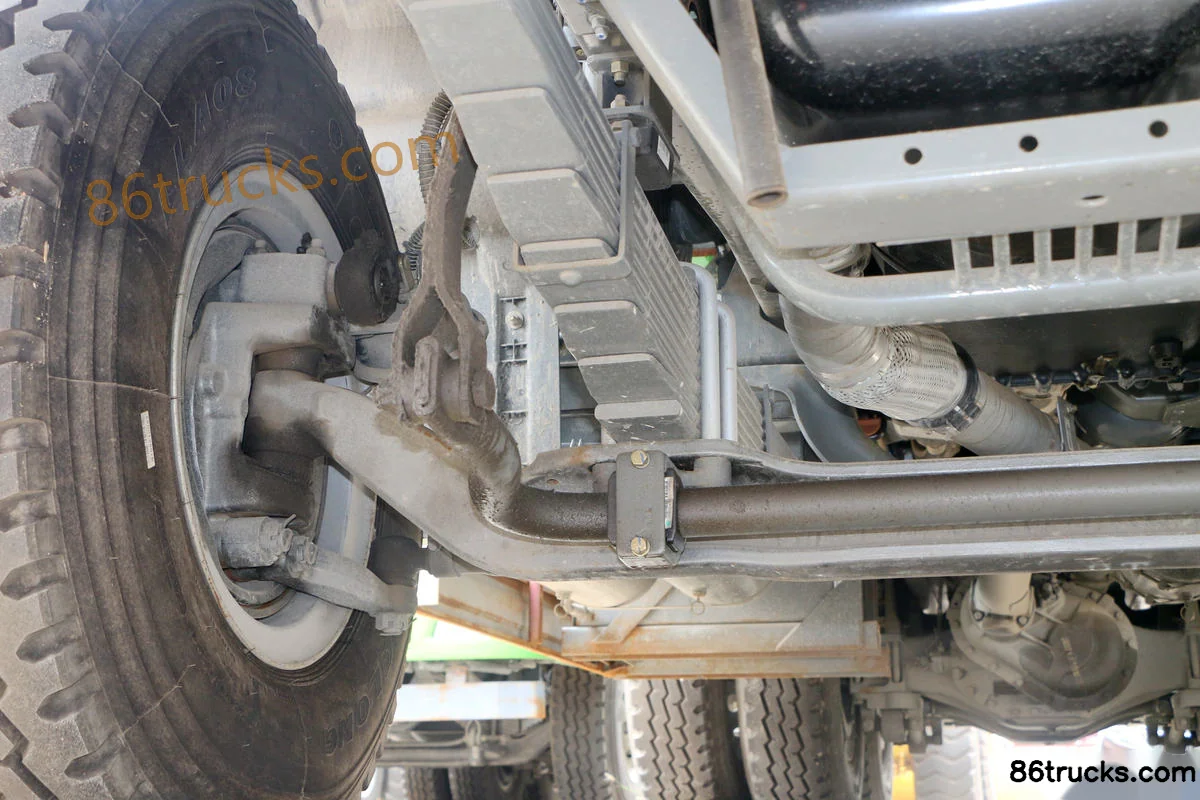

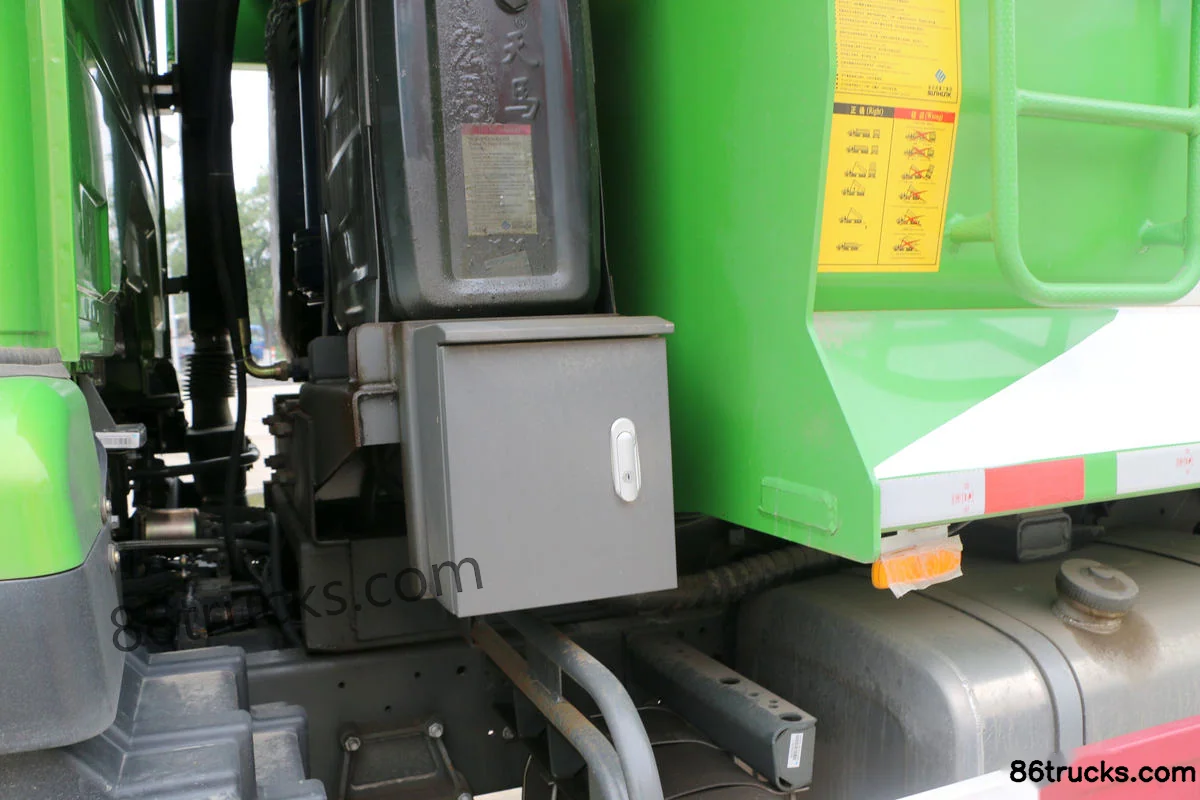

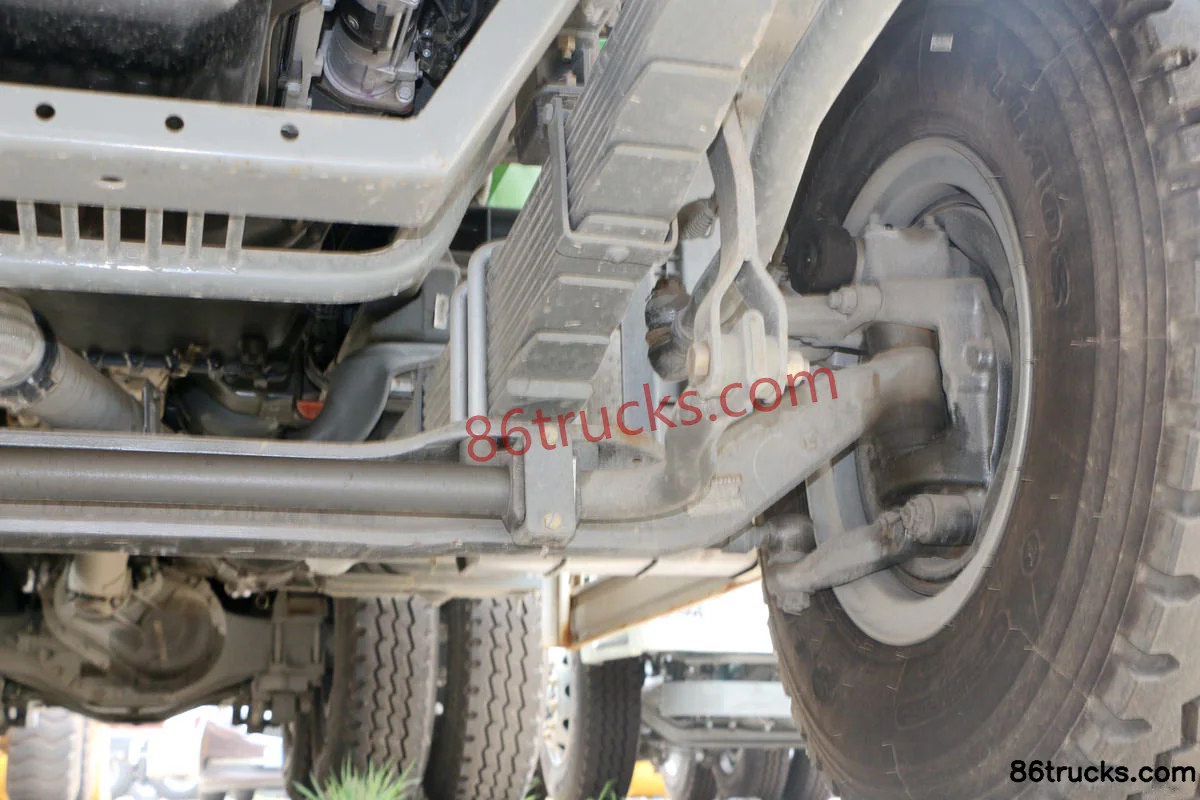

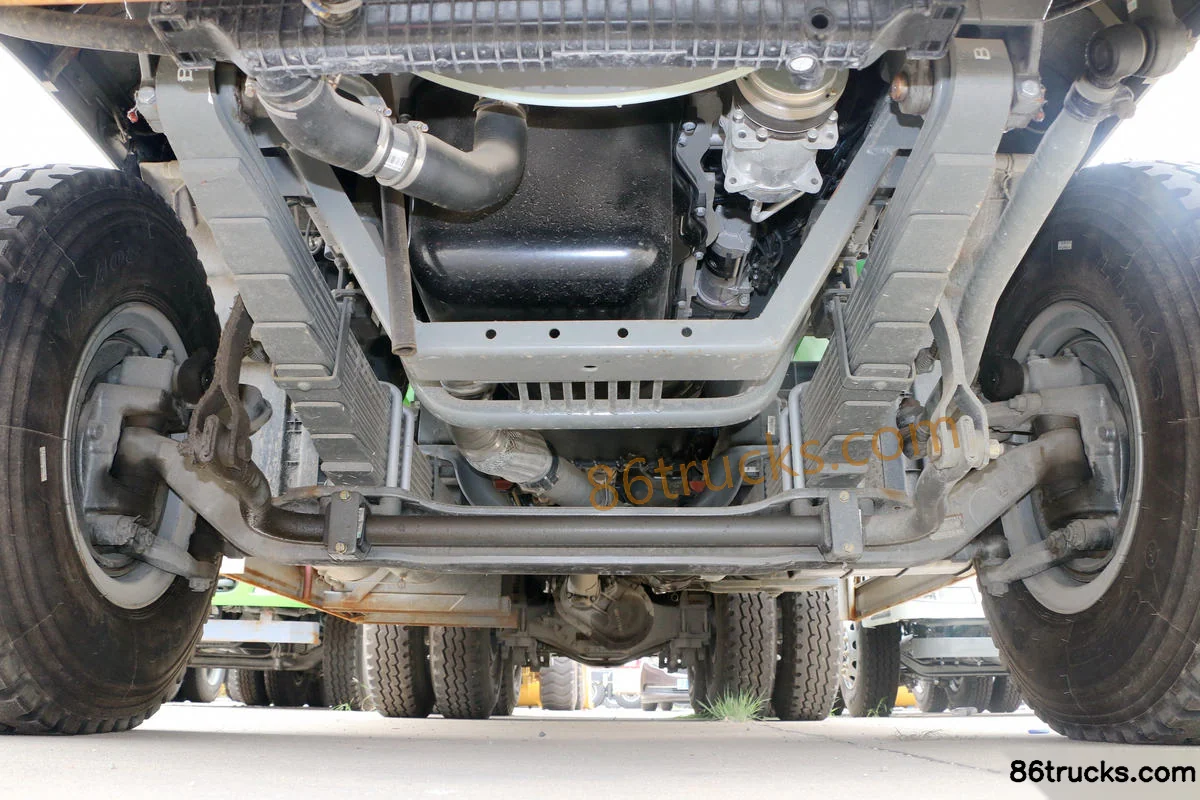

Sinotruk Hohan J5G 280 hp 4X2(6 wheels) 5.4 m Dump Truck Chassis (1) | 86Trucks Sinotruk Hohan J5G 280 hp 4X2(6 wheels) 5.4 m Dump Truck Chassis (2) | 86Trucks Sinotruk Hohan J5G 280 hp 4X2(6 wheels) 5.4 m Dump Truck Chassis (3) | 86Trucks

Body3

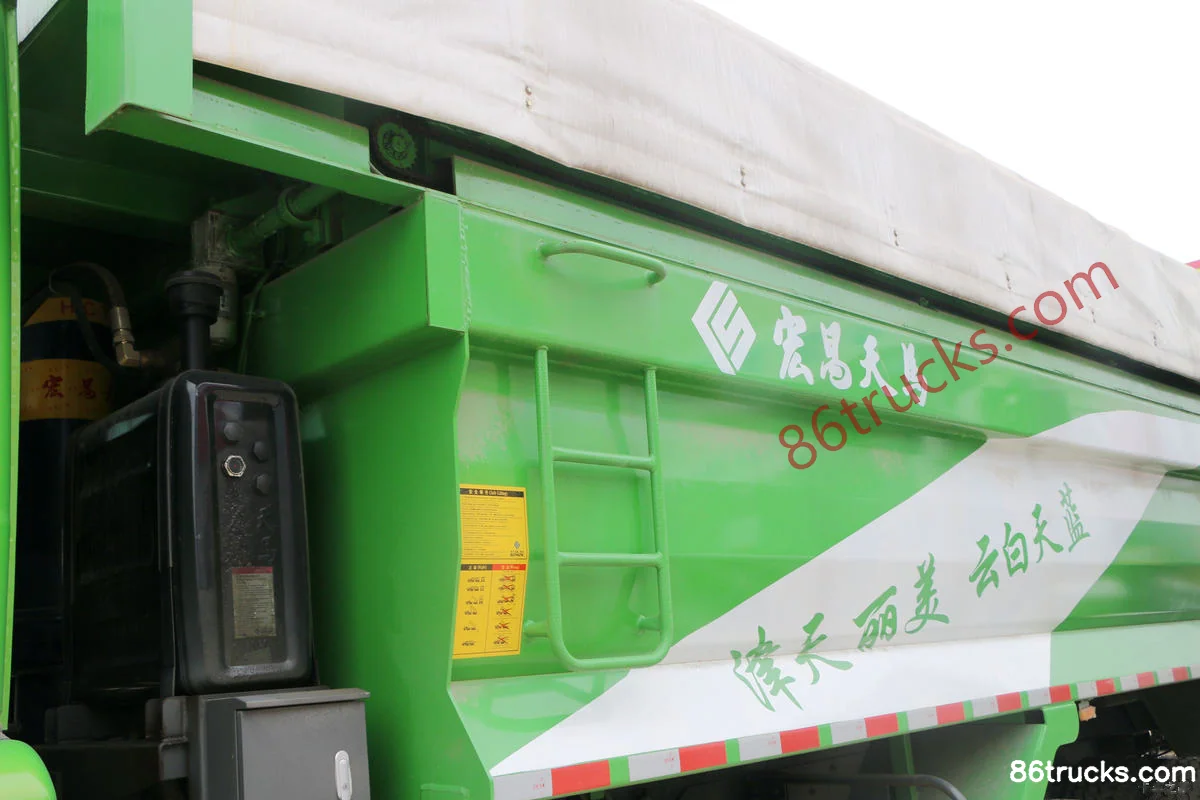

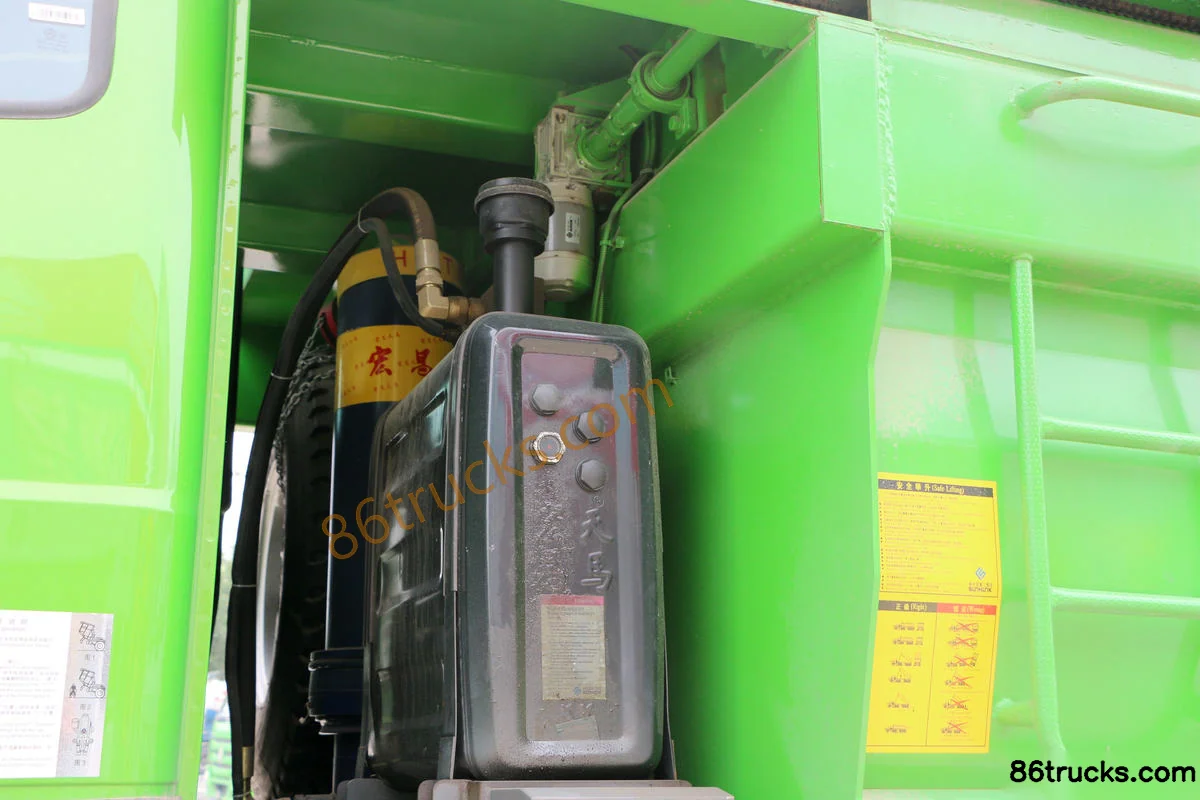

Sinotruk Hohan J5G 280 hp 4X2(6 wheels) 5.4 m Dump Truck Body (1) | 86Trucks Sinotruk Hohan J5G 280 hp 4X2(6 wheels) 5.4 m Dump Truck Body (2) | 86Trucks Sinotruk Hohan J5G 280 hp 4X2(6 wheels) 5.4 m Dump Truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does Sinotruk Hohan J5G 280 hp 4X2(6 wheels) 5.4 m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Hohan J5G 280 hp 4X2(6 wheels) 5.4 m Dump Truck?

Key specs of Sinotruk Hohan J5G 280 hp 4X2(6 wheels) 5.4 m Dump Truck: Drive: 4x2; Horsepower: 280 hp; Emission: China V; Fuel: Diesel; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Hohan J5G 280 hp 4X2(6 wheels) 5.4 m Dump Truck suited for?

Sinotruk Hohan J5G 280 hp 4X2(6 wheels) 5.4 m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Hohan J5G 280 hp 4X2(6 wheels) 5.4 m Dump Truck differ from other variants in the same series?

Sinotruk Hohan J5G 280 hp 4X2(6 wheels) 5.4 m Dump Truck belongs to Sinotruk J5G Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Hohan J5G 280 hp 4X2(6 wheels) 5.4 m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Hohan J5G 280 hp 4X2(6 wheels) 5.4 m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
