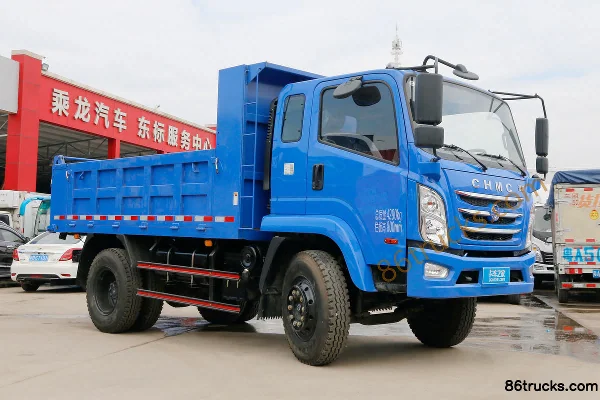

Hyundai Commercial Vehicle Ruiyue 140hp 4X2(6 wheels) 4.1m Dump Truck
EXW
From $21,667
Export quote
Hyundai Commercial Vehicle Sichuan Hyundai Ruiyue
Main model photos
200 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Hyundai Commercial Vehicle Ruiyue 140hp 4X2(6 wheels) 4.1m Dump Truck | 4x2 / 140hp / China V | From $21,667 | |
| Sichuan Hyundai Ruiyue 160 hp 4X2(6 wheels) 4.1m Dump Truck | 4x2 / 160hp / China V | From $24,722 | |
| Sichuan Hyundai Ruiyue 116 hp 4X2(6 wheels) 3.7m Dump Truck | 4x2 / 116hp / China V | From $25,000 | |
| Hyundai Commercial Vehicle Ruiyue 115hp 4X2(6 wheels) 3.7m Dump Truck | 4x2 / 116hp / China V | From $19,764 | |
| Sichuan Hyundai Ruiyue 115 hp 4X2(6 wheels) 3.7m Dump Truck (Yuchai) | 4x2 / 115hp / China V | From $19,764 |
Sichuan Hyundai Ruiyue 160 hp 4X2(6 wheels) 4.1m Dump Truck
EXW
From $24,722
Export quote

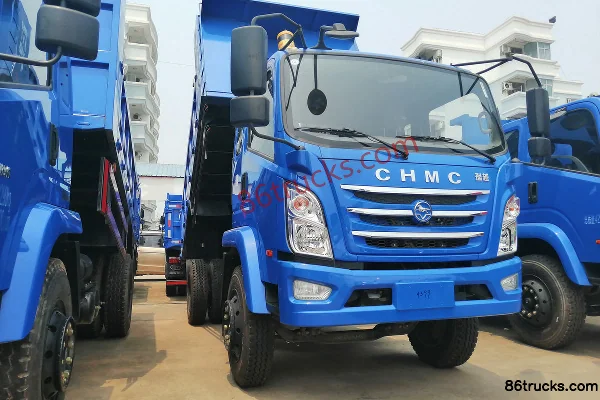

Sichuan Hyundai Ruiyue 116 hp 4X2(6 wheels) 3.7m Dump Truck
EXW
From $25,000
Export quote
Hyundai Commercial Vehicle Ruiyue 115hp 4X2(6 wheels) 3.7m Dump Truck
EXW
From $19,764
Export quote
Sichuan Hyundai Ruiyue 115 hp 4X2(6 wheels) 3.7m Dump Truck (Yuchai)
EXW
From $19,764
Export quote
Series Specs
Basic Info
Model code (announced): CNJ3120ZPB34V / CNJ3180GPA38V / CNJ3060ZPB33V / CNJ5040ZLJZPB33V / CNJ3040ZPB33V / CNJ3040ZDB33V / CNJ3120ZPB37V / CNJ3040ZFP33M / CNJ3040ZDB33M / CNJ3120ZFP34M / CNJ3120ZPB37M
Drive type: 4X2
Wheelbase: 3600 / 3700 / 3300 / 3400mm
Engine Model: YuchaiYC4E140-56A / YuchaiYC4E160-56 / Yunnei PowerYN38CRE2 / YuchaiYCD4F4S-115 / Yunnei PowerYN38CRD2 / Yunnei PowerYN38CRD1 / YuchaiYC4D130-41 / YuchaiYC4FA115-40 / YuchaiYC4D130-45 / YuchaiYCD4F2L-115 / YCD4F2L-115
Transmission Model: Fast Gear 8-speed / WLY5HQ-43DY8Q / WLYWLY5-speed / WLYWLY5HQ-43DY / Fast Gear 10-Speed / WLYWLY653H / WLYWLY145H / WLYWLY6-speed / Fast Gear8-85CY1KQ / WLYWLY6HQ-53DY3Q / WLYWLY6HQ-53DY3KQ / WLYWLY5HQ-43DY8Q / WLYWLY5-43 / Changtai 8-speed / WLYWLY6HQ-53D / 6-speed transmission / 8-44CY1Q / 6-46CY4KQ / WLYWLY653H-97E-46
Rear Axle Ratio: 6.5 / 6.333 / 6.833 / 5.286 / 6.83
Cab length: 6.17 / 6.5 / 5.99 / 5.995 / 5.95 / 6.69 / 6.49 / 6.37 / 6.3 / 6.53m
Cab width: 2.3 / 2.2 / 2.26 / 2.1 / 2.15 / 2.36 / 2.17 / 2.28 / 1880m
Cab height: 2.79 / 2.74 / 2.7 / 2.64 / 2.85 / 2.8 / 2.6 / 2.42 / 2.69 / 2.415 / 2.37m
Front track width: 1770 / 1780 / 1775 / 1640 / 1750 / 1680 / 1620mm
rear track: 1760 / 1750 / 1630 / 1710 / 1600 / 1700 / 1585 / 1660 / 1720mm
Curb Weight: 6.5 / 7.81 / 3.36 / 2.6 / 6.85 / 6.32 / 6.33ton
Rated payload: 4.995 / 9.95 / 1.99 / 1.495 / 4.95 / 4.99ton
GVWR: 11.69 / 18 / 5.545 / 4.29 / 11.995 / 11.505 / 11.52ton
Origin: Ziyang, Sichuan / Chengdu, Sichuan
tonnage class: Light Truck
Approach angle: 15 / 28 / 18 / 20 / 25 / 21°
departure angle: 11 / 24 / 16 / 17 / 22 / 14°
Remarks: Clutch assist, power steering, dual-circuit air brake / Optional 1080 rear axle. / Transmission options: WLY WLY145H / Transmission optional: WLYWLY653H
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai / Yunnei Power
Number of cylinders: 4cylinder
Displacement: 4.26 / 3.76 / 3.922 / 4.214 / 2.982L
Emission standard: China V / China IV
Max output power: 103 / 118 / 85 / 95 / 96kW
Max hp: 140 / 160 / 116 / 115 / 129 / 130Horsepower
Max torque: 450 / 600 / 325 / 350 / 315 / 420 / 300N·m
Max torque speed: 1300-1600 / 1600-2400 / 1500-1950 / 1400-1800 / 1500-2000rpm
Rated speed: 2600 / 3000 / 2800 / 3200rpm
Engine Type: Vertical, inline, water-cooled, four-stroke / 4-cylinder inline, 8-valve, turbocharged intercooled, high-pressure common rail fuel injection / Electronic control, water-cooled EGR technology, electronic high-pressure common rail fuel injection technology, aftertreatment DOC+POC / Electronic unit pump SCR / BOSCH common rail EGR+POC+DOC / Electronic unit pump EGR + POC + DOC / Inline 4-cylinder, turbocharged, water-cooled
Technology route: Common Rail SCR
Transmission Parameters
Transmission Brand: Fast Gear / WLY / Changtai
shift method: Manual
Forward gears: 8 / 5 / 10 / 6Gear
Number of Reverse Gears: 1 / 2pcs
Cargo box parameters
Unloading Type: Dump type / Rear-dump body
Cargo box length: 4.1 / 3.7 / 3.9 / 4.3 / 3.75 / 4.18 / 3.83m
Cargo box width: 2.2 / 2.1 / 2.06 / 2.05m
Cargo box height: 0.8 / 0.55 / 0.4m
Cab parameters
Cab: Ruiyue / Flat roof
FAQ
What kind of truck is Hyundai Commercial Vehicle Sichuan Hyundai Ruiyue Light Truck Dump Trucks?
Hyundai Commercial Vehicle Sichuan Hyundai Ruiyue Light Truck is an export-oriented Dump Trucks lineup with about 29 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Hyundai Commercial Vehicle Sichuan Hyundai Ruiyue?
Hyundai Commercial Vehicle Sichuan Hyundai Ruiyue export reference is about $16,222 – $25,417. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Hyundai Commercial Vehicle Sichuan Hyundai Ruiyue cover?
Hyundai Commercial Vehicle Sichuan Hyundai Ruiyue mainly covers: Drive: 4x2; Horsepower: 115 hp / 116 hp / 140 hp / 160 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Hyundai Commercial Vehicle Sichuan Hyundai Ruiyue?
For Hyundai Commercial Vehicle Sichuan Hyundai Ruiyue: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Hyundai Commercial Vehicle Sichuan Hyundai Ruiyue include?
Hyundai Commercial Vehicle Sichuan Hyundai Ruiyue currently lists about 29 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Hyundai Commercial Vehicle Sichuan Hyundai Ruiyue?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
