Foton Dajin ES3 158 hp 4X2(6 wheels) 3.5m dump truck
EXW
From $19,583
Export quote
Foton Dajingang ES3 light-duty truck Dump Trucks
Main model photos
70 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton Dajin ES3 158 hp 4X2(6 wheels) 3.5m dump truck | 4x2 / 158hp / China VI | From $19,583 | |
| Foton Dajingang ES3 150 hp 4X2(6 wheels) 4.15m Dump Truck | 4x2 / 150hp / China VI | From $14,986 | |
| Foton Big Diamond ES3 150 hp 4X2(6 wheels) 3.7m dump truck (double hydraulic lift) | 4x2 / 150hp / China VI | From $18,611 | |
| Foton Big Diamond ES3 150 hp 4X2(6 wheels) 3.7m Dump Truck (Construction Top) | 4x2 / 150hp / China VI | From $18,611 | |
| Foton Big Diamond ES3 150 hp 4X2(6 wheels) 3.5m Dump Truck (Dual Oil Top) | 4x2 / 150hp / China VI | From $18,014 |

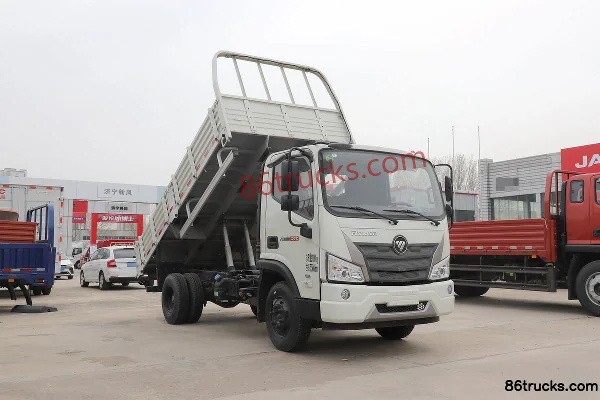

Foton Dajingang ES3 150 hp 4X2(6 wheels) 4.15m Dump Truck
EXW
From $14,986
Export quote
Foton Big Diamond ES3 150 hp 4X2(6 wheels) 3.7m dump truck (double hydraulic lift)
EXW
From $18,611
Export quote
Foton Big Diamond ES3 150 hp 4X2(6 wheels) 3.7m Dump Truck (Construction Top)
EXW
From $18,611
Export quote
Foton Big Diamond ES3 150 hp 4X2(6 wheels) 3.5m Dump Truck (Dual Oil Top)
EXW
From $18,014
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton Big King Kong ES3 160 hp 4X2(6 wheels) 4.15m Dump Truck | 4x2 / 160hp / China V | From $23,333 |
Foton Big King Kong ES3 160 hp 4X2(6 wheels) 4.15m Dump Truck
EXW
From $23,333
Export quote
Series Specs
Basic Info
Model code (announced): BJ3114DGJDA-04 / BJ3044D9JBA-05 / BJ3114DGPBA-06 / BJ3184DLPEA-01 / BJ3094DFJBA-05 / BJ3074DEJBA-04 / BJ3104DEJFA-01 / BJ3114DGJDA-02 / BJ3164DJJEA-01 / BJ3144DKPDA-03 / BJ3164DJPFA-01 / BJ3103DGJEA-FB
Drive type: 4X2
Wheelbase: 3100 / 3360 / 3300 / 3400 / 3200 / 3700 / 3460mm
Engine Model: Yunnei PowerD30TCIF3 / Yunnei PowerD25TCIF1 / Yunnei PowerD30TCIF1 / FotonF2.8NS6B131 / FotonF3.8NS6B190 / WeichaiWP3NQ160E61 / WeichaiWP4.1NQ190E61 / YuchaiYC4S160-50
Transmission Model: WLYWLY545ZHF / WLY 5-speed / WLYWLY8G45 / Fast Gear8JS85E / WLYWKY545CHF / Fast Gear8JS85F / WLYWLY540ZHF / Fast Gear10JS90A-B / Fast Gear8JS75TE / WLYWLY7TS40 / WLYWLY545CHF
Rear Axle Ratio: 5.833 / 5.286 / 6.33 / 5.375 / 5.571
Cab length: 5.685 / 5.995 / 5.98 / 5.78 / 6.305 / 6.035 / 6.05 / 5.77 / 5.57 / 6.005 / 6.635m
Cab width: 2.26 / 2.13 / 2.23 / 2.21 / 2.41 / 2.1 / 2.32 / 2.148 / 2.31 / 2.55 / 1880 / 2060m
Cab height: 2.6 / 2.4 / 2.45 / 2.425 / 2.65 / 2.36 / 2.56 / 2.43 / 2.725 / 2.64 / 2.7 / 2.57m
Front track width: 1640 / 1581 / 1780 / 1570 / 1590 / 1621 / 1624 / 1760 / 1755 / 1795mm
rear track: 1668 / 1605 / 1635 / 1724 / 1600 / 1630 / 1633 / 1740 / 1800mm
Curb Weight: 4.9 / 2.72 / 4.83 / 4.65 / 6.3 / 3.2 / 5.6 / 4.71 / 8.015 / 6.05 / 7.615 / 5.3ton
Rated payload: 6.105 / 1.58 / 6.175 / 6.355 / 11.5 / 5.305 / 3.965 / 4.005 / 6.295 / 7.99 / 7.335 / 4.505ton
GVWR: 11.2 / 4.495 / 17.995 / 9.1 / 7.36 / 9.8 / 16.2 / 13.58 / 15.8 / 10ton
Origin: Shandong Zhucheng
tonnage class: Medium-duty truck / Light Truck
Approach angle: 19 / 21 / 20°
departure angle: 21 / 20 / 18 / 23 / 15 / 22 / 19°
Remarks: Optional 5.833/5.375 ratio. / Standard: power steering, clutch booster, electronic engine shutdown, MP3, adjustable steering wheel; Optional: metallic paint / Electronic shutdown, MP3, adjustable steering wheel, power steering, clutch assist / Power steering, clutch booster / Power steering, clutch booster, electronic engine stop, MP3, adjustable steering wheel / Power steering, clutch booster, optional A/C, metallic paint, power windows
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power / Foton / Weichai / Yuchai
Number of cylinders: 4cylinder
Displacement: 3 / 2.5 / 2.78 / 3.8 / 2.97 / 4.088 / 3.767L
Emission standard: China VI / China V
Max output power: 116 / 110 / 125 / 96 / 140 / 118kW
Max hp: 158 / 150 / 170 / 131 / 190 / 160Horsepower
Max torque: 400 / 500 / 310 / 480 / 680 / 550N·m
Max torque speed: 1100-2800 / 1400-2400 / 1200-2200 / 1300-1700 / 1400-2300 / 1300-1900 / 1300-1800rpm
Rated speed: 2800 / 3000 / 2900 / 2600rpm
Engine Type: Electronic control common rail system HEGR + DOC + DPF + SCR + ASC / Inline, direct injection, water-cooled, 4-stroke, turbocharged, intercooled, electronically controlled high-pressure common rail / High-pressure common rail, EGR+DOC+DPF+SCR / Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Brand: WLY / Fast Gear
shift method: Manual
Forward gears: 5 / 8 / 10 / 7Gear
Number of Reverse Gears: 1 / 2pcs
Cargo box parameters
hydraulic cylinder brand & model: Construction top
Unloading Type: Dump type / Rear-dump body
Cargo box length: 3.5 / 4.15 / 3.7 / 4 / 3.8 / 3.6 / 4.35m
Cargo box width: 2.1 / 2 / 2.2 / 2.02 / 2.35m
Cargo box height: 0.5 / 0.4 / 0.8 / 0.6 / 0.6/0.5m
Body Parameters
Lifting type: dual lift cylinders / Construction top
FAQ
What kind of truck is Foton Foton Dajingang ES3 light-duty truck Dump Trucks?
Foton Foton Dajingang ES3 light-duty truck is an export-oriented Dump Trucks lineup with about 21 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Foton Dajingang ES3 light-duty truck Dump Trucks?
Foton Dajingang ES3 light-duty truck Dump Trucks export reference is about $14,986 – $27,889. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Foton Dajingang ES3 light-duty truck Dump Trucks cover?
Foton Dajingang ES3 light-duty truck Dump Trucks mainly covers: Drive: 4x2; Horsepower: 150 hp / 158 hp / 160 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Foton Dajingang ES3 light-duty truck Dump Trucks?
For Foton Dajingang ES3 light-duty truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Foton Dajingang ES3 light-duty truck Dump Trucks include?
Foton Dajingang ES3 light-duty truck Dump Trucks currently lists about 21 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Foton Dajingang ES3 light-duty truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
