Shijun D510 82 hp 4X2(6 wheels) 3.2m dump truck (wheelbase 2900)
EXW
Export quote
ShijunD510 Dump Trucks

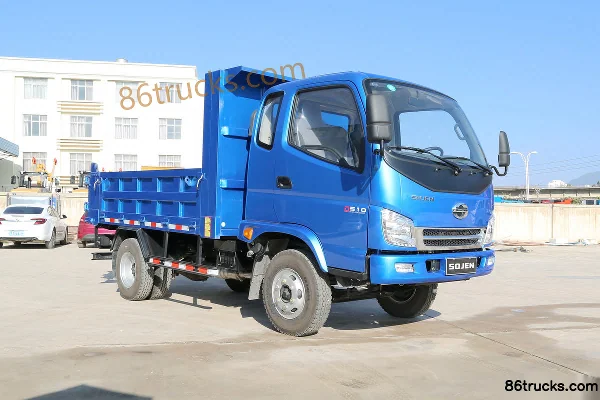

Main model photos
15 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Shijun D510 82 hp 4X2(6 wheels) 3.2m dump truck (wheelbase 2900) | 4x2 / 82hp / China V | ||
| Shijun D510 82 hp 4X2(6 wheels) 3.2m dump truck | 4x2 / 82hp / China V | ||
| Shijun D510 82 hp 4X2(6 wheels) 3.2m dump truck (wheelbase 2550) | 4x2 / 82hp / China V | ||
| Shijun D510 82 hp 4X2(6 wheels) 3.2m dump truck (wheelbase 2900) | 4x2 / 82hp / China V | ||
| Shijun D510 82 hp 4X2(6 wheels) 3.2m dump truck | 4x2 / 82hp / China V |
Shijun D510 82 hp 4X2(6 wheels) 3.2m dump truck
EXW
Export quote
Shijun D510 82 hp 4X2(6 wheels) 3.2m dump truck (wheelbase 2550)
EXW
Export quote
Shijun D510 82 hp 4X2(6 wheels) 3.2m dump truck (wheelbase 2900)
EXW
Export quote
Shijun D510 82 hp 4X2(6 wheels) 3.2m dump truck
EXW
Export quote
Series Specs
Basic Info
Model code (announced): LFJ3041SCG2
Drive type: 4X2
Wheelbase: 2900 / 2550mm
Engine Model: Yunnei PowerYN27CRE2
Transmission Model: WLYWLY145HF / 140F
Rear Axle Ratio: 6.167
Cab length: 5.33 / 5.475 / 5.125 / 5.16m
Cab width: 2.045 / 2 / 1700m
Cab height: 2.5m
Front track width: 1535mm
rear track: 1600mm
Curb Weight: 2.72ton
Rated payload: 1.645ton
GVWR: 4.495ton
Origin: Dali, Yunnan
tonnage class: Light Truck
Approach angle: 25°
departure angle: 22 / 26°
Remarks: Front/rear overhang: 1.2/1.375
Series: 5 Series
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Number of cylinders: 4cylinder
Displacement: 2.672L
Emission standard: China V
Max output power: 60kW
Max hp: 82Horsepower
Max torque: 250N·m
Max torque speed: 1600-2600rpm
Rated speed: 3200rpm
Engine Type: 4-cylinder inline, 8-valve, turbocharged intercooled, high-pressure common rail fuel injection
Transmission Parameters
Transmission Brand: WLY
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.2m
Cargo box width: 1.85m
Cargo box height: 0.6m
Cab parameters
Cab: 1700G / Single Row
FAQ
What kind of truck is Shijun ShijunD510 Dump Trucks?
Shijun ShijunD510 is an export-oriented Dump Trucks lineup with about 5 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does ShijunD510 Dump Trucks cover?
ShijunD510 Dump Trucks mainly covers: Drive: 4x2; Horsepower: 82 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in ShijunD510 Dump Trucks?
For ShijunD510 Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does ShijunD510 Dump Trucks include?
ShijunD510 Dump Trucks currently lists about 5 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for ShijunD510 Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
