Shijun D510 82 hp 4X2(6 wheels) 3.2m dump truck (wheelbase 2900)

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: WLY
Curb Weight:: 2.72ton
Wheelbase:: 2900mm
Tire Size:: 7.00R16LT 8PR
Rated payload: 1.645ton
Drive 4X2 (6 wheels)
Horsepower 82
Cargo box type: Dump type

Overview

The Shijun D510 82 hp 4X2(6 wheels) 3.2m dump truck (wheelbase 2900) is a Light Truck featuring 1.645t payload, 4.495t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerYN27CRE2 engine, 82 hp, China V emissions and WLY transmission.

China V 82 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LFJ3041SCG2
Drive type: 4X2
Wheelbase: 2900mm
engine: Yunnei PowerYN27CRE2
transmission: WLYWLY145HF
Rear Axle Ratio: 6.167
Cab length: 5.33m
Cab width: 2.045m
Cab height: 2.5m
Front track width: 1535mm
rear track: 1600mm
Curb Weight: 2.72ton
Rated payload: 1.645ton
GVWR: 4.495ton
Origin: Dali, Yunnan
tonnage class: Light Truck
Approach angle: 25°
departure angle: 22°
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYN27CRE2
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.672L
Emission standard: China V
Max output power: 60kW
Max hp: 82Horsepower
Max torque: 250N·m
Max torque speed: 1600-2600rpm
Rated speed: 3200rpm
Engine Type: 4-cylinder inline, 8-valve, turbocharged intercooled, high-pressure common rail fuel injection
Transmission Parameters
Transmission Model: WLYWLY145HF
Transmission Brand: WLY
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.2m
Cargo box width: 1.85m
Cargo box height: 0.6m
Cab parameters
Cab: 1700G
Cab width: 1700mm
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 65L
Chassis Specs
Front axle description: 1058A-1535-ABS
Front axle allowable load: 1620kg
Frame Dimensions: 200mm
rear axle description: 1069ZZ-6.167-ABS
rear axle allowable load: 2875kg
Leaf spring count: 7/9+6
Tire
Tire Size: 7.00R16LT 8PR
Tire Type: Steel-belted tire
Number of tires: 6pcs
Control configuration
ABS:

Photos

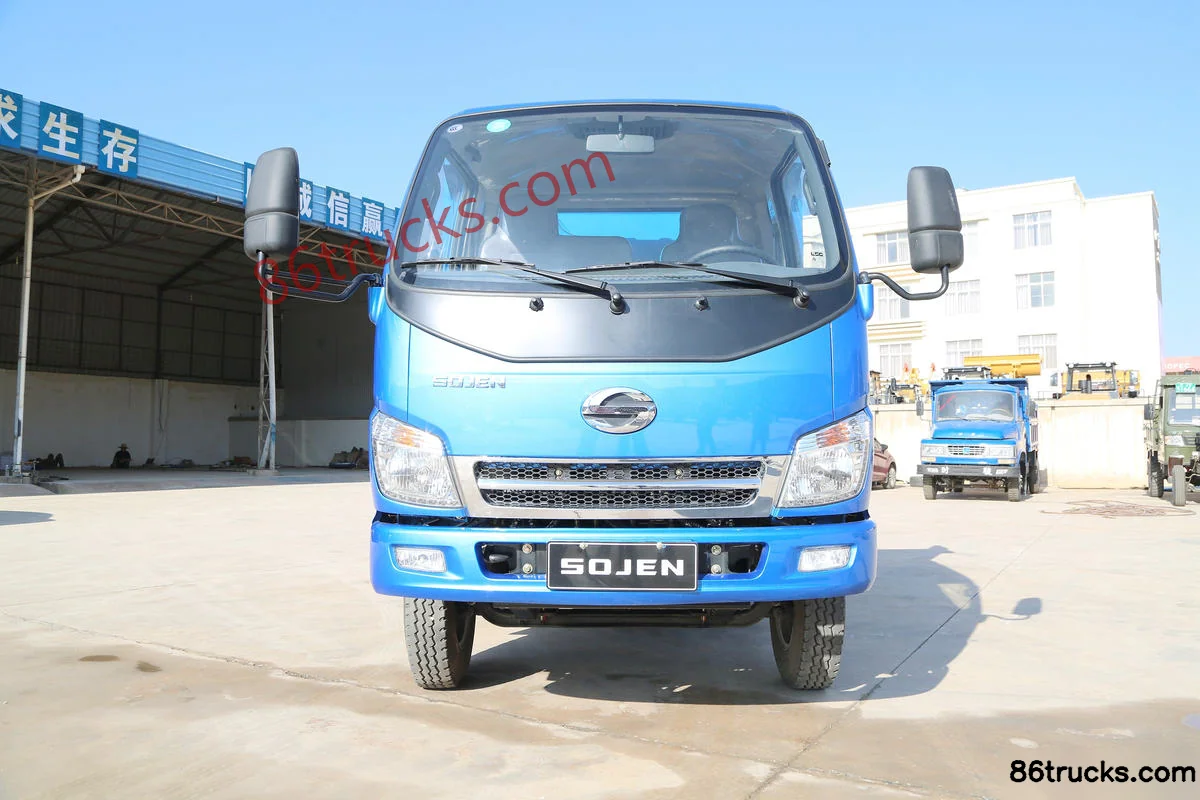

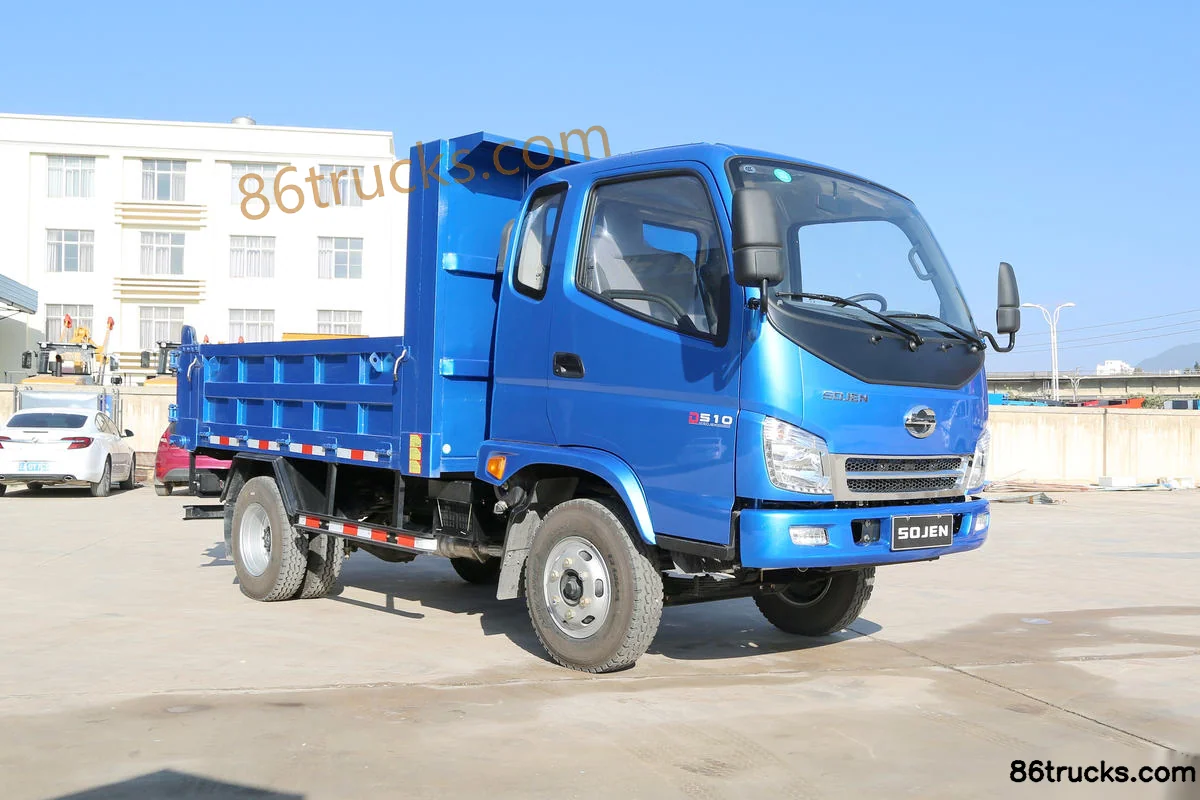

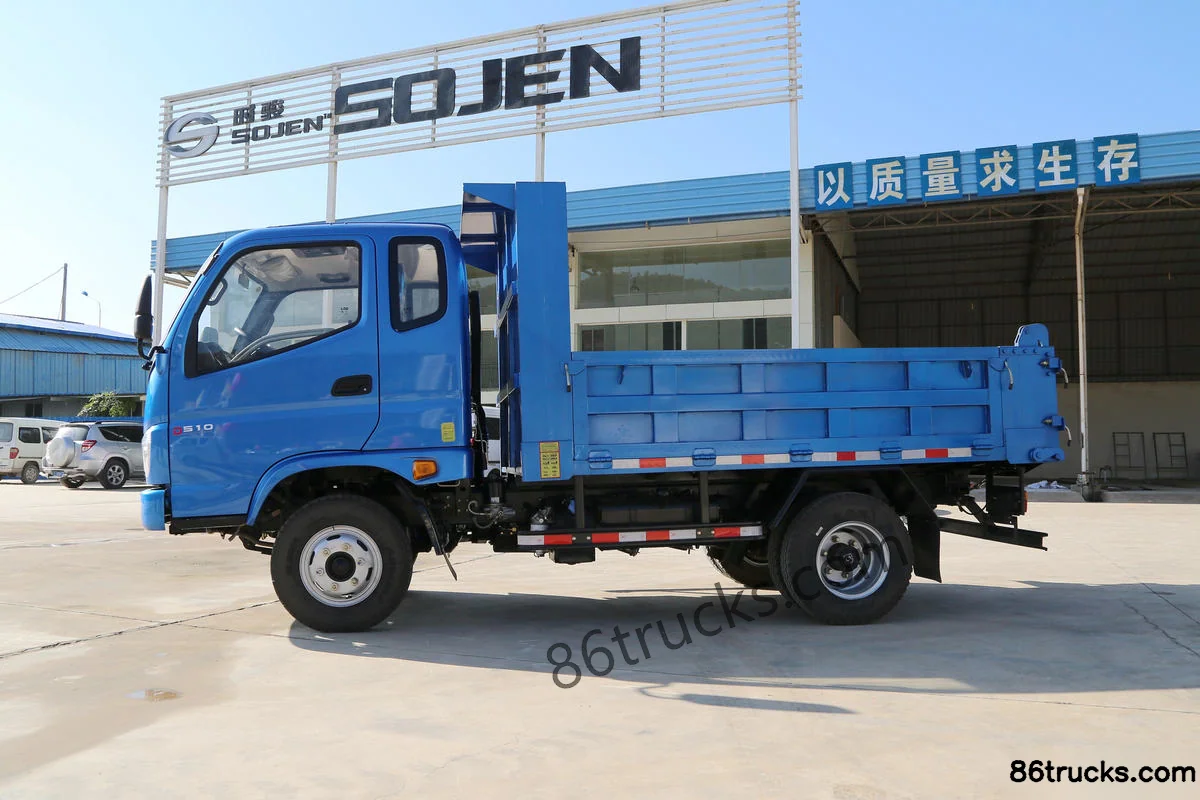

Exterior3

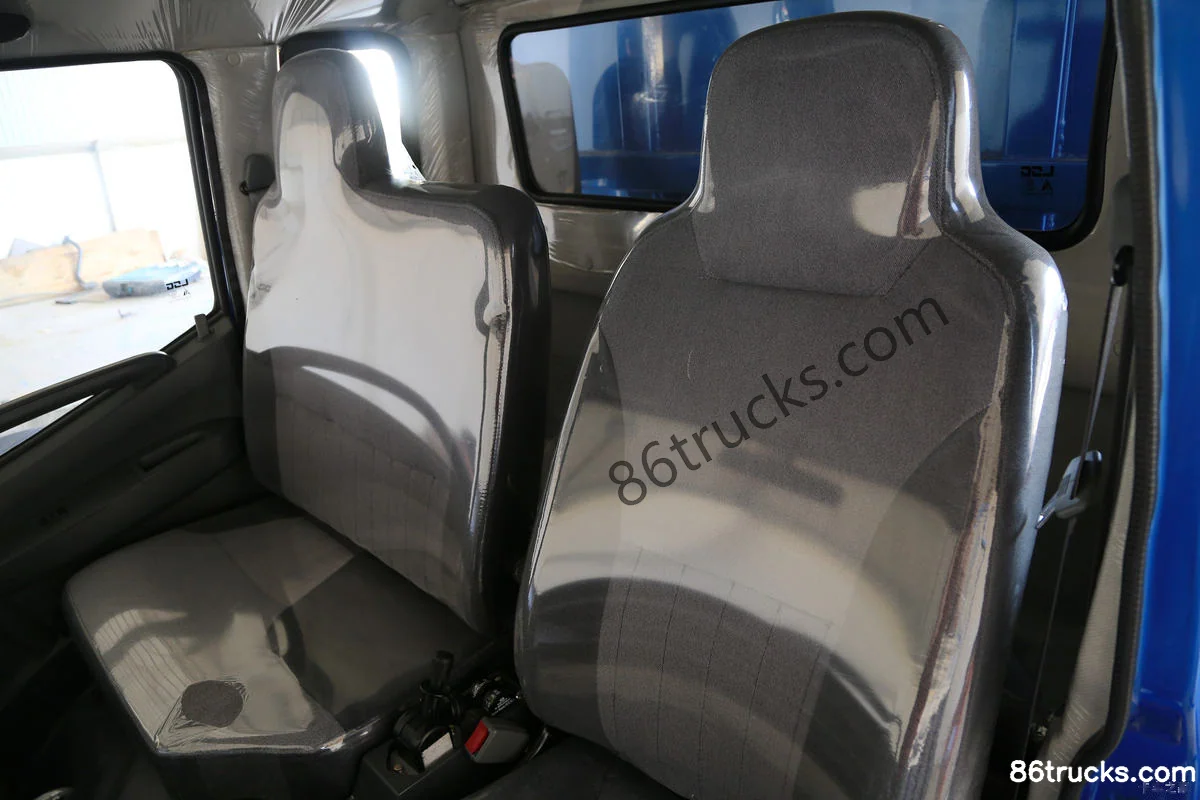

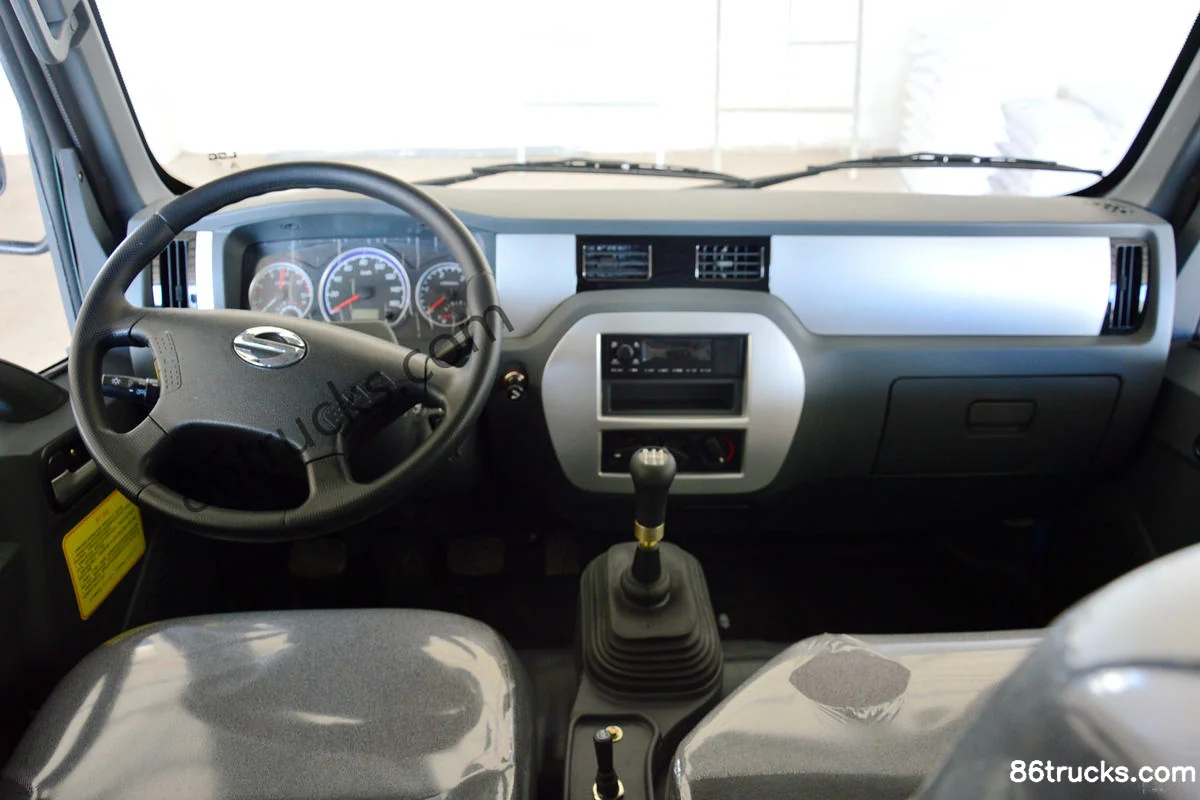

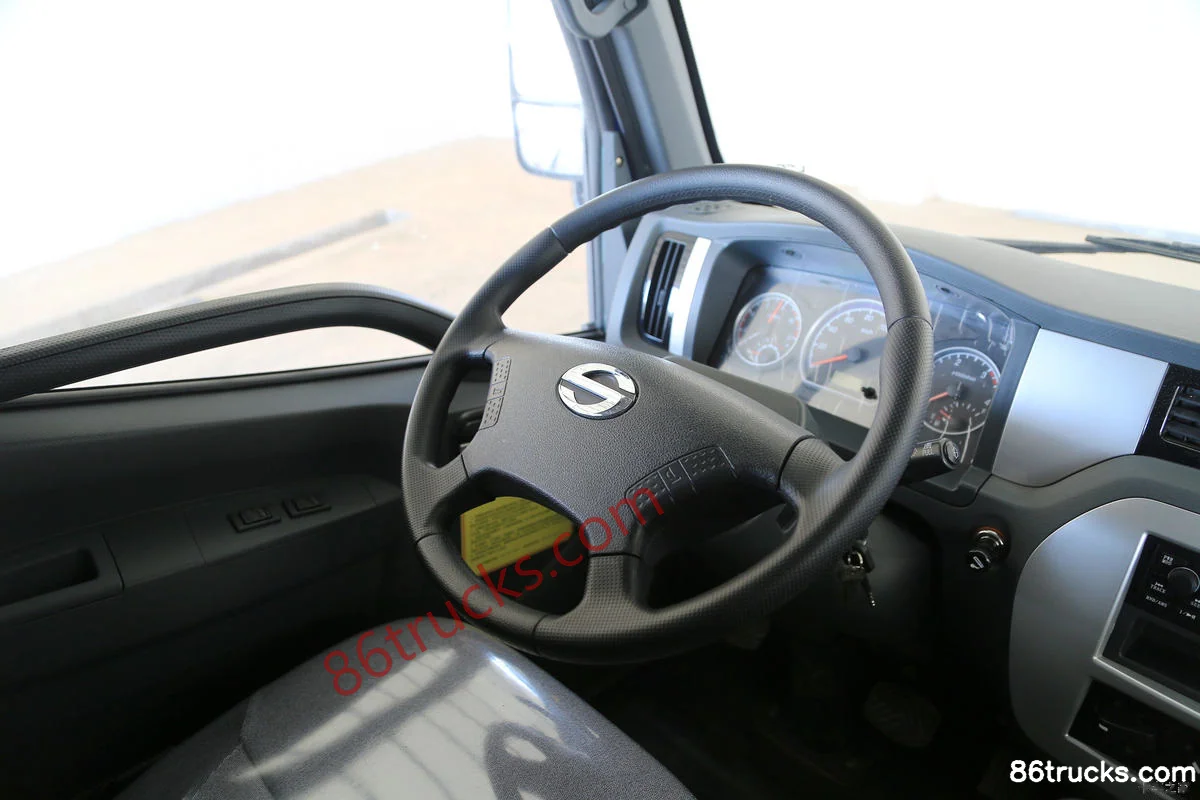

Cab3

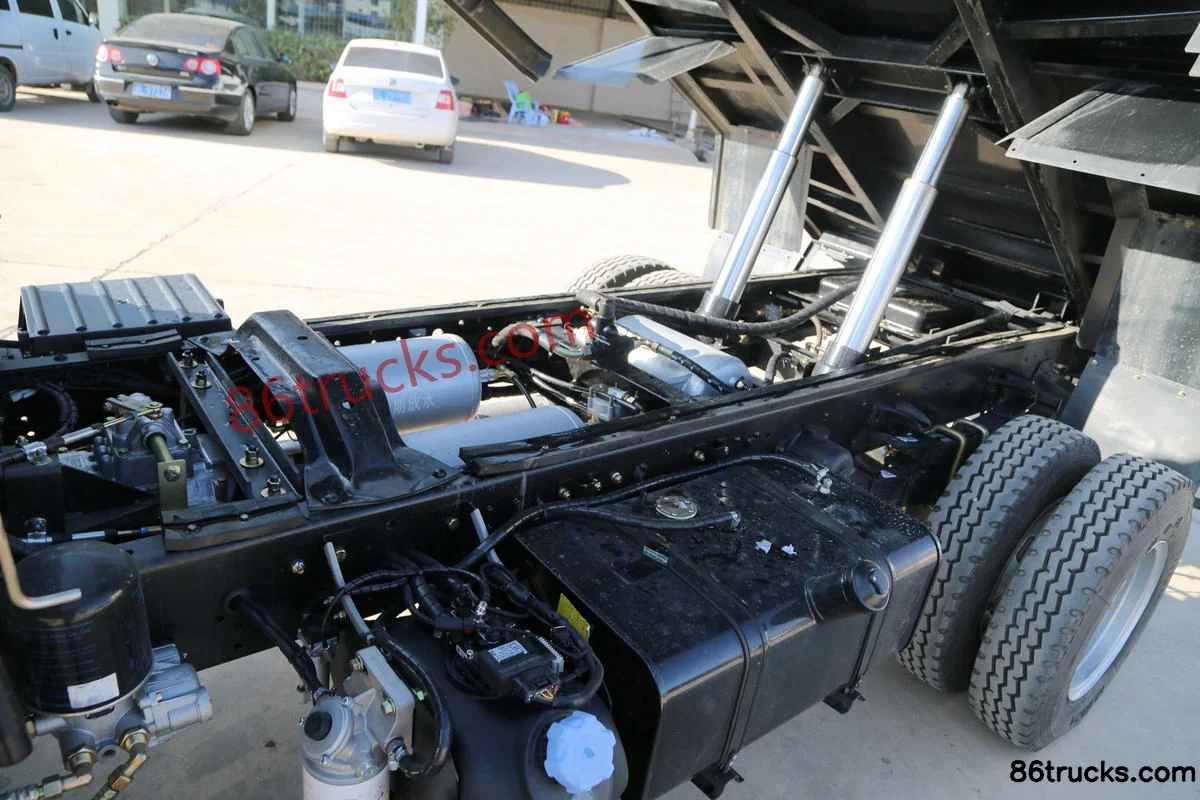

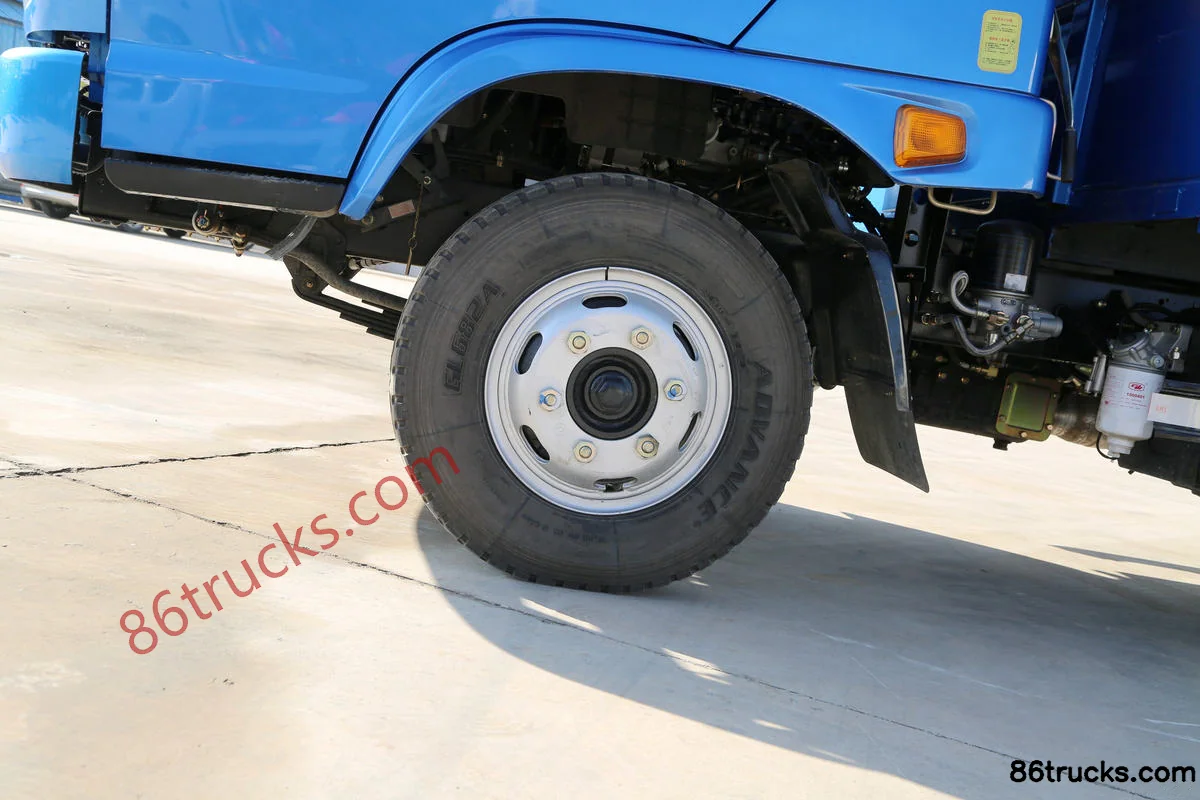

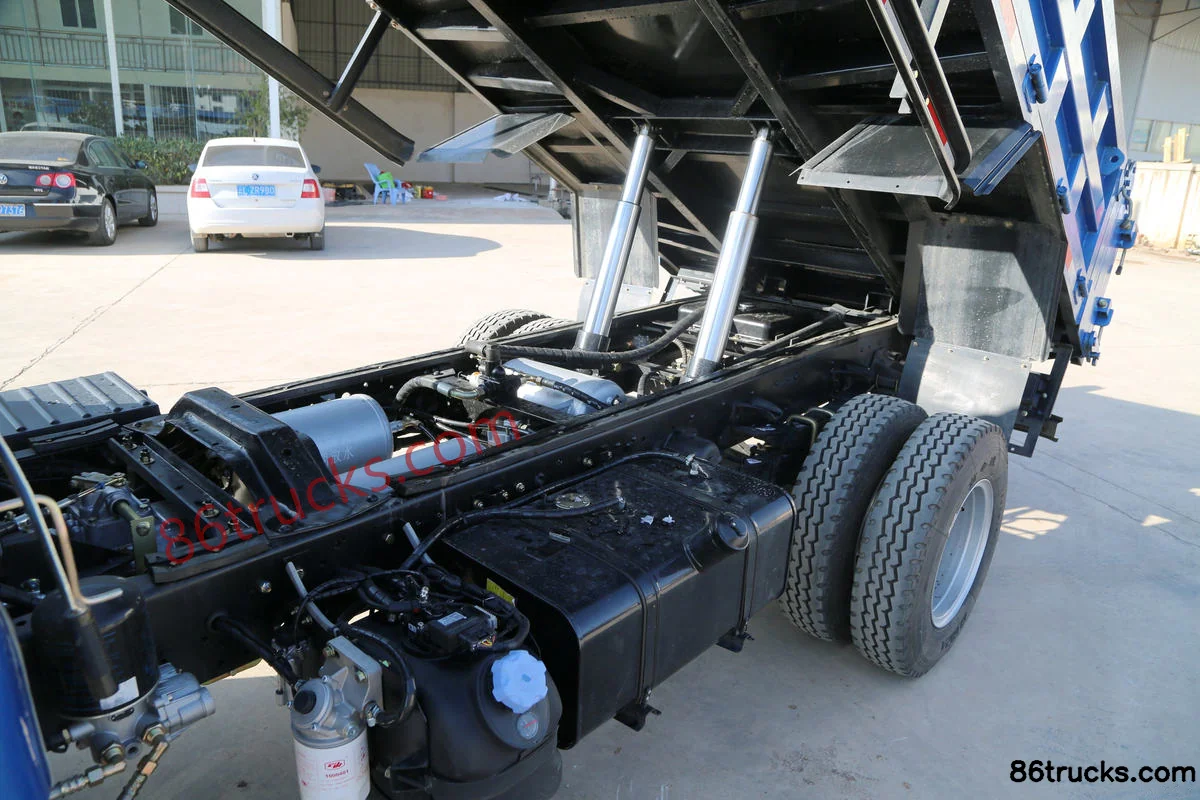

Chassis3

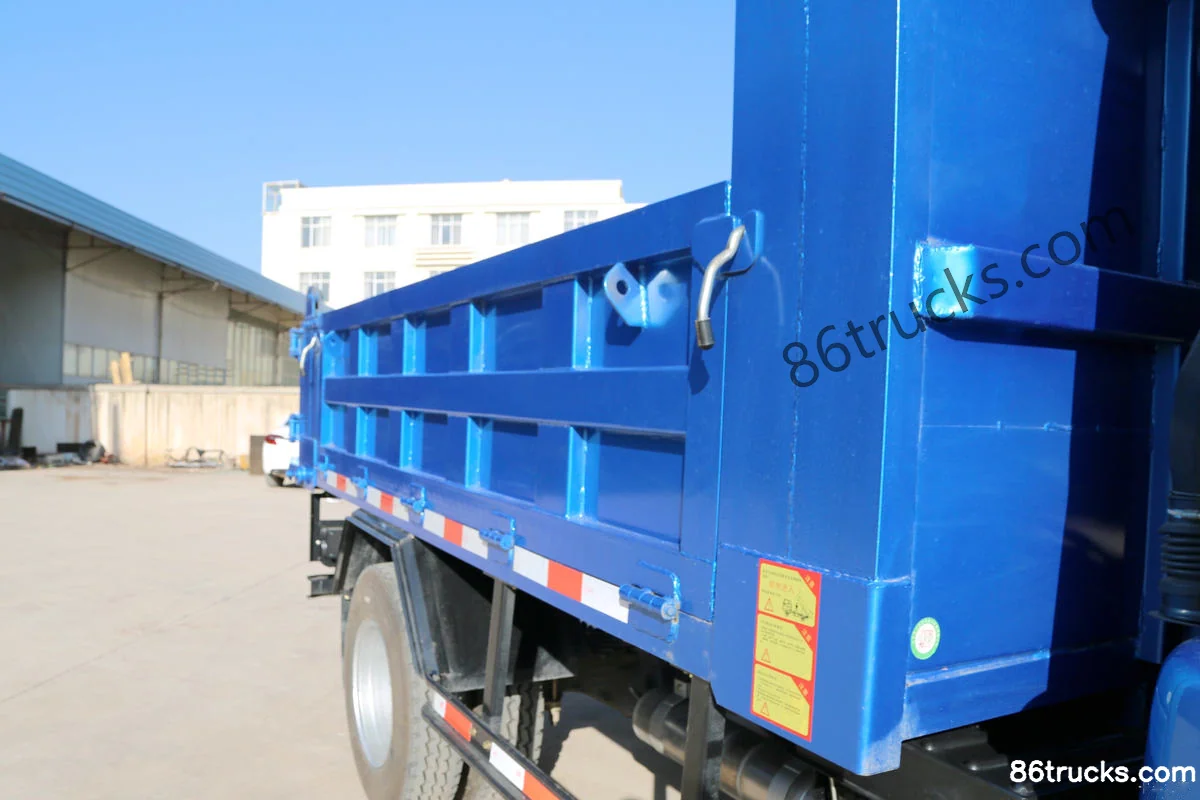

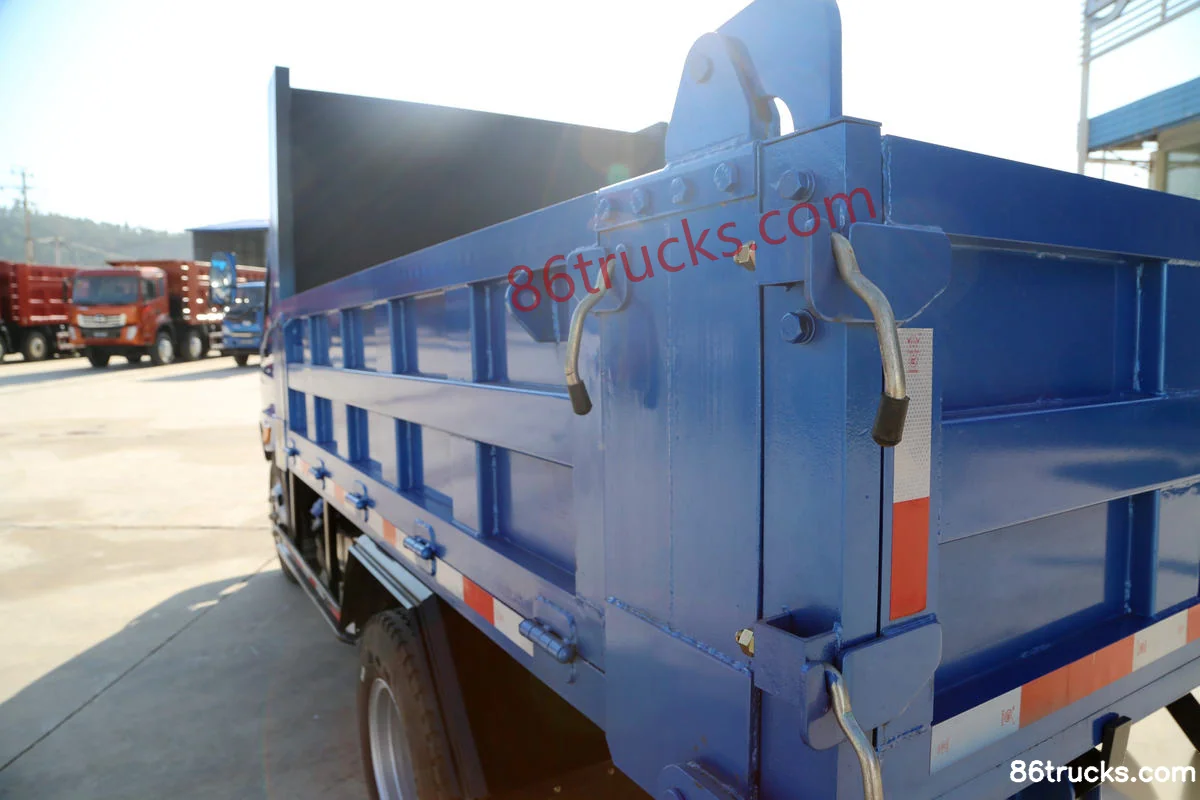

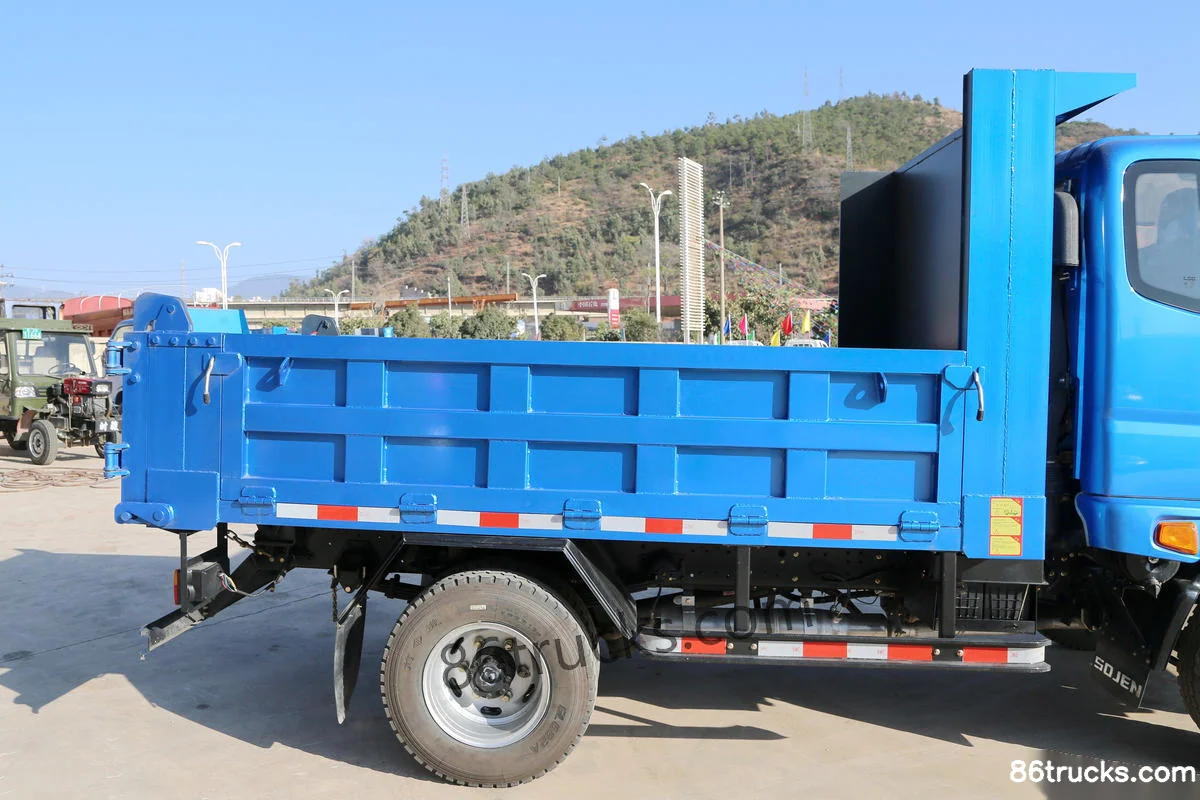

Body3

12 photos

FAQ

What emission standard does Shijun D510 82 hp 4X2(6 wheels) 3.2m dump truck (wheelbase 2900) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Shijun D510 82 hp 4X2(6 wheels) 3.2m dump truck (wheelbase 2900)?

Key specs of Shijun D510 82 hp 4X2(6 wheels) 3.2m dump truck (wheelbase 2900): Drive: 4x2; Horsepower: 82 hp; Emission: China V; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Shijun D510 82 hp 4X2(6 wheels) 3.2m dump truck (wheelbase 2900) suited for?

Shijun D510 82 hp 4X2(6 wheels) 3.2m dump truck (wheelbase 2900) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Shijun D510 82 hp 4X2(6 wheels) 3.2m dump truck (wheelbase 2900) differ from other variants in the same series?

Shijun D510 82 hp 4X2(6 wheels) 3.2m dump truck (wheelbase 2900) belongs to ShijunD510 (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Shijun D510 82 hp 4X2(6 wheels) 3.2m dump truck (wheelbase 2900)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Shijun D510 82 hp 4X2(6 wheels) 3.2m dump truck (wheelbase 2900)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
