Sinotruk Haohan J5G 340hp 8X4(12 wheels) 5.6m AMT automatic dump truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Sinotruk
Curb Weight:: 14.83ton
Wheelbase:: 1800+2800+1350mm
Tire Size:: 11.00R20,12.00R20,12R22.5/315
Sinotruk Haohan J5G 340hp 8X4(12 wheels) 5.6m AMT automatic dump truck exterior
View more photos (11)
Rated payload: 16.04ton
Drive 8X4 (12 wheels)
Horsepower 340
Cargo box type: Dump type

Overview

The Sinotruk Haohan J5G 340hp 8X4(12 wheels) 5.6m AMT automatic dump truck is a Heavy truck featuring 16.04t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a SinotrukMC07.34-50 engine, 340 hp, China V emissions and Sinotruk transmission.

China V 340 Diesel 8X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): ZZ3315N3063E1
Drive type: 8X4
Wheelbase: 1800+2800+1350mm
engine: SinotrukMC07.34-50
transmission: SinotrukHW19710A
Rear Axle Ratio: 5.571
Cab length: 8.98m
Cab width: 2.496m
Cab height: 3.55m
Front track width: 2022/2022mm
rear track: 1830/1830mm
Curb Weight: 14.83ton
Rated payload: 16.04ton
GVWR: 31ton
Origin: Jinan, Shandong
tonnage class: Heavy truck
Approach angle: 20°
departure angle: 16°
Remarks: Tires 12.00R20 295/80R22.5, front underrun protection, automatic slack adjuster, reflective vest, Triangle warning triangle, wheel chocks, AC, oil pan guard, automatic transmission
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC07.34-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.87L
Emission standard: China V
Max output power: 248kW
Max hp: 340Horsepower
Max torque: 1250N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Transmission Parameters
Transmission Model: SinotrukHW19710A
Transmission Brand: Sinotruk
shift method: AMT manual/auto
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5.6m
Cargo box width: 2.3m
Cargo box height: 0.9m
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 260L
Chassis Specs
Front axle allowable load: 6500/7000kg
rear axle description: 440
rear axle allowable load: 17500 (two-axle group)kg
Axle ratio: 5.571
Leaf spring count: 4/4/-,4/4/5,4/4/12,11/11/-,11/11/12
Tire
Tire Size: 11.00R20,12.00R20,12R22.5/315
Number of tires: 12pcs
Control configuration
ABS:

Photos

Exterior3

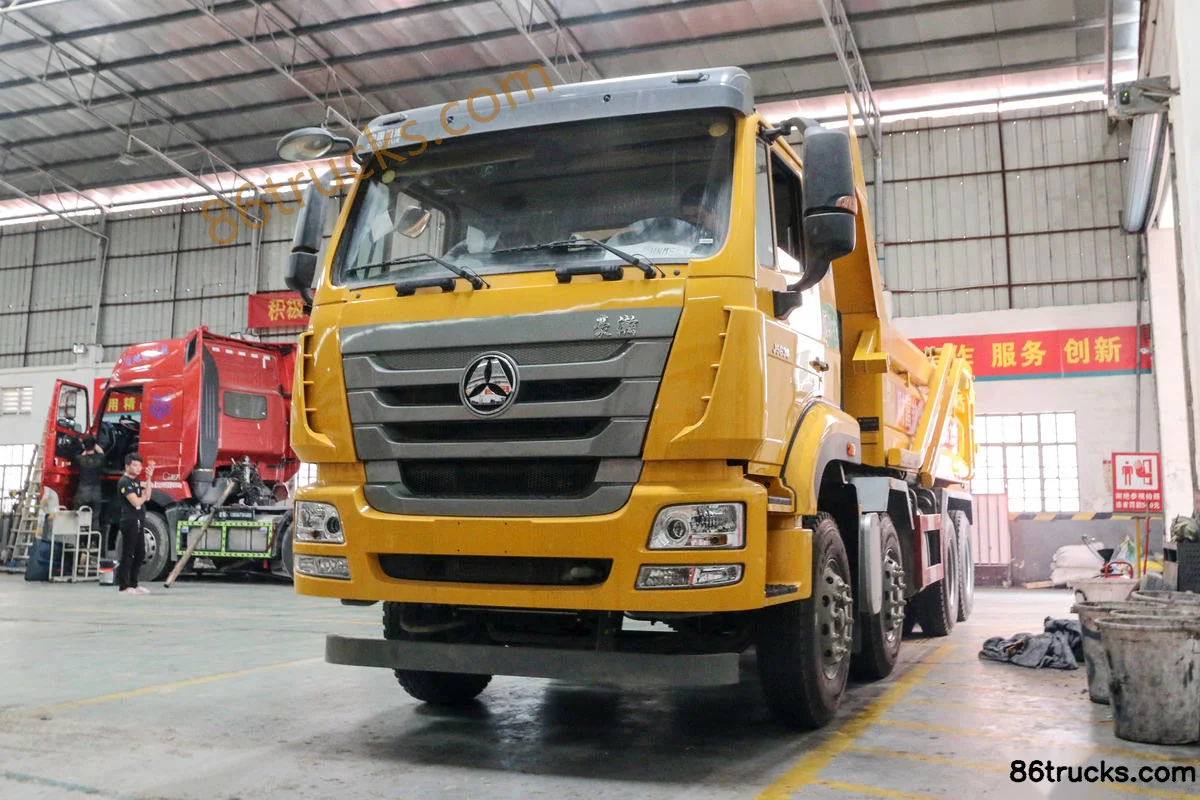

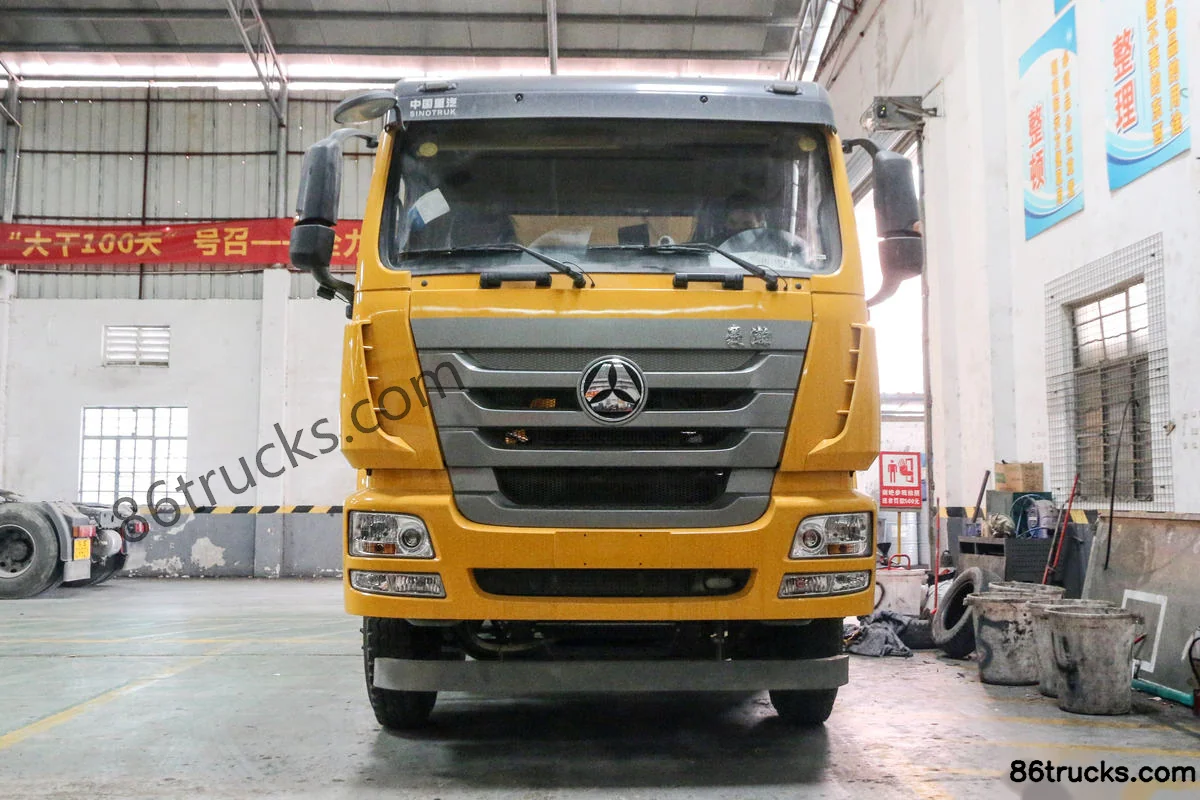

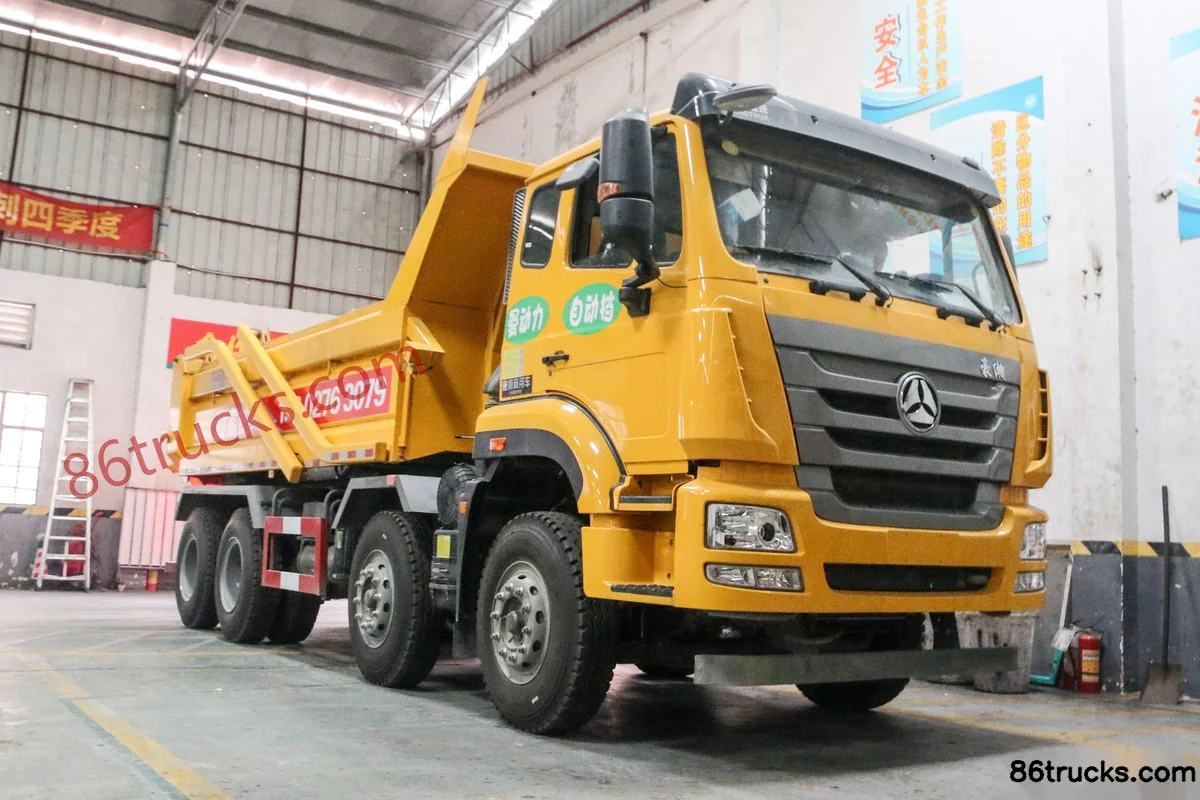

Sinotruk Haohan J5G 340hp 8X4(12 wheels) 5.6m AMT automatic dump truck Exterior (1) | 86Trucks Sinotruk Haohan J5G 340hp 8X4(12 wheels) 5.6m AMT automatic dump truck Exterior (2) | 86Trucks Sinotruk Haohan J5G 340hp 8X4(12 wheels) 5.6m AMT automatic dump truck Exterior (3) | 86Trucks

Cab3

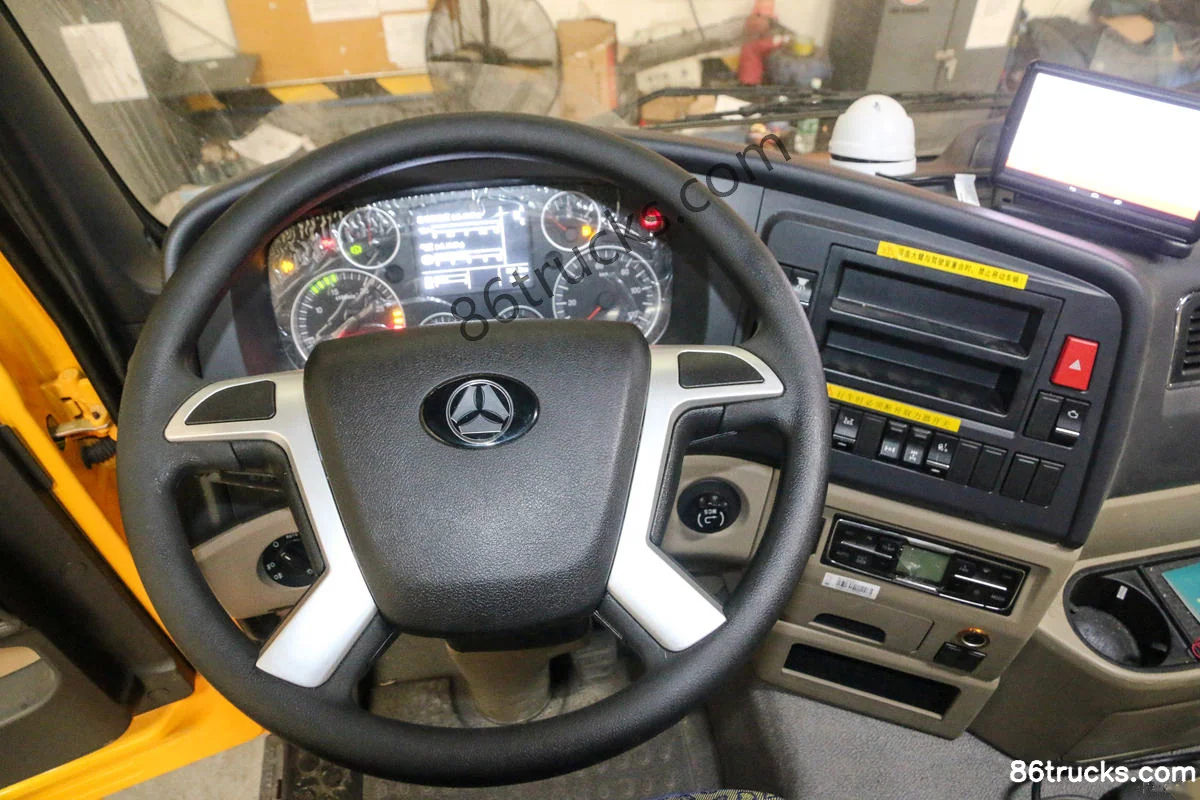

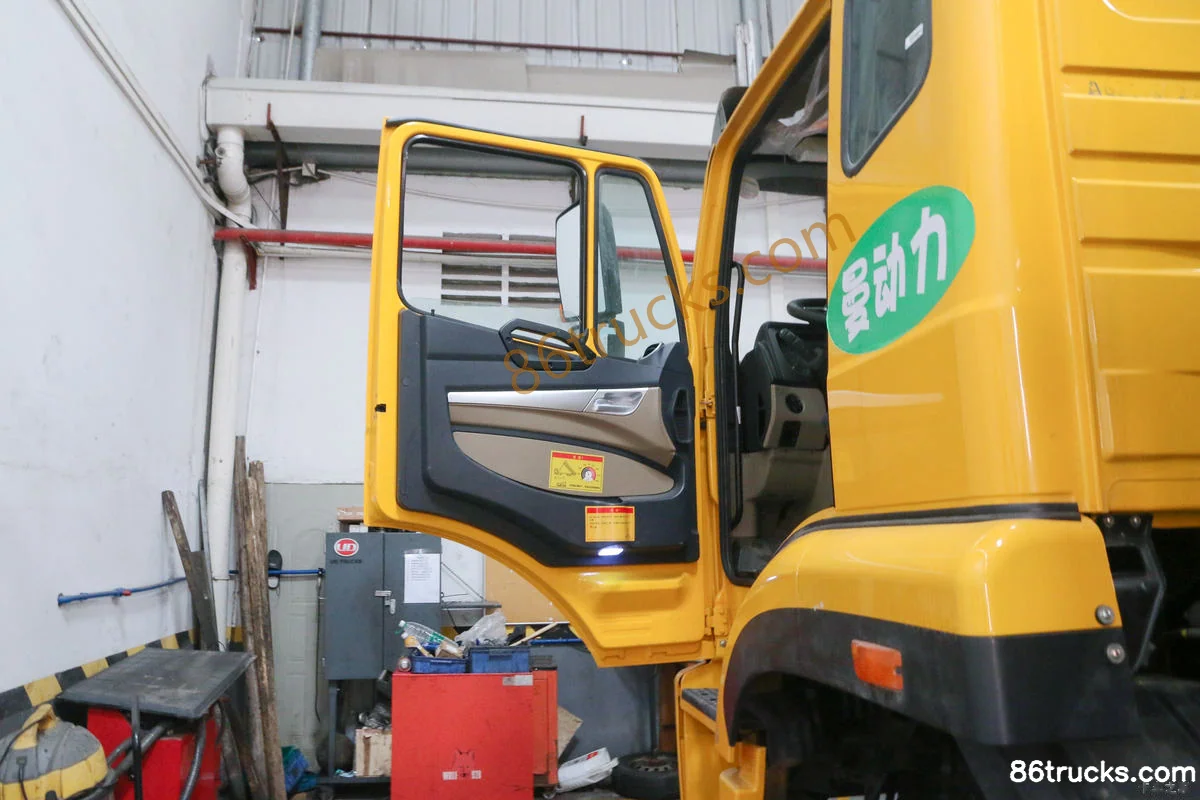

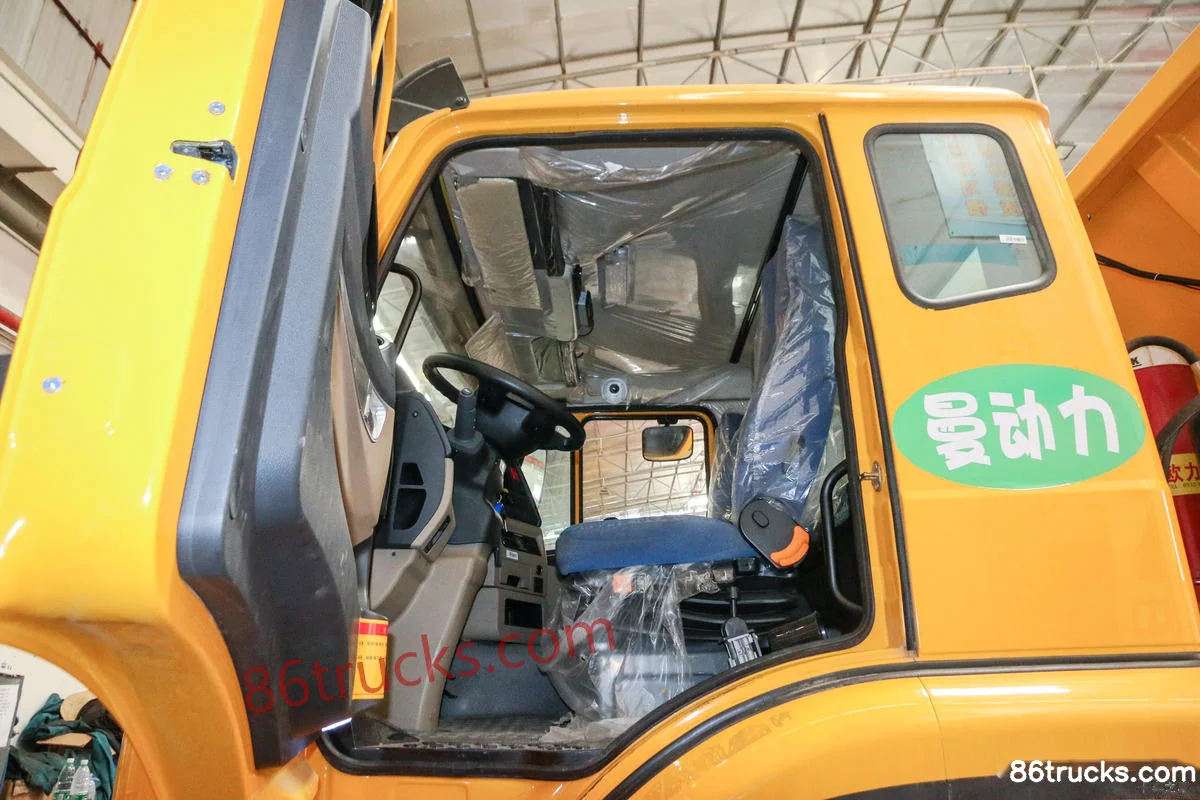

Sinotruk Haohan J5G 340hp 8X4(12 wheels) 5.6m AMT automatic dump truck Cab (1) | 86Trucks Sinotruk Haohan J5G 340hp 8X4(12 wheels) 5.6m AMT automatic dump truck Cab (2) | 86Trucks Sinotruk Haohan J5G 340hp 8X4(12 wheels) 5.6m AMT automatic dump truck Cab (3) | 86Trucks

Chassis3

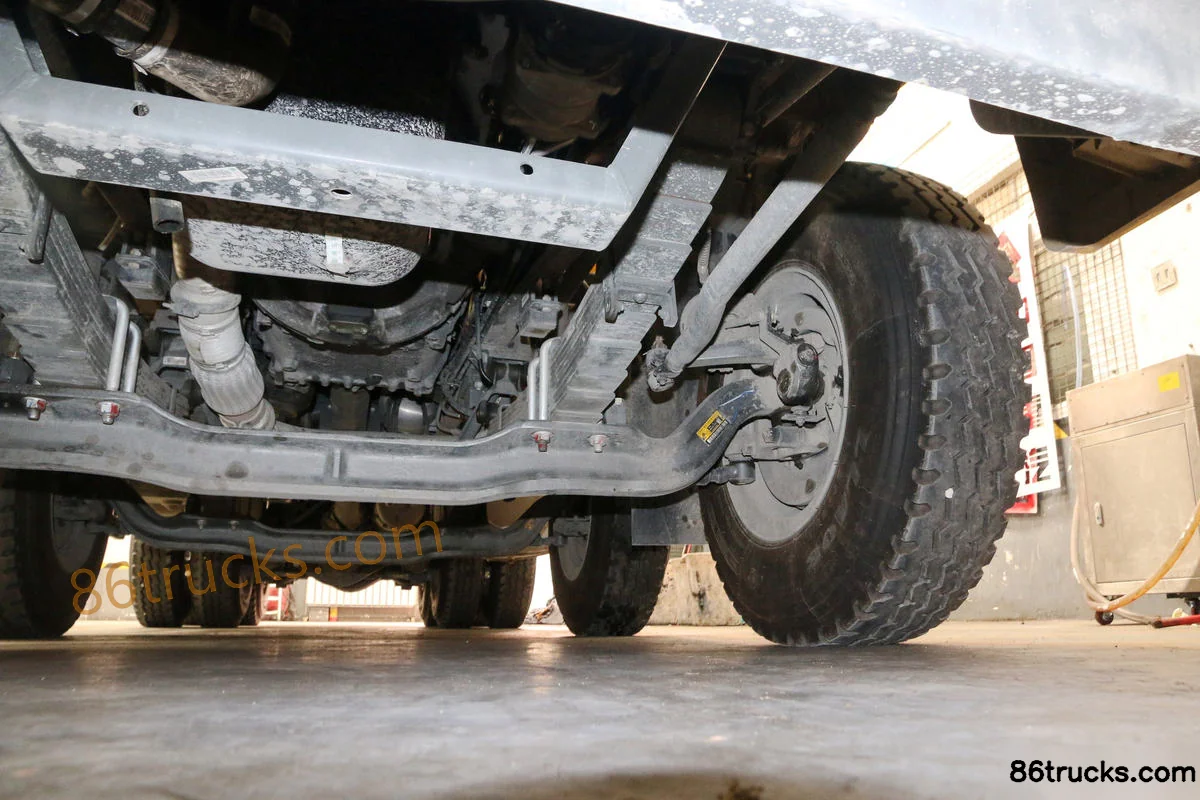

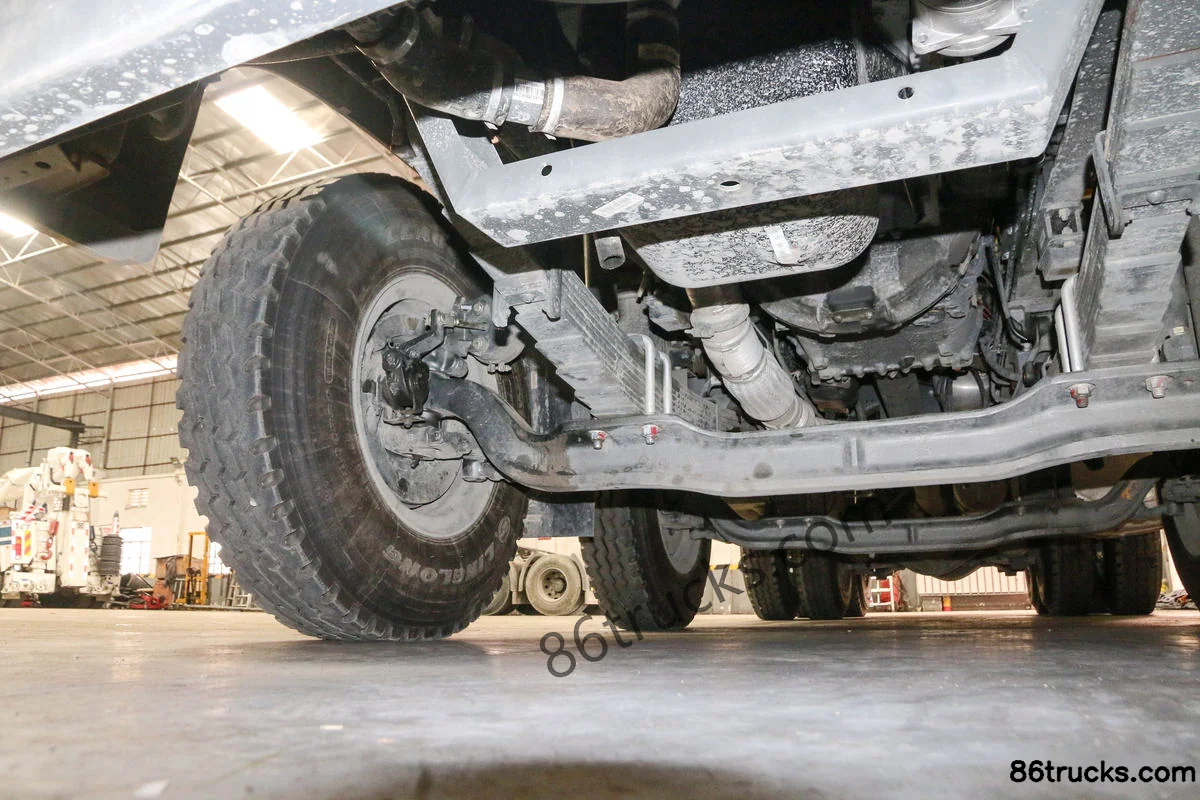

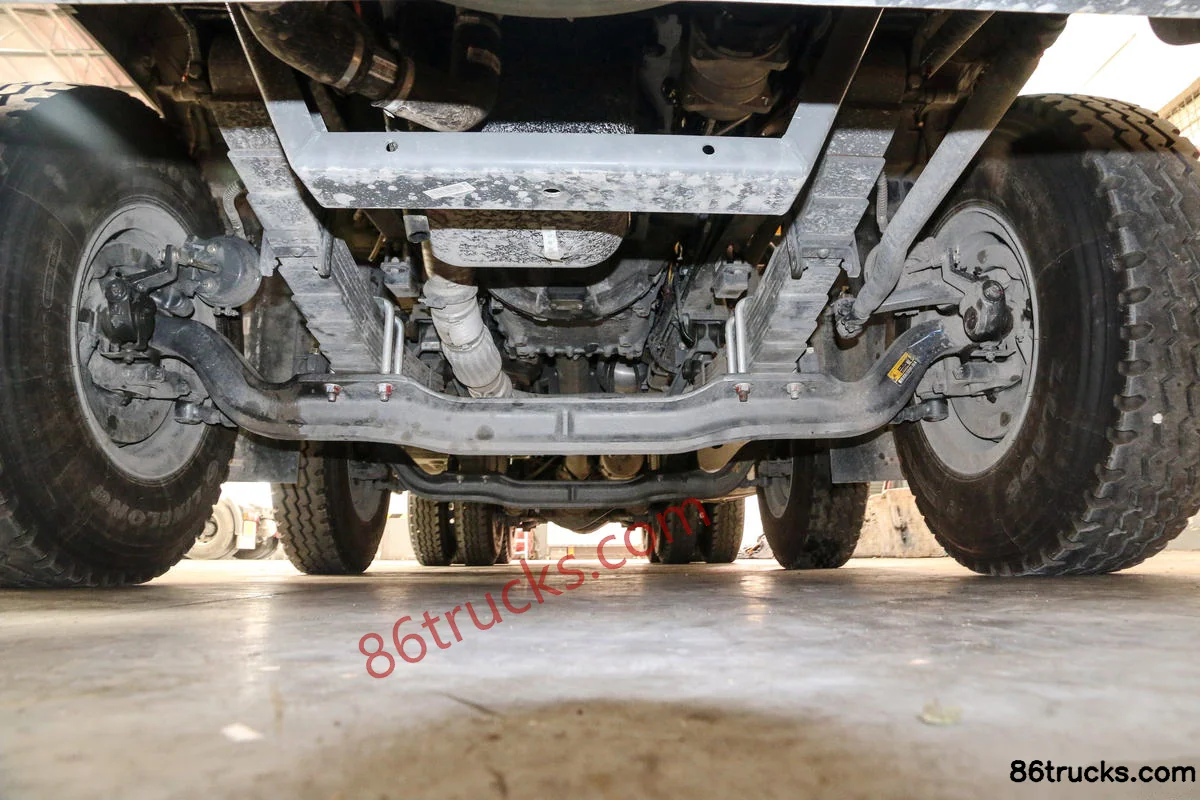

Sinotruk Haohan J5G 340hp 8X4(12 wheels) 5.6m AMT automatic dump truck Chassis (1) | 86Trucks Sinotruk Haohan J5G 340hp 8X4(12 wheels) 5.6m AMT automatic dump truck Chassis (2) | 86Trucks Sinotruk Haohan J5G 340hp 8X4(12 wheels) 5.6m AMT automatic dump truck Chassis (3) | 86Trucks

Body2

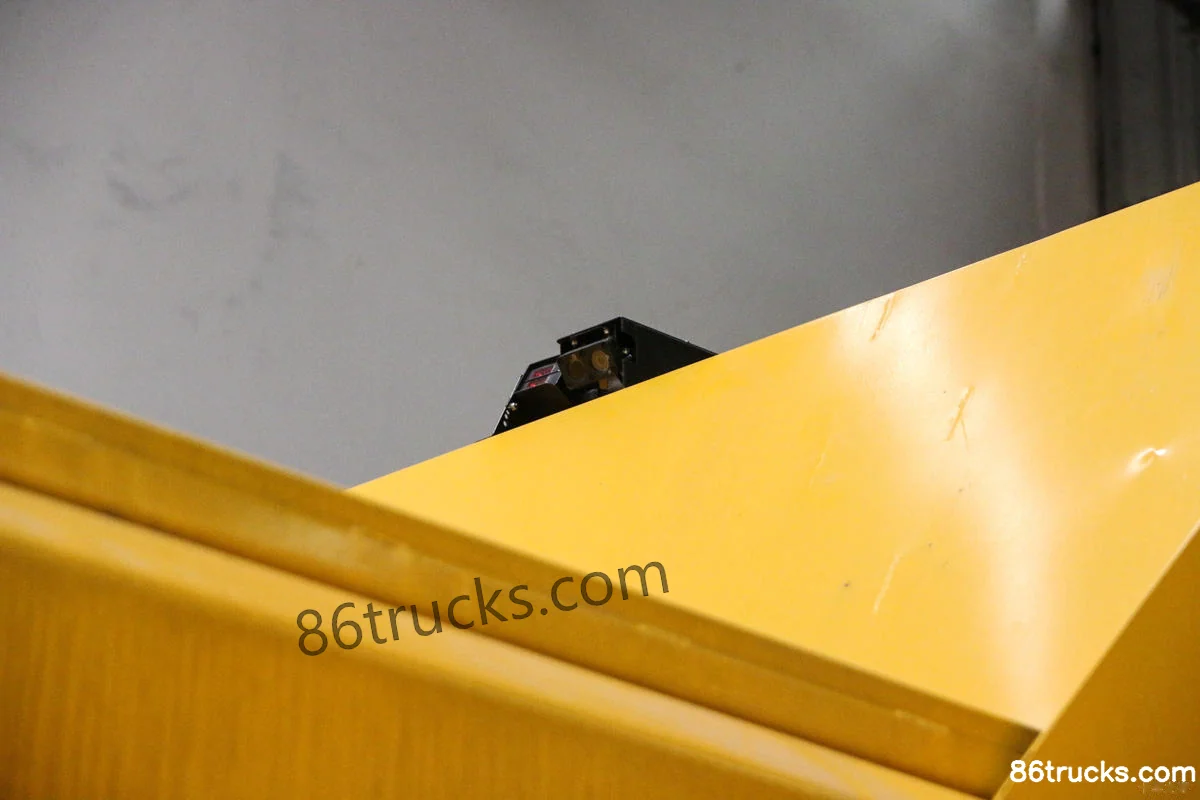

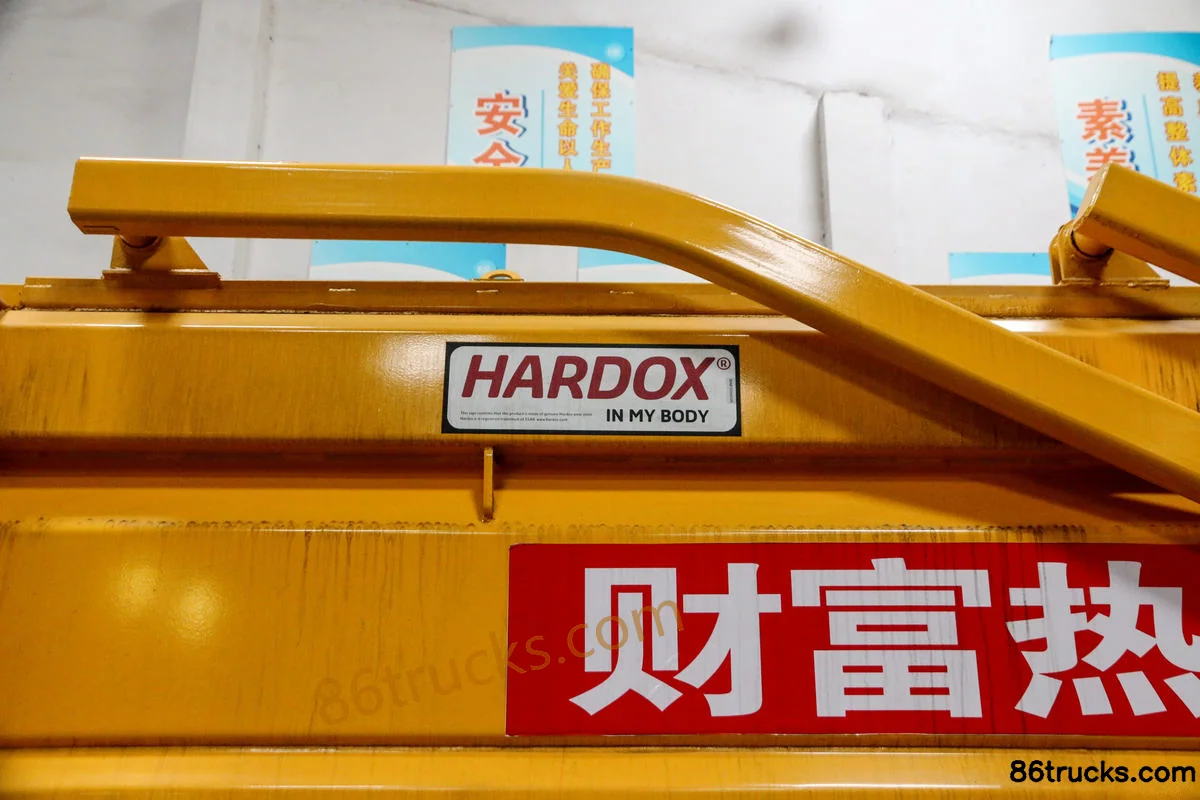

Sinotruk Haohan J5G 340hp 8X4(12 wheels) 5.6m AMT automatic dump truck Body (1) | 86Trucks Sinotruk Haohan J5G 340hp 8X4(12 wheels) 5.6m AMT automatic dump truck Body (2) | 86Trucks

11 photos

FAQ

What emission standard does Sinotruk Haohan J5G 340hp 8X4(12 wheels) 5.6m AMT automatic dump truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Haohan J5G 340hp 8X4(12 wheels) 5.6m AMT automatic dump truck?

Key specs of Sinotruk Haohan J5G 340hp 8X4(12 wheels) 5.6m AMT automatic dump truck: Drive: 8x4; Horsepower: 340 hp; Emission: China V; Fuel: Diesel; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Haohan J5G 340hp 8X4(12 wheels) 5.6m AMT automatic dump truck suited for?

Sinotruk Haohan J5G 340hp 8X4(12 wheels) 5.6m AMT automatic dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Haohan J5G 340hp 8X4(12 wheels) 5.6m AMT automatic dump truck differ from other variants in the same series?

Sinotruk Haohan J5G 340hp 8X4(12 wheels) 5.6m AMT automatic dump truck belongs to Sinotruk J5G Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Haohan J5G 340hp 8X4(12 wheels) 5.6m AMT automatic dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Haohan J5G 340hp 8X4(12 wheels) 5.6m AMT automatic dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
