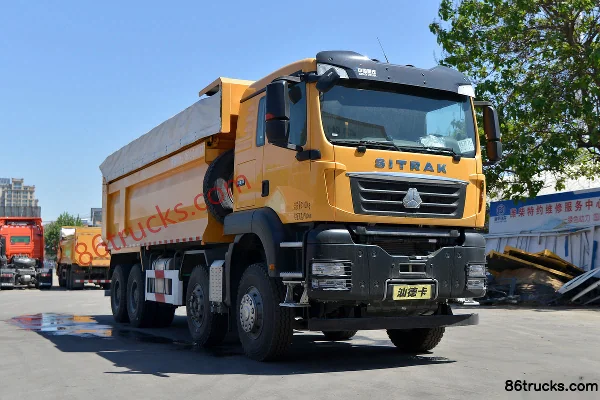

Sinotruk Sitrak G7 Heavy Truck Basic Edition 500hp 8X4(12 wheels) 6.5m Dump Truck
EXW
From $63,889
Export quote
Sitrak G7 heavy truck Dump Trucks
Main model photos
566 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk Sitrak G7 Heavy Truck Basic Edition 500hp 8X4(12 wheels) 6.5m Dump Truck | 8x4 / 500hp / China VI | From $63,889 | |
| Sinotruk Sitrak G7 Heavy Truck 500 hp 8X4(12 wheels) 5.8m Dump Truck (China VI) | 8x4 / 500hp / China VI | From $64,583 | |
| Sinotruk Sitrak G7 heavy truck 440 hp 6X4(10 wheels) 6.8m dump truck (China VI) | 6x4 / 440hp / China VI | ||
| Sinotruk Sitrak G7 Heavy Truck 460hp 8X4(12 wheels) 5.6m dump truck | 8x4 / 460hp / China VI | From $66,806 | |
| Sinotruk Sitrak G7W Heavy Truck 430 hp 8X4(12 wheels) 6.2m Dump Truck (China VI) | 8x4 / 430hp / China VI |

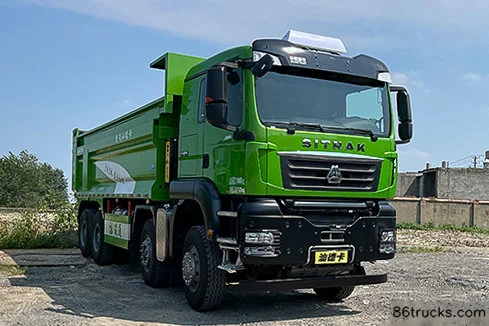

Sinotruk Sitrak G7 Heavy Truck 500 hp 8X4(12 wheels) 5.8m Dump Truck (China VI)
EXW
From $64,583
Export quote
Sinotruk Sitrak G7 heavy truck 440 hp 6X4(10 wheels) 6.8m dump truck (China VI)
EXW
Export quote
Sinotruk Sitrak G7 Heavy Truck 460hp 8X4(12 wheels) 5.6m dump truck
EXW
From $66,806
Export quote
Sinotruk Sitrak G7W Heavy Truck 430 hp 8X4(12 wheels) 6.2m Dump Truck (China VI)
EXW
Export quote
Series Specs
Basic Info
Model code (announced): ZZ3316N306HF1 / ZZ3316N256HF1 / ZZ3316N256MF1 / ZZ5316ZLJN326MF1 / ZZ5316ZLJN286MF1 / ZZ5316ZLJN306MF1 / ZZ3316N306MF1 / ZZ3316N286MF1 / ZZ3316N326MF1 / ZZ3316N326HF1
Drive type: 8X4 / 6X4
Wheelbase: 1950+3025+1350 / 1950+2525+1350 / 4625+1350 / 1800+3200+1400 / 1800+2500+1400mm
Engine Model: SinotrukMC13.50-61 / SinotrukMC11.44-60 / SinotrukMC11.46-61 / WeichaiWP10.5H430E62 / WeichaiWP10H400E62 / SinotrukMC11.40-61 / SinotrukMT13.44-60 / SinotrukMT13.40-60 / WeichaiWP12.430E62 / WeichaiWP12.460E62
Transmission Model: SinotrukHW25712XSJ / SinotrukHW25712CL / SinotrukHW25712XSL / Sinotruk 12-speed
Rear Axle Ratio: 5.26 / 5.24
Cab length: 9.452 / 8.837 / 9.767 / 8.737 / 9.022 / 9.152 / 9.272 / 8.967 / 9.122 / 9.872m
Cab width: 2.55m
Cab height: 3.68 / 3.5 / 3.445m
Front track width: 2022/2022 / 2022mm
rear track: 1830/1830mm
Curb Weight: 15.5 / 12.5ton
Rated payload: 15.37 / 12.37ton
GVWR: 31 / 25ton
Origin: Shandong Zhangqiu / Jinan, Shandong
tonnage class: Heavy truck
Approach angle: 19°
departure angle: 22 / 24°
Remarks: HW50 direct-connected PTO, Bosch steering gear, heavy-duty intake system (oil filter), standard exhaust system, high bumper (all-metal). / Standard: HW50 direct-mounted PTO, Bosch steering gear, standard exhaust system, high-position bumper (all-metal), hydraulic cylinder model: Hyva 157. / Cab optional as per chassis. Front license plate mounting position optional. Cargo box appearance structure optional. Engine MC11.46-61 fuel consumption declared value 40.3L/100km. ABS system model 4460046300, manufacturer WABCO (Shanghai) Management Co., Ltd. Satellite positioning function driving recorder installed. This model can be equipped with ETC on-board device.
Version: Base Model / Standard
Energy Type: Diesel / LNG (liquefied natural gas)
Engine parameters
Engine Brand: Sinotruk / Weichai
Number of cylinders: 6cylinder
Displacement: 12.419 / 10.518 / 10.5 / 9.5 / 11.6L
Emission standard: China VI
Max output power: 371 / 324 / 341 / 316 / 294 / 338 / 297 / 327kW
Max hp: 500 / 440 / 460 / 430 / 400Horsepower
Max torque: 2400 / 2100 / 2200 / 2000 / 1900 / 1800N·m
Max torque speed: 1000-1400 / 1200-1300rpm
Rated speed: 1900 / 1800rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail / High-pressure common rail + EGR + SCR / CR+DOC+DPF+Hi_SCR / Inline, direct injection, water-cooled, 4-stroke, turbocharged, intercooled, electronically controlled high-pressure common rail, Hi+SCR / Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, stoichiometric combustion + EGR, electronically controlled premix, single-point injection
Transmission Parameters
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body / Dump type
Cargo box thickness: Floor thickness: 8mm; Side panel thickness: 4mm / 4mm
Cargo box length: 6.5 / 5.8 / 6.8 / 5.6 / 6.2 / 6m
Cargo box width: 2.35m
Body Parameters
Lifting type: Front lift
FAQ
What kind of truck is Sitrak Sitrak G7 heavy truck Dump Trucks?
Sitrak Sitrak G7 heavy truck is an export-oriented Dump Trucks lineup with about 58 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Sitrak G7 heavy truck Dump Trucks?
Sitrak G7 heavy truck Dump Trucks export reference is about $45,833 – $66,806. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Sitrak G7 heavy truck Dump Trucks cover?
Sitrak G7 heavy truck Dump Trucks mainly covers: Drive: 6x4 / 8x4; Horsepower: 430 hp / 440 hp / 460 hp / 500 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Sitrak G7 heavy truck Dump Trucks?
For Sitrak G7 heavy truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Sitrak G7 heavy truck Dump Trucks include?
Sitrak G7 heavy truck Dump Trucks currently lists about 58 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Sitrak G7 heavy truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
