JAC Haoyun 82 hp 4X2(6 wheels) 2.75m Dump Truck

Export reference
From $6,944
MSRP ¥5M CNY
Emission: China IV
Fuel: Diesel
Transmission: Lu'an
Curb Weight:: 2ton
Wheelbase:: 2600mm
Tire Size:: 6.50R16
Rated payload: 0.995ton
Drive 4X2 (6 wheels)
Horsepower 82
Cargo box type: Rear-dump body

Overview

The JAC Haoyun 82 hp 4X2(6 wheels) 2.75m Dump Truck is a Light Truck featuring 0.995t payload, 3.125t GVW, Rear-dump body cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YangchaiYZ4DC1-40 engine, 82 hp, China IV emissions and Lu'an transmission.

China IV 82 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC3030P93K1B3
Drive type: 4X2
Wheelbase: 2600mm
engine: YangchaiYZ4DC1-40
transmission: Lu'an MSC-5S
Cab length: 4.83m
Cab width: 1.81m
Cab height: 2.15m
Front track width: 1420mm
rear track: 1395mm
Curb Weight: 2ton
Rated payload: 0.995ton
GVWR: 3.125ton
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 18°
departure angle: 18°
Energy Type: Diesel
Engine parameters
Engine Brand: Yangchai
Engine Model: YangchaiYZ4DC1-40
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.16L
Emission standard: China IV
Max output power: 60kW
Max hp: 82Horsepower
Max torque: 200N·m
Max torque speed: 1000-2000rpm
Rated speed: 3200rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Transmission Parameters
Transmission Model: Lu'an MSC-5S
Transmission Brand: Lu'an
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 2.75m
Cargo box width: 1.71m
Cargo box height: 0.37m
fuel tank
Fuel tank capacity: 40L
Chassis Specs
rear axle allowable load: 2000kg
Leaf spring count: 3/5+3
Tire
Tire Size: 6.50R16
Number of tires: 6pcs

Photos

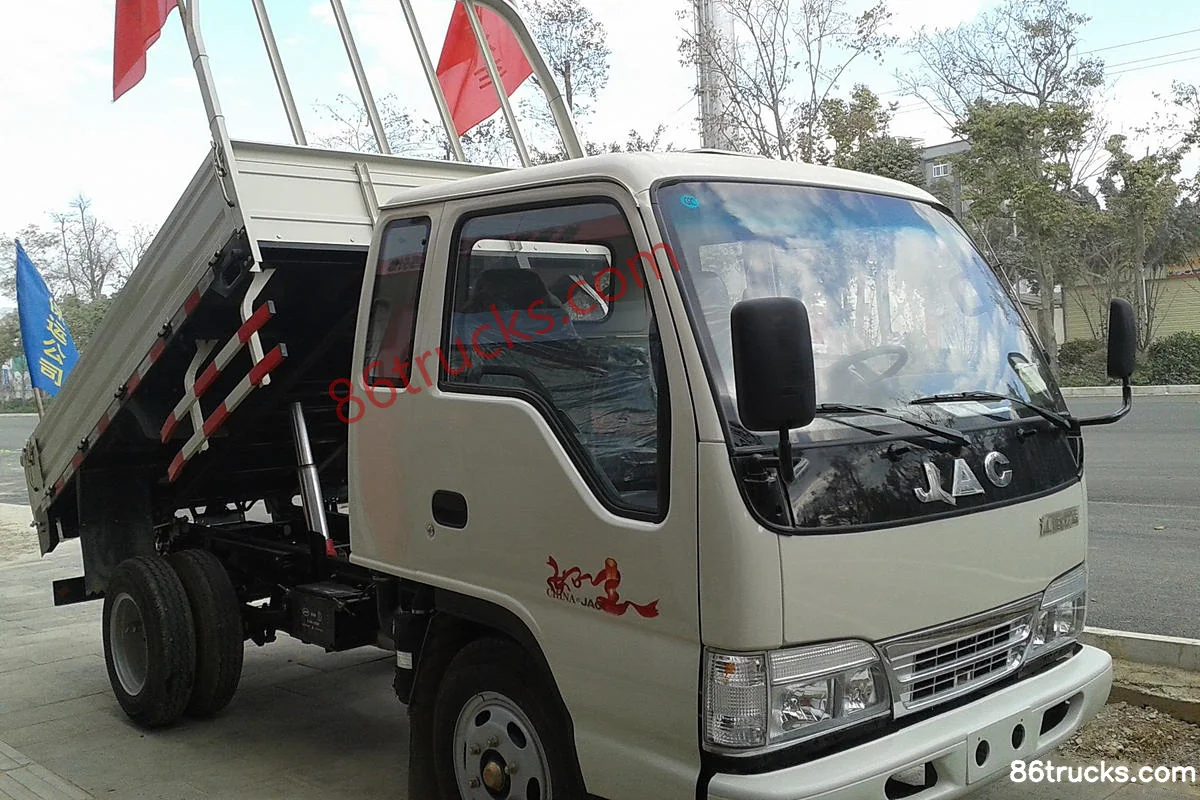

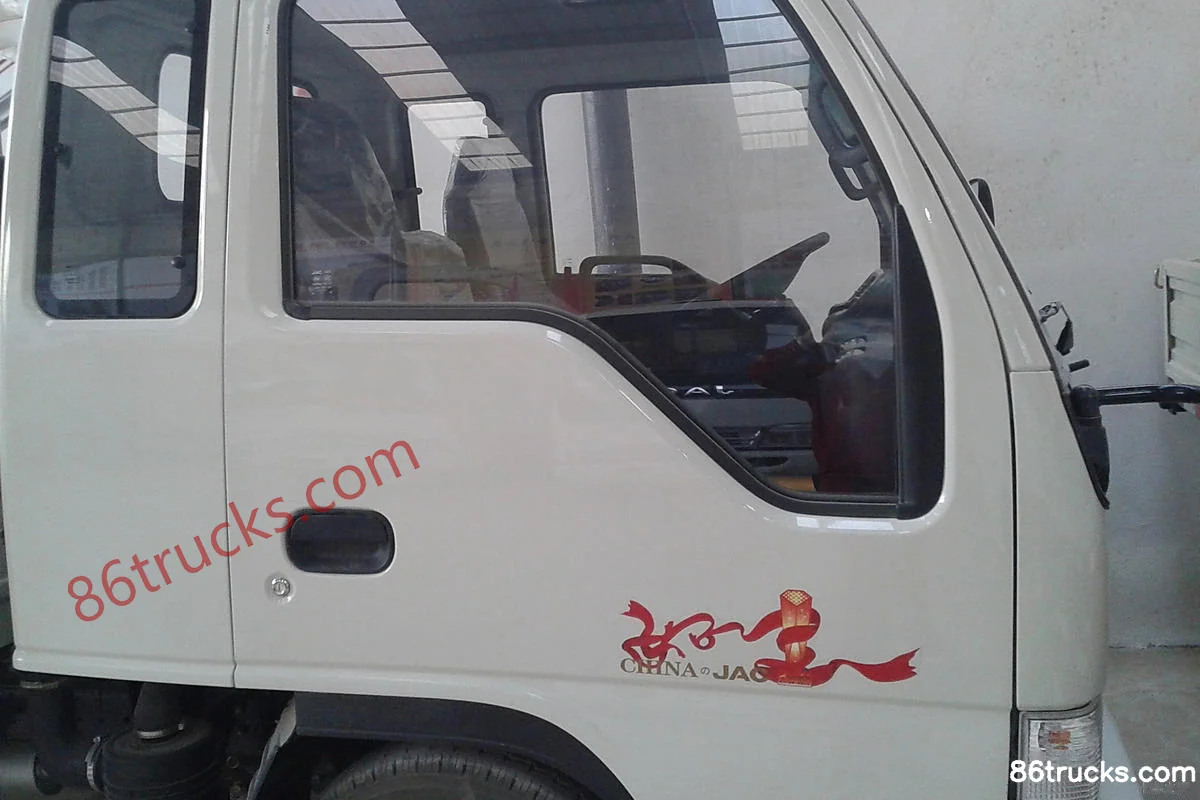

Exterior3

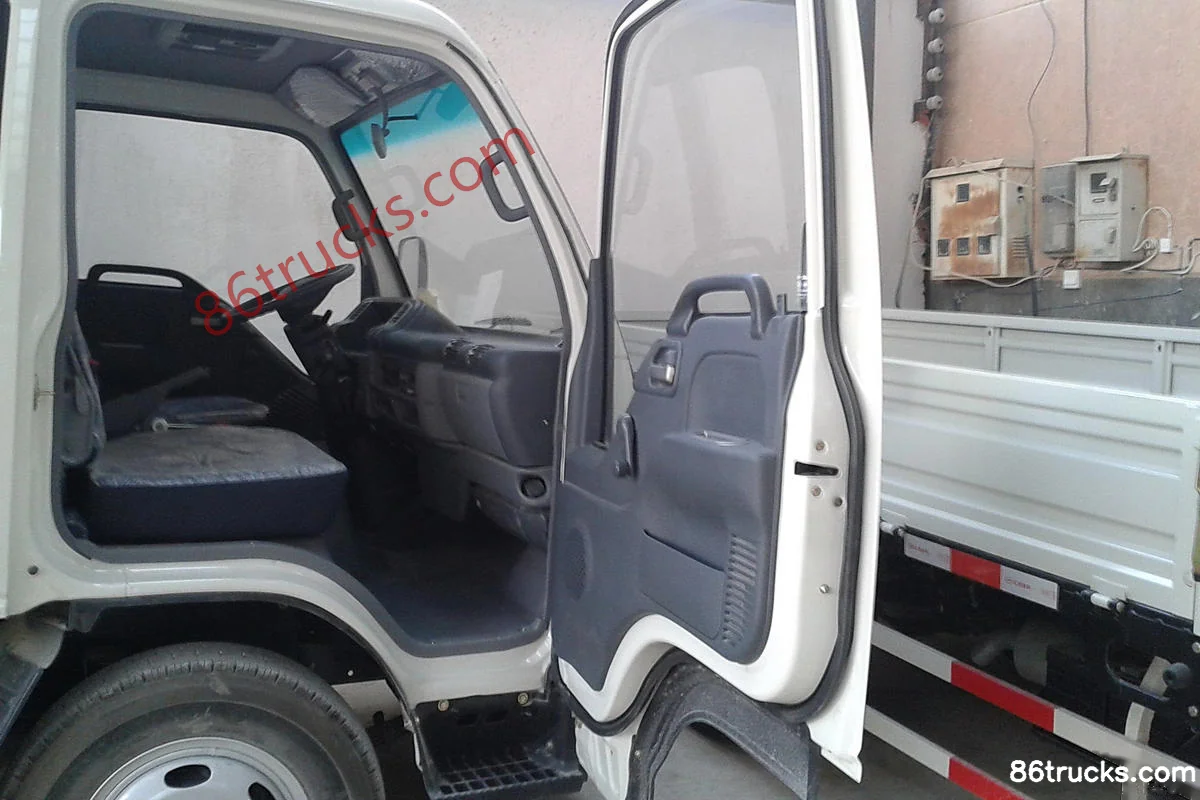

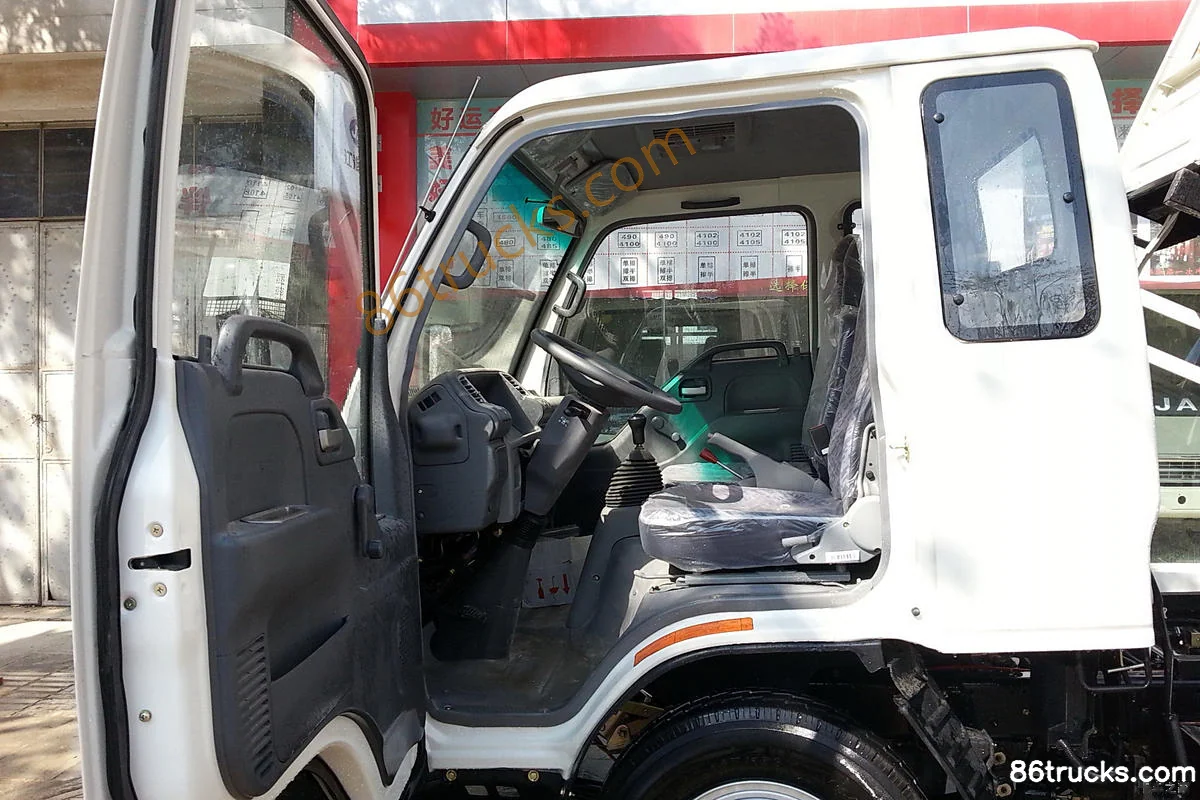

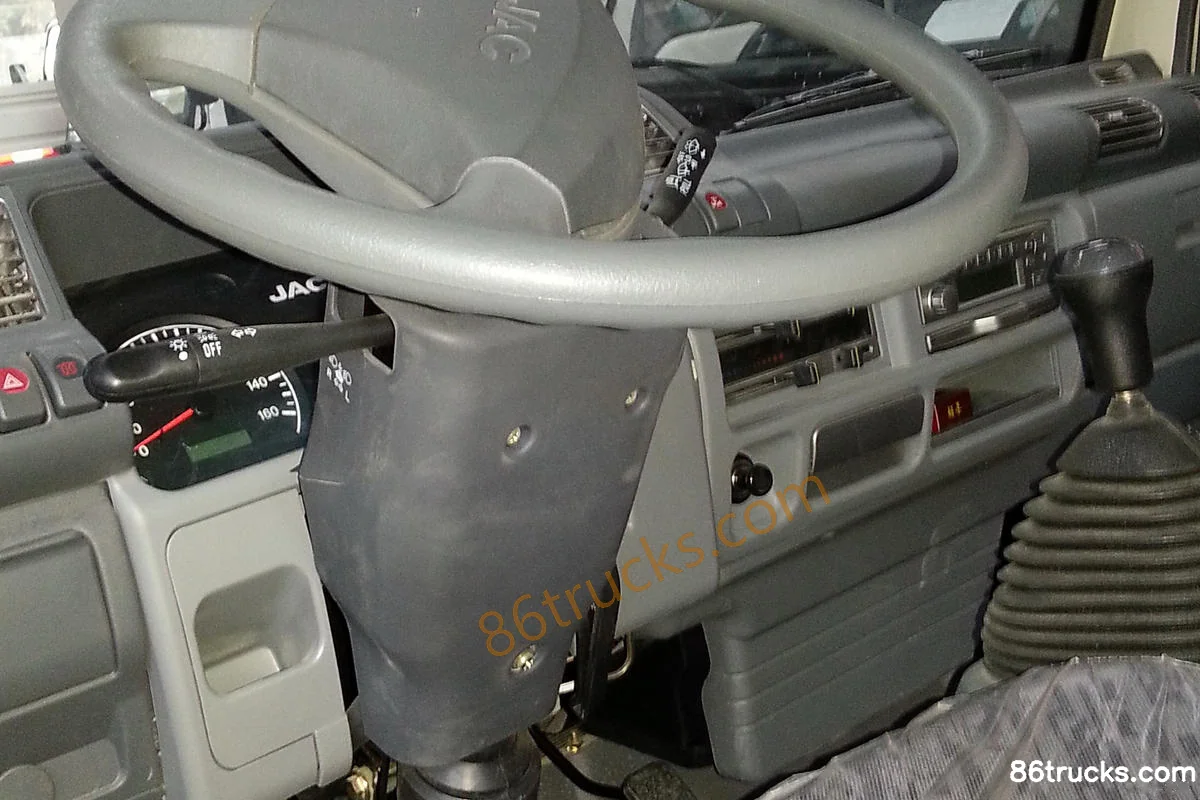

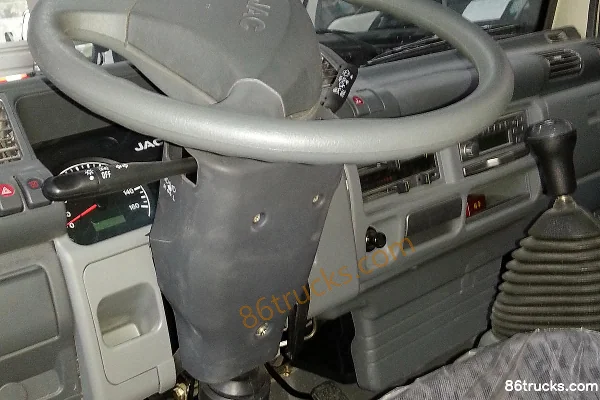

Cab3

6 photos

FAQ

What is the export price of JAC Haoyun 82 hp 4X2(6 wheels) 2.75m Dump Truck, and what does it include?

JAC Haoyun 82 hp 4X2(6 wheels) 2.75m Dump Truck export reference is about From $6,944; MSRP is ¥5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Haoyun 82 hp 4X2(6 wheels) 2.75m Dump Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Haoyun 82 hp 4X2(6 wheels) 2.75m Dump Truck?

Key specs of JAC Haoyun 82 hp 4X2(6 wheels) 2.75m Dump Truck: Drive: 4x2; Horsepower: 82 hp; Emission: China IV; Fuel: Diesel; Transmission: Lu'an. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Haoyun 82 hp 4X2(6 wheels) 2.75m Dump Truck suited for?

JAC Haoyun 82 hp 4X2(6 wheels) 2.75m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does JAC Haoyun 82 hp 4X2(6 wheels) 2.75m Dump Truck differ from other variants in the same series?

JAC Haoyun 82 hp 4X2(6 wheels) 2.75m Dump Truck belongs to JAC Haoyun light truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Haoyun 82 hp 4X2(6 wheels) 2.75m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Haoyun 82 hp 4X2(6 wheels) 2.75m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
