IVECO Trakker series heavy truck 500 hp 8X4(12 wheels) dump truck (chassis)
EXW
Export quote
IVECO Trakker Heavy Truck Dump Trucks
Main model photos
57 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| IVECO Trakker series heavy truck 500 hp 8X4(12 wheels) dump truck (chassis) | 8x4 / 500hp / China IV | ||
| IVECO Trakker Series Heavy Truck 500 hp 8X4(12 wheels) Dump Truck | 8x4 / 500hp / China IV | ||
| IVECO Trakker Series Heavy Truck 450 hp 8X4(12 wheels) Dump Truck | 8x4 / 450hp | ||
| IVECO New Trakker Series Heavy Truck 500hp 8X4(12 wheels) Dump Truck | 8x4 / 500hp | ||
| IVECO Trakker Series Heavy Truck 500 hp 6X4(10 wheels) Dump Truck (Chassis) | 6x4 / 500hp |

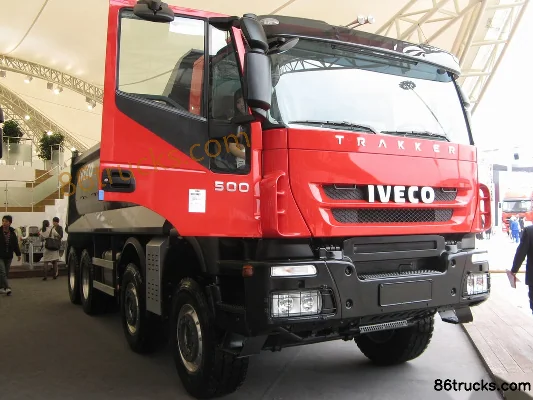

IVECO Trakker Series Heavy Truck 500 hp 8X4(12 wheels) Dump Truck
EXW
Export quote

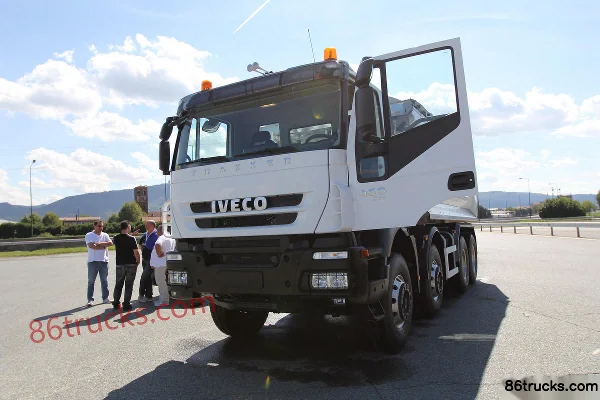

IVECO Trakker Series Heavy Truck 450 hp 8X4(12 wheels) Dump Truck
EXW
Export quote
IVECO New Trakker Series Heavy Truck 500hp 8X4(12 wheels) Dump Truck
EXW
Export quote
IVECO Trakker Series Heavy Truck 500 hp 6X4(10 wheels) Dump Truck (Chassis)
EXW
Export quote
Series Specs
Basic Info
Drive type: 8X4 / 6X4
Wheelbase: 1875+3945+1380 / 1875+2875+1380 / 4250mm
Engine Model: IVECO CURSOR 13L / FiatC / FiatC13-F3BE3681B*U-EEV / FiatCURSOR 13L
Transmission Model: ZFZF16S-2520 TO / 12-speed transmission / ZFZF12AS2330TO
Cab length: 8.535m
Cab width: 2.495m
Cab height: 3.235m
Curb Weight: 11.02 / 40ton
GVWR: 40 / 38.8 / 56ton
Origin: Italy
tonnage class: Heavy truck
Energy Type: Diesel
Engine parameters
Engine Brand: Fiat
Number of cylinders: 6cylinder
Displacement: 12.88 / 12.9L
Emission standard: China IV
Max output power: 368 / 373 / 330kW
Max hp: 500 / 450Horsepower
Max torque: 2300 / 2294N·m
Max torque speed: 1000-1525 / 1000-1520 / 1500rpm
Rated speed: 1900rpm
Engine Type: Inline
Transmission Parameters
Transmission Brand: ZF
shift method: AMT manual/auto
Forward gears: 16 / 12Gear
Number of Reverse Gears: 2pcs
fuel tank
Fuel tank capacity: 360L
Chassis Specs
rear axle description: Rear axle: 45329/D steering axle; 5886/D steering axle, front axle load 2X8000kg
rear axle allowable load: 2X13000kg
Tire
Tire Size: 385/65r22.5;315/80R22.5 / 365/70R22.5-20PR / 315/80R22.5
Number of tires: 12 / 10pcs
FAQ
What kind of truck is IVECO IVECO Trakker Heavy Truck Dump Trucks?
IVECO IVECO Trakker Heavy Truck is an export-oriented Dump Trucks lineup with about 5 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does IVECO Trakker Heavy Truck Dump Trucks cover?
IVECO Trakker Heavy Truck Dump Trucks mainly covers: Drive: 6x4 / 8x4; Horsepower: 450 hp / 500 hp; Emission: China IV; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in IVECO Trakker Heavy Truck Dump Trucks?
For IVECO Trakker Heavy Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does IVECO Trakker Heavy Truck Dump Trucks include?
IVECO Trakker Heavy Truck Dump Trucks currently lists about 5 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for IVECO Trakker Heavy Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
