IVECO Trakker series heavy truck 500 hp 8X4(12 wheels) dump truck (chassis)

Export reference
MSRP N/A
Transmission: ZF
Curb Weight:: 11.02ton
Wheelbase:: 1875+3945+1380mm
Tire Size:: 385/65r22.5;315/80R22.5
engine:: IVECO CURSOR 13L
GVWR:: 40ton
Drive 8X4 (12 wheels)
Horsepower 500
Emission China IV
Fuel Diesel

Overview

The IVECO Trakker series heavy truck 500 hp 8X4(12 wheels) dump truck (chassis) is a Heavy truck featuring 40t GVW and 8X4 (12 wheels) drive. On the powertrain side, it comes with a IVECO CURSOR 13L engine, 500 hp, China IV emissions and ZF transmission.

China IV 500 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Drive type: 8X4
Wheelbase: 1875+3945+1380mm
engine: IVECO CURSOR 13L
transmission: ZFZF16S-2520 TO
Curb Weight: 11.02ton
GVWR: 40ton
Origin: Italy
tonnage class: Heavy truck
Energy Type: Diesel
Engine parameters
Engine Brand: Fiat
Engine Model: FiatCURSOR 13L
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 12.88L
Emission standard: China IV
Max output power: 368kW
Max hp: 500Horsepower
Max torque: 2300N·m
Max torque speed: 1000-1525rpm
Rated speed: 1900rpm
Transmission Parameters
Transmission Model: ZFZF16S-2520 TO
Transmission Brand: ZF
Forward gears: 16Gear
Chassis Specs
rear axle description: Rear axle: 45329/D steering axle; 5886/D steering axle, front axle load 2X8000kg
rear axle allowable load: 2X13000kg
Tire
Tire Size: 385/65r22.5;315/80R22.5
Number of tires: 12pcs

Photos

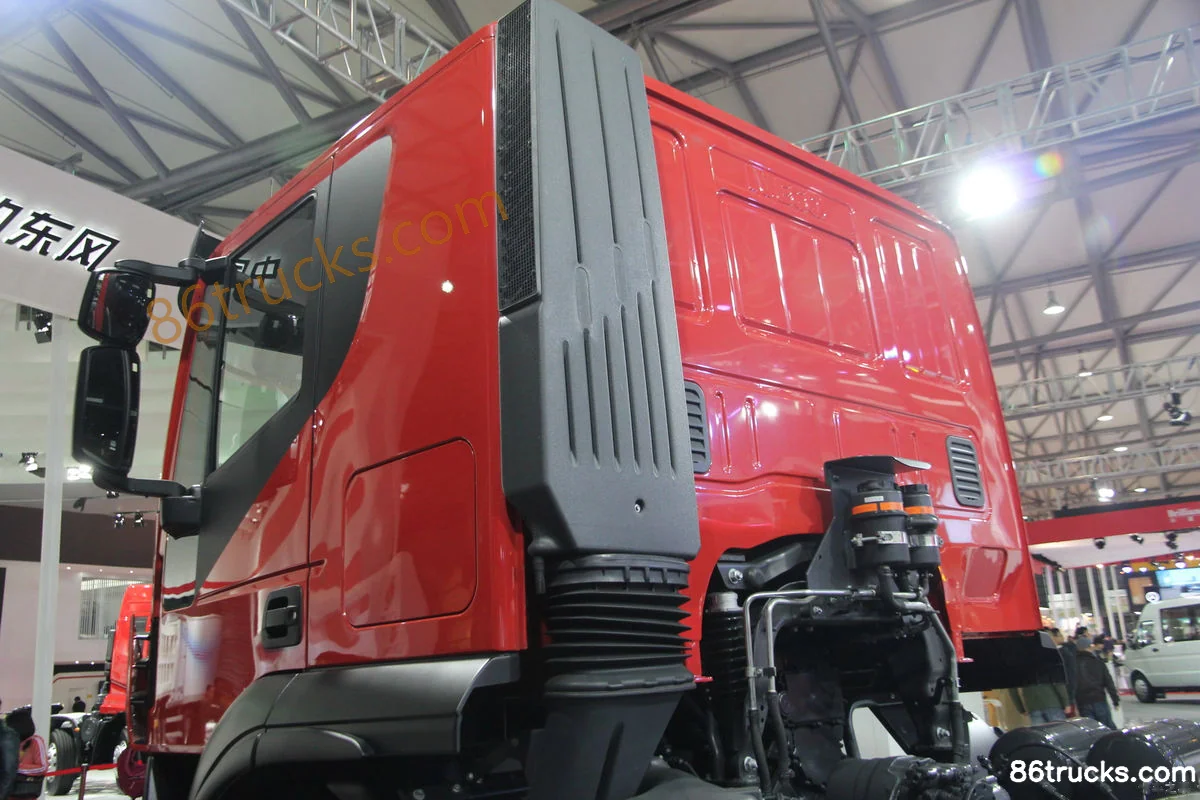

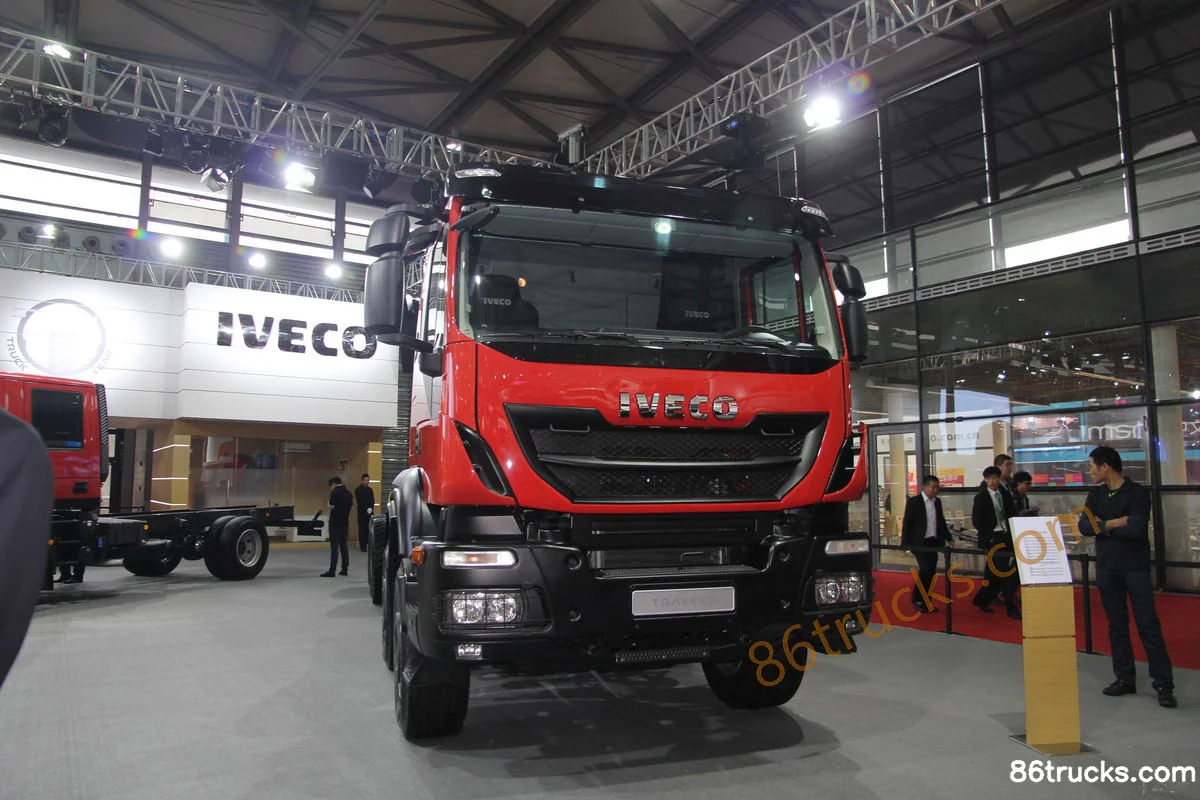

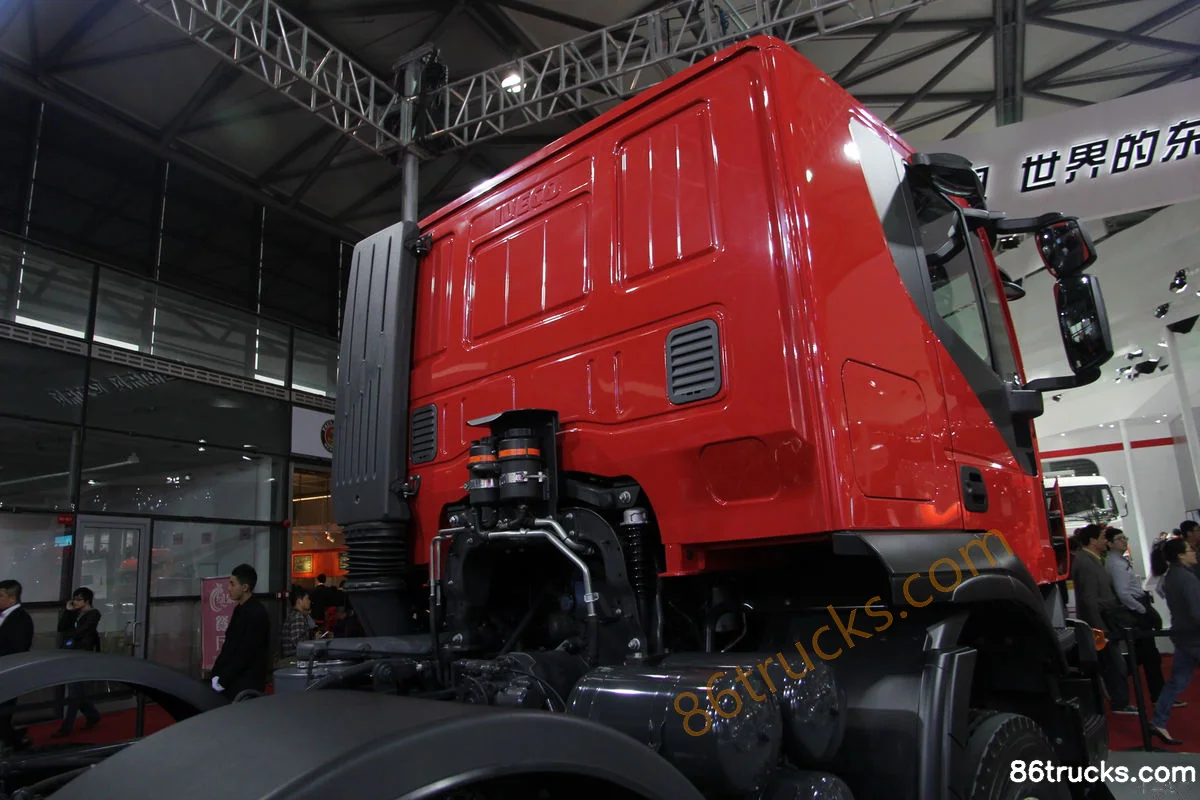

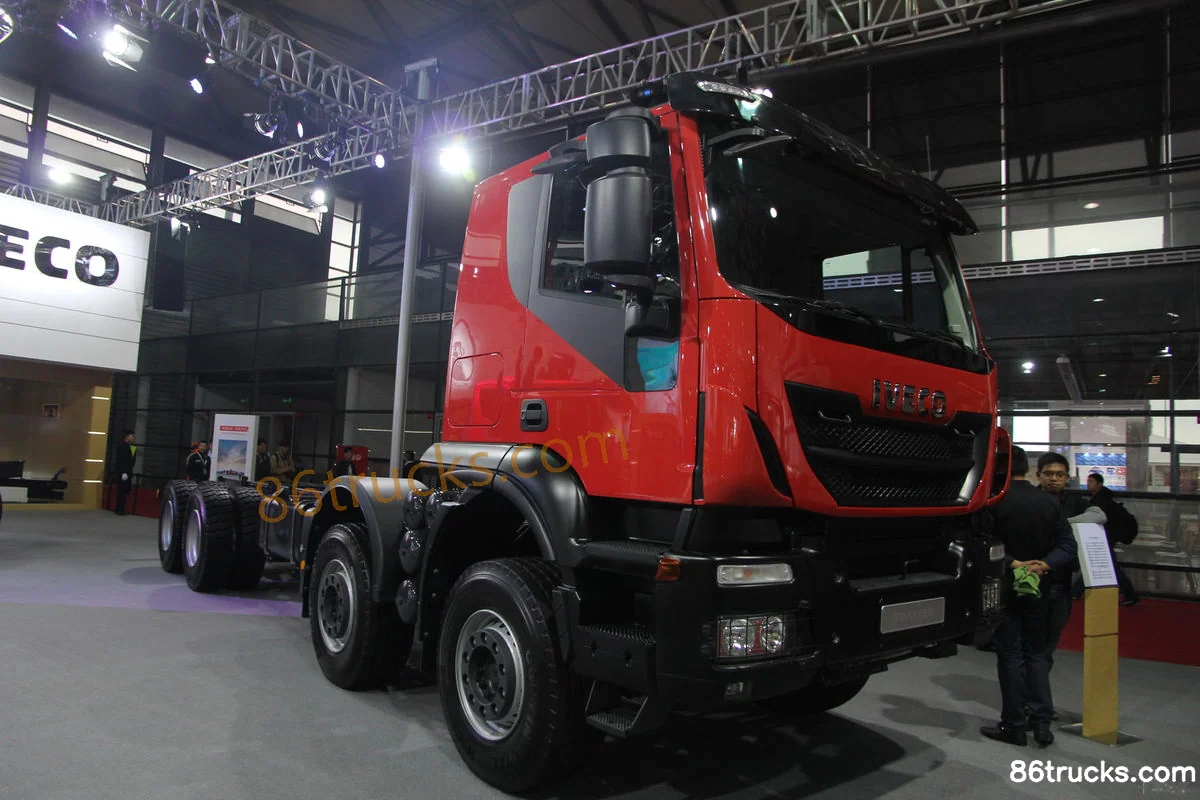

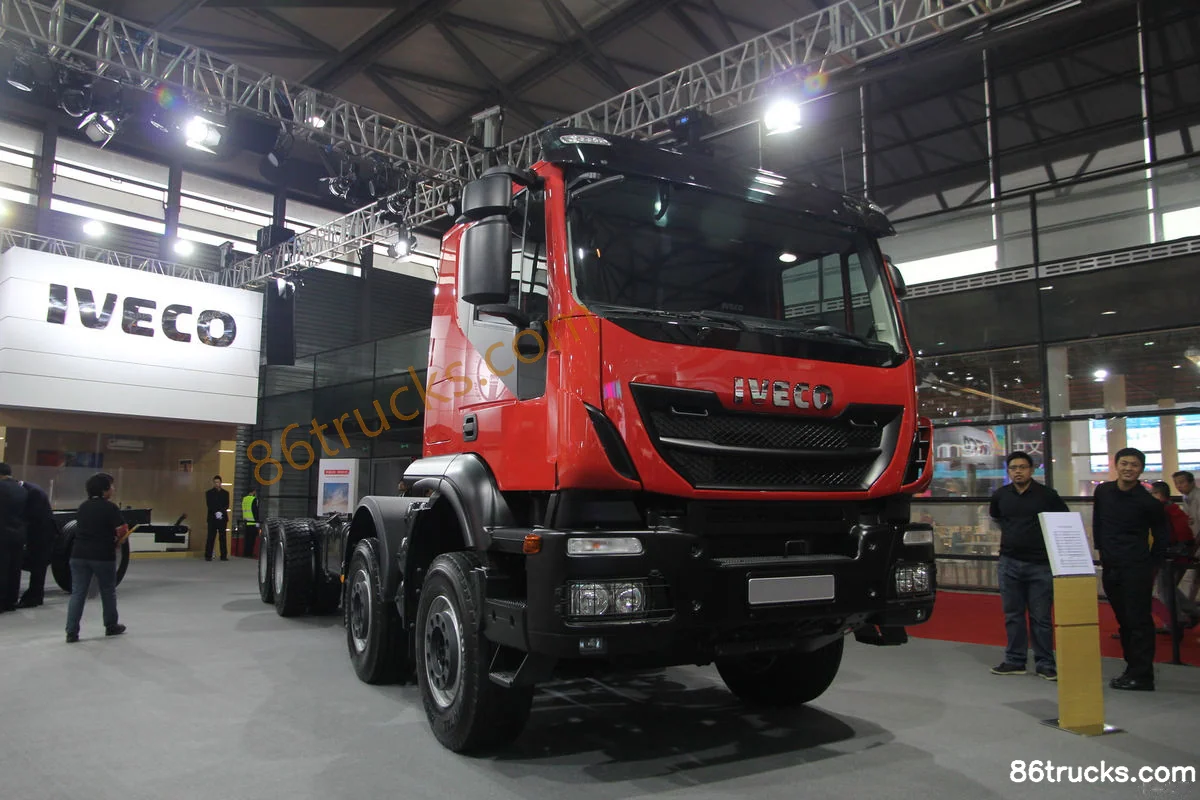

Exterior3

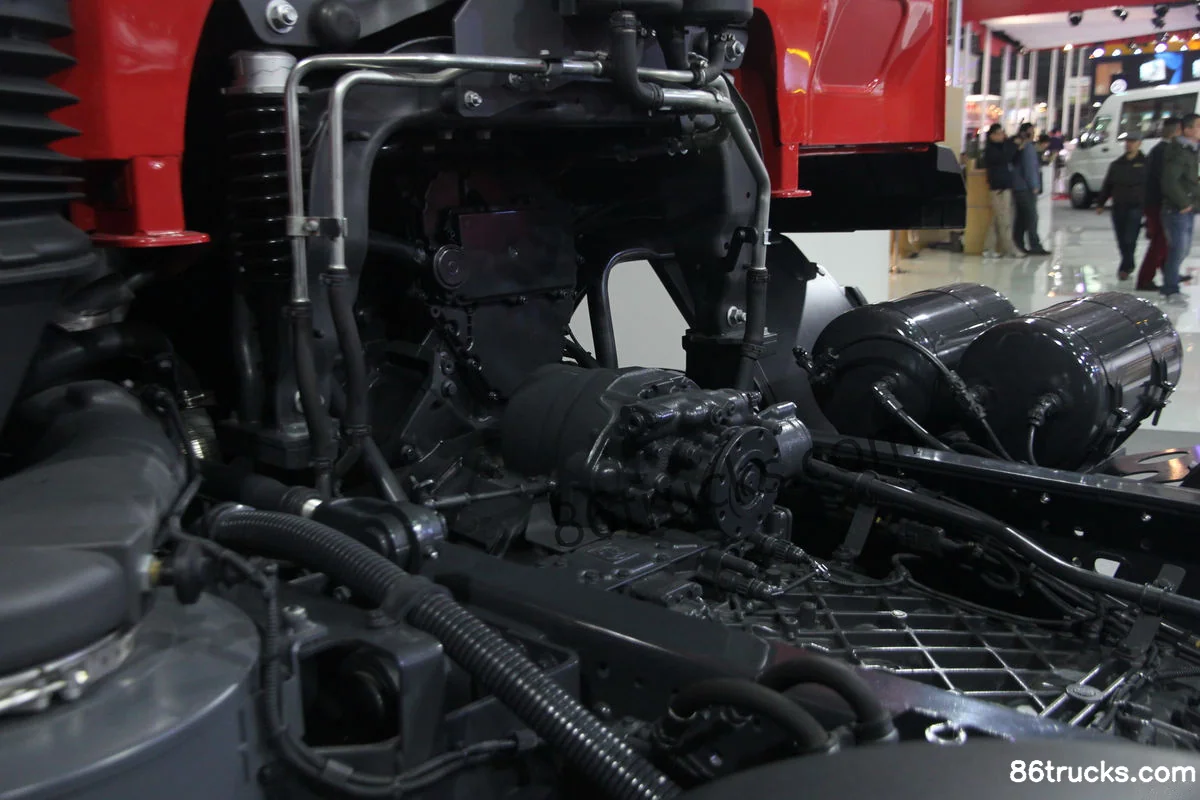

Chassis3

6 photos

FAQ

What emission standard does IVECO Trakker series heavy truck 500 hp 8X4(12 wheels) dump truck (chassis) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of IVECO Trakker series heavy truck 500 hp 8X4(12 wheels) dump truck (chassis)?

Key specs of IVECO Trakker series heavy truck 500 hp 8X4(12 wheels) dump truck (chassis): Drive: 8x4; Horsepower: 500 hp; Emission: China IV; Fuel: Diesel; Transmission: ZF. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is IVECO Trakker series heavy truck 500 hp 8X4(12 wheels) dump truck (chassis) suited for?

IVECO Trakker series heavy truck 500 hp 8X4(12 wheels) dump truck (chassis) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does IVECO Trakker series heavy truck 500 hp 8X4(12 wheels) dump truck (chassis) differ from other variants in the same series?

IVECO Trakker series heavy truck 500 hp 8X4(12 wheels) dump truck (chassis) belongs to IVECO Trakker Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for IVECO Trakker series heavy truck 500 hp 8X4(12 wheels) dump truck (chassis)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export IVECO Trakker series heavy truck 500 hp 8X4(12 wheels) dump truck (chassis)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
