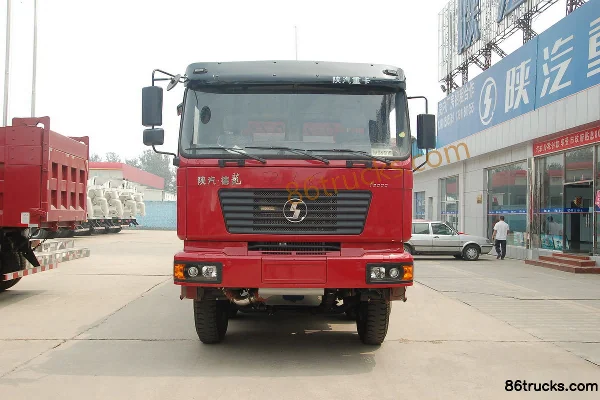

SHACMAN Delong F2000 Heavy Truck 385hp 8X4(12 wheels) 7.6m Dump Truck
EXW
From $47,917
Export quote
SHACMAN Delong F2000 Heavy Truck Dump Trucks
Main model photos
112 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| SHACMAN Delong F2000 Heavy Truck 385hp 8X4(12 wheels) 7.6m Dump Truck | 8x4 / 385hp / China III / Euro III | From $47,917 | |
| SHACMAN Delong F2000 Heavy Truck 310hp 8X4(12 wheels) 7m Dump Truck | 8x4 / 310hp / China III / Euro III | From $45,278 | |
| SHACMAN Delong F2000 Heavy Truck 385hp 6X4(10 wheels) 5.8m Dump Truck | 6x4 / 385hp / China III / Euro III | From $63,333 | |
| SHACMAN Delong F2000 Heavy Truck 345hp 6X4(10 wheels) 6.9m Dump Truck | 6x4 / 345hp / China III / Euro III | From $47,917 | |
| SHACMAN Delong F2000 Heavy Truck 270hp 6X4(10 wheels) 6.5m Dump Truck | 6x4 / 270hp / China III / Euro III | From $42,361 |
SHACMAN Delong F2000 Heavy Truck 310hp 8X4(12 wheels) 7m Dump Truck
EXW
From $45,278
Export quote

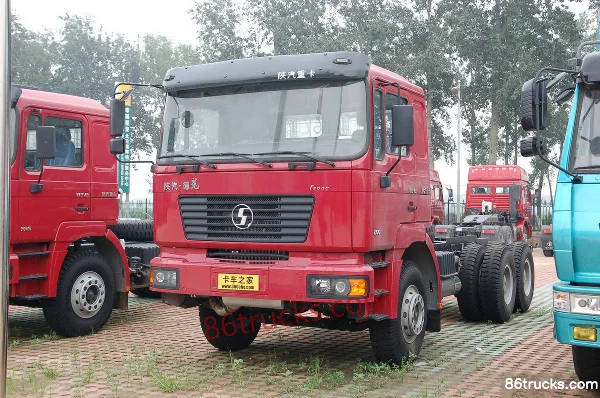

SHACMAN Delong F2000 Heavy Truck 385hp 6X4(10 wheels) 5.8m Dump Truck
EXW
From $63,333
Export quote
SHACMAN Delong F2000 Heavy Truck 345hp 6X4(10 wheels) 6.9m Dump Truck
EXW
From $47,917
Export quote
SHACMAN Delong F2000 Heavy Truck 270hp 6X4(10 wheels) 6.5m Dump Truck
EXW
From $42,361
Export quote
Series Specs
Basic Info
Model code (announced): SX3315NT366C / SX3317DR326 / SX3255DT384C / SX3255DR464C / SX3255DN434 / SX3256DR384TL / SX3315DT456TL1 / SX3315NR456 / SX3315DT326 / SX3255DN384C / SX3315NR4561 / SX3315NR406 / SX3315DT366 / SX3255DN3841 / SX3255NR464 / SX3255DR404 / SX3255DM404 / SX3255DM354 / SX3255DR354
Drive type: 8X4 / 6X4
Wheelbase: 1800+3600+1350 / 1800+3200+1350 / 3800+1350 / 4600+1350 / 4325+1350 / 1800+4500+1350 / 1800+4000+1350 / 1800+3975+1400 / 4000+1350 / 3975+1400 / 3525+1350mm
Engine Model: Xi’an CumminsISME385 30 / WeichaiWP10.310 / Xi’an CumminsISME345 30 / WeichaiWP10.270 / WeichaiWP12NG350E40 / WeichaiWP12NG380E40 / WeichaiWP10.300N / WeichaiWP12.375N / WeichaiWP10.290 / WeichaiWP12.336N / WeichaiWP10.310E32 / WeichaiWP10.336 / WeichaiWP10.375 / WeichaiWP10.336N
Transmission Model: Fast Gear10JSD180 / Fast Gear9JS135 / Fast Gear10JSD160 / Fast Gear9JS119 / Fast Gear9JSD150A / Fast Gear 12-speed / Fast Gear12JSD160T / Fast GearRT-11509C
Rear Axle Ratio: 5.92 / 5.73 / 4.769 / 5.262
Cab length: 10.33 / 9.93 / 8.385 / 9.63 / 9.254 / 8.329 / 11.23 / 11.98 / 9.83 / 8.525 / 10.729 / 10.435 / 8.55 / 9.699 / 9.035 / 8.73 / 8.9 / 7.93m
Cab width: 2.49 / 2.5m
Cab height: 2.45 / 3.45 / 3.72 / 3.5m
Front track width: 1939/1939 / 2036 / 2035 / 1939/1939,2018/2018 / 2018/2018 / 2036,2018 / 2035,2018 / 2018mm
rear track: 1860/1860 / 1850/1850 / 1860 / 1850mm
Curb Weight: 14.6 / 15.07 / 12.2 / 12.4 / 12.5 / 15.05 / 31 / 14.8 / 12.1 / 14.88ton
Rated payload: 15.93 / 15.8 / 12.67 / 12.47 / 12.37 / 15.82 / 15.9 / 16.07 / 12.77 / 15.99ton
GVWR: 30.66 / 31 / 25 / 14.97ton
Origin: Xi'an, Shaanxi / Xi'an
tonnage class: Heavy truck
Approach angle: 28 / 20°
departure angle: 20 / 30 / 19°
Remarks: Cab (F2000 medium-length flat roof) / Mid-length flat roof cab, clutch (430 diaphragm) / Front multi-leaf spring suspension, rear multi-leaf spring balance suspension; optional cargo box panel appearance, front mask, bumper and lamps on bumper / 430 pull-type diaphragm spring clutch; front multi-leaf spring suspension, rear multi-leaf spring balanced suspension; this vehicle can be equipped with the same series high-roof cab, auxiliary bumper, and cargo box side panel appearance. / Optional same-series high-top cab. Overall height 3720mm with high-top cab, 3450mm with low-top cab. Optional eco-cover body; eco-cover weight 400kg. With eco-cover: curb weight 15370kg, rated load 15500kg, load utilization factor 1.01. Without eco-cover: curb weight 14970kg, rated load 15900kg, load utilization factor 1.07. Dump direction: side dump. Rear overhang 2805mm corresponds to departure angle 20°, 2680mm to 21°. Optional front mask, bumper, and lamps on bumper. / F2000 medium-long flat roof cab / Delong F2000 dump truck, Ducal Yellow / standard paint, Weichai 310 hp EGR pump, Fast Gear 9JS135 gearbox, 12 radial tires, body 5600*2300*1170 mm (+330 movable side), domestic 180 front lift, grid pattern, set beams, through-type pivot shaft, four longitudinal beams / Clutch (430mm diaphragm) / Optional top-covered cargo body and mining bucket. With top cover: curb weight 12400 kg, payload 12470 kg, load utilization factor 1.01. Optional cargo body lengths: 5600 mm × 2300 × 1170 mm → overall length 8329/8354 mm, rear overhang 1654 mm; 5800 mm × 2300 × 1130 mm → overall length 8525/8550 mm, rear overhang 1850 mm. Dump direction: rear. Optional front mask. / This vehicle is optionally equipped with a covered cargo body (cover weight 300kg). With the covered body, curb weight is 12500kg. Front overhang/rear overhang can also be (mm): 1525/2030. / This vehicle is optionally equipped with a covered cargo body or a boat-shaped cargo body (cover weight 300kg). With the covered body, curb weight is 12500kg. Extended front mask. Overall length and rear overhang correspond one-to-one.
Version: LNG Edition
Energy Type: Diesel / LNG (liquefied natural gas)
Engine parameters
Engine Brand: Xi’an Cummins / Weichai
Number of cylinders: 6cylinder
Displacement: 10.8 / 9.726 / 11.596L
Emission standard: China III / Euro III / China IV
Max output power: 283 / 228 / 254 / 199 / 257 / 280 / 221 / 276 / 213 / 247kW
Max hp: 385 / 310 / 345 / 270 / 350 / 380 / 300 / 375 / 290 / 336Horsepower
Max torque: 1835 / 1500 / 1710 / 1100 / 1400 / 1390 / 1800 / 1160 / 1600 / 1250 / 1460N·m
Max torque speed: 1200 / 1200-1600 / 1000-1200 / 1400-1600 / 1200-1500 / 1000-1400 / 1350-1500rpm
Rated speed: 1900 / 2200rpm
Engine Type: Inline 6-cylinder, electronic control system / Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled / Turbocharged Intercooled (Turbo), Direct Injection, Electronic Control / Water-cooled, wet cylinder liner, turbocharged intercooled, electronically controlled premixed, spark plug ignition, lean burn, single-point injection + oxidation catalyst / Water-cooled, 4-stroke, with exhaust brake, direct injection, turbocharged intercooled
Transmission Parameters
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10 / 9 / 12Gear
Number of Reverse Gears: 2 / 1pcs
Cargo box parameters
Unloading Type: Dump type / Rear-dump body / Side-dump tipper.
Cargo box length: 7.6 / 7 / 5.8 / 6.9 / 6.5 / 5.6 / 8 / 9.3 / 8.3 / 7.8 / 6.2 / 6 / 5.4 / 5.2m
Cargo box width: 2.3m
Cargo box height: 1.1 / 1 / 0.88 / 1.13 / 0.99 / 0.89 / 1.2 / 0.98 / 1.5 / 1.17 / 0.8m
fuel tank
Fuel tank capacity: 300 / 375 / 400L
FAQ
What kind of truck is SHACMAN SHACMAN Delong F2000 Heavy Truck Dump Trucks?
SHACMAN SHACMAN Delong F2000 Heavy Truck is an export-oriented Dump Trucks lineup with about 21 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for SHACMAN Delong F2000 Heavy Truck Dump Trucks?
SHACMAN Delong F2000 Heavy Truck Dump Trucks export reference is about $34,861 – $67,958. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does SHACMAN Delong F2000 Heavy Truck Dump Trucks cover?
SHACMAN Delong F2000 Heavy Truck Dump Trucks mainly covers: Drive: 6x4 / 8x4; Horsepower: 270 hp / 310 hp / 345 hp / 385 hp; Emission: China III / Euro III; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in SHACMAN Delong F2000 Heavy Truck Dump Trucks?
For SHACMAN Delong F2000 Heavy Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does SHACMAN Delong F2000 Heavy Truck Dump Trucks include?
SHACMAN Delong F2000 Heavy Truck Dump Trucks currently lists about 21 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for SHACMAN Delong F2000 Heavy Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
