SHACMAN Delong F2000 Heavy Truck 350 hp 6X4(10 wheels) 5.6m LNG Dump Truck

Export reference
From $51,389
MSRP ¥37M CNY
Emission: China IV
Fuel: LNG (liquefied natural gas)
Transmission: Fast Gear
Curb Weight:: 12.5ton
Wheelbase:: 3800+1350mm
Tire Size:: 11.00-20,11.00R20,12.00-20,12.00R20
Rated payload: 12.37ton
Drive 6X4 (10 wheels)
Horsepower 350
Cargo box type: Rear-dump body

Overview

The SHACMAN Delong F2000 Heavy Truck 350 hp 6X4(10 wheels) 5.6m LNG Dump Truck is a Heavy truck featuring 12.37t payload, 25t GVW, Rear-dump body cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a WeichaiWP12NG350E40 engine, 350 hp, China IV emissions and Fast Gear transmission.

China IV 350 LNG (liquefied natural gas) 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX3256DR384TL
Drive type: 6X4
Wheelbase: 3800+1350mm
engine: WeichaiWP12NG350E40
transmission: Fast Gear9JSD150A
Rear Axle Ratio: 5.92
Cab length: 8.329m
Cab width: 2.49m
Cab height: 3.45m
Front track width: 2035mm
rear track: 1850/1850mm
Curb Weight: 12.5ton
Rated payload: 12.37ton
GVWR: 25ton
Origin: Xi'an, Shaanxi
tonnage class: Heavy truck
Approach angle: 28°
departure angle: 30°
Remarks: Front multi-leaf spring suspension, rear multi-leaf spring balance suspension; optional cargo box panel appearance, front mask, bumper and lamps on bumper
Version: LNG Edition
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP12NG350E40
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Displacement: 11.596L
Emission standard: China IV
Max output power: 257kW
Max hp: 350Horsepower
Max torque: 1400N·m
Max torque speed: 1400-1600rpm
Rated speed: 2200rpm
Engine Type: Water-cooled, wet cylinder liner, turbocharged intercooled, electronically controlled premixed, spark plug ignition, lean burn, single-point injection + oxidation catalyst
Transmission Parameters
Transmission Model: Fast Gear9JSD150A
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 5.6m
Cargo box width: 2.3m
Cargo box height: 1.13m
fuel tank
Fuel tank capacity: 375L
Chassis Specs
rear axle description: Hande 16t MAN cast double reduction axle
rear axle allowable load: 18000kg
Axle ratio: 5.92
Leaf spring count: 10/12
Tire
Tire Size: 11.00-20,11.00R20,12.00-20,12.00R20
Number of tires: 10pcs

Photos

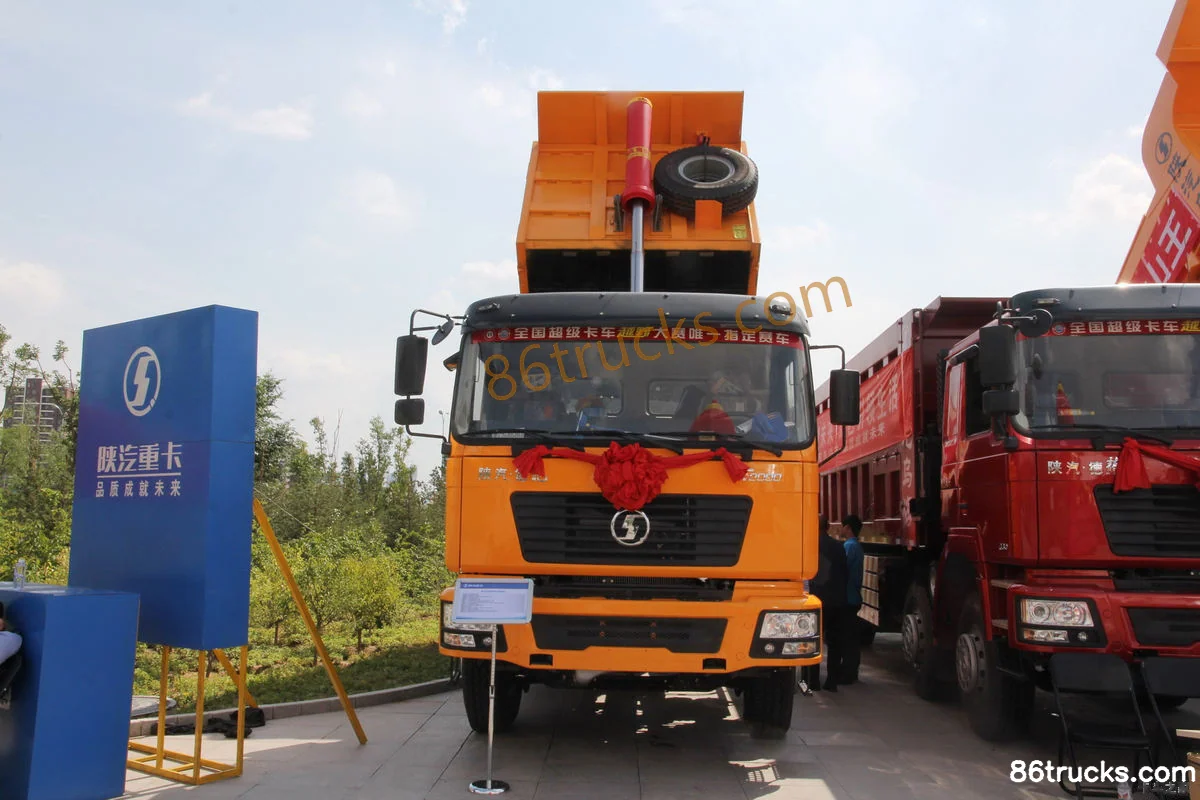

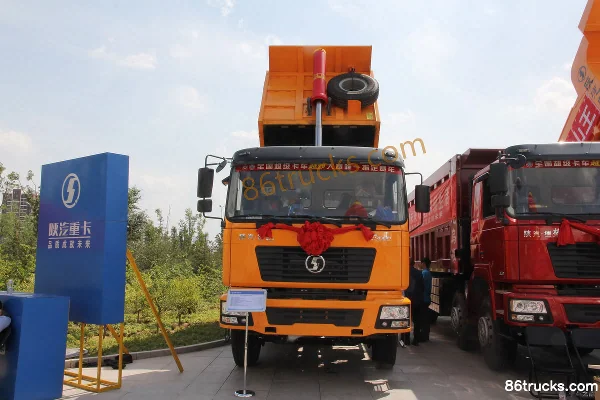

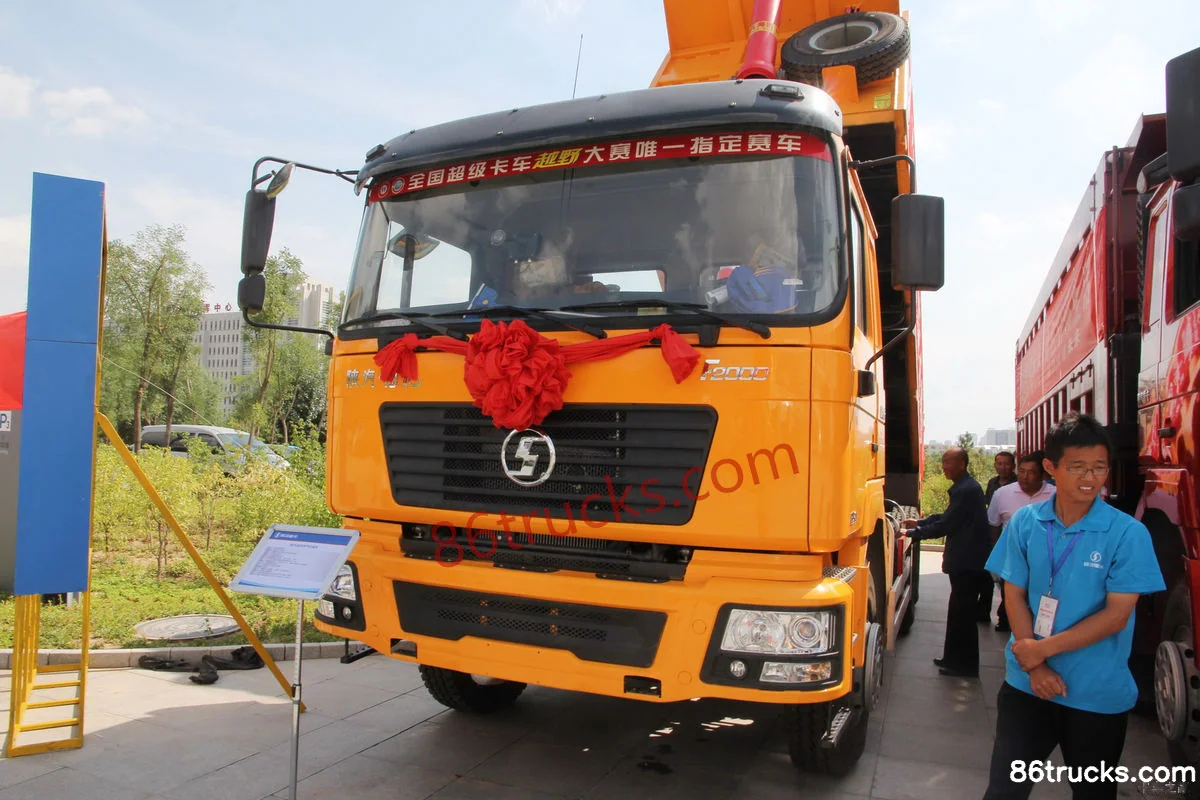

Exterior2

Cab2

4 photos

FAQ

What is the export price of SHACMAN Delong F2000 Heavy Truck 350 hp 6X4(10 wheels) 5.6m LNG Dump Truck, and what does it include?

SHACMAN Delong F2000 Heavy Truck 350 hp 6X4(10 wheels) 5.6m LNG Dump Truck export reference is about From $51,389; MSRP is ¥37M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does SHACMAN Delong F2000 Heavy Truck 350 hp 6X4(10 wheels) 5.6m LNG Dump Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong F2000 Heavy Truck 350 hp 6X4(10 wheels) 5.6m LNG Dump Truck?

Key specs of SHACMAN Delong F2000 Heavy Truck 350 hp 6X4(10 wheels) 5.6m LNG Dump Truck: Drive: 6x4; Horsepower: 350 hp; Emission: China IV; Fuel: LNG (liquefied natural gas); Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong F2000 Heavy Truck 350 hp 6X4(10 wheels) 5.6m LNG Dump Truck suited for?

SHACMAN Delong F2000 Heavy Truck 350 hp 6X4(10 wheels) 5.6m LNG Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SHACMAN Delong F2000 Heavy Truck 350 hp 6X4(10 wheels) 5.6m LNG Dump Truck differ from other variants in the same series?

SHACMAN Delong F2000 Heavy Truck 350 hp 6X4(10 wheels) 5.6m LNG Dump Truck belongs to SHACMAN Delong F2000 Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong F2000 Heavy Truck 350 hp 6X4(10 wheels) 5.6m LNG Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong F2000 Heavy Truck 350 hp 6X4(10 wheels) 5.6m LNG Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
