IVECO Trakker Series Heavy Truck 500 hp 6X4(10 wheels) Dump Truck (Chassis)

Export reference
MSRP N/A
Tire Size:: 315/80R22.5
engine:: FiatC13-F3BE3681B*U-EEV
Cab width:: 2.495m
Origin:: Italy
tonnage class:: Heavy truck
Number of cylinders:: 6cylinder
Drive 6X4 (10 wheels)
Horsepower 500
Fuel Diesel
Transmission ZF

Overview

The IVECO Trakker Series Heavy Truck 500 hp 6X4(10 wheels) Dump Truck (Chassis) is a Heavy truck featuring 6X4 (10 wheels) drive and 2.495m cab. On the powertrain side, it comes with a FiatC13-F3BE3681B*U-EEV engine, 500 hp, ZF transmission and Diesel fuel.

500 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Drive type: 6X4
engine: FiatC13-F3BE3681B*U-EEV
transmission: ZFZF12AS2330TO
Cab width: 2.495m
Origin: Italy
tonnage class: Heavy truck
Energy Type: Diesel
Engine parameters
Engine Brand: Fiat
Engine Model: FiatC13-F3BE3681B*U-EEV
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 12.88L
Max output power: 368kW
Max hp: 500Horsepower
Max torque: 2300N·m
Max torque speed: 1500rpm
Engine Type: Inline
Transmission Parameters
Transmission Model: ZFZF12AS2330TO
Transmission Brand: ZF
shift method: AMT manual/auto
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
fuel tank
Fuel tank capacity: 360L
Tire
Tire Size: 315/80R22.5
Number of tires: 10pcs

Photos

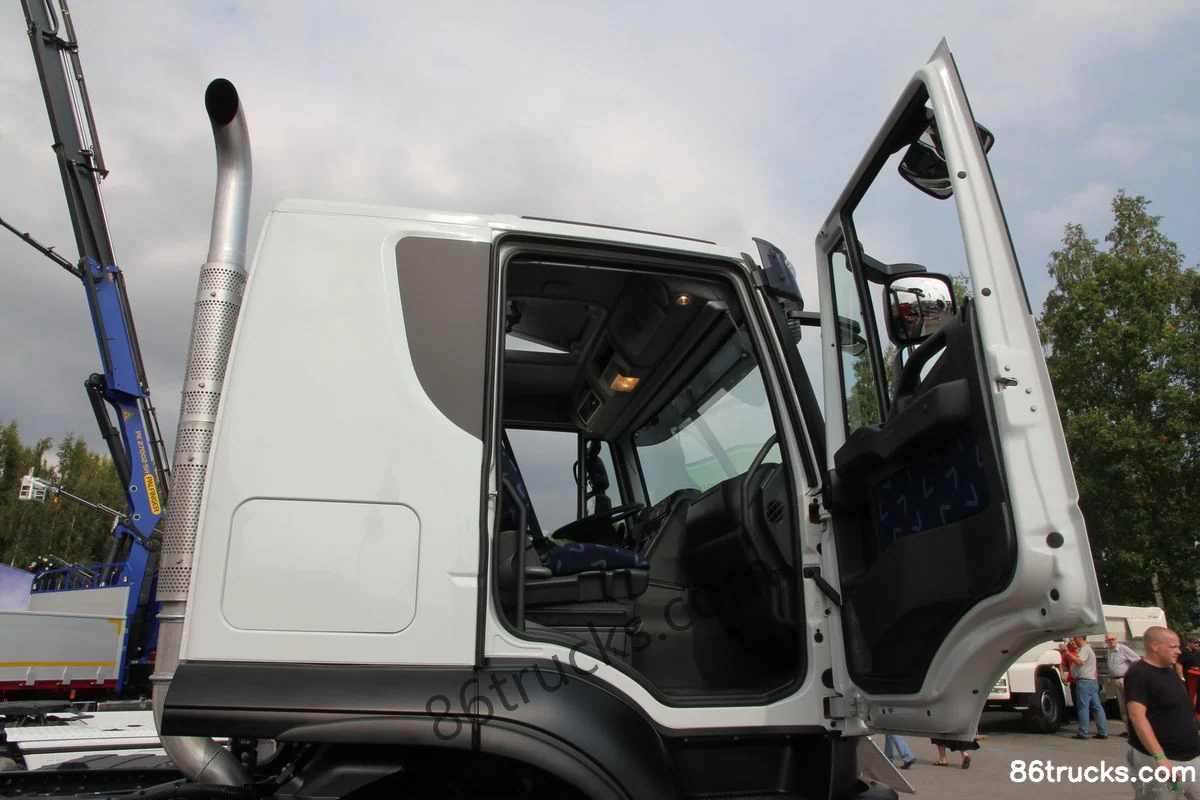

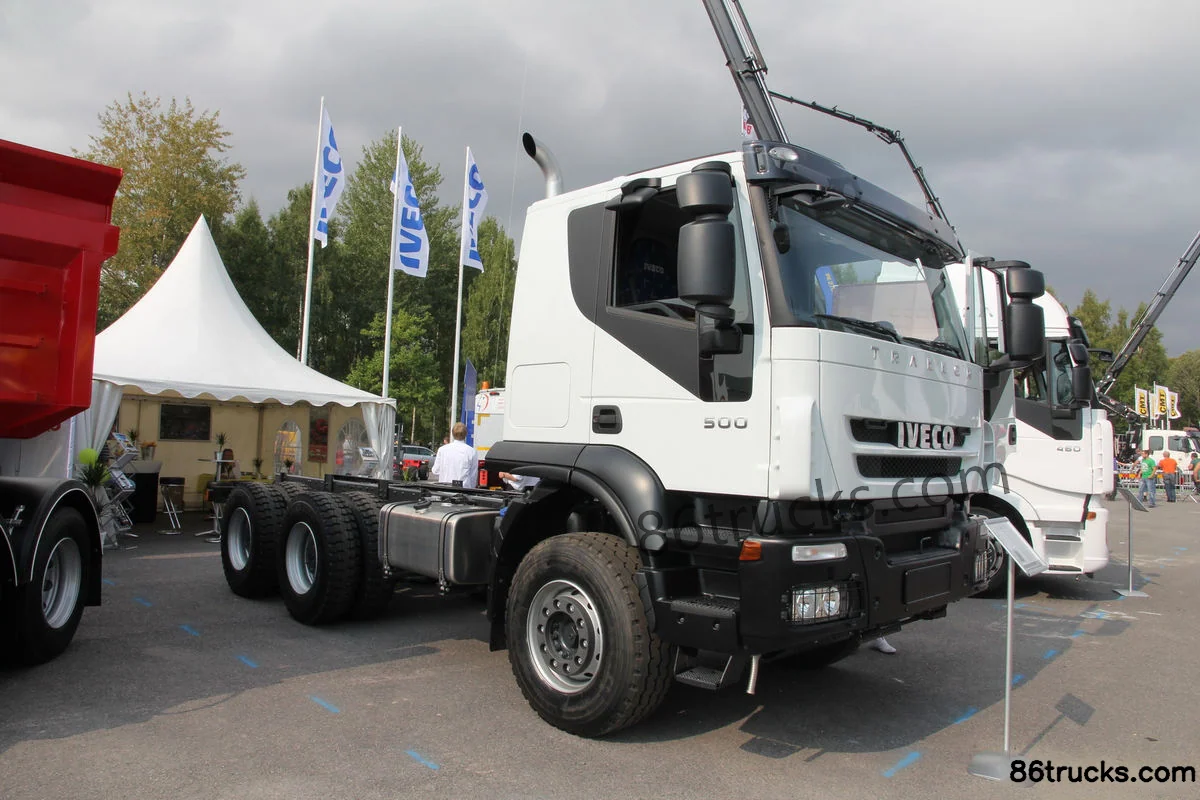

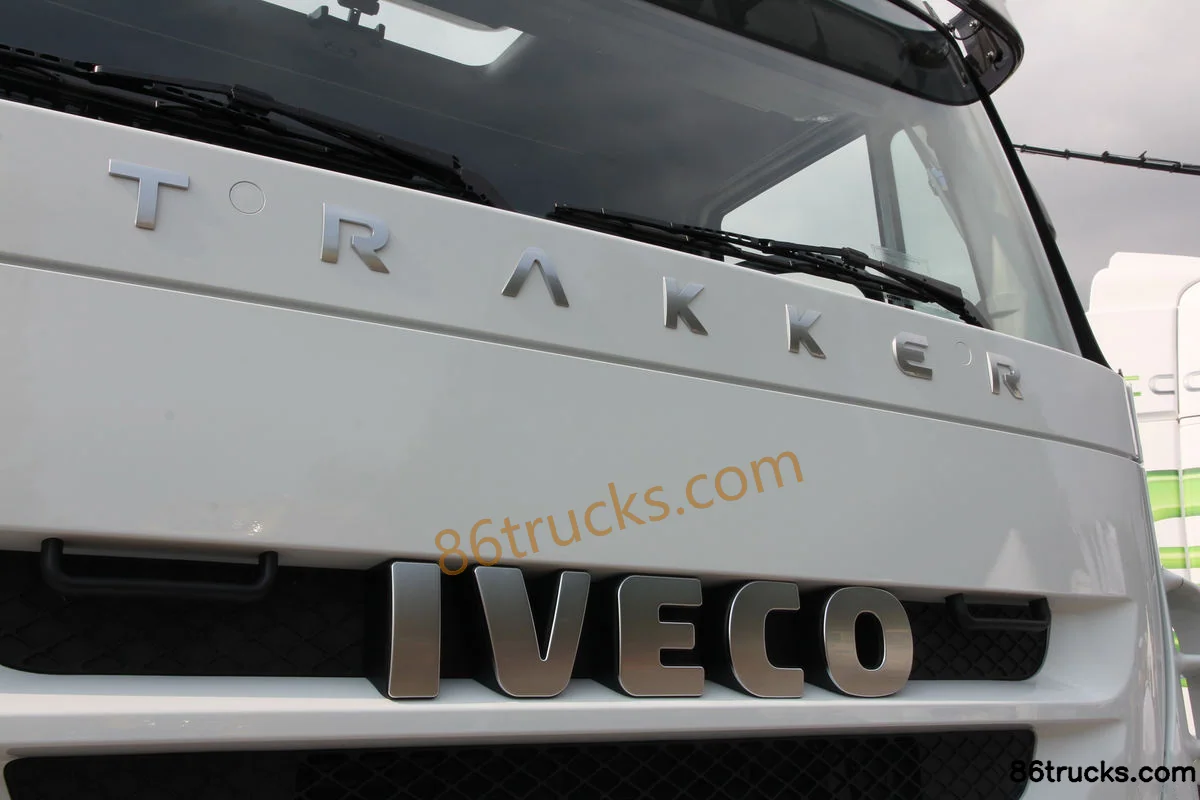

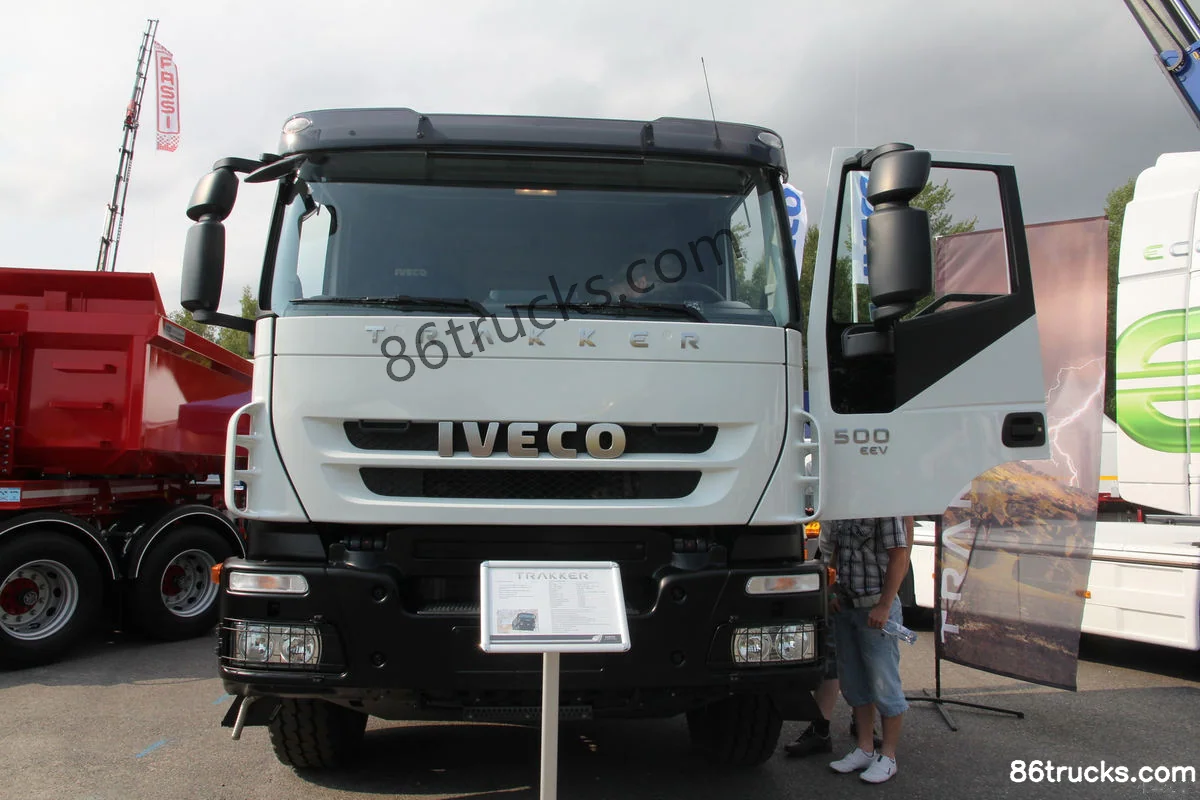

Exterior3

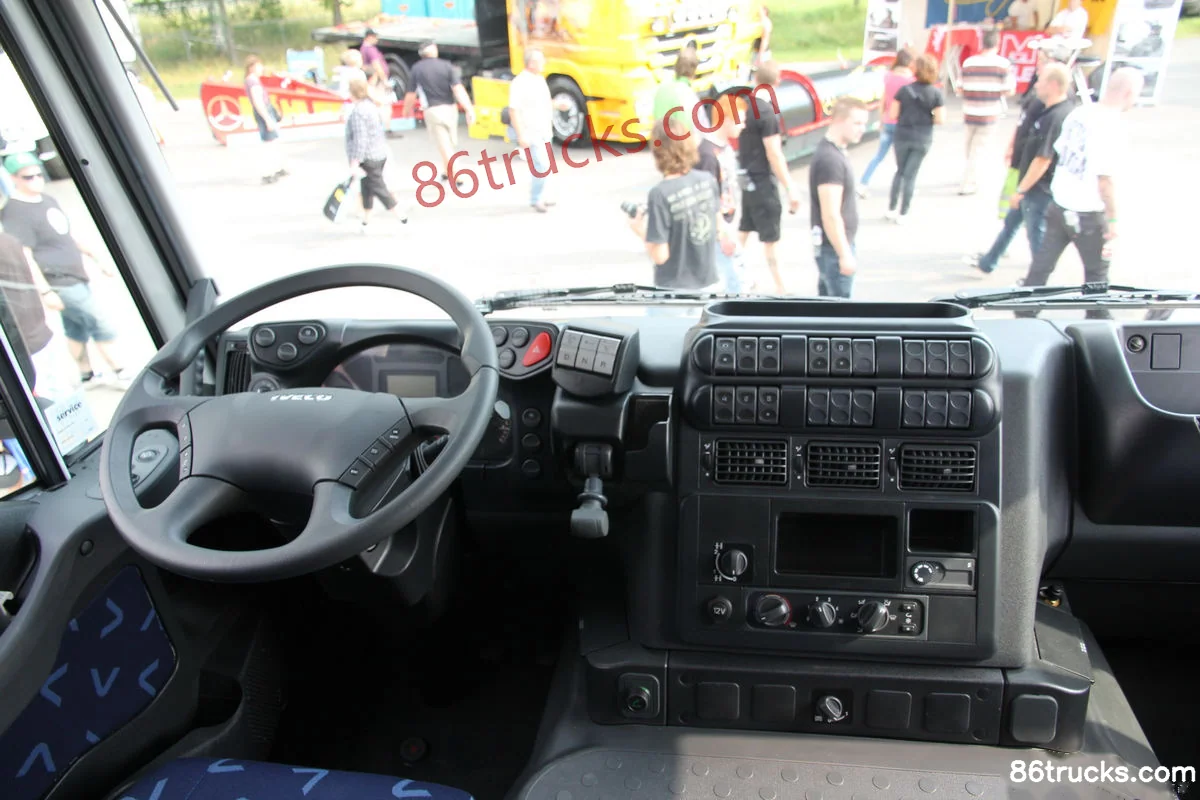

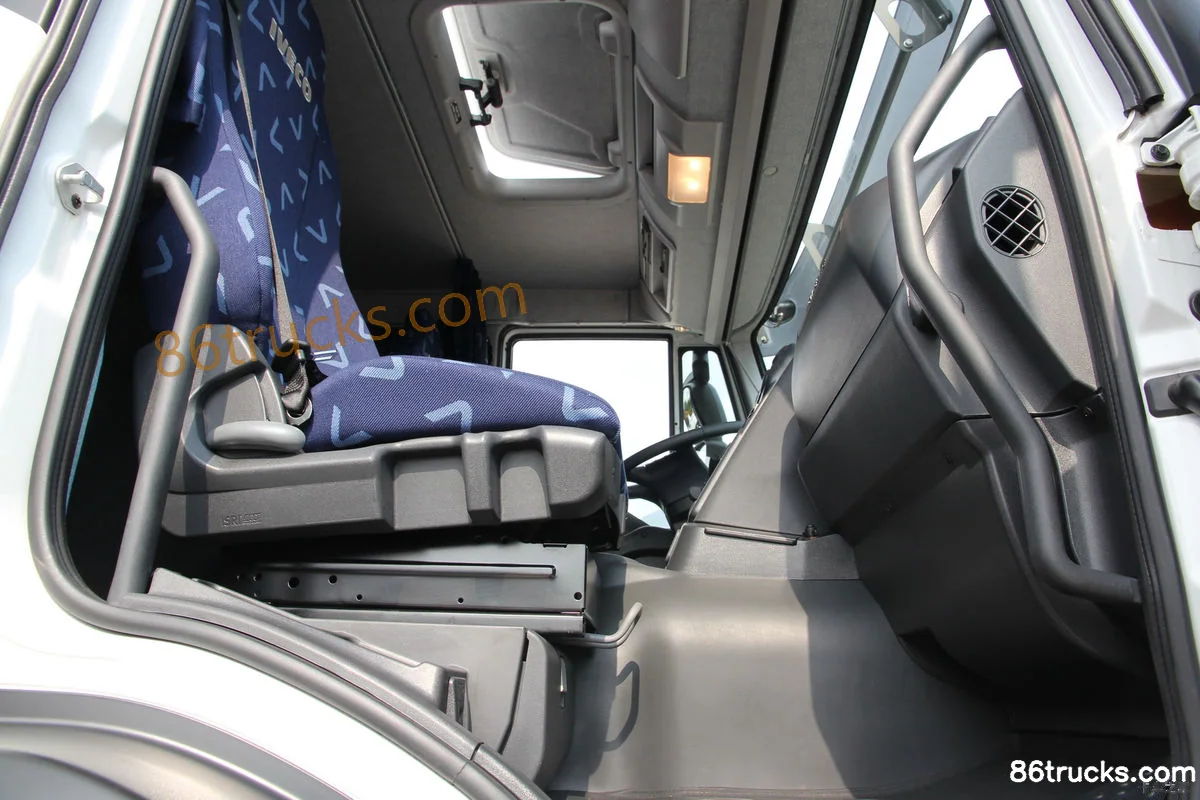

Cab3

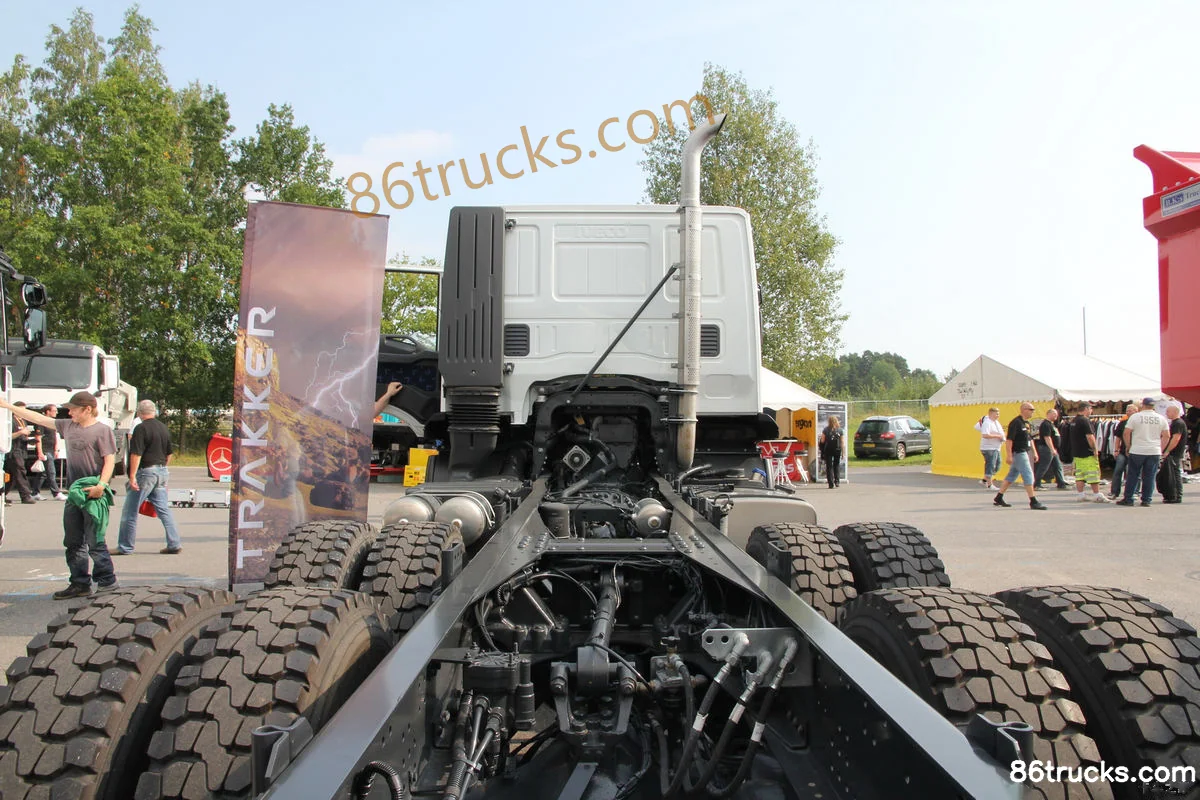

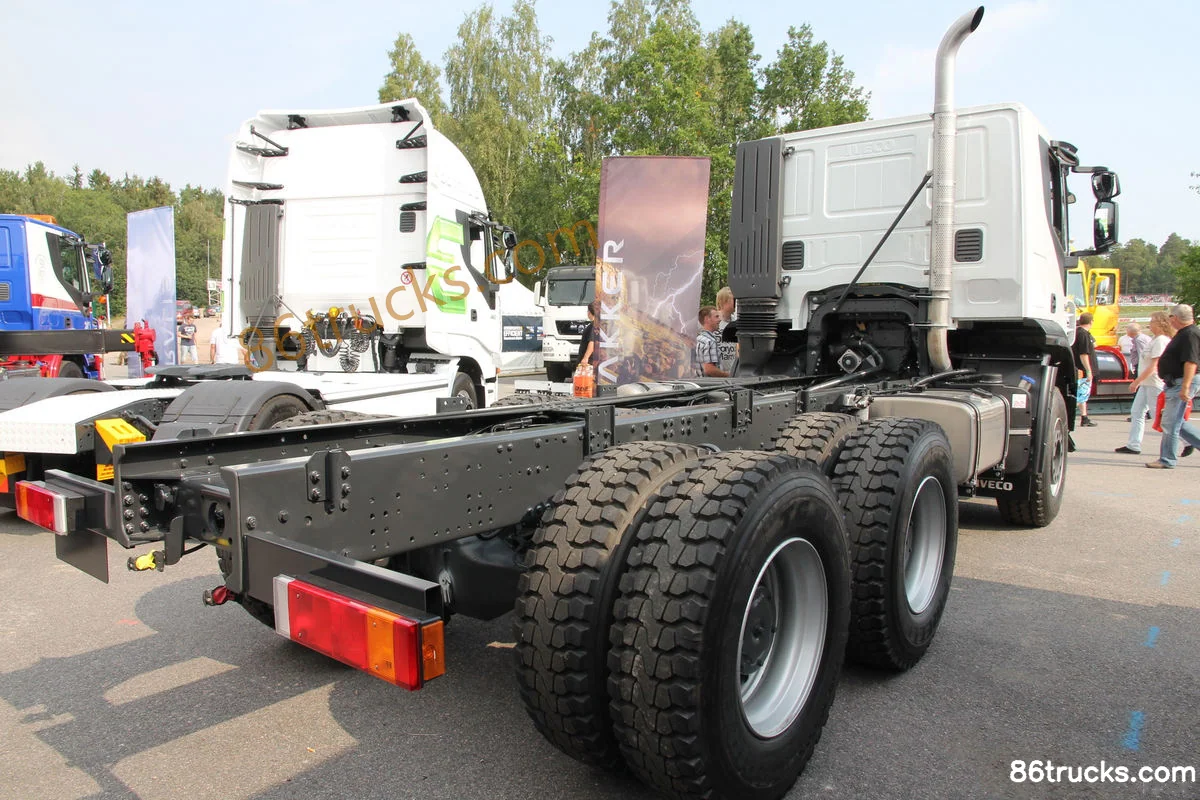

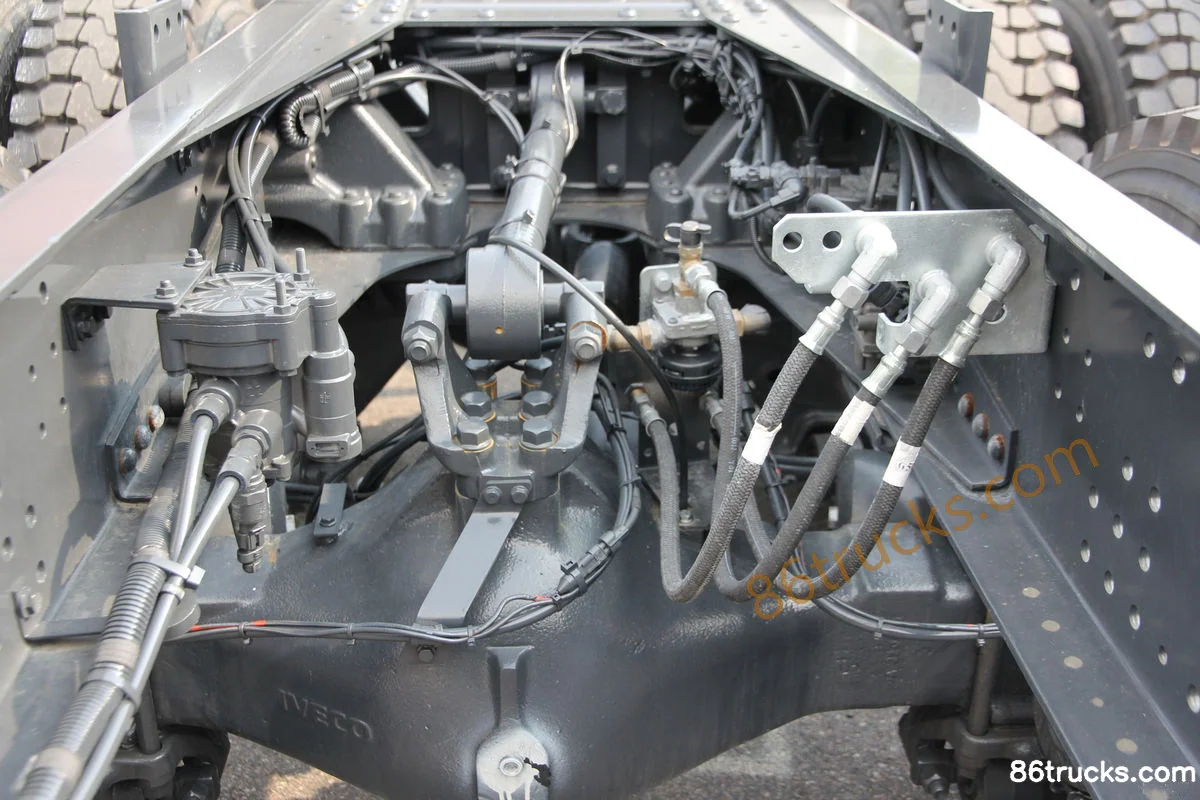

Chassis3

9 photos

FAQ

What are the key specs of IVECO Trakker Series Heavy Truck 500 hp 6X4(10 wheels) Dump Truck (Chassis)?

Key specs of IVECO Trakker Series Heavy Truck 500 hp 6X4(10 wheels) Dump Truck (Chassis): Drive: 6x4; Horsepower: 500 hp; Fuel: Diesel; Transmission: ZF. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is IVECO Trakker Series Heavy Truck 500 hp 6X4(10 wheels) Dump Truck (Chassis) suited for?

IVECO Trakker Series Heavy Truck 500 hp 6X4(10 wheels) Dump Truck (Chassis) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does IVECO Trakker Series Heavy Truck 500 hp 6X4(10 wheels) Dump Truck (Chassis) differ from other variants in the same series?

IVECO Trakker Series Heavy Truck 500 hp 6X4(10 wheels) Dump Truck (Chassis) belongs to IVECO Trakker Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for IVECO Trakker Series Heavy Truck 500 hp 6X4(10 wheels) Dump Truck (Chassis)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export IVECO Trakker Series Heavy Truck 500 hp 6X4(10 wheels) Dump Truck (Chassis)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
