Kama Kaijie HM1 Classic Edition 115hp 4X2(6 wheels) 4m dump truck (China VI)
EXW
Export quote
Kama Kaijie HM1 light truck Dump Trucks
Main model photos
30 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Kama Kaijie HM1 Classic Edition 115hp 4X2(6 wheels) 4m dump truck (China VI) | 4x2 / 115hp / China VI | ||
| Kama Kaijie HM1 115 hp 4X2(6 wheels) 3.37m dump truck (China VI) | 4x2 / 115hp / China VI |

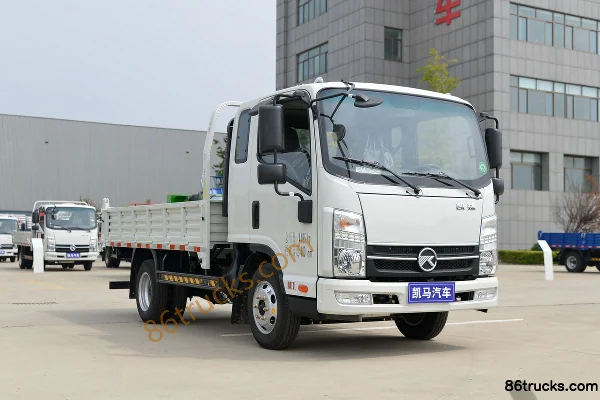

Kama Kaijie HM1 115 hp 4X2(6 wheels) 3.37m dump truck (China VI)
EXW
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Kama Kaijie 116 hp 4X2(6 wheels) 4.2m Dump Truck | 4x2 / 116hp / China V | From $18,056 | |
| Kama Kaijie 143hp 4X2(6 wheels) 3.83m dump truck | 4x2 / 140hp / China V | From $14,583 | |
| Kama Kaijie 143hp 4X2(6 wheels) 3.83m dump truck | 4x2 / 140hp / China V | From $14,583 | |
| Kama Kaijie 143hp 4X2(6 wheels) 4.2m dump truck | 4x2 / 140hp / China V | From $14,417 | |
| Kama Kaijie 95 hp 4X2(6 wheels) 4.2m Dump Truck | 4x2 / 95hp / China V | From $12,167 |
Kama Kaijie 116 hp 4X2(6 wheels) 4.2m Dump Truck
EXW
From $18,056
Export quote
Kama Kaijie 143hp 4X2(6 wheels) 3.83m dump truck
EXW
From $14,583
Export quote
Kama Kaijie 143hp 4X2(6 wheels) 3.83m dump truck
EXW
From $14,583
Export quote
Kama Kaijie 143hp 4X2(6 wheels) 4.2m dump truck
EXW
From $14,417
Export quote
Kama Kaijie 95 hp 4X2(6 wheels) 4.2m Dump Truck
EXW
From $12,167
Export quote
Series Specs
Basic Info
Model code (announced): KMC3041HQ286DP6 / KMC3046HA33D5 / KMC3046HA33P5 / KMC3042HA33D5
Drive type: 4X2
Wheelbase: 3060 / 2860 / 3300mm
Engine Model: QuanchaiQ23-115E60 / Yunnei PowerYN33CRE1 / Xichai4DX23-140E5 / Yunnei PowerYN27CRE1
Transmission Model: WLYWLY535HF / WLYWLY10H35 / WLYWLY535 / Changtai 8T45
Rear Axle Ratio: 5.375 / 6.3 / 5.571
Cab length: 5.855 / 5.555 / 5.995m
Cab width: 2.03 / 2.02 / 2.24 / 2.1 / 2030 / 1900m
Cab height: 2.24 / 2.39m
Front track width: 1560 / 1680 / 1600mm
rear track: 1490 / 1600 / 1550mm
Curb Weight: 2.72 / 2.6ton
Rated payload: 1.645 / 1.56 / 1.495ton
GVWR: 4.495 / 4.29ton
Origin: Shouguang, Shandong
tonnage class: Light Truck
Approach angle: 17 / 25°
departure angle: 17 / 18°
Remarks: Cargo box height and width optional: 2.38, 0.55
Version: Classic Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai / Yunnei Power / Xichai
Number of cylinders: 4cylinder
Displacement: 2.3 / 3.298 / 3.857 / 2.672L
Emission standard: China VI / China V
Max output power: 85 / 105 / 70kW
Max hp: 115 / 116 / 140 / 95Horsepower
Max torque: 320 / 315 / 450 / 250N·m
Max torque speed: 2000 / 1600-2400 / 1600-2000 / 1600-2600rpm
Rated speed: 3000 / 3200 / 2800rpm
Engine Type: Inline 4-cylinder, water-cooled, 4-stroke, turbocharged with intercooler, high-pressure common rail / 4-cylinder inline, 8-valve, turbocharged intercooled, high-pressure common rail fuel injection / 4-cylinder inline, direct injection, turbocharged & intercooled, electronic common rail
Transmission Parameters
Transmission Brand: WLY / Changtai
shift method: Manual
Forward gears: 5 / 8Gear
Number of Reverse Gears: 1 / 2pcs
Cargo box parameters
Unloading Type: Dump type / Rear-dump body
Cargo box type: square box / Dump type / Rear-dump body
Cargo box length: 4 / 3.37 / 4.2 / 3.83m
Cargo box width: 1.92 / 2.06m
Cargo box height: 0.4 / 0.45m
FAQ
What kind of truck is Kama Kama Kaijie HM1 light truck Dump Trucks?
Kama Kama Kaijie HM1 light truck is an export-oriented Dump Trucks lineup with about 8 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Kama Kaijie HM1 light truck Dump Trucks?
Kama Kaijie HM1 light truck Dump Trucks export reference is about $12,167 – $18,056. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Kama Kaijie HM1 light truck Dump Trucks cover?
Kama Kaijie HM1 light truck Dump Trucks mainly covers: Drive: 4x2; Horsepower: 95 hp / 115 hp / 116 hp / 140 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Kama Kaijie HM1 light truck Dump Trucks?
For Kama Kaijie HM1 light truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Kama Kaijie HM1 light truck Dump Trucks include?
Kama Kaijie HM1 light truck Dump Trucks currently lists about 8 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Kama Kaijie HM1 light truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
