Foton Xiaoyun 7 115hp 4X2(6 wheels) 3.67m Single Row Dump Truck
EXW
Export quote
Foton Xiaoyun Light Truck Dump Trucks
Main model photos
125 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton Xiaoyun 7 115hp 4X2(6 wheels) 3.67m Single Row Dump Truck | 4x2 / 115hp / China VI | ||
| Foton Xiaoyun 7 68hp 4X2(6 wheels) 2.93m Dump Truck | 4x2 / 68hp / China IV | From $7,889 | |
| Foton Xiaoyun 95 hp 4X2(6 wheels) 3.67m dump truck | 4x2 / 95hp / China IV | ||
| Foton Xiaoyun 112 hp 4X2(6 wheels) 2.5 m Dump Truck | 4x2 / 112hp / China V | From $6,083 | |
| Foton Xiaoyun 112 hp 4X2(6 wheels) 3.05 m Dump Truck | 4x2 / 112hp / China V | From $5,750 |

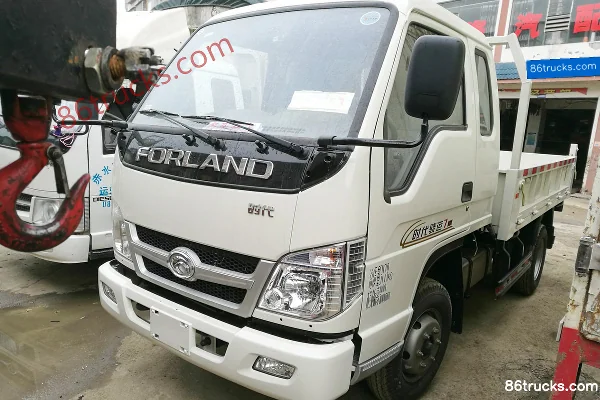

Foton Xiaoyun 7 68hp 4X2(6 wheels) 2.93m Dump Truck
EXW
From $7,889
Export quote

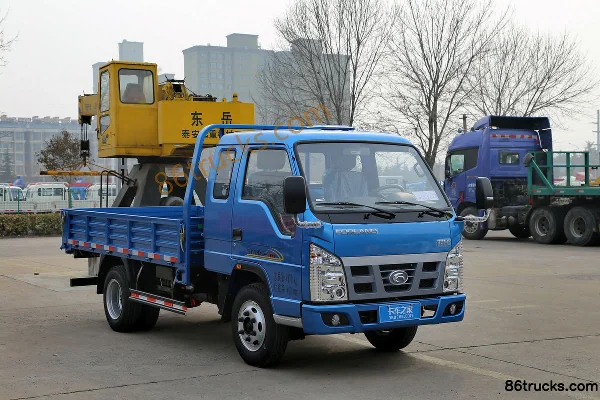

Foton Xiaoyun 95 hp 4X2(6 wheels) 3.67m dump truck
EXW
Export quote
Foton Xiaoyun 112 hp 4X2(6 wheels) 2.5 m Dump Truck
EXW
From $6,083
Export quote
Foton Xiaoyun 112 hp 4X2(6 wheels) 3.05 m Dump Truck
EXW
From $5,750
Export quote
Series Specs
Basic Info
Model code (announced): BJ3045D9JBA-02 / BJ3035D3PA3-1 / BJ3042D8JDA-G1 / BJ3035D4AV4-1 / BJ3035D4JV4-1 / BJ3045D9JEA-4 / BJ3045D9PEA-4 / BJ3045D9JDA-1 / BJ3045D8ADA-1 / BJ3045D9PDA-1 / BJ3045D9PB5-1 / BJ3042D8ADA-G1 / BJ3045D9JEA-1 / BJ3045D9JB5-1 / BJ3033D3PB5-1 / BJ3033D3AA4-1 / BJ3045D9PB5-2
Drive type: 4X2
Wheelbase: 2850 / 2600 / 2800 / 2700 / 2566 / 3360 / 2720 / 2750mm
Engine Model: QuanchaiQ23-115E60 / Quanchai4A1-68C40 / Yunnei PowerYN27CRD1 / RuizhanTNN4G15B / RuizhanTNN4G15A / FotonISF3.8s4R141 / Foton4J28TC / Quanchai4B1-88C40 / Yunnei PowerYN33CRD3 / Quanchai4B1-82C40 / Quanchai4D22E / Quanchai4D18E / Quanchai4B2-95C40
Transmission Model: WLY 5-speed / WLYWLY530ZHF / WLYWLY5T20 / QingshanMR70 / 6-speed / 6-speed transmission / Fast Gear6J36CT / Fast Gear8JS85E / Fast Gear6J55CT / WLYWLY5T26 / 5-speed / 17C18 / 5-speed transmission
Rear Axle Ratio: 5.286 / 5.571 / 5.833 / 4.875 / 5.375 / 6.33 / 6.167
Cab length: 5.47 / 5.13 / 5.437 / 5.005 / 4.853 / 5.99 / 5.98 / 5.995 / 5.51 / 5.49 / 5.52 / 5.18 / 5.78m
Cab width: 1.94 / 1.82 / 1.91 / 1.665 / 2.24 / 2.09 / 2 / 1.92 / 2.12 / 1.97 / 1.77 / 1695 / 1475 / 1995m
Cab height: 2.21 / 2.15 / 2.35 / 2.06 / 2.38 / 2.36 / 2.2 / 2.237 / 2.24 / 2.115m
Front track width: 1495 / 1270 / 1453 / 1260 / 1720 / 1530 / 1400 / 1555 / 1401 / 1345mm
rear track: 1435 / 1240 / 11446 / 1195 / 1590 / 1500 / 1425 / 1446 / 1530 / 1340mm
Curb Weight: 2.72 / 2.05 / 2.492 / 1.67 / 1.5 / 2.5 / 2.2 / 2.375 / 2.3 / 1.95 / 1.28 / 2.26ton
Rated payload: 1.645 / 0.999 / 1.49 / 0.995 / 1.495 / 1.8 / 1.45 / 1.99 / 1.3 / 1.9 / 0.99ton
GVWR: 4.495 / 3.179 / 4.112 / 2.99 / 3.125 / 4.17 / 3.825 / 4.33 / 3.07 / 4.38ton
Origin: Shandong Zhucheng
tonnage class: Light Truck
Approach angle: 20 / 38 / 25 / 24 / 21 / 17 / 22 / 27°
departure angle: 16 / 18 / 14 / 28 / 15 / 26 / 33 / 17°
Remarks: Optional 5.833/5.571 ratio. / Hydraulic brake, electric power steering / Hydraulic brake / Max speed: 95 km/h; electric lift, air-controlled lock box / Max speed: 95 km/h / Spare tire / Electrically controlled lifting, air-controlled locking cargo box
Energy Type: Diesel / gasoline
Engine parameters
Engine Brand: Quanchai / Yunnei Power / Ruizhan / Foton
Number of cylinders: 4cylinder
Displacement: 2.3 / 1.809 / 2.672 / 1.499 / 3.76 / 2.771 / 2.27 / 3.298 / 2.156 / 2.545L
Emission standard: China VI / China IV / China V / China III / Euro III
Max output power: 85 / 50 / 70 / 82 / 105 / 81 / 65 / 60 / 45kW
Max hp: 115 / 68 / 95 / 112 / 141 / 110 / 88 / 82 / 60Horsepower
Max torque: 320 / 170 / 250 / 143 / 450 / 280 / 225 / 230 / 205 / 150 / 270N·m
Max torque speed: 2000 / 1800 / 1800-2600 / 4000 / 1200-2200 / 1700-2300 / 1600-2400rpm
Rated speed: 3000 / 3200 / 6000 / 2600 / 3600rpm
Engine Type: Inline 4-cylinder, water-cooled, 4-stroke, turbocharged with intercooler, high-pressure common rail / Inline, vertical, water-cooled, high-pressure common rail, turbocharged intercooled / Electronic high-pressure common rail diesel engine / DOHC, 16-valve, VVT-i, electronic multi-point sequential injection / Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection SCR / Inline, vertical, water-cooled / 4-cylinder, inline, water-cooled, 4-stroke / High-pressure common rail, water-cooled, vertical / Vertical, inline, water-cooled, four-stroke / Direct injection, turbocharged & intercooled, high-pressure common rail, water-cooled EGR / Electronic control EGR
Technology route: Common Rail SCR
Transmission Parameters
Transmission Brand: WLY / Qingshan / Fast Gear
shift method: Manual
Forward gears: 5 / 6 / 8Gear
Number of Reverse Gears: 1 / 2pcs
Cargo box parameters
Unloading Type: Dump type / Rear-dump body
Cargo box length: 3.67 / 2.93 / 2.5 / 3.05 / 4.1 / 3.75 / 3.7 / 4.15 / 3.15 / 3.27 / 2.71 / 2.45 / 3.53m
Cargo box width: 1.81 / 1.61 / 1.51 / 2.05 / 1.9 / 1.66m
Cargo box height: 0.4 / 0.36 / 0.46m
Body Parameters
Lifting type: 70 double lift
FAQ
What kind of truck is Foton Foton Xiaoyun Light Truck Dump Trucks?
Foton Foton Xiaoyun Light Truck is an export-oriented Dump Trucks lineup with about 25 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Foton Xiaoyun Light Truck Dump Trucks?
Foton Xiaoyun Light Truck Dump Trucks export reference is about $5,750 – $18,056. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Foton Xiaoyun Light Truck Dump Trucks cover?
Foton Xiaoyun Light Truck Dump Trucks mainly covers: Drive: 4x2; Horsepower: 68 hp / 95 hp / 112 hp / 115 hp; Emission: China IV / China V / China VI; Fuel: Diesel / gasoline. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Foton Xiaoyun Light Truck Dump Trucks?
For Foton Xiaoyun Light Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Foton Xiaoyun Light Truck Dump Trucks include?
Foton Xiaoyun Light Truck Dump Trucks currently lists about 25 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Foton Xiaoyun Light Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
