Foton Xiaoyun 7 115hp 4X2(6 wheels) 3.67m Single Row Dump Truck

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Transmission: WLY
Curb Weight:: 2.72ton
Wheelbase:: 2850mm
Tire Size:: 6.50R16LT 10PR
Foton Xiaoyun 7 115hp 4X2(6 wheels) 3.67m Single Row Dump Truck exterior
View more photos (12)
Rated payload: 1.645ton
Drive 4X2 (6 wheels)
Horsepower 115
Cargo box length: 3.67m

Overview

The Foton Xiaoyun 7 115hp 4X2(6 wheels) 3.67m Single Row Dump Truck is a Light Truck featuring 1.645t payload, 4.495t GVW, 3.67m cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a QuanchaiQ23-115E60 engine, 115 hp, China VI emissions and WLY transmission.

China VI 115 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): BJ3045D9JBA-02
Drive type: 4X2
Wheelbase: 2850mm
engine: QuanchaiQ23-115E60
transmission: WLY 5-speed
Rear Axle Ratio: 5.286
Cab length: 5.47m
Cab width: 1.94m
Cab height: 2.21m
Front track width: 1495mm
rear track: 1435mm
Curb Weight: 2.72ton
Rated payload: 1.645ton
GVWR: 4.495ton
Origin: Shandong Zhucheng
tonnage class: Light Truck
Approach angle: 20°
departure angle: 16°
Remarks: Optional 5.833/5.571 ratio.
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: QuanchaiQ23-115E60
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.3L
Emission standard: China VI
Max output power: 85kW
Max hp: 115Horsepower
Max torque: 320N·m
Max torque speed: 2000rpm
Rated speed: 3000rpm
Engine Type: Inline 4-cylinder, water-cooled, 4-stroke, turbocharged with intercooler, high-pressure common rail
Transmission Parameters
Transmission Model: WLY 5-speed
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box length: 3.67m
Cargo box width: 1.81m
Cargo box height: 0.4m
Cab parameters
Cab width: 1695mm
seating capacity: 2Personnel
Chassis Specs
Front axle allowable load: 1710kg
rear axle allowable load: 2785kg
Axle ratio: 5.286
Leaf spring count: 7/7+5
Tire
Tire Size: 6.50R16LT 10PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
steering wheel adjustment: Manual
Multimedia features
Radio:
lighting configuration
Front fog lamp:
Headlight height adjustment:
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

Exterior3

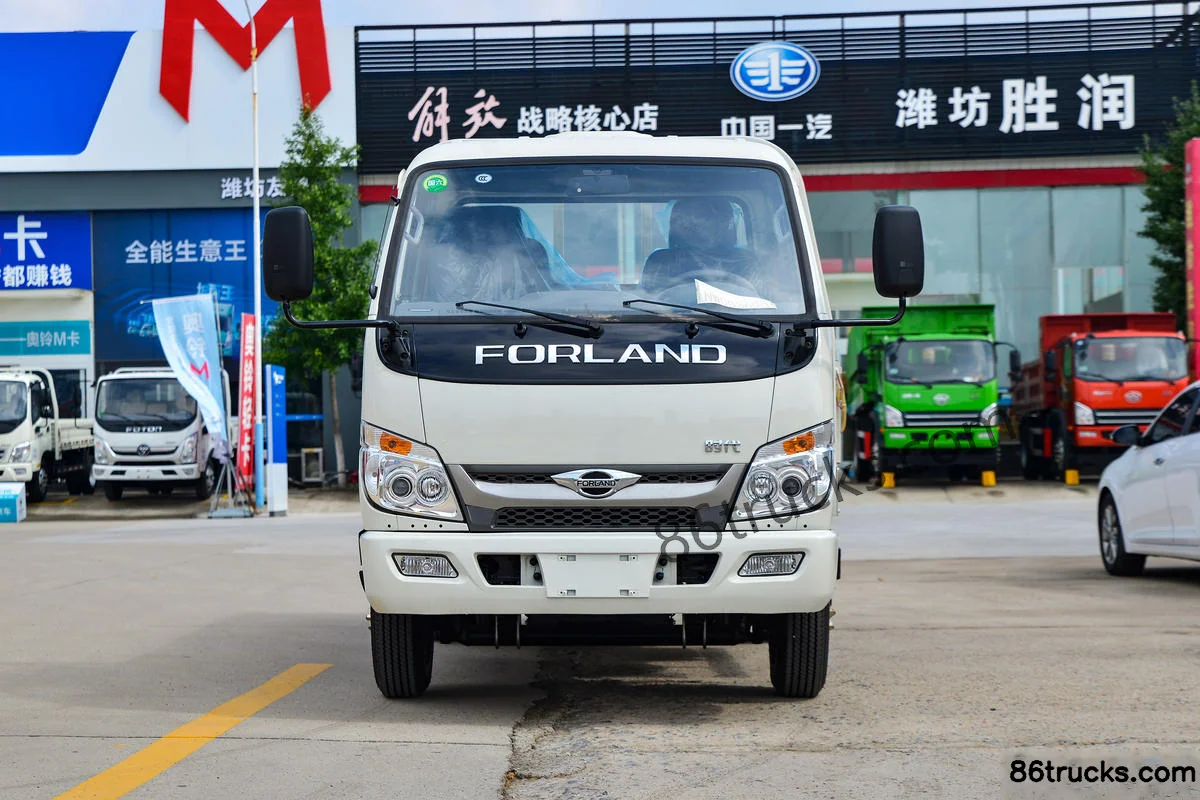

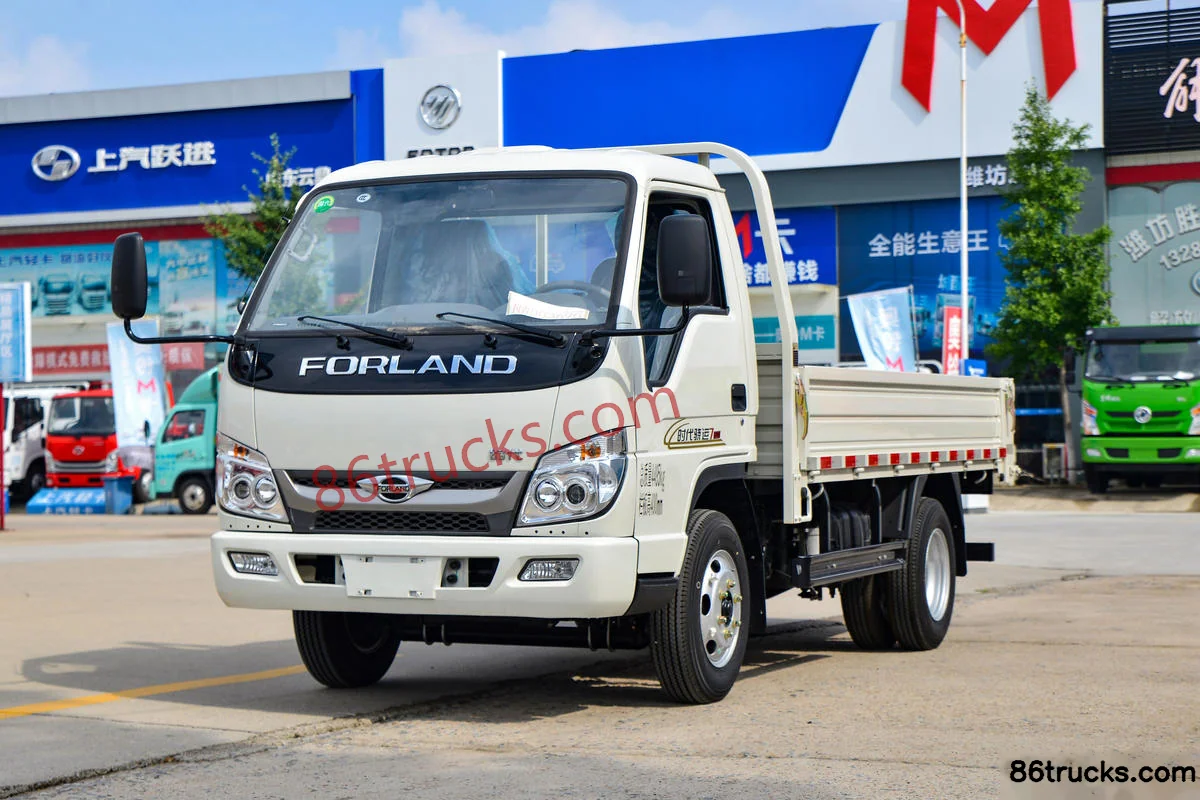

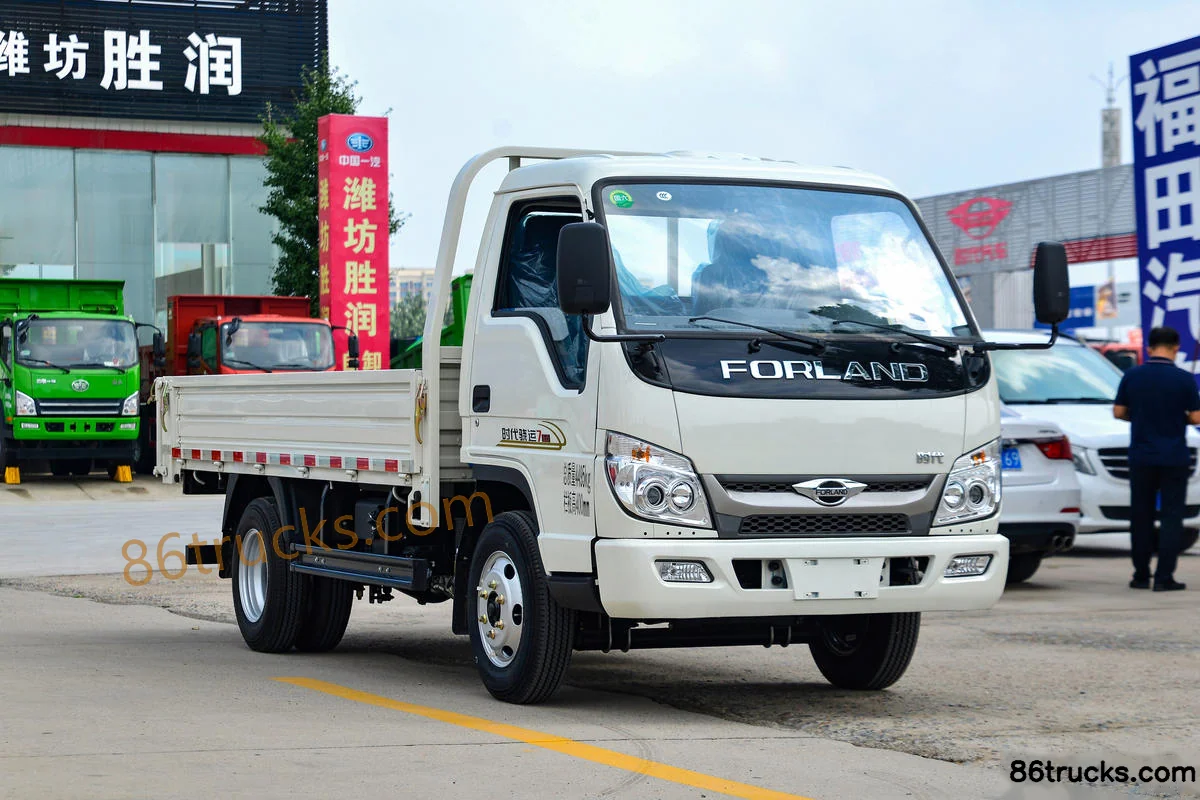

Foton Xiaoyun 7 115hp 4X2(6 wheels) 3.67m Single Row Dump Truck Exterior (1) | 86Trucks Foton Xiaoyun 7 115hp 4X2(6 wheels) 3.67m Single Row Dump Truck Exterior (2) | 86Trucks Foton Xiaoyun 7 115hp 4X2(6 wheels) 3.67m Single Row Dump Truck Exterior (3) | 86Trucks

Cab3

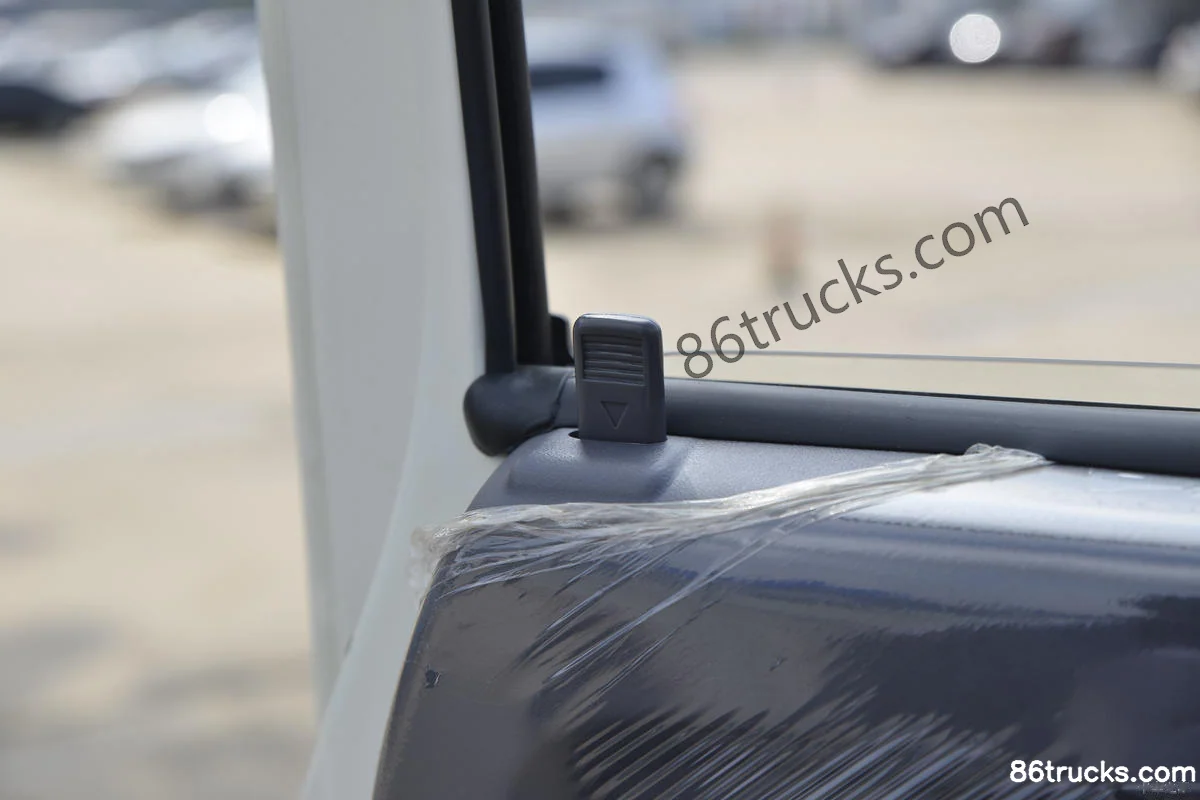

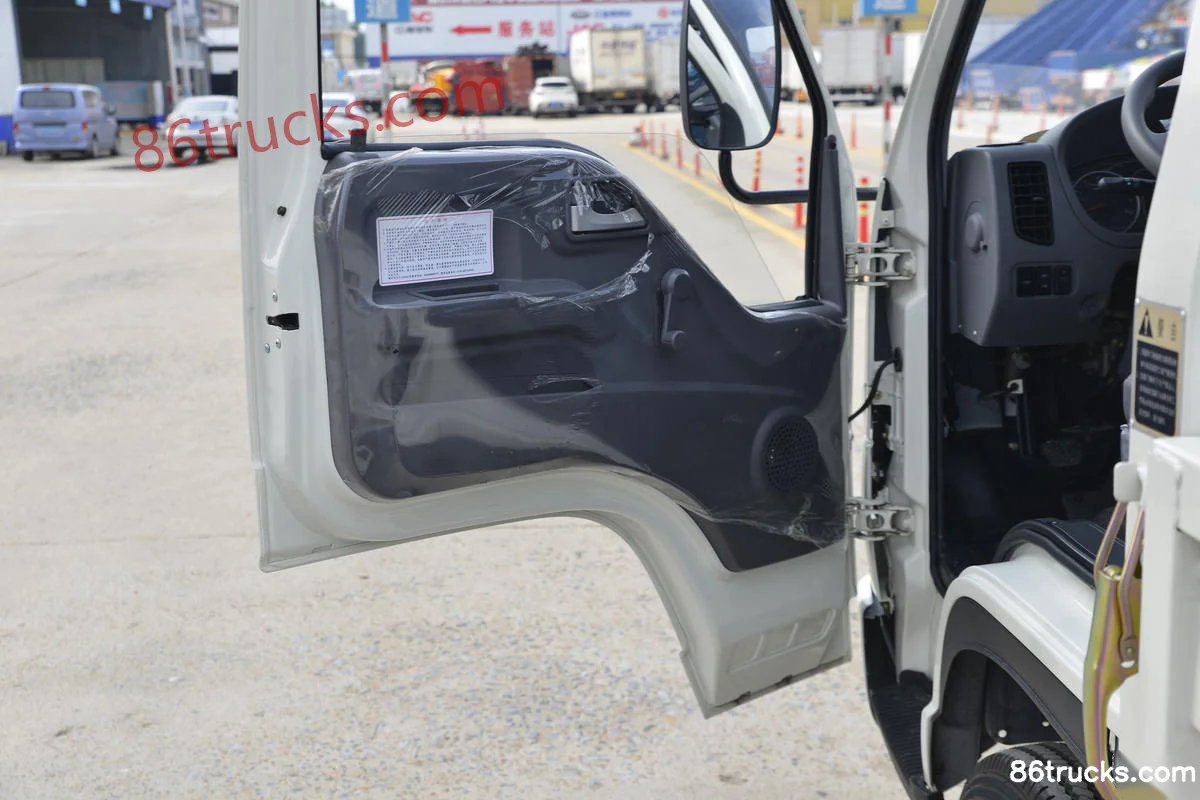

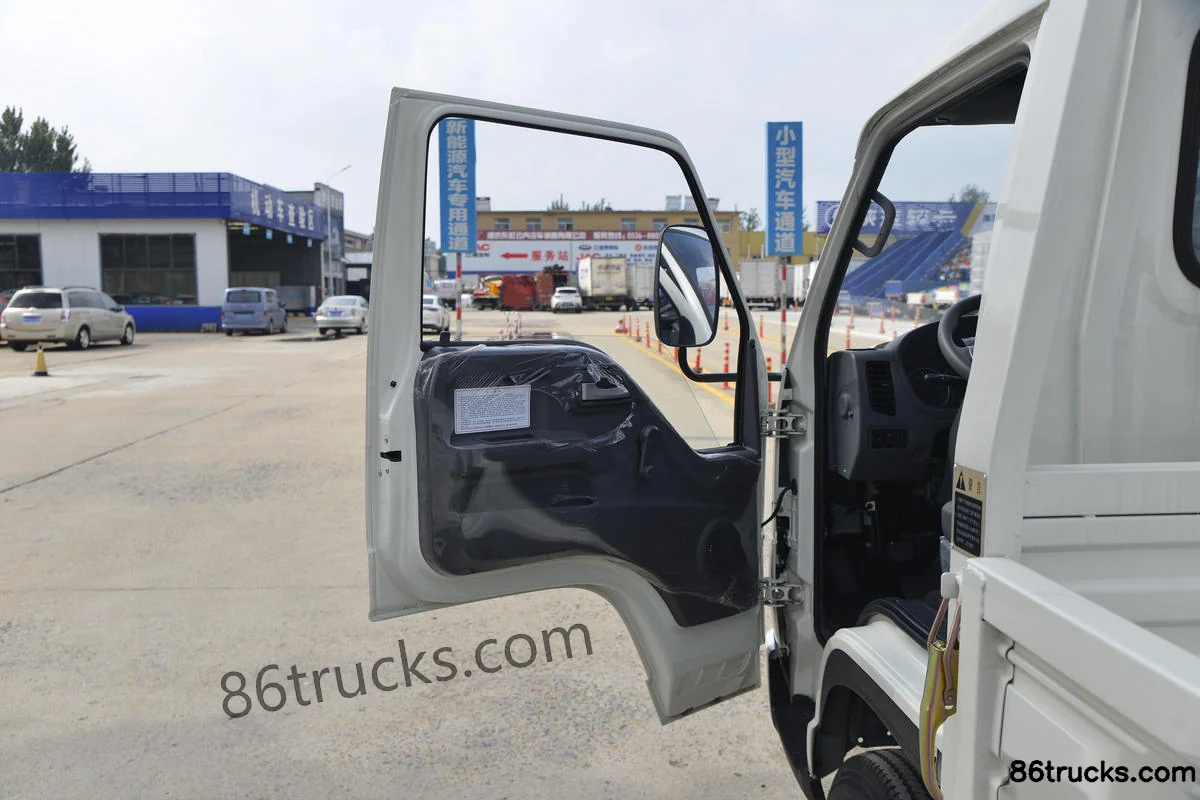

Foton Xiaoyun 7 115hp 4X2(6 wheels) 3.67m Single Row Dump Truck Cab (1) | 86Trucks Foton Xiaoyun 7 115hp 4X2(6 wheels) 3.67m Single Row Dump Truck Cab (2) | 86Trucks Foton Xiaoyun 7 115hp 4X2(6 wheels) 3.67m Single Row Dump Truck Cab (3) | 86Trucks

Chassis3

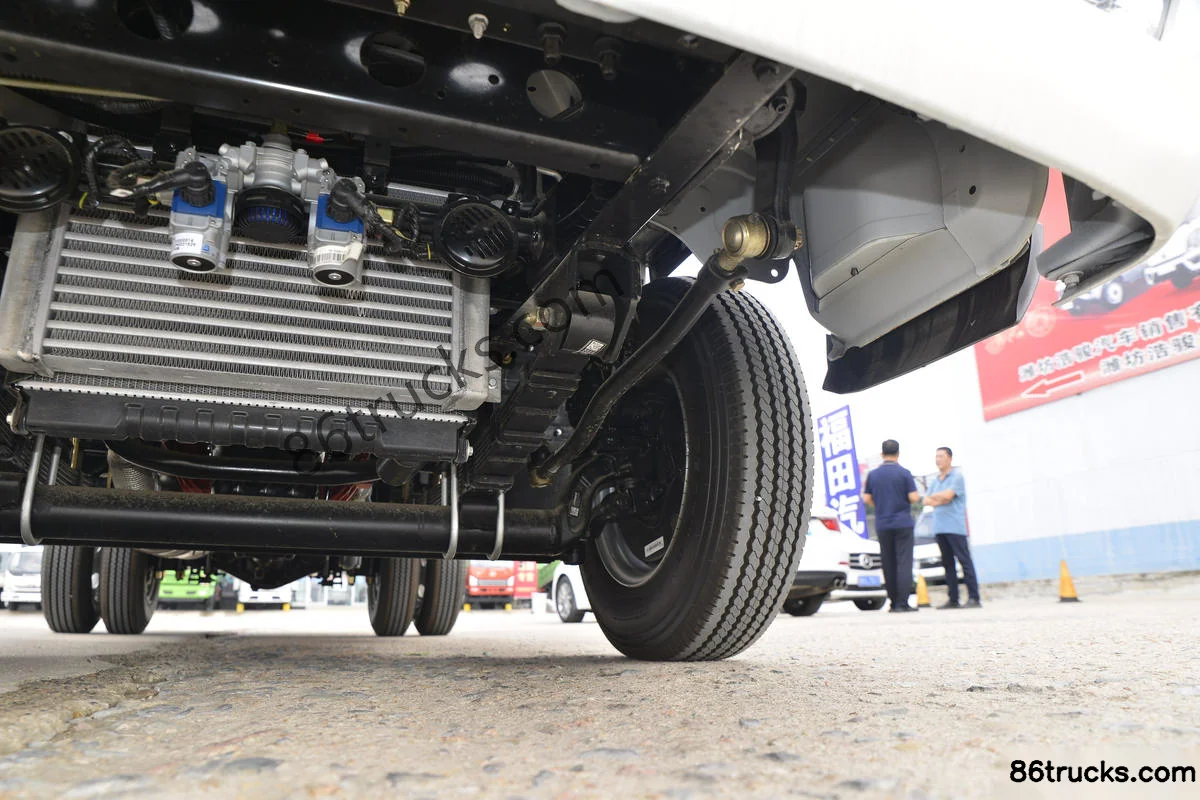

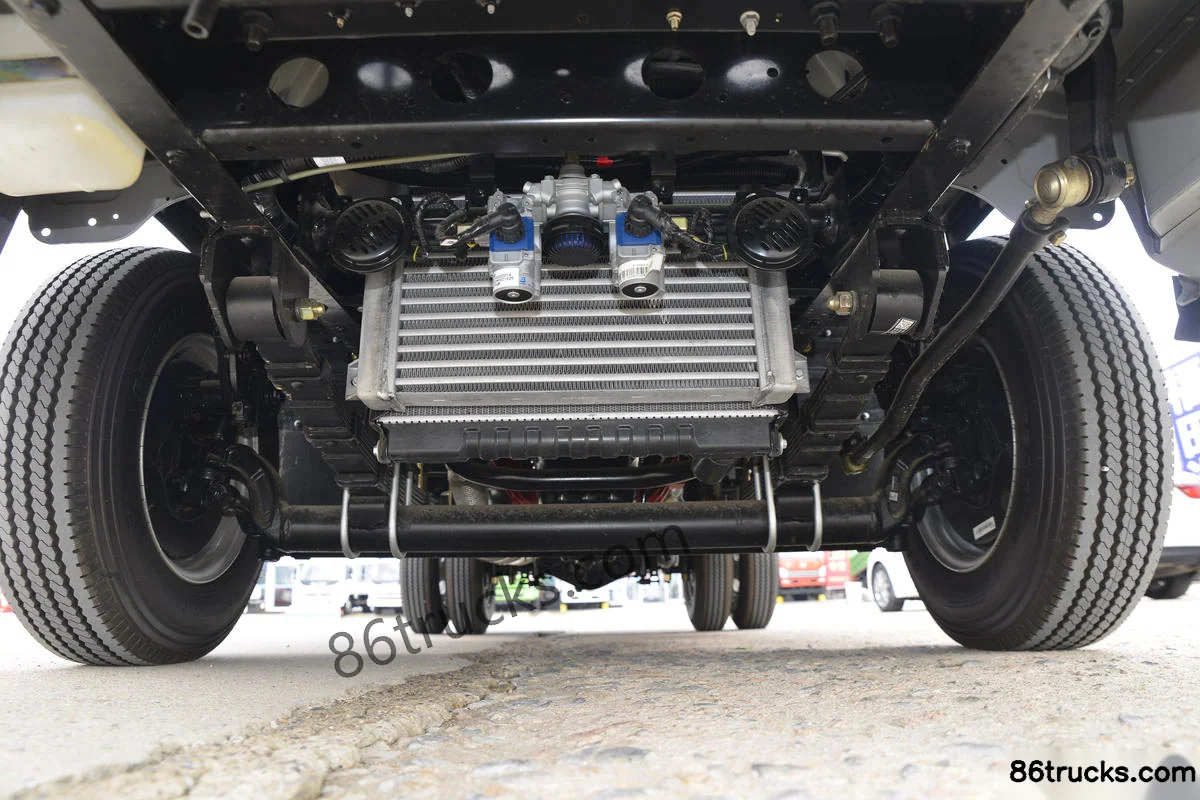

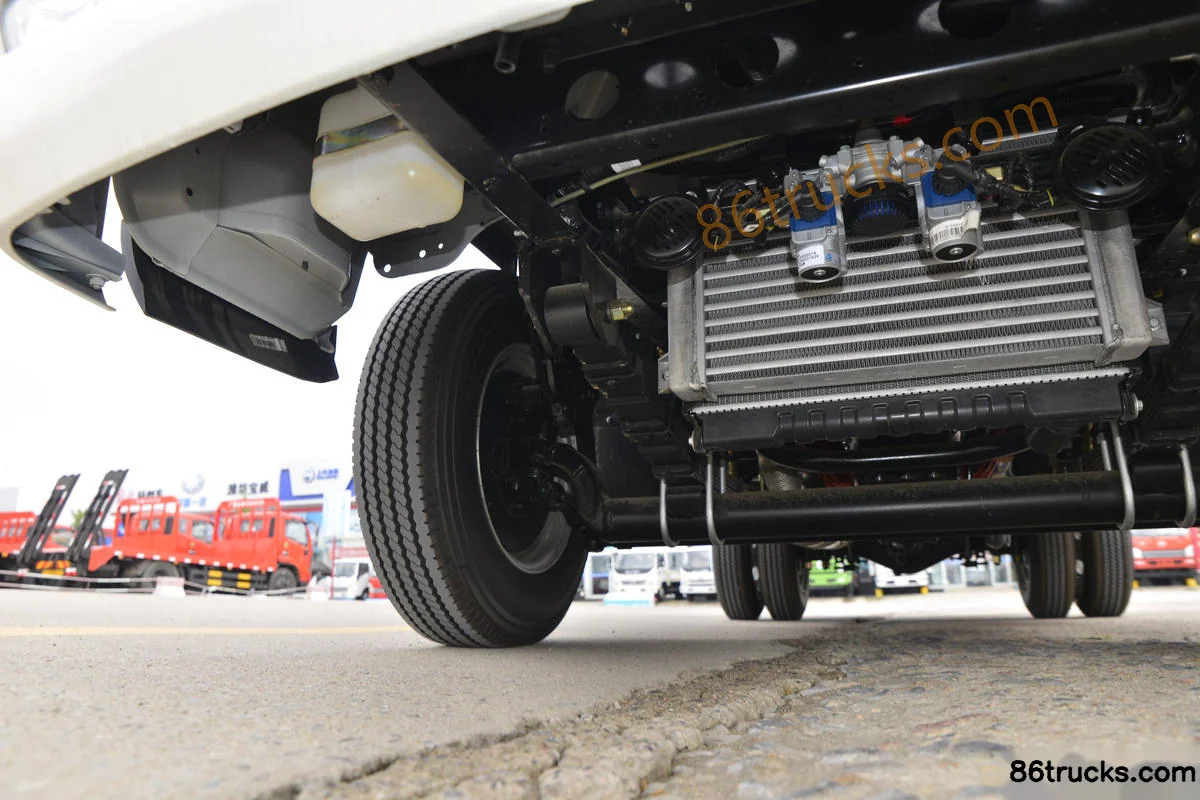

Foton Xiaoyun 7 115hp 4X2(6 wheels) 3.67m Single Row Dump Truck Chassis (1) | 86Trucks Foton Xiaoyun 7 115hp 4X2(6 wheels) 3.67m Single Row Dump Truck Chassis (2) | 86Trucks Foton Xiaoyun 7 115hp 4X2(6 wheels) 3.67m Single Row Dump Truck Chassis (3) | 86Trucks

Body3

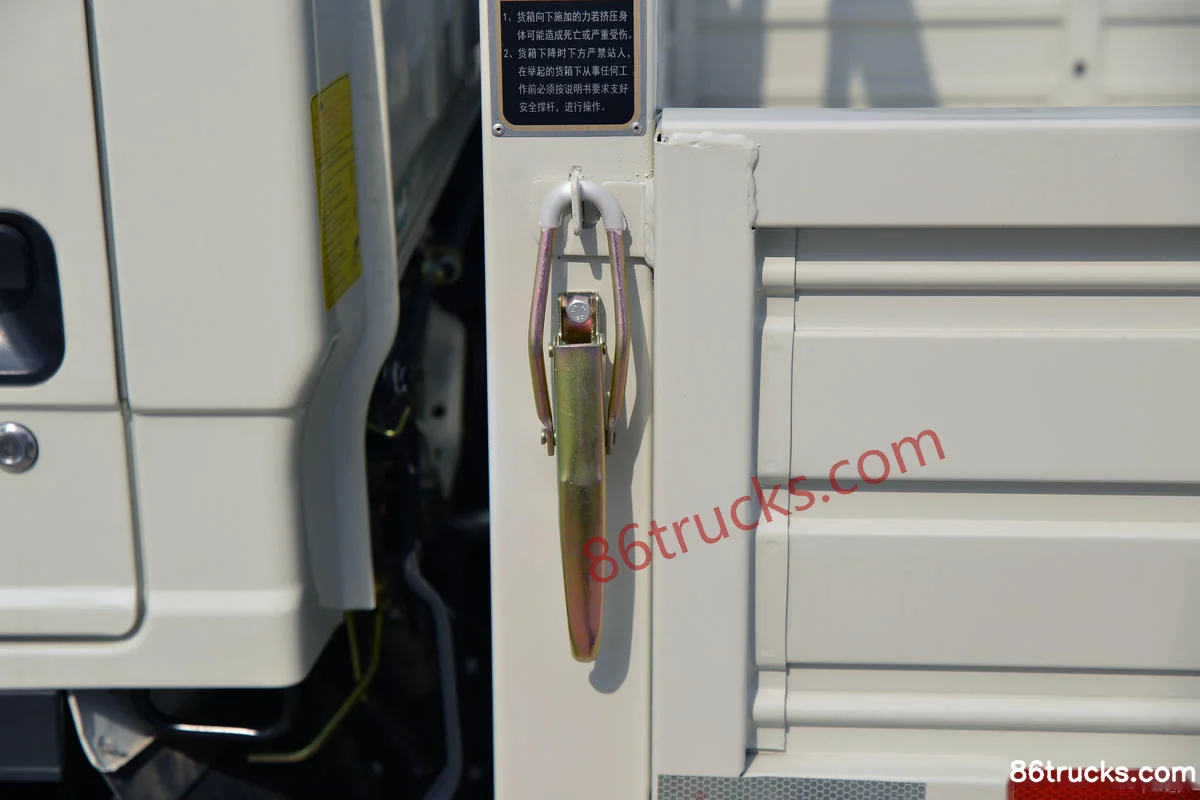

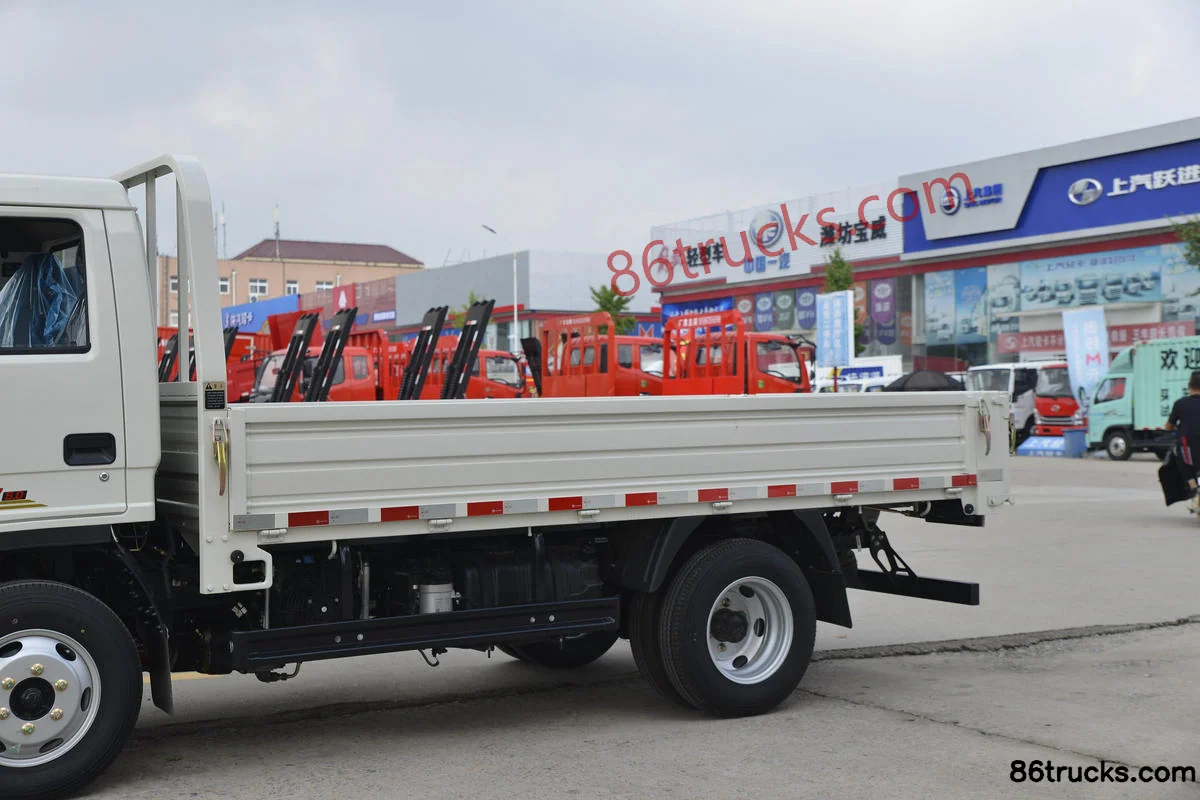

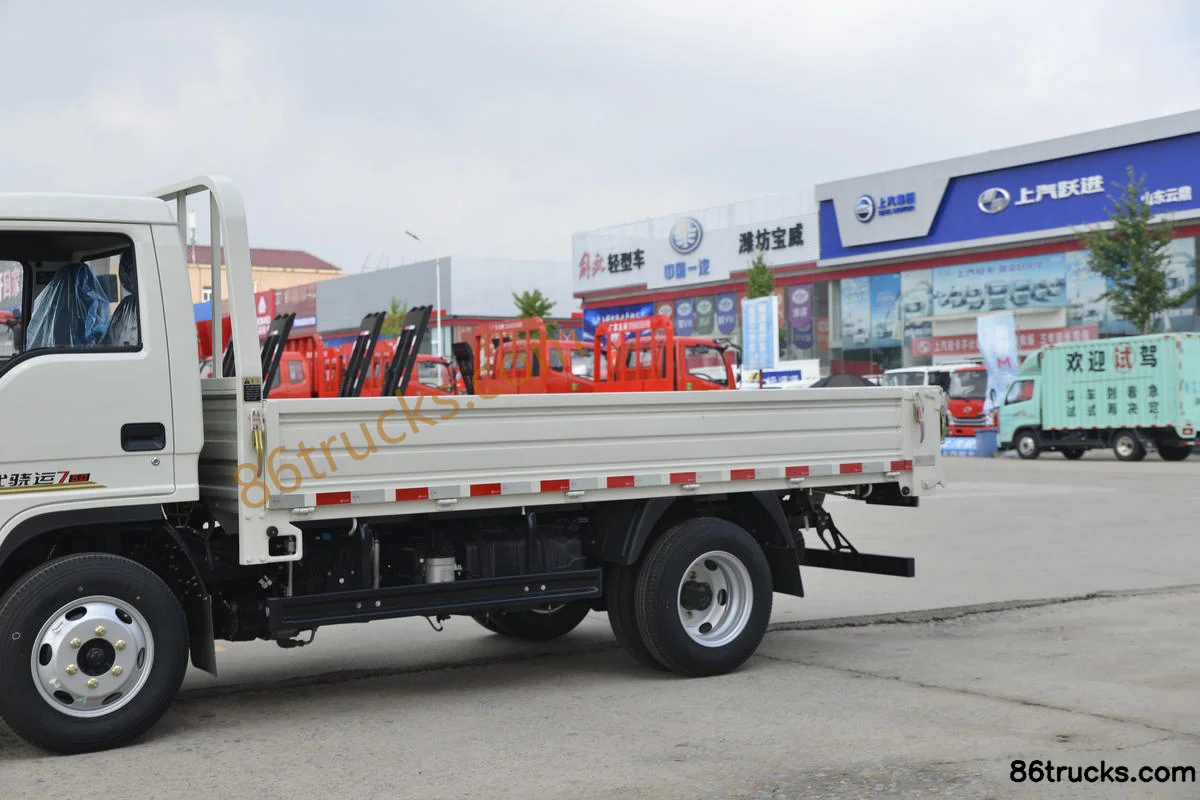

Foton Xiaoyun 7 115hp 4X2(6 wheels) 3.67m Single Row Dump Truck Body (1) | 86Trucks Foton Xiaoyun 7 115hp 4X2(6 wheels) 3.67m Single Row Dump Truck Body (2) | 86Trucks Foton Xiaoyun 7 115hp 4X2(6 wheels) 3.67m Single Row Dump Truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does Foton Xiaoyun 7 115hp 4X2(6 wheels) 3.67m Single Row Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Xiaoyun 7 115hp 4X2(6 wheels) 3.67m Single Row Dump Truck?

Key specs of Foton Xiaoyun 7 115hp 4X2(6 wheels) 3.67m Single Row Dump Truck: Drive: 4x2; Horsepower: 115 hp; Emission: China VI; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Xiaoyun 7 115hp 4X2(6 wheels) 3.67m Single Row Dump Truck suited for?

Foton Xiaoyun 7 115hp 4X2(6 wheels) 3.67m Single Row Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Foton Xiaoyun 7 115hp 4X2(6 wheels) 3.67m Single Row Dump Truck differ from other variants in the same series?

Foton Xiaoyun 7 115hp 4X2(6 wheels) 3.67m Single Row Dump Truck belongs to Foton Xiaoyun Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Xiaoyun 7 115hp 4X2(6 wheels) 3.67m Single Row Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Xiaoyun 7 115hp 4X2(6 wheels) 3.67m Single Row Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
