Foton Xiaoyun 95 hp 4X2(6 wheels) 3.67m dump truck

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Transmission: WLY
Curb Weight:: 2.492ton
Wheelbase:: 2800mm
Number of tires:: 6pcs
Foton Xiaoyun 95 hp 4X2(6 wheels) 3.67m dump truck exterior
View more photos (12)
Rated payload: 1.49ton
Drive 4X2 (6 wheels)
Horsepower 95
Cargo box type: Dump type

Overview

The Foton Xiaoyun 95 hp 4X2(6 wheels) 3.67m dump truck is a Light Truck featuring 1.49t payload, 4.112t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerYN27CRD1 engine, 95 hp, China IV emissions and WLY transmission.

China IV 95 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): BJ3042D8JDA-G1
Drive type: 4X2
Wheelbase: 2800mm
engine: Yunnei PowerYN27CRD1
transmission: WLYWLY5T20
Rear Axle Ratio: 5.833
Cab length: 5.437m
Cab width: 1.91m
Cab height: 2.35m
Front track width: 1453mm
rear track: 11446mm
Curb Weight: 2.492ton
Rated payload: 1.49ton
GVWR: 4.112ton
Origin: Shandong Zhucheng
tonnage class: Light Truck
Approach angle: 25°
departure angle: 14°
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYN27CRD1
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.672L
Emission standard: China IV
Max output power: 70kW
Max hp: 95Horsepower
Max torque: 250N·m
Max torque speed: 1800-2600rpm
Rated speed: 3200rpm
Engine Type: Electronic high-pressure common rail diesel engine
Transmission Parameters
Transmission Model: WLYWLY5T20
Transmission Brand: WLY
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.67m
Cargo box width: 1.81m
Cargo box height: 0.4m
Cab parameters
Cab: Single Row
Cab width: 1695mm
Chassis Specs
Front axle allowable load: 1560kg
rear axle allowable load: 2552kg
Axle ratio: 5.833
Leaf spring count: 7/7+5
Tire
Number of tires: 6pcs

Photos

Exterior3

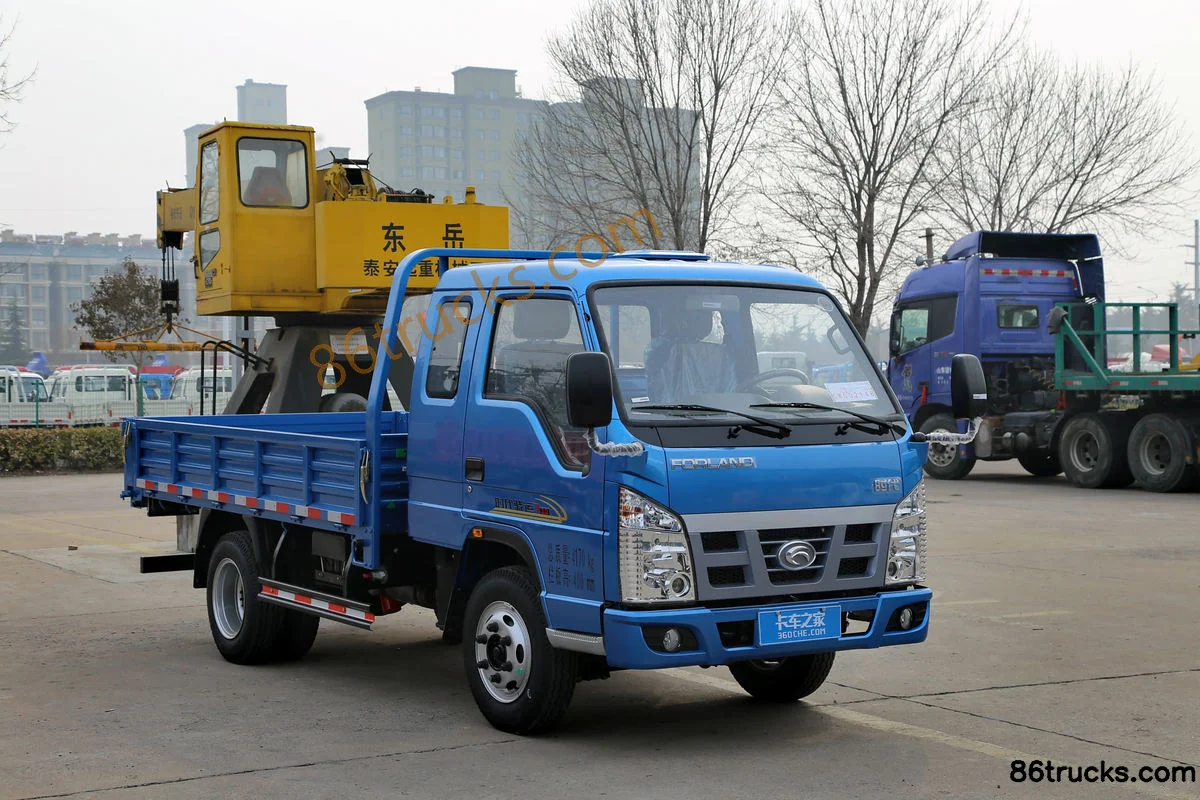

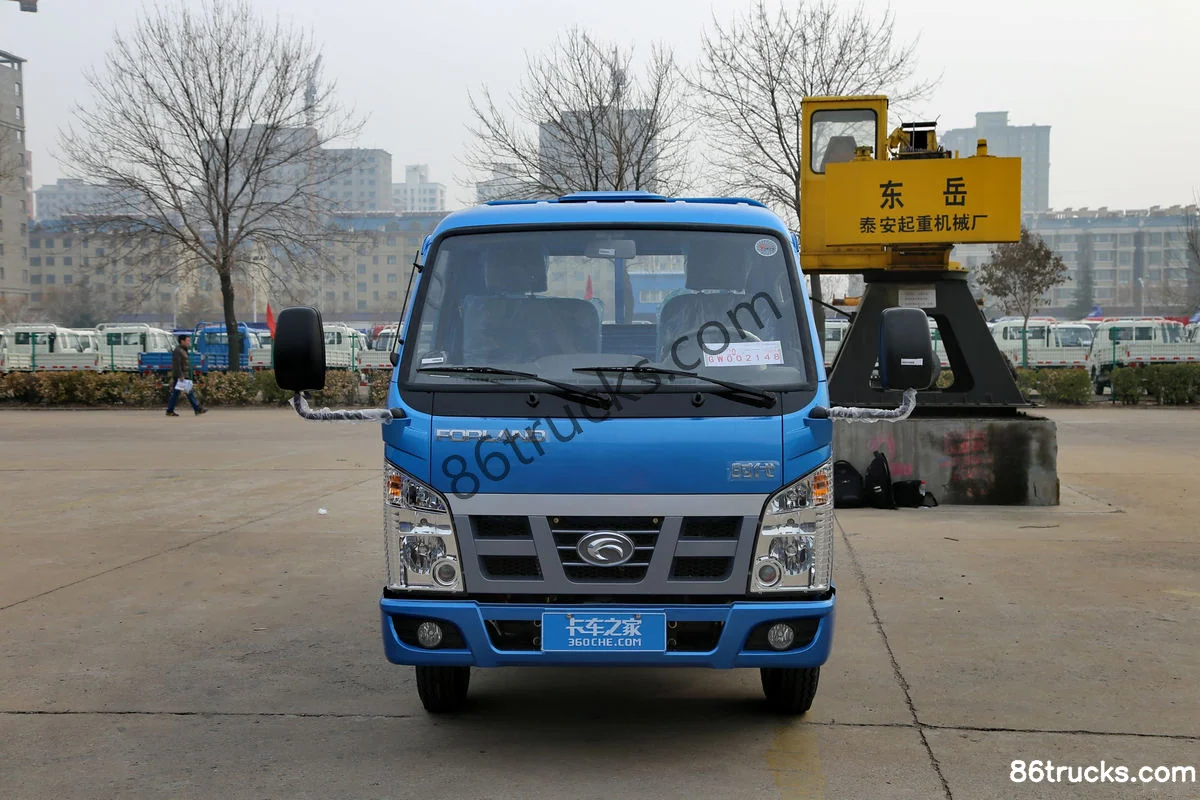

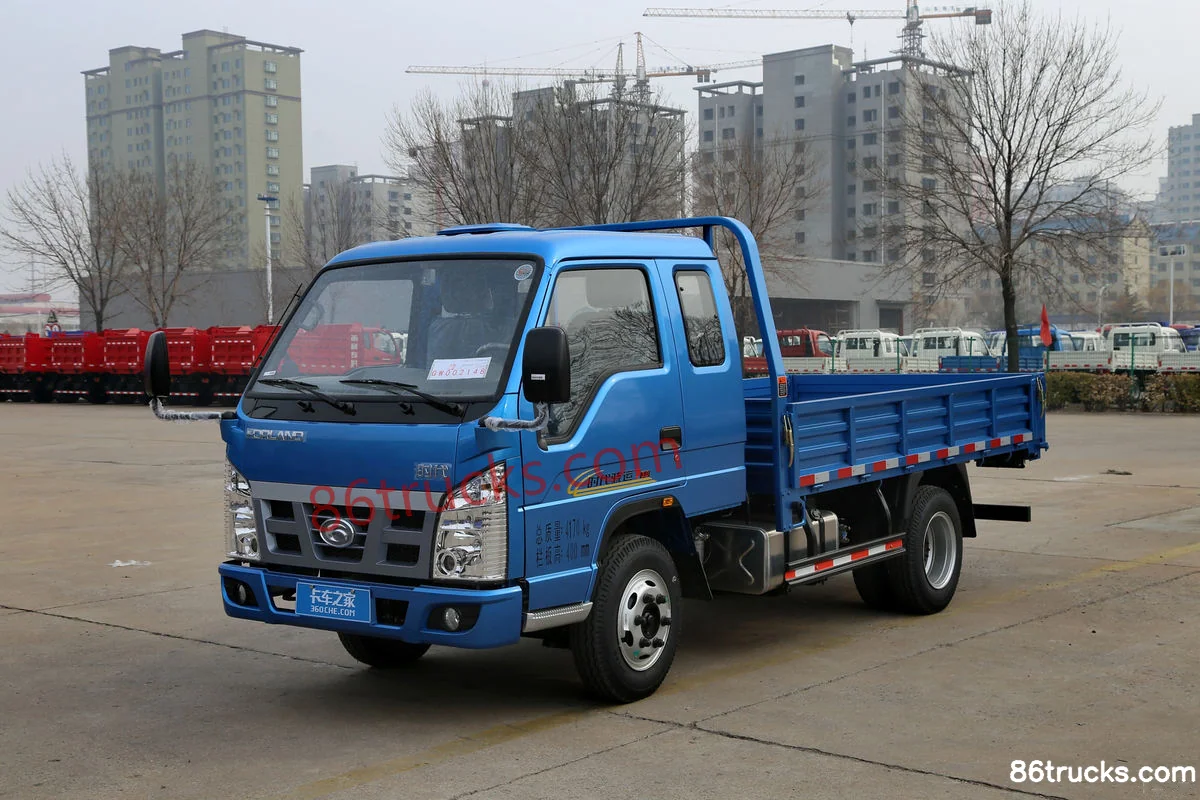

Foton Xiaoyun 95 hp 4X2(6 wheels) 3.67m dump truck Exterior (1) | 86Trucks Foton Xiaoyun 95 hp 4X2(6 wheels) 3.67m dump truck Exterior (2) | 86Trucks Foton Xiaoyun 95 hp 4X2(6 wheels) 3.67m dump truck Exterior (3) | 86Trucks

Cab3

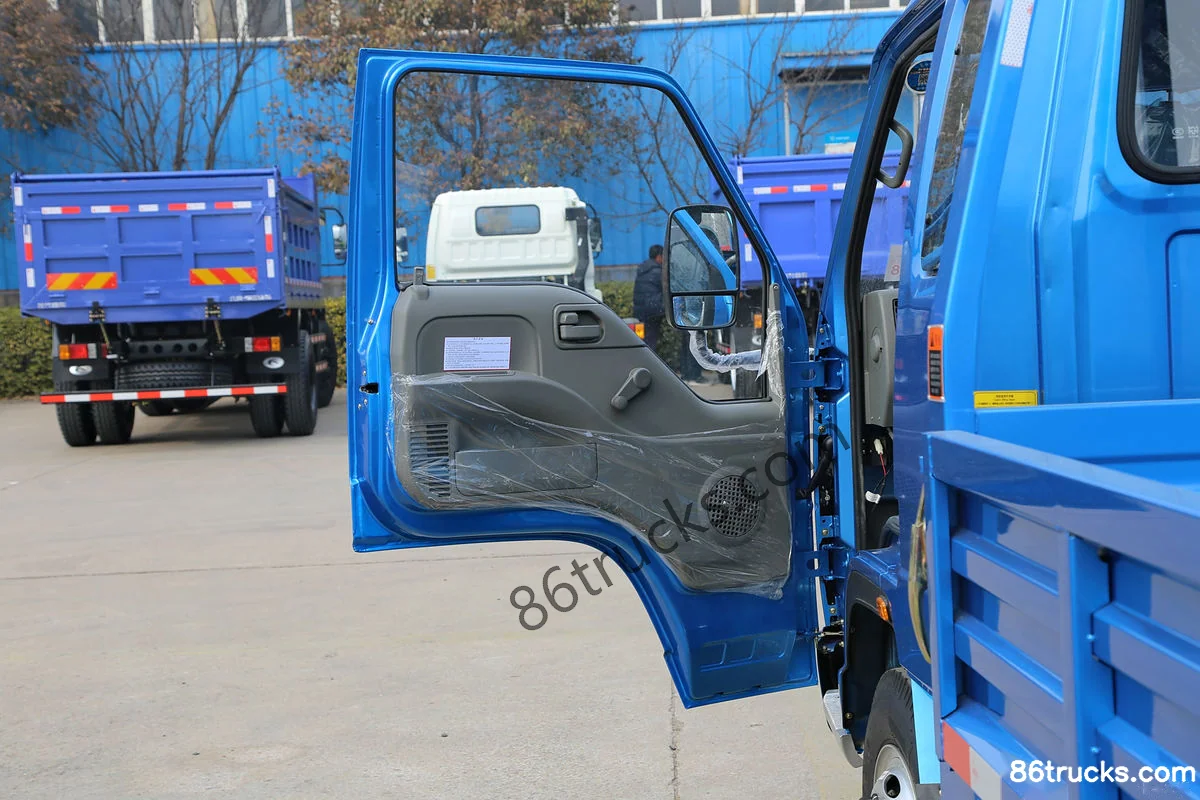

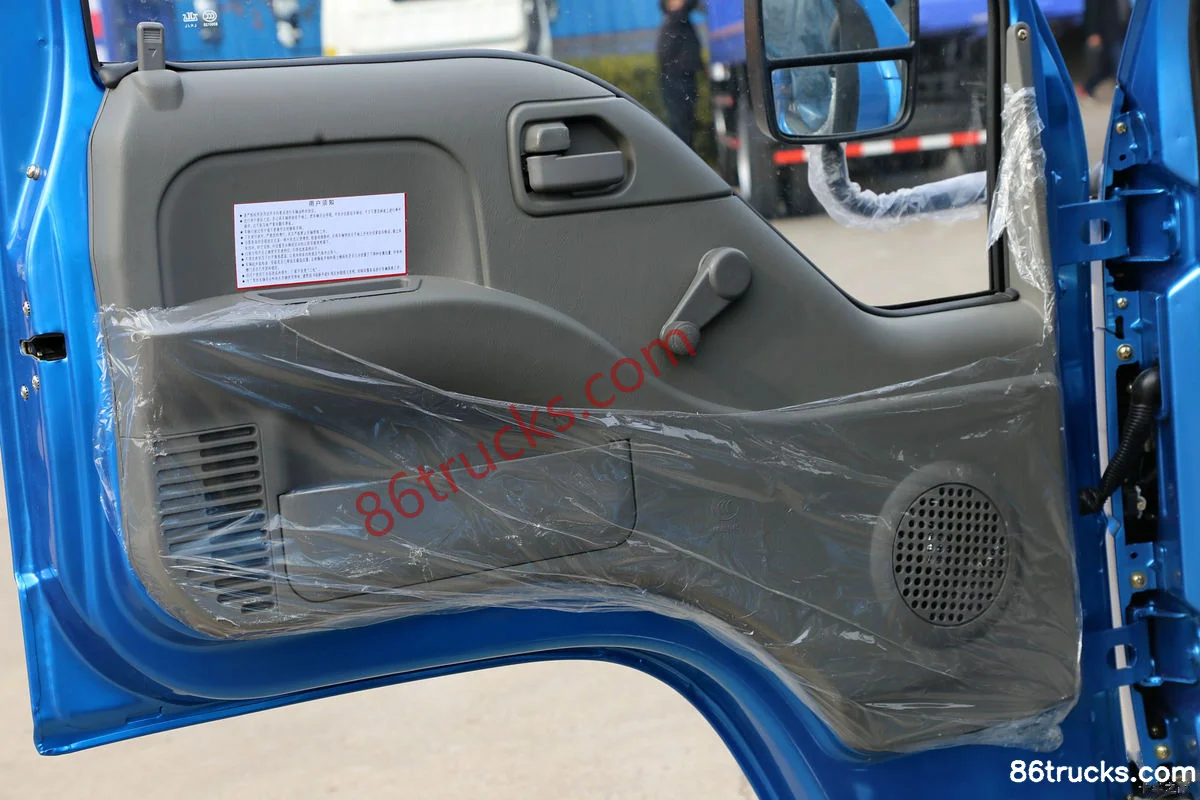

Foton Xiaoyun 95 hp 4X2(6 wheels) 3.67m dump truck Cab (1) | 86Trucks Foton Xiaoyun 95 hp 4X2(6 wheels) 3.67m dump truck Cab (2) | 86Trucks Foton Xiaoyun 95 hp 4X2(6 wheels) 3.67m dump truck Cab (3) | 86Trucks

Chassis3

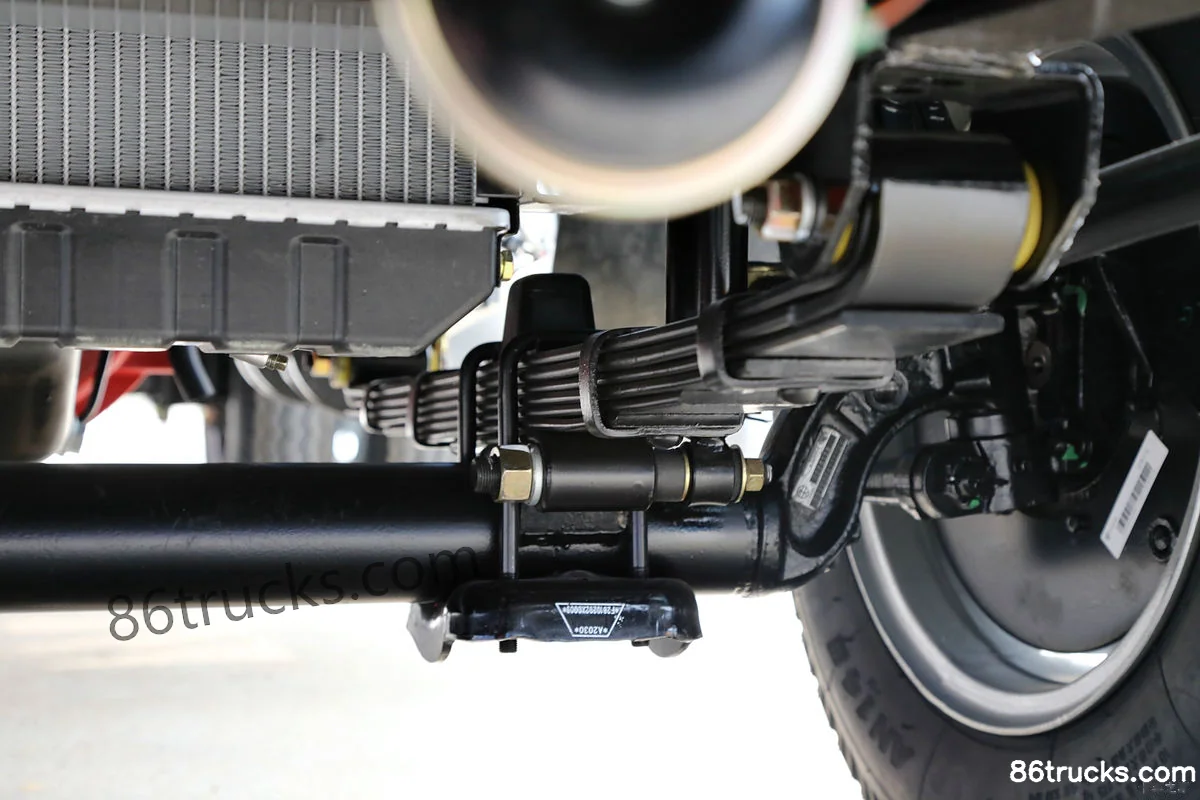

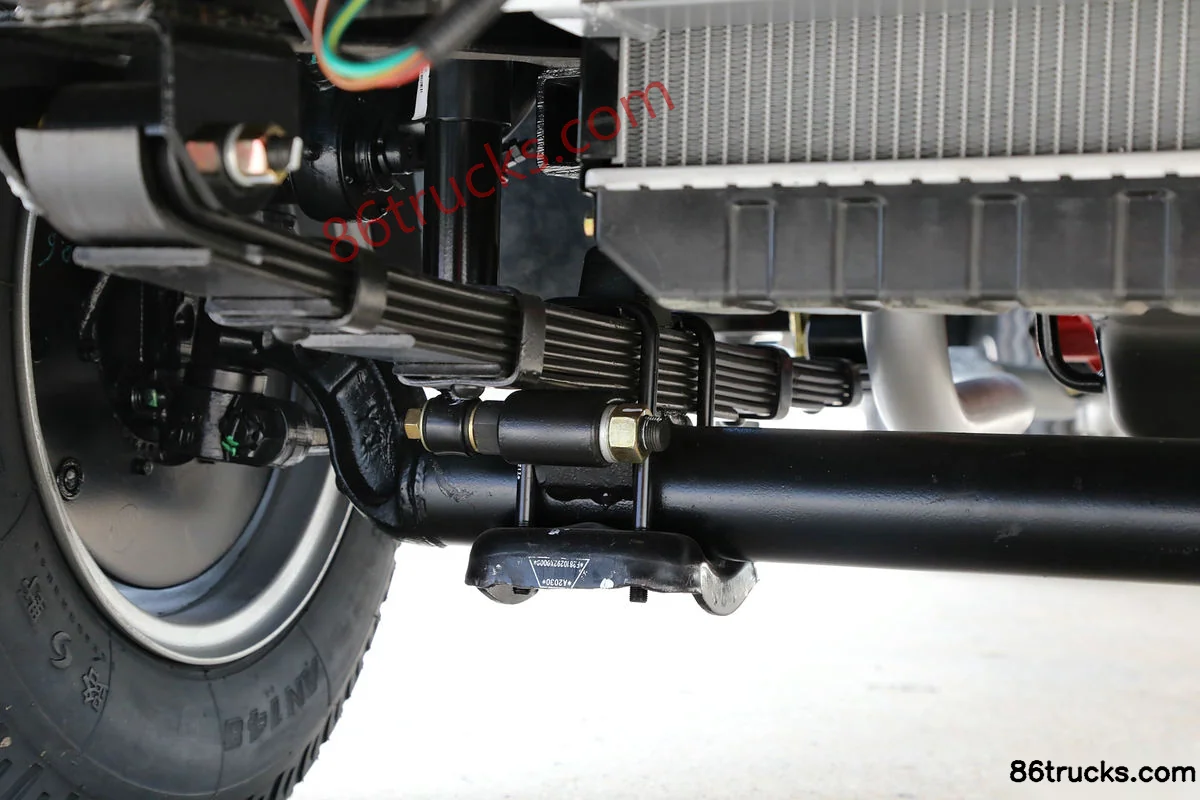

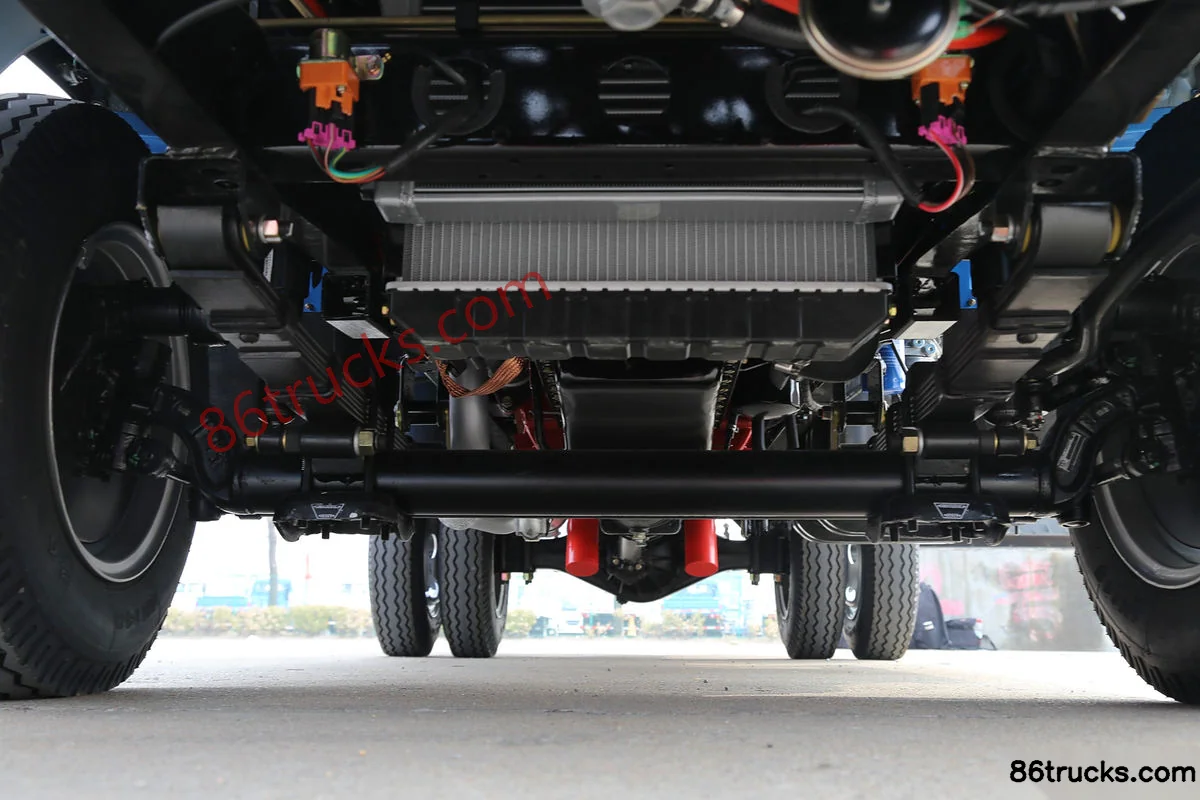

Foton Xiaoyun 95 hp 4X2(6 wheels) 3.67m dump truck Chassis (1) | 86Trucks Foton Xiaoyun 95 hp 4X2(6 wheels) 3.67m dump truck Chassis (2) | 86Trucks Foton Xiaoyun 95 hp 4X2(6 wheels) 3.67m dump truck Chassis (3) | 86Trucks

Body3

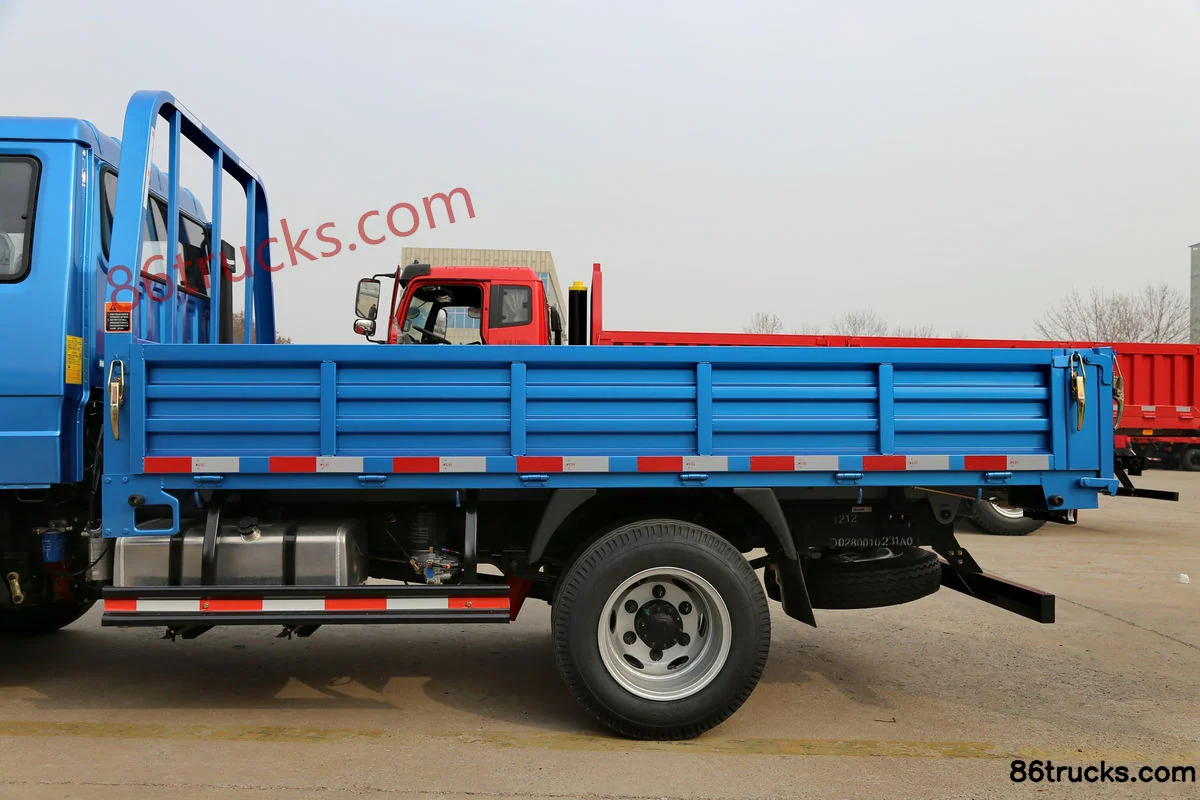

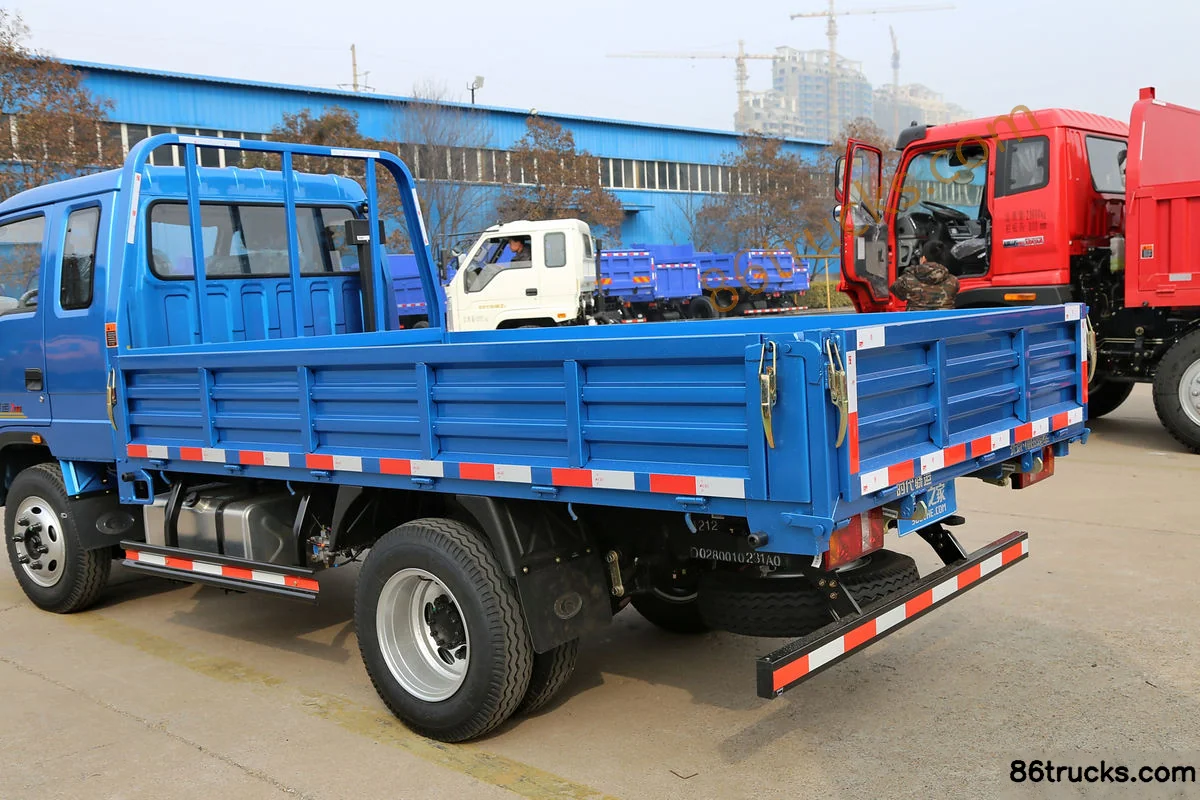

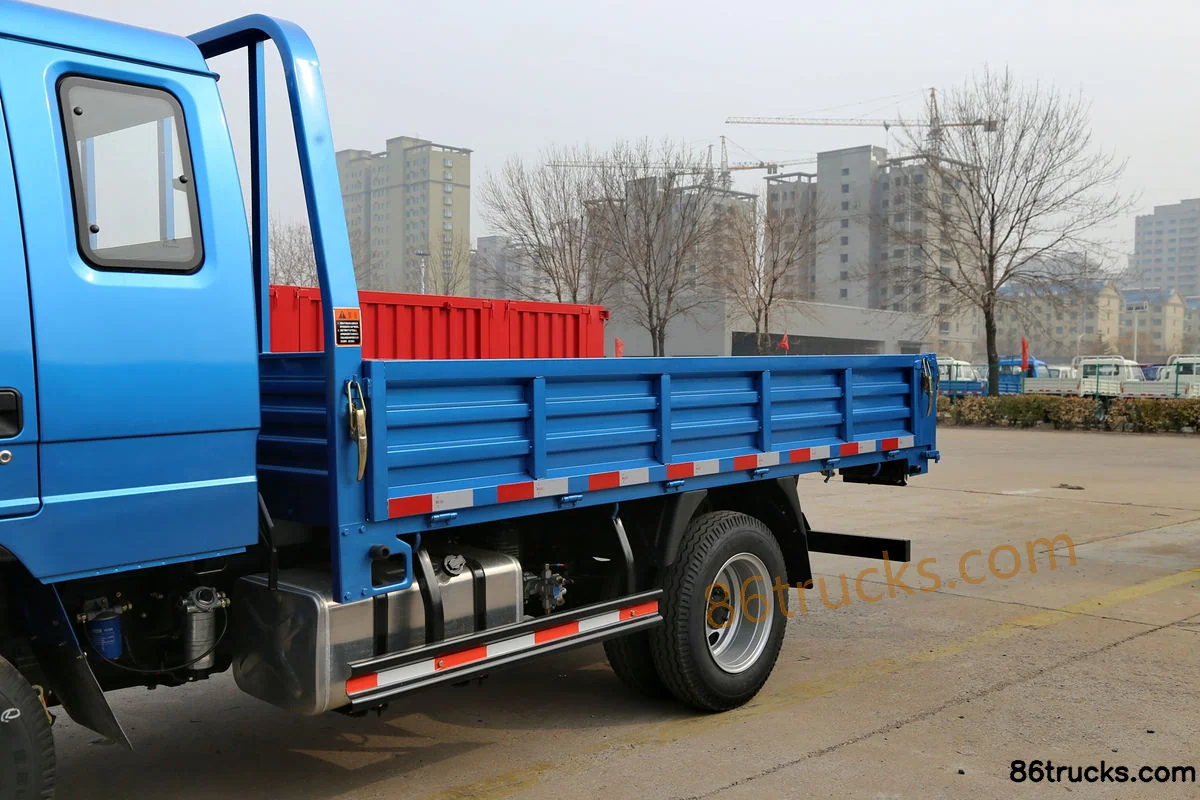

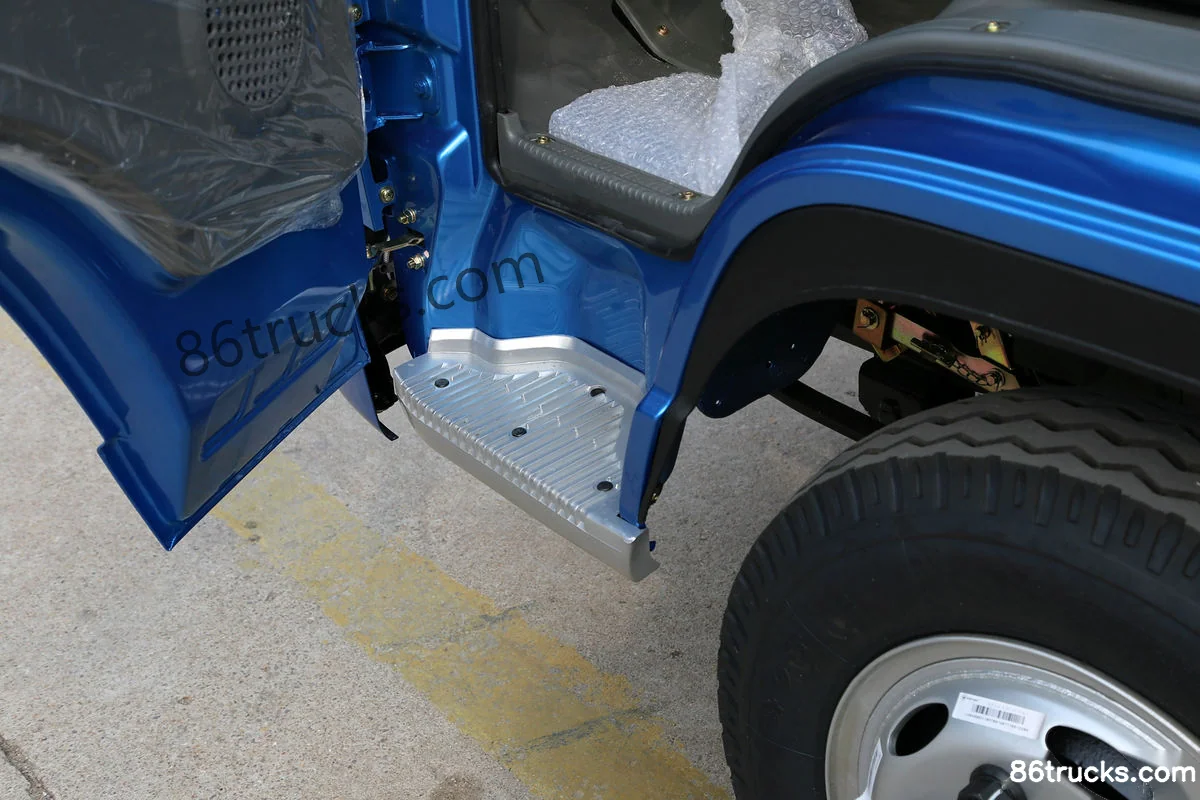

Foton Xiaoyun 95 hp 4X2(6 wheels) 3.67m dump truck Body (1) | 86Trucks Foton Xiaoyun 95 hp 4X2(6 wheels) 3.67m dump truck Body (2) | 86Trucks Foton Xiaoyun 95 hp 4X2(6 wheels) 3.67m dump truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does Foton Xiaoyun 95 hp 4X2(6 wheels) 3.67m dump truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Xiaoyun 95 hp 4X2(6 wheels) 3.67m dump truck?

Key specs of Foton Xiaoyun 95 hp 4X2(6 wheels) 3.67m dump truck: Drive: 4x2; Horsepower: 95 hp; Emission: China IV; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Xiaoyun 95 hp 4X2(6 wheels) 3.67m dump truck suited for?

Foton Xiaoyun 95 hp 4X2(6 wheels) 3.67m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Foton Xiaoyun 95 hp 4X2(6 wheels) 3.67m dump truck differ from other variants in the same series?

Foton Xiaoyun 95 hp 4X2(6 wheels) 3.67m dump truck belongs to Foton Xiaoyun Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Xiaoyun 95 hp 4X2(6 wheels) 3.67m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Xiaoyun 95 hp 4X2(6 wheels) 3.67m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
