Sinotruk Howo MAN H5X 245hp 6X4(10 wheels) 4.8m Dump Truck
EXW
From $37,222
Export quote
Sinotruk H5 near-heavy truck Dump Trucks
Main model photos
238 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk Howo MAN H5X 245hp 6X4(10 wheels) 4.8m Dump Truck | 6x4 / 245hp / China VI | From $37,222 | |
| Sinotruk HOWO MAN H5 245 hp 4X4(6 wheels) 4.5m Off-Road Dump Truck | 4x4 / 245hp / China VI | From $49,722 | |
| Sinotruk HOWO MAN H5 270 hp 6X4(10 wheels) 5m Dump Truck | 6x4 / 270hp / China VI | From $51,111 | |
| Sinotruk HaoMAN H5 245 hp 6X4(10 wheels) 5m Dump Truck | 6x4 / 245hp / China VI | From $45,556 | |
| Sinotruk Haoman H5 245 hp 6X2(8 wheels) 5.8m Dump Truck | 6x2 / 245hp / China VI | From $44,167 |
Sinotruk HOWO MAN H5 245 hp 4X4(6 wheels) 4.5m Off-Road Dump Truck
EXW
From $49,722
Export quote

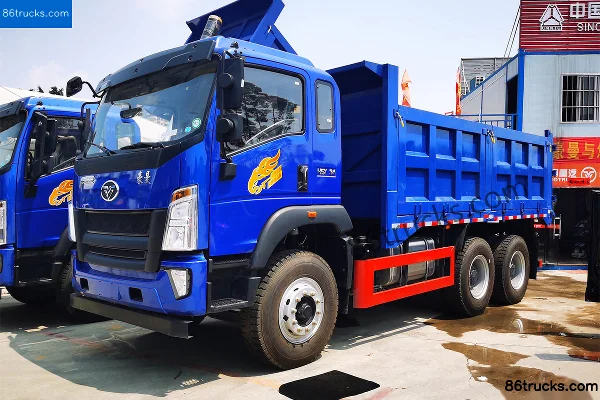

Sinotruk HOWO MAN H5 270 hp 6X4(10 wheels) 5m Dump Truck
EXW
From $51,111
Export quote
Sinotruk HaoMAN H5 245 hp 6X4(10 wheels) 5m Dump Truck
EXW
From $45,556
Export quote
Sinotruk Haoman H5 245 hp 6X2(8 wheels) 5.8m Dump Truck
EXW
From $44,167
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk HaoMAN H5 230 hp 6X4(10 wheels) 4.6m Dump Truck | 6x4 / 230hp / China VI | ||
| Sinotruk Sitrak H5 220 hp 6X2(8 wheels) 4.2m Dump Truck | 6x2 / 220hp / China V | From $35,833 | |
| Sinotruk HOWO MAN H5 240 hp 6X4(10 wheels) 4.8m Dump Truck | 6x4 / 240hp / China V | From $40,556 | |
| Sinotruk HOWO MAN H5 240 hp 6X2(8 wheels) 7.6m Dump Truck | 6x2 / 240hp / China V | From $37,514 | |
| Sinotruk HOWO MANH5 240 hp 6X2(8 wheels) 6.8m Dump Truck | 6x2 / 240hp / China V | From $37,097 |
Sinotruk HaoMAN H5 230 hp 6X4(10 wheels) 4.6m Dump Truck
EXW
Export quote
Sinotruk Sitrak H5 220 hp 6X2(8 wheels) 4.2m Dump Truck
EXW
From $35,833
Export quote
Sinotruk HOWO MAN H5 240 hp 6X4(10 wheels) 4.8m Dump Truck
EXW
From $40,556
Export quote
Sinotruk HOWO MAN H5 240 hp 6X2(8 wheels) 7.6m Dump Truck
EXW
From $37,514
Export quote
Sinotruk HOWO MANH5 240 hp 6X2(8 wheels) 6.8m Dump Truck
EXW
From $37,097
Export quote
Series Specs
Basic Info
Model code (announced): ZZ3248K40FB0 / ZZ2188K20FB0 / ZZ3258K40FB0 / ZZ3248KC0FB1 / ZZ3318M60FB2 / ZZ3318M60FB0 / ZZ3248KJ0EB0 / ZZ3248G40EB1 / ZZ3248GC0EB1 / ZZ3258FC0EB1 / ZZ5258ZLJM40EB0 / ZZ3318M60EB0 / ZZ5318ZLJM60EB1 / ZZ3258FC0EB0 / ZZ5258ZLJM40EB1 / ZZ3318M60EB3 / ZZ3318M60EB2 / ZZ5168ZLJG10EB0
Drive type: 6X4 / 4X4 / 6X2 / 8X4 / 4X2
Wheelbase: 3400+1350 / 3950 / 1800+3200 / 1800+2600+1350 / 3600+1350 / 1800+4000 / 2300+1300 / 1800+4700 / 1800+3800 / 1800+2800 / 1800+2500 / 2900+1300 / 3800+1350 / 1800+3650+1350 / 3300+1300 / 1800+2900+1350 / 1800+3050+1350 / 3900 / 4000+1350mm
Engine Model: YuchaiYCS06245-60 / YuchaiYCS06270-60 / WeichaiWP8.350E61 / SinotrukMC07H.35-60 / WeichaiWP4.6NQ220E61A / Yunnei PowerD47TCIF1 / Yunnei PowerD45TCIE1 / YuchaiYC6JA240-50 / YuchaiYC6J180-52 / SinotrukD10.34-50 / SinotrukD10.38-50 / SinotrukMC07.34-50 / SinotrukMC07.28-50 / SinotrukMC07.31-50 / YuchaiYC4EG185-50 / SinotrukMC05.18-50
Transmission Model: Fast Gear10JS90A-B / Fast Gear10JSD120B / Fast Gear10JSD120TB / Fast Gear 10-Speed / SinotrukHW15710 / SinotrukHW12710C / SinotrukHW90510C / SinotrukHW19710 / SinotrukHW19712 / SinotrukHW13710 / Fast Gear10JS90 / SinotrukHW12710
Rear Axle Ratio: 5.143 / 6.72 / 6.83 / 6.333 / 6.833 / 5.286 / 5.833 / 5.73 / 6.304 / 5.571 / 4.875
Cab length: 7.535 / 7.17 / 7.2 / 8.535 / 7.335 / 8.45 / 7.4 / 7.935 / 7.735 / 8.49 / 10.335 / 6.88 / 7.61 / 10.48 / 9.46 / 8.46 / 7.68 / 7.11 / 9.16 / 7.96 / 7.08 / 8.21 / 10.3 / 8.55 / 8.13 / 7.38 / 9.3 / 8.41 / 9 / 9.1 / 9.42 / 6.53m
Cab width: 2.45 / 2.4 / 2.37 / 2.545 / 2.49 / 2.495 / 2.39 / 2.38 / 2250m
Cab height: 3.05 / 3.15 / 2.88 / 2.91 / 2.68 / 3.45 / 2.95 / 3.35 / 2.96 / 3.1m
Front track width: 1840 / 1935 / 1890 / 1850/1850 / 1950/1950 / 2020/2020 / 1760 / 1770/1770 / 1980 / 2047 / 1980,1840,1760 / 1995 / 2047,1995mm
rear track: 1750/1750 / 1860 / 1860/1860 / 1750 / 1800/1800 / 1850/1850 / 1860/1860,1800/1800,1750/1750 / 1850mm
Curb Weight: 9.97 / 9 / 8.8 / 14.1 / 12.85 / 9.8 / 11.95 / 14.82 / 11.905 / 13.2 / 11.955 / 14.77 / 14.775 / 7.68ton
Rated payload: 14.4 / 8.87 / 14.9 / 15.505 / 17.67 / 14.835 / 18.02 / 15.57 / 14.505 / 12.92 / 16.05 / 12.9 / 12.915 / 16.1 / 16.095 / 7.99ton
GVWR: 24.5 / 18 / 25 / 31 / 15.8ton
Origin: Yong'an, Fujian / Fujian Haixi
tonnage class: Medium-duty truck / Heavy truck
Approach angle: 18 / 24 / 18.5 / 20°
departure angle: 22 / 16 / 17 / 20 / 19 / 18 / 15 / 21°
Remarks: Optional cab electric hydraulic lift, optional airbag rear suspension / Desert air filter, optional 4.875 rear axle ratio / Desert air filter, optional 4.875 or 5.286 rear axle ratio / With tarpaulin / Rear axle ratio optional 5.571 / Ratio optional 5.143
Version: Light-Duty Edition / Heavy-duty version / Transport type / Standard Load Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai / Weichai / Sinotruk / Yunnei Power
Number of cylinders: 6 / 4cylinder
Displacement: 6.23 / 7.8 / 7.36 / 4.58 / 4.7 / 4.46 / 6.87 / 6.494 / 9.726 / 4.73L
Emission standard: China VI / China V / China V (Beijing)
Max output power: 180 / 199 / 257 / 162 / 169 / 177 / 132 / 249 / 276 / 248 / 206 / 228 / 136 / 245 / 225kW
Max hp: 245 / 270 / 350 / 220 / 230 / 240 / 180 / 340 / 380 / 280 / 310 / 185Horsepower
Max torque: 850 / 1050 / 1400 / 820 / 950 / 700 / 1490 / 1560 / 1250 / 1100 / 1230N·m
Max torque speed: 1200-1700 / 1200-1600 / 1200-1800 / 1200-2800 / 1200-1500 / 1300-1800 / 1300-1700rpm
Rated speed: 2300 / 2100 / 2200 / 2400 / 1900 / 2000 / 2500rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC / Inline 6-cylinder, water-cooled, 4-stroke, high-pressure common rail, turbocharged intercooled, EGR / Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail / SCR / Vertical, inline, water-cooled, four-stroke / 6-cylinder, inline, 4-stroke, 4-valve, common-rail direct injection, turbocharged intercooled / Inline, water-cooled, 4-stroke, turbocharged with intercooler / Vertical, inline, water-cooled, four-stroke, high-pressure common rail
Technology route: Common Rail SCR
Transmission Parameters
Transmission Brand: Fast Gear / Sinotruk
shift method: Manual
Forward gears: 10 / 9 / 12Gear
Number of Reverse Gears: 2 / 1pcs
Cargo box parameters
hydraulic cylinder brand & model: 160 front lift / Domestic cylinder 160
Unloading Type: Dump type / Rear-dump body
Cargo box thickness: Bottom 4 side 3 / floor 10mm side 6mm
Body Parameters
Lifting type: Dump / Front lift
FAQ
What kind of truck is Sinotruk Sinotruk H5 near-heavy truck Dump Trucks?
Sinotruk Sinotruk H5 near-heavy truck is an export-oriented Dump Trucks lineup with about 52 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Sinotruk H5 near-heavy truck Dump Trucks?
Sinotruk H5 near-heavy truck Dump Trucks export reference is about $32,500 – $56,917. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Sinotruk H5 near-heavy truck Dump Trucks cover?
Sinotruk H5 near-heavy truck Dump Trucks mainly covers: Drive: 4x4 / 6x2 / 6x4; Horsepower: 220 hp / 230 hp / 240 hp / 245 hp / 270 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Sinotruk H5 near-heavy truck Dump Trucks?
For Sinotruk H5 near-heavy truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Sinotruk H5 near-heavy truck Dump Trucks include?
Sinotruk H5 near-heavy truck Dump Trucks currently lists about 52 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Sinotruk H5 near-heavy truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
