Sinotruk HOWO MAN H5 245 hp 4X4(6 wheels) 4.5m Off-Road Dump Truck

Export reference
From $49,722
MSRP ¥35.8M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 9ton
Wheelbase:: 3950mm
Tire Size:: 11.00R20 18PR
Rated payload: 8.87ton
Drive 4X4 (6 wheels)
Horsepower 245
Cargo box length: 4.5m

Overview

The Sinotruk HOWO MAN H5 245 hp 4X4(6 wheels) 4.5m Off-Road Dump Truck is a Medium-duty truck featuring 8.87t payload, 18t GVW, 4.5m cargo body and 4X4 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYCS06245-60 engine, 245 hp, China VI emissions and Fast Gear transmission.

China VI 245 Diesel 4X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ2188K20FB0
Drive type: 4X4
Wheelbase: 3950mm
engine: YuchaiYCS06245-60
transmission: Fast Gear10JSD120B
Rear Axle Ratio: 6.72
Cab length: 7.17m
Cab width: 2.45m
Cab height: 3.15m
Front track width: 1935mm
rear track: 1860mm
Curb Weight: 9ton
Rated payload: 8.87ton
GVWR: 18ton
Origin: Yong'an, Fujian
tonnage class: Medium-duty truck
Approach angle: 24°
departure angle: 16°
Remarks: Optional cab electric hydraulic lift, optional airbag rear suspension
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCS06245-60
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.23L
Emission standard: China VI
Max output power: 180kW
Max hp: 245Horsepower
Max torque: 850N·m
Max torque speed: 1200-1700rpm
Rated speed: 2300rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: Fast Gear10JSD120B
Transmission Brand: Fast Gear
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box length: 4.5m
Cargo box width: 2.3m
Cargo box height: 0.8m
Cab parameters
Cab: H5X semi-high roof
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 300L
Chassis Specs
Front axle description: 23AWS cast (drum)
Front axle allowable load: 6500kg
Frame Dimensions: 300mm
rear axle description: STRD(13T)
rear axle allowable load: 11500kg
Axle ratio: 6.72
Tire
Tire Size: 11.00R20 18PR
Tire Type: Dual-line off-road tires
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Electronic Central Lock:
lighting configuration
daytime running lights:
Service brake
Exhaust brake:

Photos

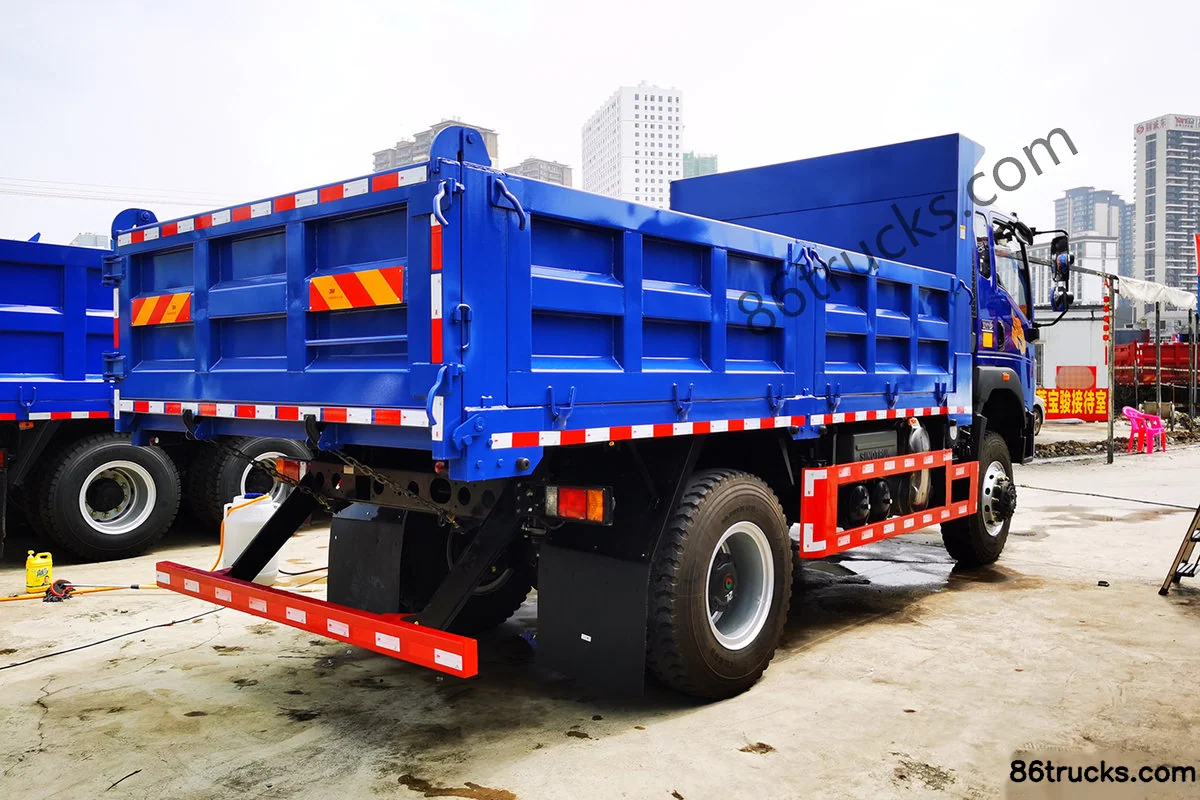

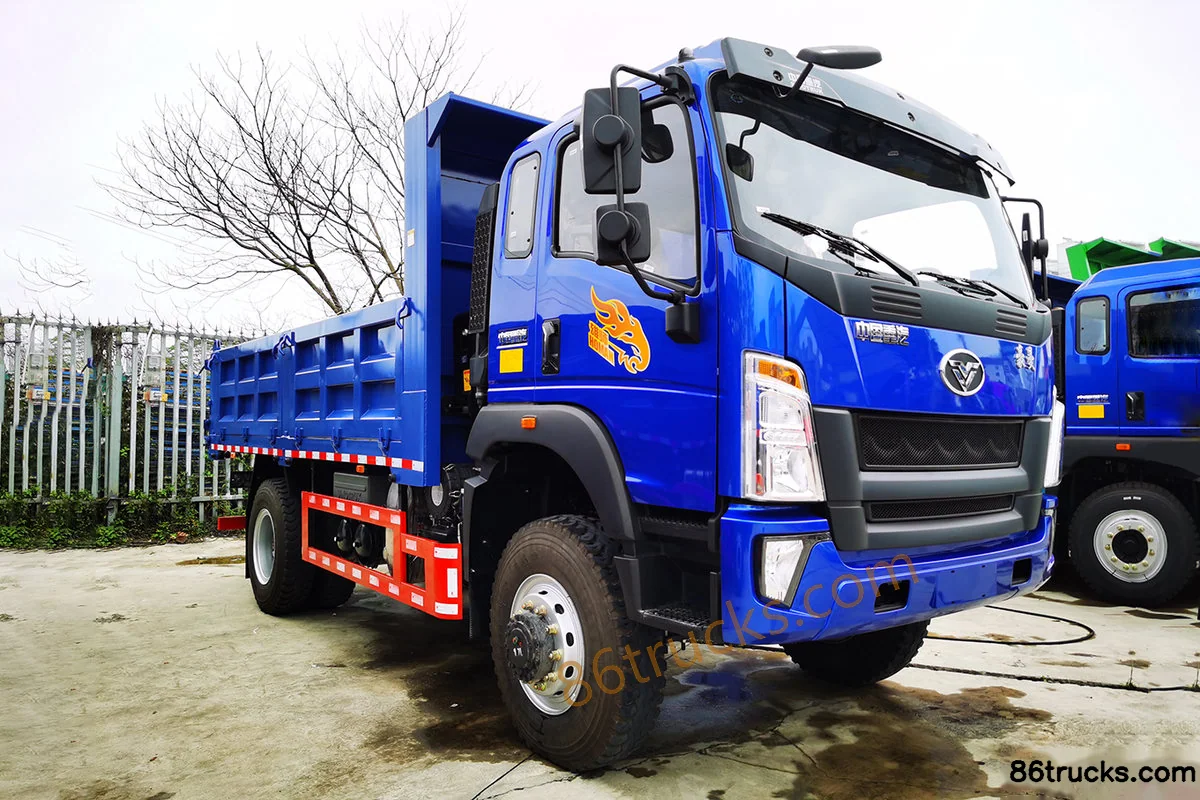

Exterior2

2 photos

FAQ

What is the export price of Sinotruk HOWO MAN H5 245 hp 4X4(6 wheels) 4.5m Off-Road Dump Truck, and what does it include?

Sinotruk HOWO MAN H5 245 hp 4X4(6 wheels) 4.5m Off-Road Dump Truck export reference is about From $49,722; MSRP is ¥35.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk HOWO MAN H5 245 hp 4X4(6 wheels) 4.5m Off-Road Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO MAN H5 245 hp 4X4(6 wheels) 4.5m Off-Road Dump Truck?

Key specs of Sinotruk HOWO MAN H5 245 hp 4X4(6 wheels) 4.5m Off-Road Dump Truck: Drive: 4x4; Horsepower: 245 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO MAN H5 245 hp 4X4(6 wheels) 4.5m Off-Road Dump Truck suited for?

Sinotruk HOWO MAN H5 245 hp 4X4(6 wheels) 4.5m Off-Road Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk HOWO MAN H5 245 hp 4X4(6 wheels) 4.5m Off-Road Dump Truck differ from other variants in the same series?

Sinotruk HOWO MAN H5 245 hp 4X4(6 wheels) 4.5m Off-Road Dump Truck belongs to Sinotruk H5 near-heavy truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO MAN H5 245 hp 4X4(6 wheels) 4.5m Off-Road Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO MAN H5 245 hp 4X4(6 wheels) 4.5m Off-Road Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
