Sinotruk MAN H5 350 hp 8X4(12 wheels) 5.6m dump truck

Export reference
From $44,750
MSRP ¥32.22M CNY
Emission: China VI
Fuel: Diesel
Transmission: Sinotruk
Curb Weight:: 14.1ton
Wheelbase:: 1800+2600+1350mm
Tire Size:: 11.00R20 18PR
Rated payload: 17.67ton
Drive 8X4 (12 wheels)
Horsepower 350
Cargo box type: Dump type

Overview

The Sinotruk MAN H5 350 hp 8X4(12 wheels) 5.6m dump truck is a Heavy truck featuring 17.67t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a WeichaiWP8.350E61 engine, 350 hp, China VI emissions and Sinotruk transmission.

China VI 350 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ3318M60FB2
Drive type: 8X4
Wheelbase: 1800+2600+1350mm
engine: WeichaiWP8.350E61
transmission: SinotrukHW15710
Rear Axle Ratio: 5.143
Cab length: 8.45m
Cab width: 2.545m
Cab height: 3.45m
Front track width: 1950/1950mm
rear track: 1860/1860mm
Curb Weight: 14.1ton
Rated payload: 17.67ton
GVWR: 31ton
Origin: Yong'an, Fujian
tonnage class: Heavy truck
Approach angle: 18°
departure angle: 20°
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP8.350E61
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.8L
Emission standard: China VI
Max output power: 257kW
Max hp: 350Horsepower
Max torque: 1400N·m
Max torque speed: 1200-1600rpm
Rated speed: 2100rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, high-pressure common rail, turbocharged intercooled, EGR
Transmission Parameters
Transmission Model: SinotrukHW15710
Transmission Brand: Sinotruk
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5.6m
Cargo box width: 2.3m
Cargo box height: 0.9m
Cab parameters
Cab: D13 Semi-high roof
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 300L
Chassis Specs
Front axle description: 153 dual front (5.5T)
Front axle allowable load: 6500/6500kg
Frame Dimensions: 280Qmm
rear axle description: 440B(13T)
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.143
Leaf spring count: 11/11/12,11/11/10,4/4/5,3/3/5
Suspension (front/rear): 2011/11/10
Tire
Tire Size: 11.00R20 18PR
Number of tires: 12pcs
Control configuration
ABS:

Photos

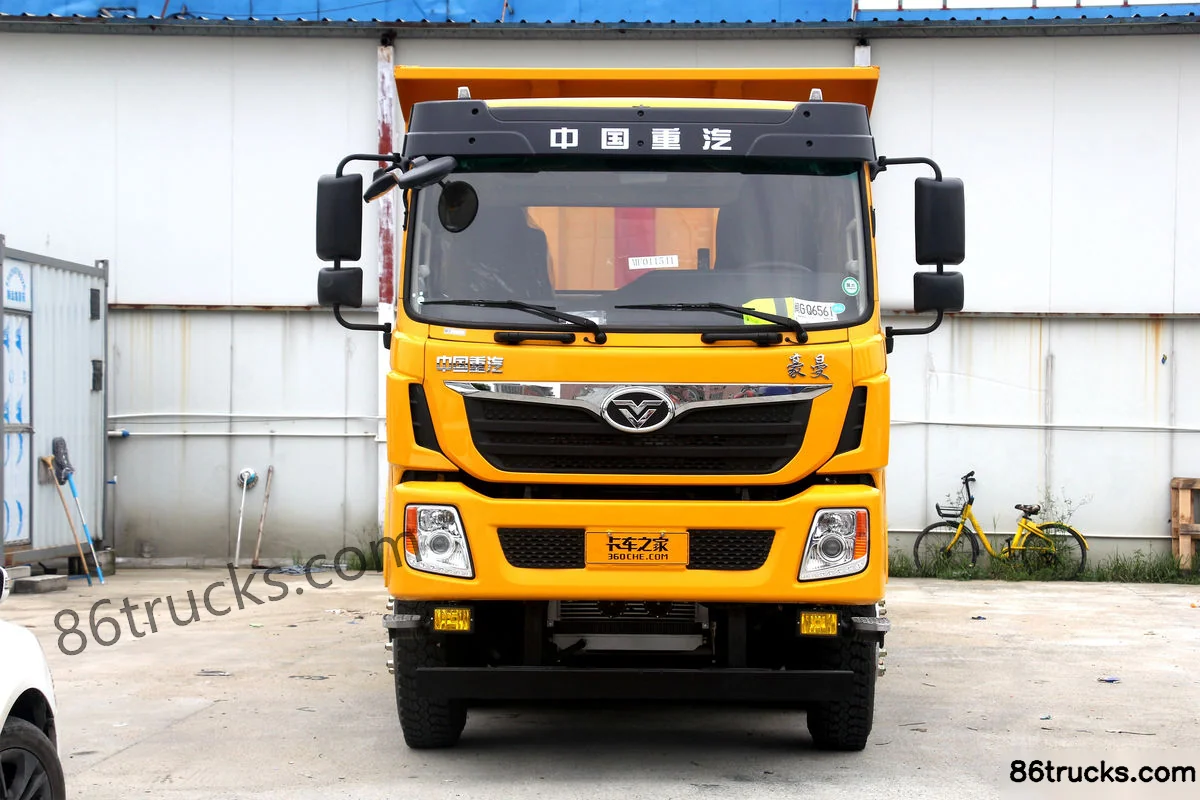

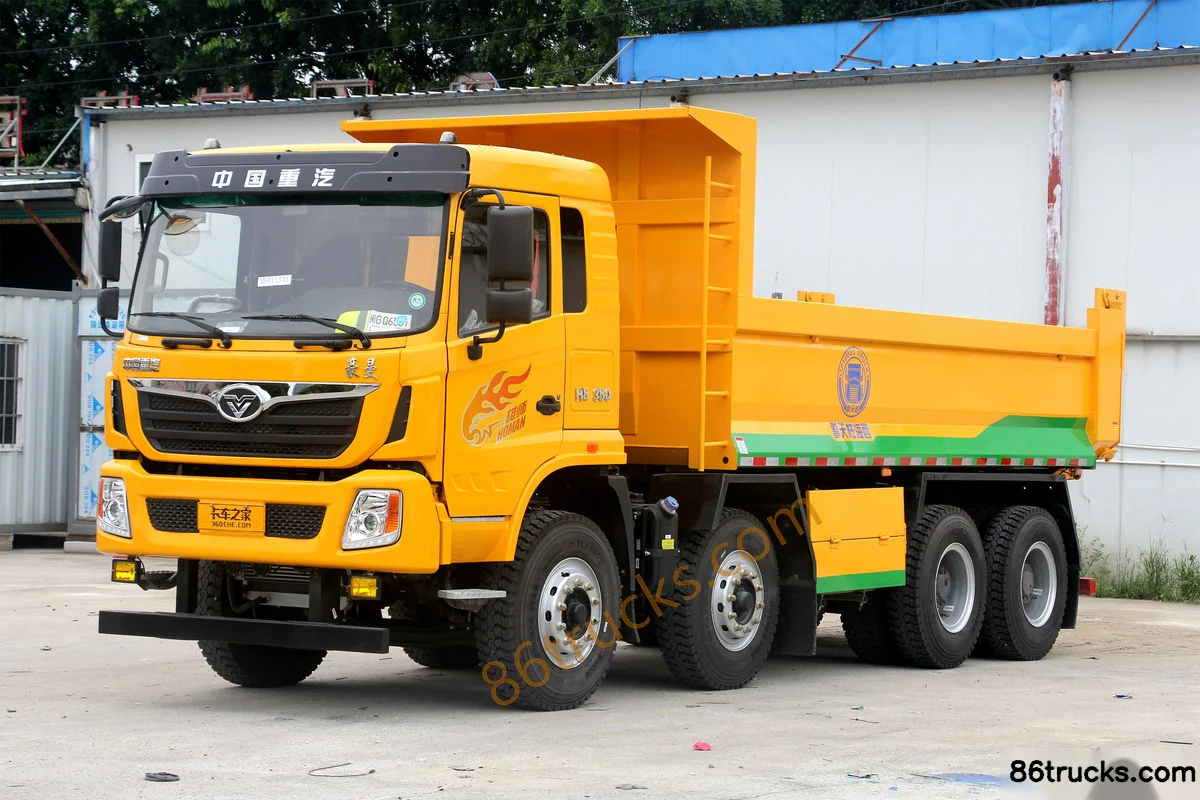

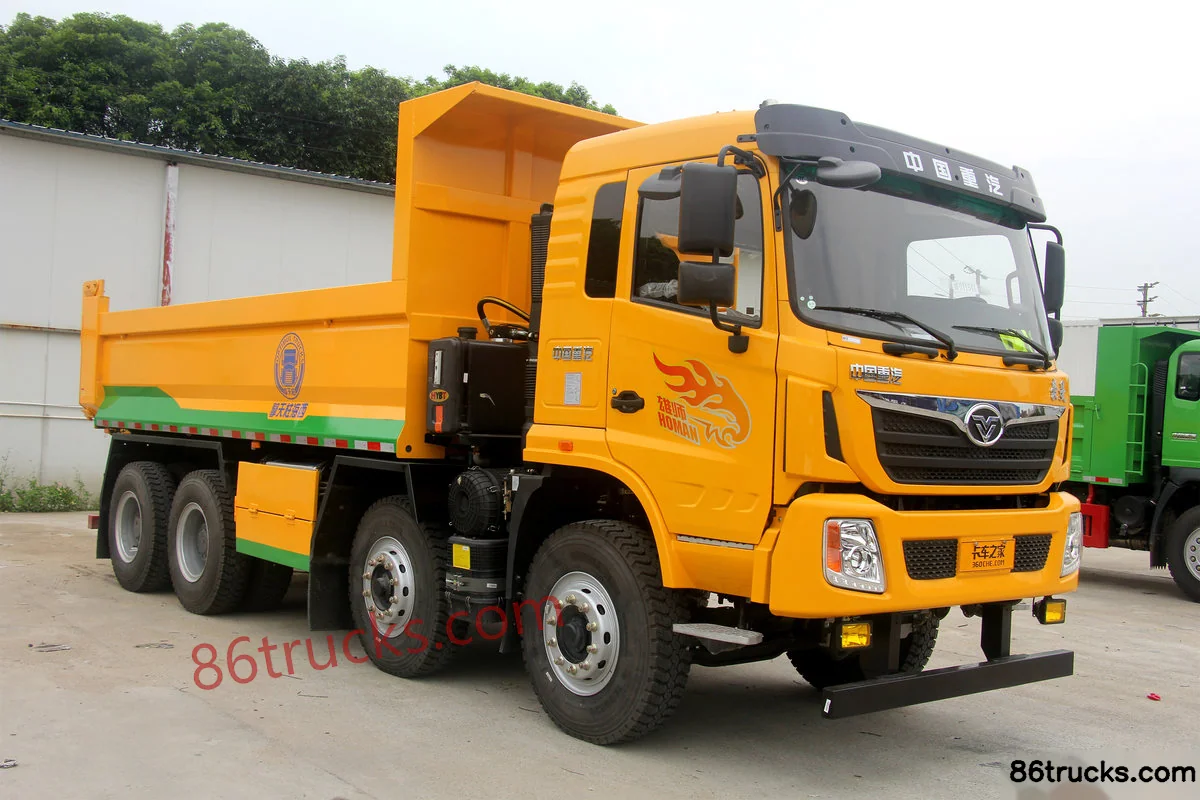

Exterior3

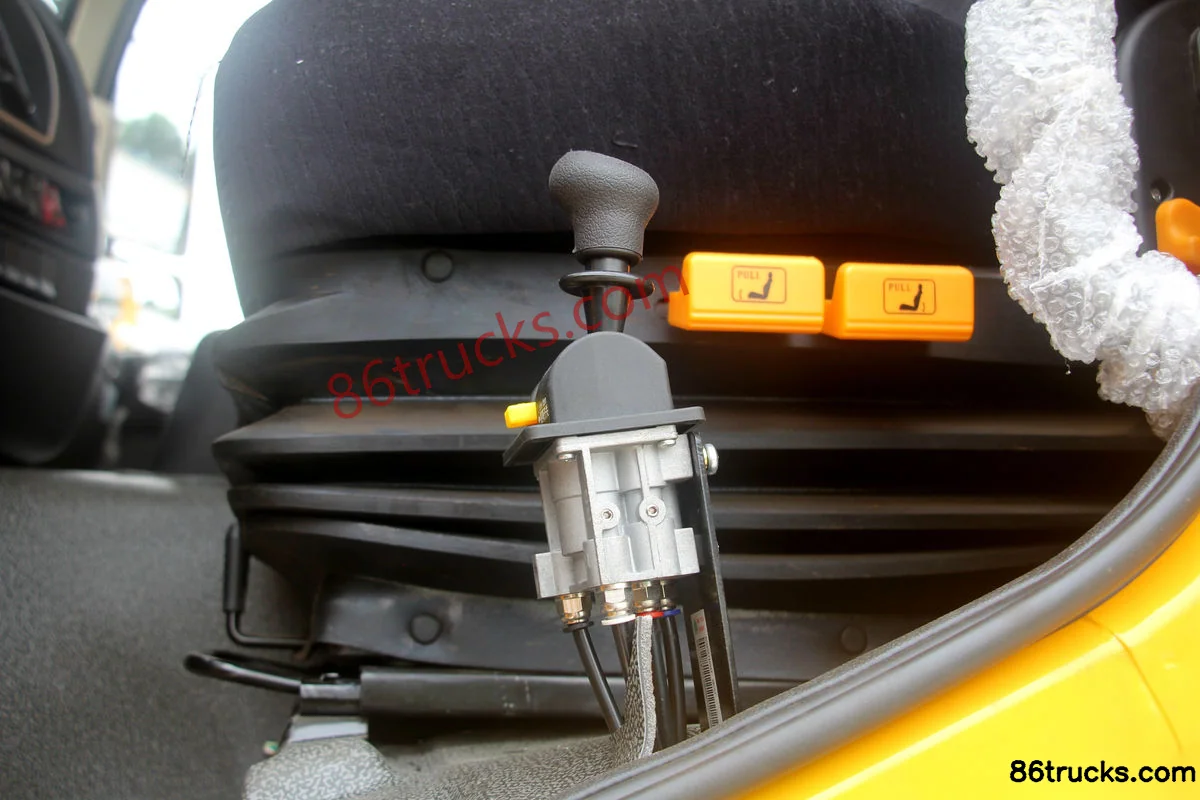

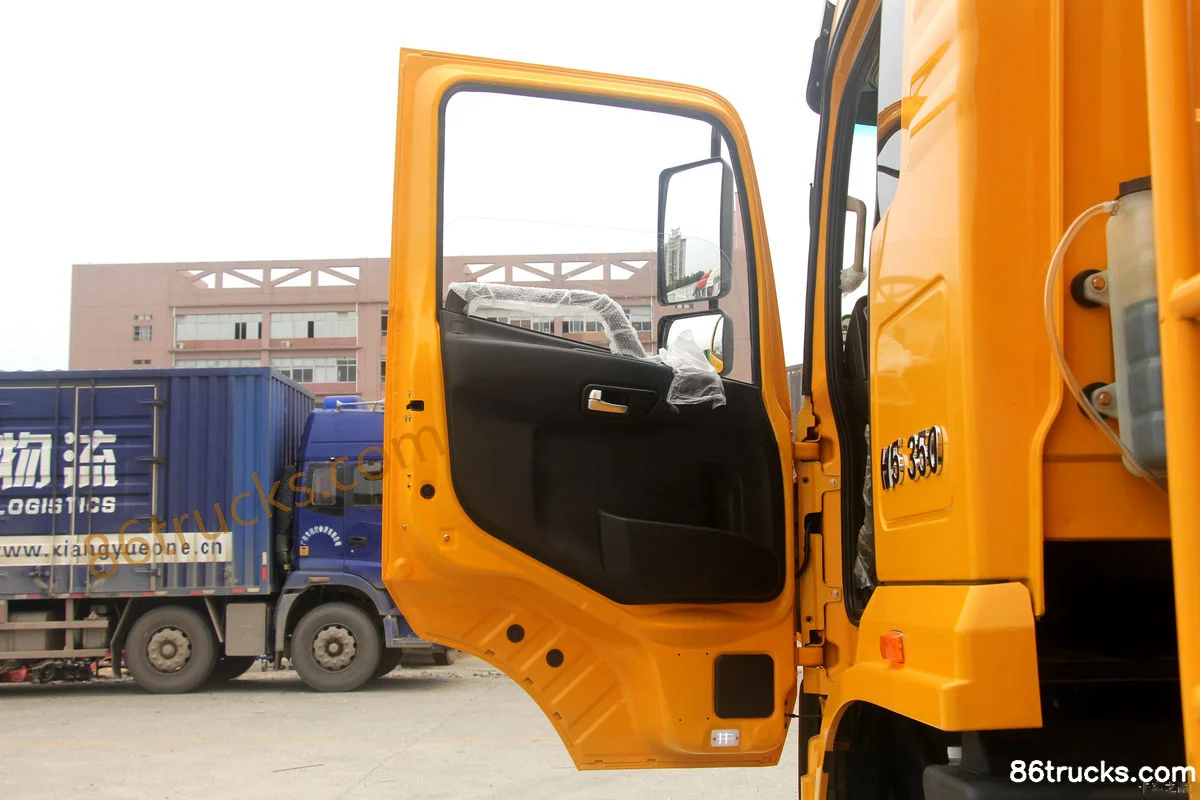

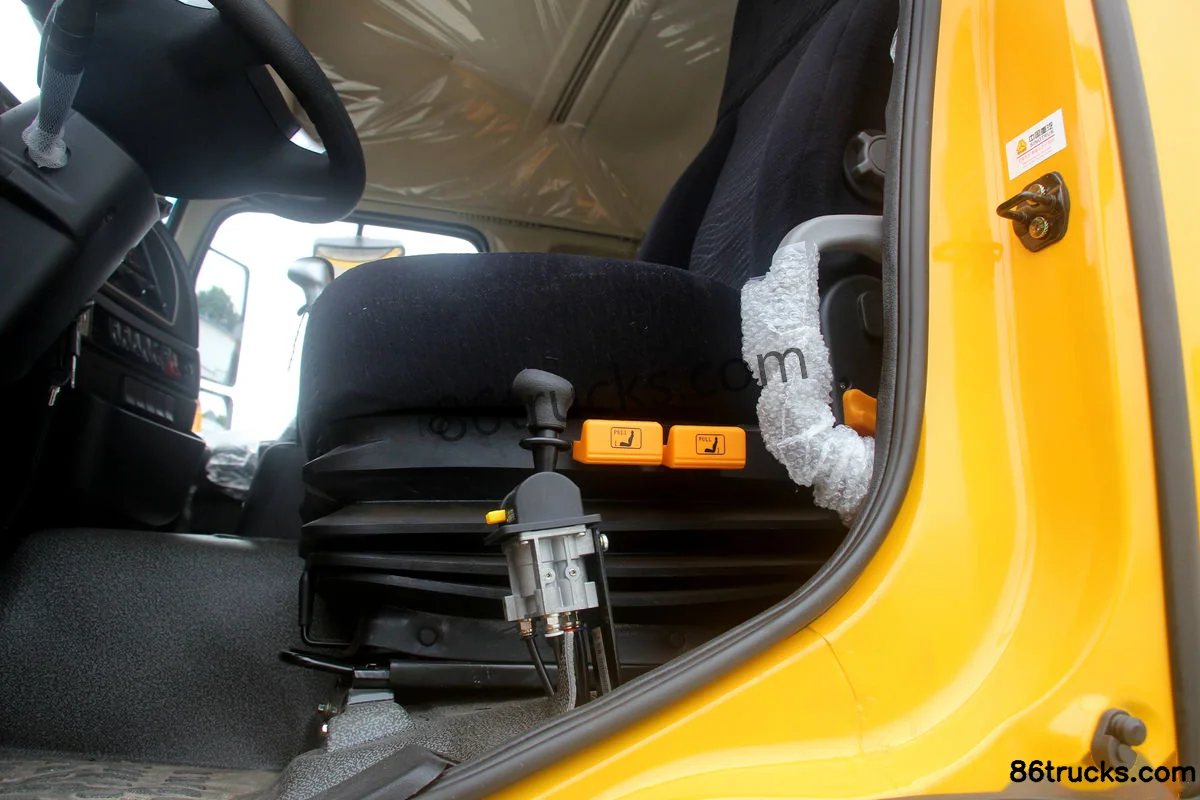

Cab3

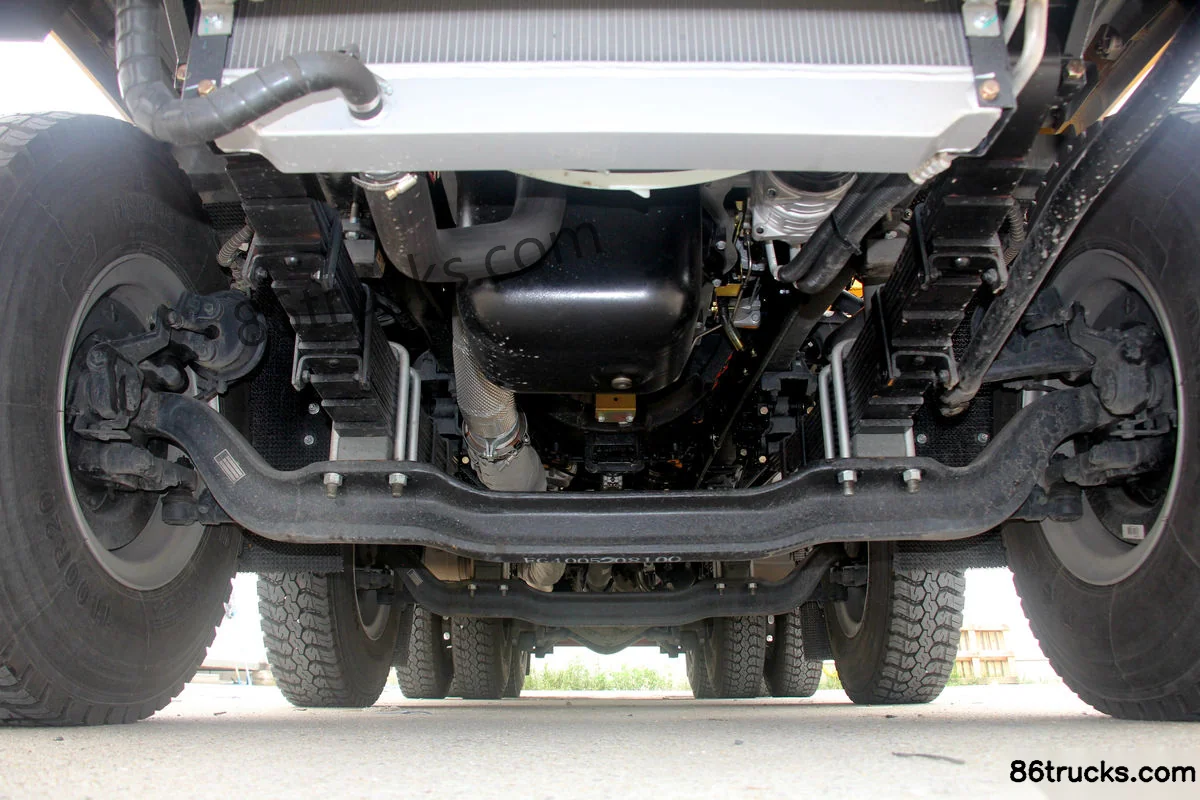

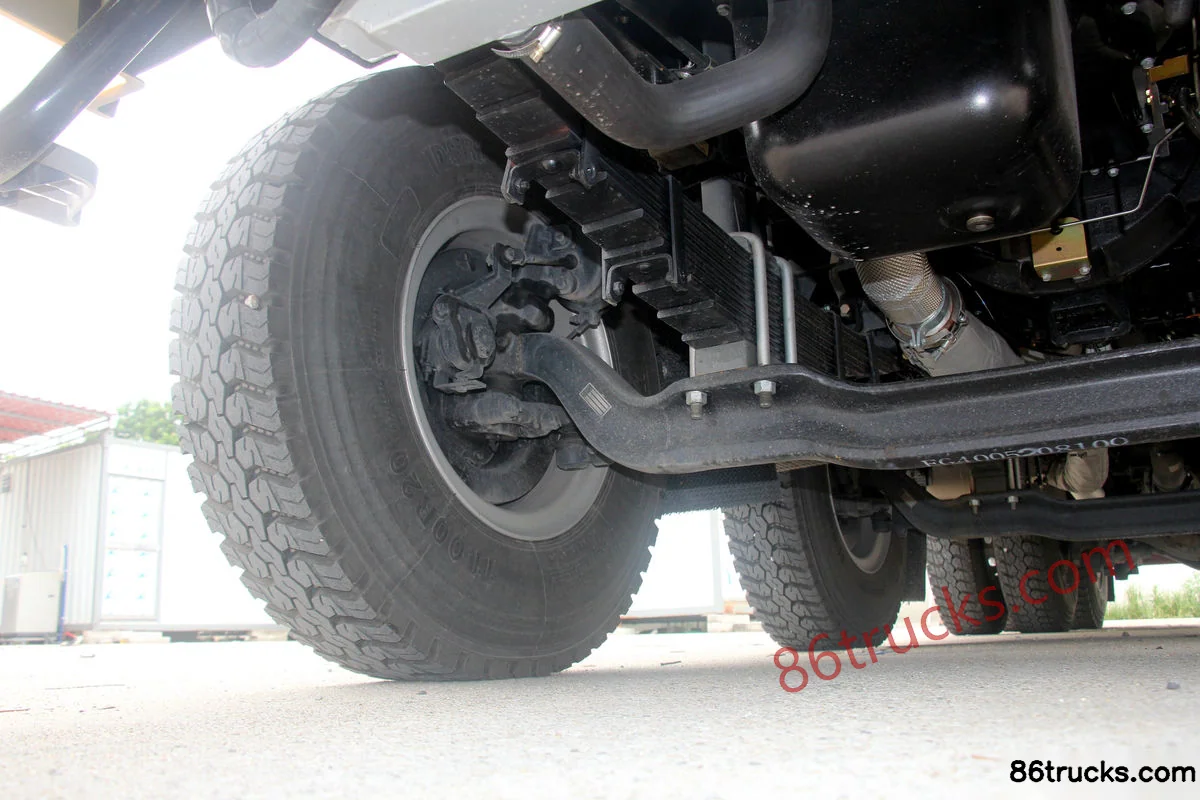

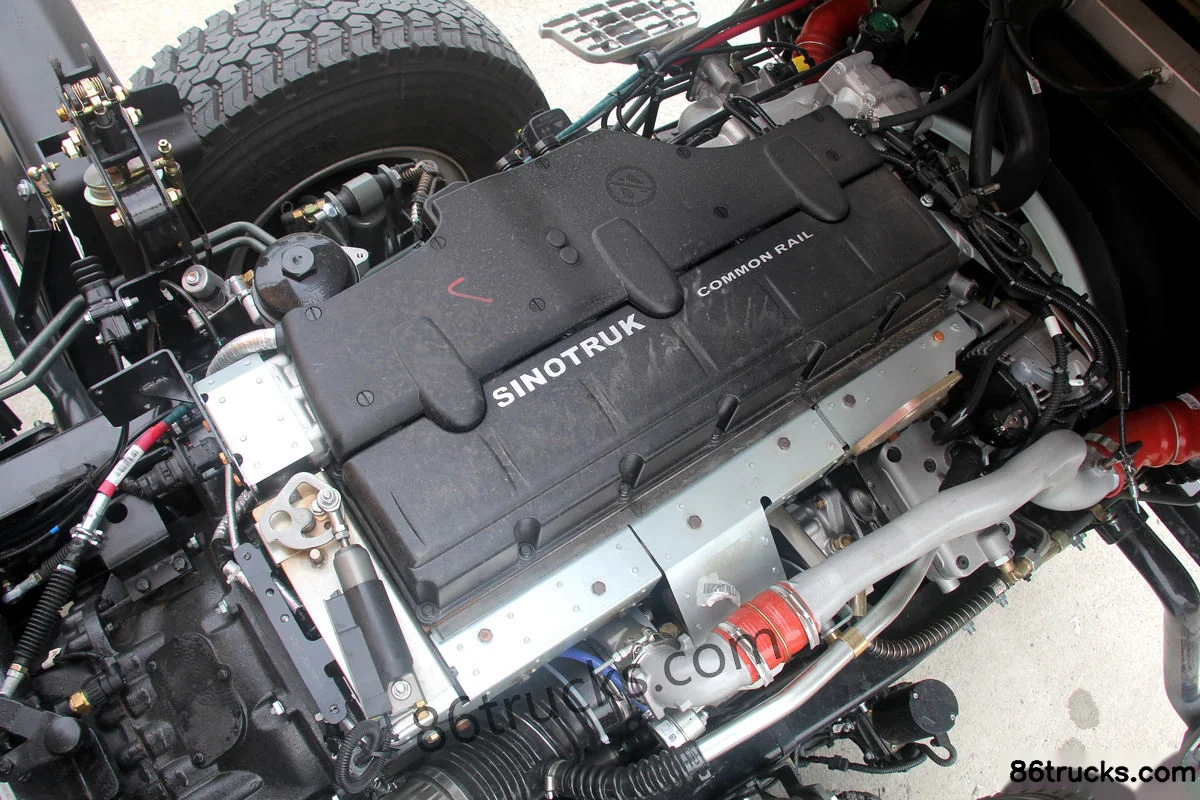

Chassis3

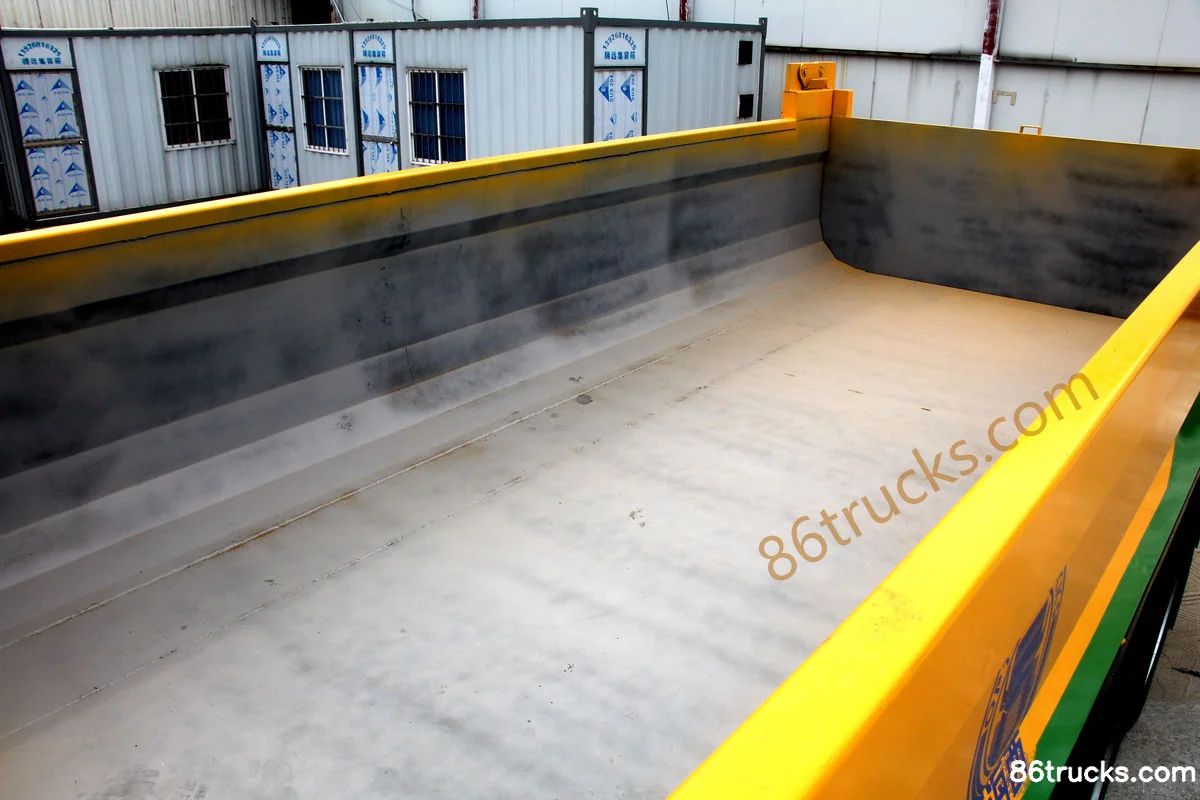

Body1

10 photos

FAQ

What is the export price of Sinotruk MAN H5 350 hp 8X4(12 wheels) 5.6m dump truck, and what does it include?

Sinotruk MAN H5 350 hp 8X4(12 wheels) 5.6m dump truck export reference is about From $44,750; MSRP is ¥32.22M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk MAN H5 350 hp 8X4(12 wheels) 5.6m dump truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk MAN H5 350 hp 8X4(12 wheels) 5.6m dump truck?

Key specs of Sinotruk MAN H5 350 hp 8X4(12 wheels) 5.6m dump truck: Drive: 8x4; Horsepower: 350 hp; Emission: China VI; Fuel: Diesel; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk MAN H5 350 hp 8X4(12 wheels) 5.6m dump truck suited for?

Sinotruk MAN H5 350 hp 8X4(12 wheels) 5.6m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk MAN H5 350 hp 8X4(12 wheels) 5.6m dump truck differ from other variants in the same series?

Sinotruk MAN H5 350 hp 8X4(12 wheels) 5.6m dump truck belongs to Sinotruk H5 near-heavy truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk MAN H5 350 hp 8X4(12 wheels) 5.6m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk MAN H5 350 hp 8X4(12 wheels) 5.6m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
