FAW Jiefang J4R Medium Truck 220 hp 4X2(6 wheels) 4.5m Dump Truck (Long Nose)
EXW
From $18,889
Export quote
FAW Jiefang J4R Medium-duty Truck Dump Trucks
Main model photos
16 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| FAW Jiefang J4R Medium Truck 220 hp 4X2(6 wheels) 4.5m Dump Truck (Long Nose) | 4x2 / 220hp / China III / Euro III | From $18,889 | |
| FAW Jiefang J4R Medium Truck 180 hp 4X2(6 wheels) 4.45m Dump Truck (Long Nose) | 4x2 / 180hp / China III / Euro III | From $14,583 |

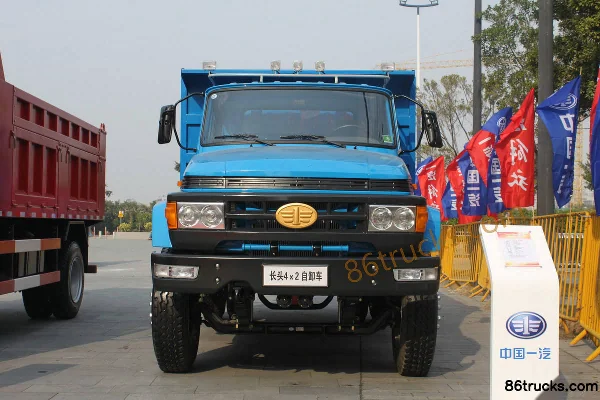

FAW Jiefang J4R Medium Truck 180 hp 4X2(6 wheels) 4.45m Dump Truck (Long Nose)
EXW
From $14,583
Export quote
Series Specs
Basic Info
Model code (announced): CA3165K2E / CA3157K2E
Drive type: 4X2
Wheelbase: 4600 / 4450mm
Engine Model: DachaiCA6DE3-22E3 / XichaiCA6DE3-18E3F
Transmission Model: FAW JiefangCA7T156 / FAW JiefangCA6T138
Rear Axle Ratio: 5.833 / 5.571
Cab length: 7.68 / 7.51m
Cab width: 2.46 / 2.465m
Cab height: 2.79 / 2.58m
Front track width: 1914 / 1800mm
rear track: 1847 / 1800mm
Curb Weight: 7.54 / 6.88ton
Rated payload: 7.805ton
GVWR: 15.54 / 14.88ton
Origin: Changchun, Jilin
tonnage class: Medium-duty truck
Approach angle: 29 / 30°
departure angle: 16 / 19°
Remarks: no A/C, power steering, spring brake, exhaust brake, front-view mirror / Power steering, spring brake, exhaust brake
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai / Xichai
Number of cylinders: 6cylinder
Displacement: 6.618L
Emission standard: China III / Euro III
Max output power: 162 / 136kW
Max hp: 220 / 180Horsepower
Max torque: 770 / 650N·m
Max torque speed: 1400rpm
Rated speed: 2300rpm
Engine Type: Turbocharged Air-to-Air Intercooling / Inline
Transmission Parameters
Transmission Brand: FAW Jiefang
shift method: Manual
Forward gears: 7 / 6Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.5 / 4.45m
Cargo box width: 2.3m
Cargo box height: 0.8m
fuel tank
Fuel tank capacity: 400L
FAQ
What kind of truck is FAW Jiefang FAW Jiefang J4R Medium-duty Truck Dump Trucks?
FAW Jiefang FAW Jiefang J4R Medium-duty Truck is an export-oriented Dump Trucks lineup with about 2 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for FAW Jiefang J4R Medium-duty Truck Dump Trucks?
FAW Jiefang J4R Medium-duty Truck Dump Trucks export reference is about $14,583 – $18,889. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does FAW Jiefang J4R Medium-duty Truck Dump Trucks cover?
FAW Jiefang J4R Medium-duty Truck Dump Trucks mainly covers: Drive: 4x2; Horsepower: 180 hp / 220 hp; Emission: China III / Euro III; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in FAW Jiefang J4R Medium-duty Truck Dump Trucks?
For FAW Jiefang J4R Medium-duty Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does FAW Jiefang J4R Medium-duty Truck Dump Trucks include?
FAW Jiefang J4R Medium-duty Truck Dump Trucks currently lists about 2 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for FAW Jiefang J4R Medium-duty Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
