Dongfeng Lituo 490 95 hp 4X2(6 wheels) 3.5m Dump Truck (Φ125 Construction Lift)
EXW
Export quote
Dongfeng490 light truck Dump Trucks
Main model photos
12 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng Lituo 490 95 hp 4X2(6 wheels) 3.5m Dump Truck (Φ125 Construction Lift) | 4x2 / 95hp / China IV | ||
| Dongfeng Lituo 490 95 hp 4X2(6 wheels) 3.5m Dump Truck (Φ90 Double Lift) | 4x2 / 95hp / China IV | ||
| Dongfeng Lituo 490 series 95 hp 4X2(6 wheels) dump truck | 4x2 / 95hp / China IV |

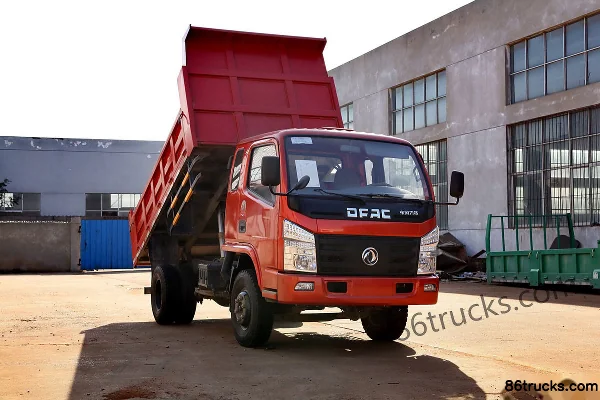

Dongfeng Lituo 490 95 hp 4X2(6 wheels) 3.5m Dump Truck (Φ90 Double Lift)
EXW
Export quote

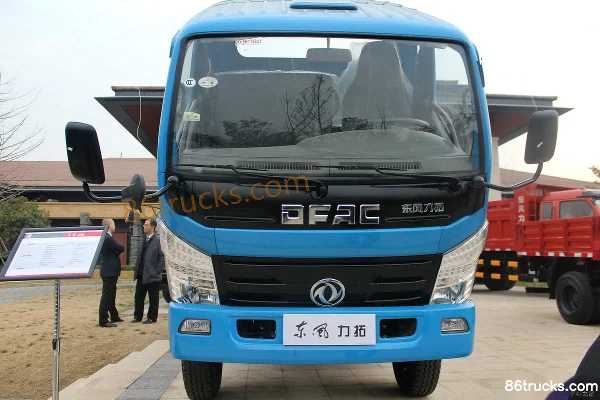

Dongfeng Lituo 490 series 95 hp 4X2(6 wheels) dump truck
EXW
Export quote
Series Specs
Basic Info
Model code (announced): EQ3041GDAC / Z72-052
Drive type: 4X2
Wheelbase: 3100mm
Engine Model: Yunnei PowerYN27CRD1
Transmission Model: WLYWLY530H / WLYWLY530
Rear Axle Ratio: 6.167
Cab length: 5.65 / 5.76m
Cab width: 2 / 2.08m
Cab height: 2.51 / 2.53m
Front track width: 1510 / 1522mm
rear track: 1540 / 1535mm
Curb Weight: 2.6 / 3.53ton
Rated payload: 1.7ton
GVWR: 4.495ton
Origin: Xiangyang, Hubei
tonnage class: Light Truck
Approach angle: 19°
departure angle: 16°
Remarks: Φ125 heavy-duty lift cylinder; optional customization; clutch booster; spring brake; braking: air brake; power steering; no A/C; 24V electrical system / Φ90 double lift cylinders; optional differential; clutch booster; spring brake; brake type: air brake; power steering; no A/C; power supply 24V
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Number of cylinders: 4cylinder
Displacement: 2.672L
Emission standard: China IV
Max output power: 70kW
Max hp: 95Horsepower
Max torque: 250N·m
Max torque speed: 1800-2600rpm
Rated speed: 3200rpm
Engine Type: Electronic high-pressure common rail diesel engine
Technology route: High-pressure common rail DOC POC
Transmission Parameters
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Rear-dump body / Dump type
Cargo box length: 3.5m
Cargo box width: 1.9m
Cargo box height: 0.6m
Chassis Specs
Frame Dimensions: 200×10×750mm
FAQ
What kind of truck is Dongfeng Dongfeng490 light truck Dump Trucks?
Dongfeng Dongfeng490 light truck is an export-oriented Dump Trucks lineup with about 3 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Dongfeng490 light truck Dump Trucks cover?
Dongfeng490 light truck Dump Trucks mainly covers: Drive: 4x2; Horsepower: 95 hp; Emission: China IV; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Dongfeng490 light truck Dump Trucks?
For Dongfeng490 light truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Dongfeng490 light truck Dump Trucks include?
Dongfeng490 light truck Dump Trucks currently lists about 3 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Dongfeng490 light truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
