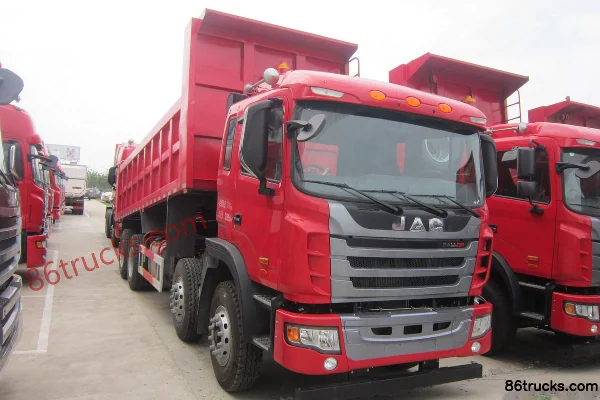

JAC Gallop K3W Heavy Truck Heavy-Duty 400 hp 8X4(12 wheels) 8m Dump Truck

Export reference
From $52,472
MSRP ¥37.78M CNY
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 15.45ton
Wheelbase:: 1800+4100+1350mm
Tire Size:: 11.00R20,12.00R20 18PR
Rated payload: 15.355ton
Drive 8X4 (12 wheels)
Horsepower 400
Cargo box type: Rear-dump body

Overview

The JAC Gallop K3W Heavy Truck Heavy-Duty 400 hp 8X4(12 wheels) 8m Dump Truck is a Heavy truck featuring 15.355t payload, 31t GVW, Rear-dump body cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a WeichaiWP12.400E50 engine, 400 hp, China V emissions and Fast Gear transmission.

China V 400 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC3311P1K7H41S3V
Drive type: 8X4
Wheelbase: 1800+4100+1350mm
engine: WeichaiWP12.400E50
transmission: Fast Gear16JSD200TA
Rear Axle Ratio: 4.76
Cab length: 10.895m
Cab width: 2.55m
Cab height: 3.9m
Front track width: 2040/2040mm
rear track: 1880/1880mm
Curb Weight: 15.45ton
Rated payload: 15.355ton
GVWR: 31ton
Origin: Hefei, Anhui
tonnage class: Heavy truck
Approach angle: 18°
departure angle: 31°
Remarks: QH70 PTO, integrated rearview mirror, power windows, air suspension seat, electric tilt, central door lock, AC, extended frame side guard, fuel filter
Version: Heavy-duty version
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP12.400E50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 11.596L
Emission standard: China V
Max output power: 294kW
Max hp: 400Horsepower
Max torque: 1920N·m
Max torque speed: 1000-1400rpm
Rated speed: 1900rpm
Engine Type: Inline 6-cylinder, electronically controlled high-pressure common rail + SCR
Transmission Parameters
Transmission Model: Fast Gear16JSD200TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 16Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 8m
Cargo box width: 2.35m
Cargo box height: 1.5m
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 400L
Cab parameters
Driver seat type: air suspension seat
Chassis Specs
Front axle description: 9T
Front axle allowable load: 6500/6500kg
Frame Dimensions: 322×80×(10+8)mm
rear axle description: Mercedes-Benz
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 4.76
Leaf spring count: 9/9/12
Tire
Tire Size: 11.00R20,12.00R20 18PR
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Electronic Central Lock:
Multimedia features
GPS/Beidou driving recorder:
Radio:

Photos

0 photos

FAQ

What is the export price of JAC Gallop K3W Heavy Truck Heavy-Duty 400 hp 8X4(12 wheels) 8m Dump Truck, and what does it include?

JAC Gallop K3W Heavy Truck Heavy-Duty 400 hp 8X4(12 wheels) 8m Dump Truck export reference is about From $52,472; MSRP is ¥37.78M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Gallop K3W Heavy Truck Heavy-Duty 400 hp 8X4(12 wheels) 8m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop K3W Heavy Truck Heavy-Duty 400 hp 8X4(12 wheels) 8m Dump Truck?

Key specs of JAC Gallop K3W Heavy Truck Heavy-Duty 400 hp 8X4(12 wheels) 8m Dump Truck: Drive: 8x4; Horsepower: 400 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop K3W Heavy Truck Heavy-Duty 400 hp 8X4(12 wheels) 8m Dump Truck suited for?

JAC Gallop K3W Heavy Truck Heavy-Duty 400 hp 8X4(12 wheels) 8m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does JAC Gallop K3W Heavy Truck Heavy-Duty 400 hp 8X4(12 wheels) 8m Dump Truck differ from other variants in the same series?

JAC Gallop K3W Heavy Truck Heavy-Duty 400 hp 8X4(12 wheels) 8m Dump Truck belongs to JAC Gallop K3 Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop K3W Heavy Truck Heavy-Duty 400 hp 8X4(12 wheels) 8m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop K3W Heavy Truck Heavy-Duty 400 hp 8X4(12 wheels) 8m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
