Dongfeng HV5 6.2L Diesel 245hp 4X2(6 wheels) Fast Gear 10-Speed 6.5m Dump Truck
EXW
From $35,833
Export quote
DongfengHV5 Dump Trucks
Main model photos
44 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng HV5 6.2L Diesel 245hp 4X2(6 wheels) Fast Gear 10-Speed 6.5m Dump Truck | 4x2 / 245hp | From $35,833 | |
| Dongfeng HV5 7.7L Diesel 350 hp 8X4(12 wheels) Fast Gear 12-speed 5.8m Dump Truck | 8x4 / 350hp / China VI | From $37,889 | |

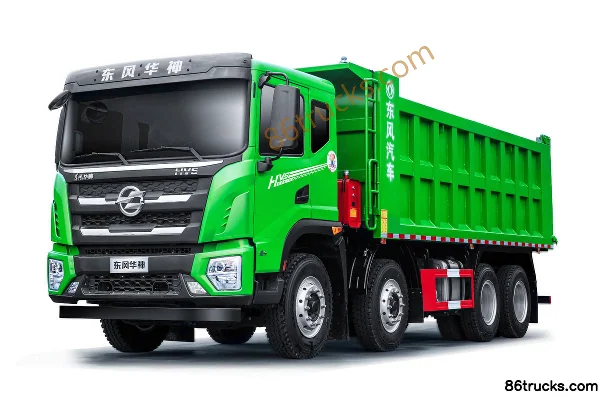

| Dongfeng HV5 7.7L Diesel 350 hp 8X4(12 wheels) Fast Gear 12-speed 5.6m Dump Truck | 8x4 / 350hp / China VI | From $37,889 | |
| Dongfeng HV5 7.8L Diesel 350 hp 8X4(12 wheels) Fast Gear 12-speed 6m Dump Truck | 8x4 / 350hp / China VI | From $42,444 | |
| Dongfeng HV5 7.8L Diesel 350 hp 8X4(12 wheels) Fast Gear 12-speed 6.2m Dump Truck | 8x4 / 350hp / China VI | From $42,444 |
Dongfeng HV5 7.7L Diesel 350 hp 8X4(12 wheels) Fast Gear 12-speed 5.8m Dump Truck
EXW
From $37,889
Export quote
Dongfeng HV5 7.7L Diesel 350 hp 8X4(12 wheels) Fast Gear 12-speed 5.6m Dump Truck
EXW
From $37,889
Export quote
Dongfeng HV5 7.8L Diesel 350 hp 8X4(12 wheels) Fast Gear 12-speed 6m Dump Truck
EXW
From $42,444
Export quote
Dongfeng HV5 7.8L Diesel 350 hp 8X4(12 wheels) Fast Gear 12-speed 6.2m Dump Truck
EXW
From $42,444
Export quote
Series Specs
Basic Info
Model code (announced): DFD3186GL6D61 / DFD3318GL6D51 / DFD3318GL6D41 / DFD3318GL6D21 / DFD3316GL6D22 / DFD3318GL6D61 / DFD3318GL6D11 / DFD3256GL6D21 / DFD3316GL6D21
Drive type: 4X2 / 8X4 / 8X2 / 6X2
Wheelbase: 5400 / 1850+2600+1350 / 1850+3600+1356 / 1850+3800+1350 / 1850+3600+1350 / 1850+3250+1350 / 1850+3000+1300 / 1850+3200+1300 / 1850+2800+1350 / 1850+2400+1350 / 1850+4850 / 1850+2600+1300 / 1850+2400+1300mm
Engine Model: YuchaiYCS06245-60A / YuchaiYCK08350-60 / WeichaiWP8.350E62 / YuchaiYCK11460-60 / YuchaiYCS06270-60 / WeichaiWP10H400E62 / YCS06245-60A / YCK08350-60 / YCK11460-60 / WP8.350E62
Transmission Model: Fast Gear 10-Speed / Fast Gear12JSD160TA / Fast Gear12JSDX240TA / Fast Gear10JSD140B / Fast Gear10JSD120TB / Fast Gear12JSD200T-B / Fast Gear10JS90A-B / 10-speed / 12JSD160TA / 12JSDX240TA / Fast Gear10JSD120B
Rear Axle Ratio: 5.286 / 5.92 / 5.833 / 5.73 / 4.875 / 5.57 / 5.262
Cab length: 9 / 9.04 / 9.65 / 10.69 / 9.4 / 9.55 / 8.95 / 8.75 / 9.7 / 10.49 / 8.8 / 8.6 / 8.4 / 8.84 / 8.64 / 8.44 / 10.1 / 9.9 / 8.65 / 8.45m
Cab width: 2.55 / 2.4 / 2360 / 2080m
Cab height: 3.05 / 3.25 / 3.2 / 3.15 / 3.1 / 2.98m
Front track width: 1940 / 2060/2060 / 2040/2040 / 1960/1960 / 1940/1940 / 1910/1910 / 1860/1860mm
rear track: 1860 / 1880/1880 / 1860/1860 / 1900/1750 / 1750/1750 / 1800 / 1900/1700mm
Curb Weight: 8.65 / 15.5 / 14.1 / 13.74 / 12.5 / 10.705 / 11 / 11.5 / 10.3 / 10.305ton
Rated payload: 9.22 / 15.305 / 16.705 / 17.065 / 18.37 / 20.165 / 19.805 / 18.305 / 19.37 / 14.505 / 20.565ton
GVWR: 18 / 31 / 25ton
Origin: Shiyan, Hubei
tonnage class: Heavy truck
Approach angle: 21 / 19 / 16 / 18 / 22 / 20°
departure angle: 11 / 16 / 15 / 26 / 14 / 20 / 17 / 13 / 18 / 21 / 28 / 34°
Remarks: Optional ratio 5.92 / Subi optional 5.92 / Ratio optional 5.143
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai / Weichai
Number of cylinders: 6cylinder
Displacement: 6.23 / 7.7 / 7.8 / 10.98 / 9.5L
Emission standard: China VI
Max output power: 180 / 257 / 339 / 199 / 294kW
Max hp: 245 / 350 / 460 / 270 / 400Horsepower
Max torque: 950 / 1450 / 1400 / 2200 / 1050 / 1900N·m
Max torque speed: 1200-1700 / 1300-1500 / 1200-1600 / 1000-1500 / 1200-1300rpm
Rated speed: 2300 / 2200 / 2100 / 1900rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC / Inline, direct injection, water-cooled, 4-stroke, turbocharged, intercooled, electronically controlled high-pressure common rail, Hi+SCR
Transmission Parameters
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10 / 12Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum housing
Cargo box parameters
Unloading Type: Rear dump / Dump type
Cargo box length: 6.5 / 5.8 / 5.6 / 6 / 6.2 / 7.4 / 7.2 / 7.6 / 7.8 / 7 / 6.8m
Cargo box width: 2.4 / 2.35 / 2.45 / 2.25m
Cargo box height: 0.8 / 1.2 / 1.5m
Body Parameters
Lifting type: Front single-cylinder lift
FAQ
What kind of truck is Dongfeng DongfengHV5 Dump Trucks?
Dongfeng DongfengHV5 is an export-oriented Dump Trucks lineup with about 84 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for DongfengHV5 Dump Trucks?
DongfengHV5 Dump Trucks export reference is about $27,778 – $47,319. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does DongfengHV5 Dump Trucks cover?
DongfengHV5 Dump Trucks mainly covers: Drive: 4x2 / 8x4; Horsepower: 245 hp / 350 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in DongfengHV5 Dump Trucks?
For DongfengHV5 Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does DongfengHV5 Dump Trucks include?
DongfengHV5 Dump Trucks currently lists about 84 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for DongfengHV5 Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
