Dongfeng HV5 6.2L Diesel 245hp 4X2(6 wheels) Fast Gear 10-Speed 6.5m Dump Truck

Export reference
From $35,833
MSRP ¥25.8M CNY
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 8.65ton
Wheelbase:: 5400mm
Tire Size:: 10.00R20 18PR
Model code (announced):: DFD3186GL6D61
Rated payload: 9.22ton
Drive 4X2 (6 wheels)
Horsepower 245
Cargo box type: Rear dump

Overview

The Dongfeng HV5 6.2L Diesel 245hp 4X2(6 wheels) Fast Gear 10-Speed 6.5m Dump Truck is a Heavy truck featuring 9.22t payload, 18t GVW, Rear dump cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYCS06245-60A engine, 245 hp, Fast Gear transmission and Diesel fuel.

245 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DFD3186GL6D61
Drive type: 4X2
Wheelbase: 5400mm
engine: YuchaiYCS06245-60A
transmission: Fast Gear 10-Speed
Rear Axle Ratio: 5.286
Cab length: 9m
Cab width: 2.55m
Cab height: 3.05m
Front track width: 1940mm
rear track: 1860mm
Curb Weight: 8.65ton
Rated payload: 9.22ton
GVWR: 18ton
Origin: Shiyan, Hubei
tonnage class: Heavy truck
Approach angle: 21°
departure angle: 11°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YCS06245-60A
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.23L
Max output power: 180kW
Max hp: 245Horsepower
Max torque: 950N·m
Max torque speed: 1200-1700rpm
Rated speed: 2300rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: 10-speed
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear dump
Cargo box type: Rear dump
Cargo box length: 6.5m
Cargo box width: 2.4m
Cargo box height: 0.8m
Cab parameters
Cab width: 2360mm
seating capacity: 2Personnel
Cab tilting: Electric
Chassis Specs
Front axle allowable load: 6500kg
rear axle description: 459 rear axle
rear axle allowable load: 11500kg
Axle ratio: 5.286
Leaf spring count: 9/10+8
Tire
Tire Size: 10.00R20 18PR
Number of tires: 6pcs
Control configuration
ABS:
Inter-axle Differential Lock:
interior configuration
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Reverse Radar:
Reverse Camera:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Service brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

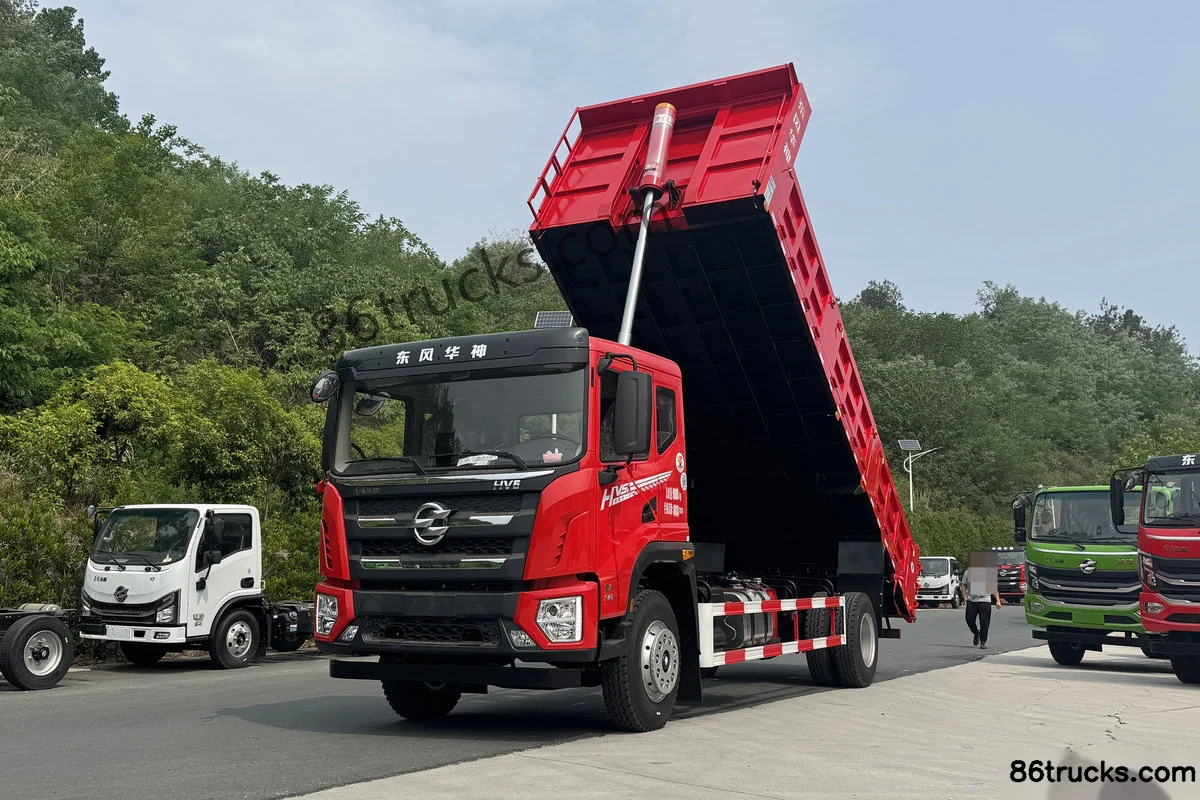

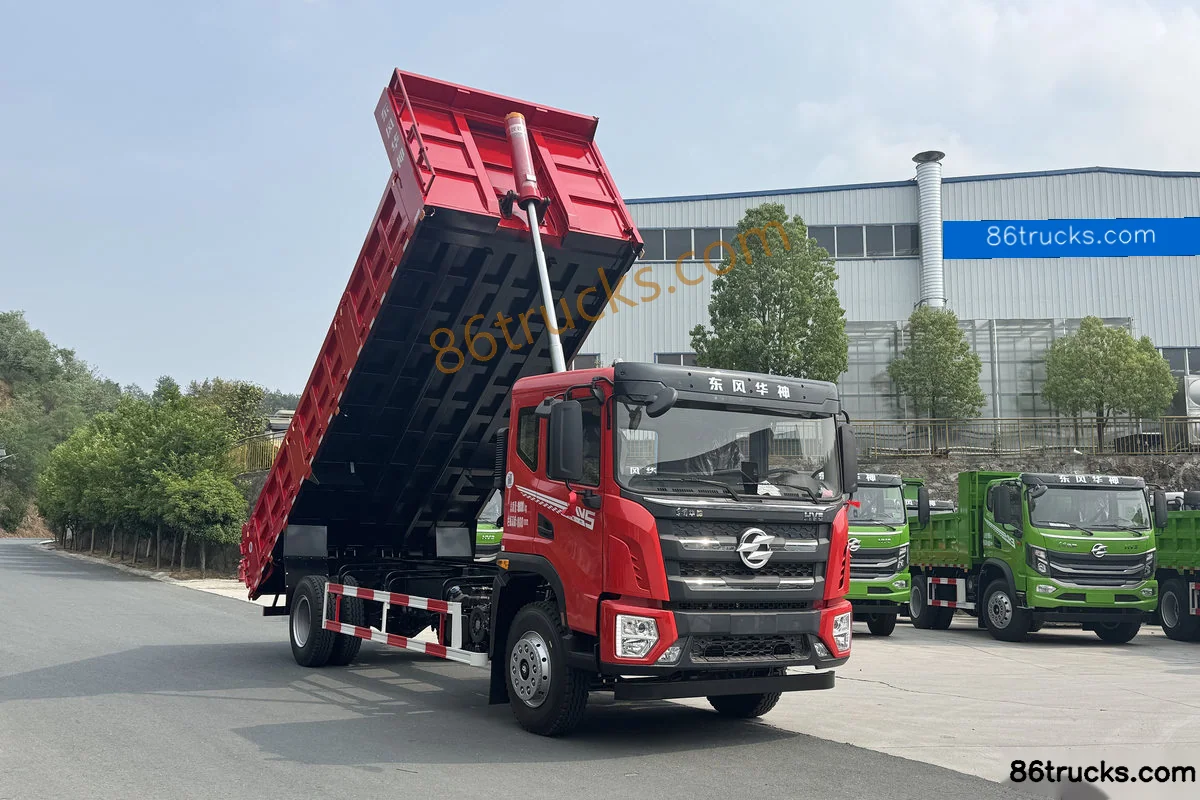

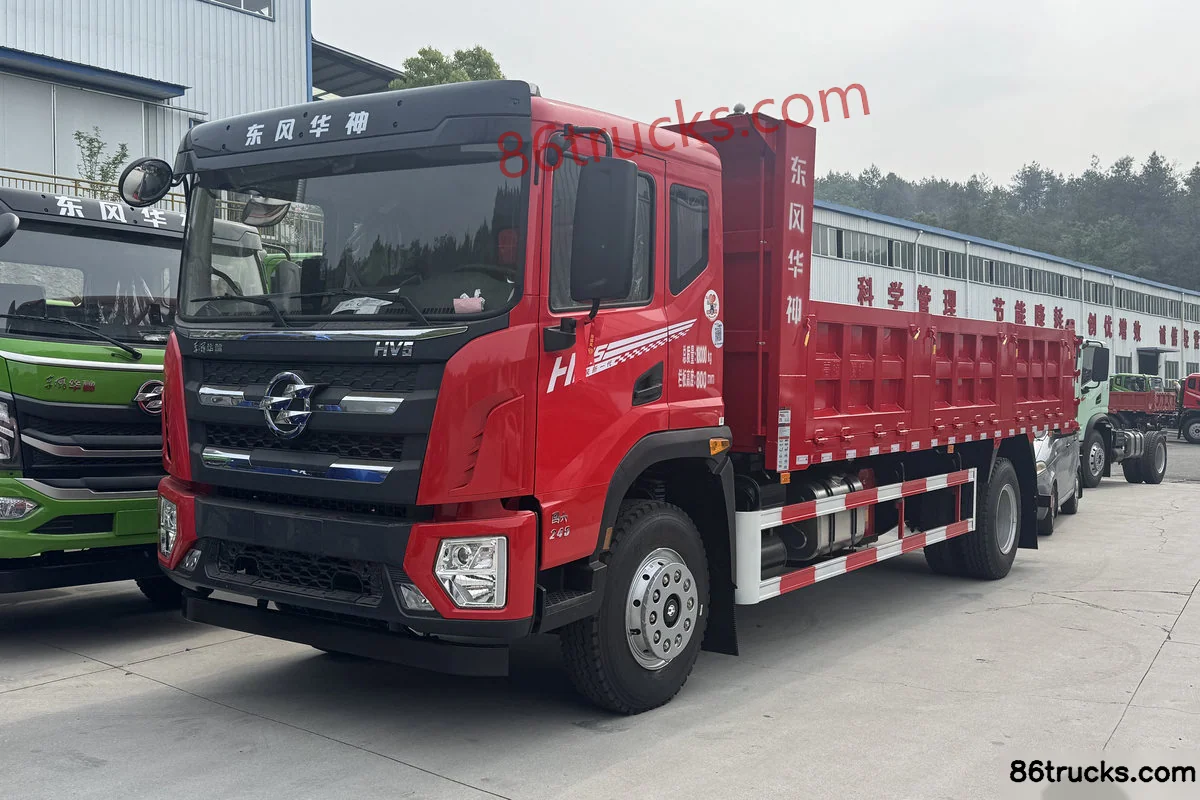

Photos
