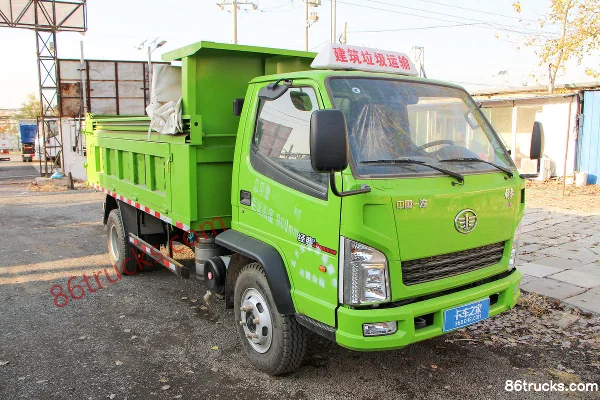

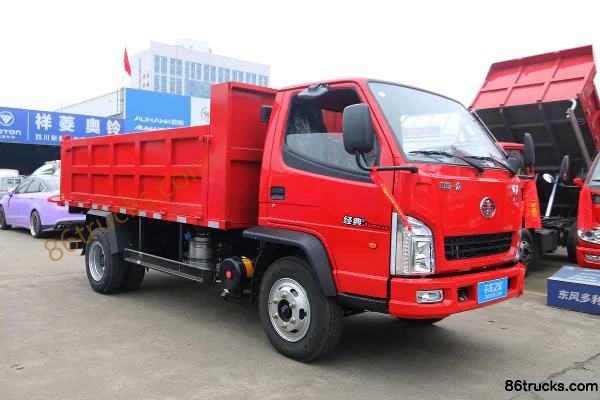

FAW Hongta FAW Jiefang Classic Series 3 130hp 4X2(6 wheels) 3.75m Dump Truck (China VI) (4.875 Ratio)
EXW
From $14,708
Export quote
FAW Hongta FAW Jiefang Classic 3 Series Light Truck
Main model photos
137 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| FAW Hongta FAW Jiefang Classic Series 3 130hp 4X2(6 wheels) 3.75m Dump Truck (China VI) (4.875 Ratio) | 4x2 / 130hp / China VI | From $14,708 | |
| FAW Hongta FAW Jiefang Classic 3 Series 130hp 4X2(6 wheels) 3.33m Dump Truck (China VI)(Axle Ratio 5.286) | 4x2 / 130hp / China VI | From $14,986 | |
| FAW Hongta FAW Jiefang Classic 3 Series 130 hp 4X2(6 wheels) 3.33m dump truck (China VI) | 4x2 / 130hp / China VI | From $15,028 | |
| FAW Hongta FAW Jiefang Classic 3 Series 130hp 4X2(6 wheels) 3.75m Dump Truck (China VI)(Changtai 8-speed) | 4x2 / 130hp / China VI | From $14,889 | |
| FAW Hongta FAW Jiefang Classic 3 Series 130 hp 4X2(6 wheels) 3.75m dump truck (China VI) | 4x2 / 130hp / China VI | From $14,708 |
FAW Hongta FAW Jiefang Classic 3 Series 130hp 4X2(6 wheels) 3.33m Dump Truck (China VI)(Axle Ratio 5.286)
EXW
From $14,986
Export quote
FAW Hongta FAW Jiefang Classic 3 Series 130 hp 4X2(6 wheels) 3.33m dump truck (China VI)
EXW
From $15,028
Export quote
FAW Hongta FAW Jiefang Classic 3 Series 130hp 4X2(6 wheels) 3.75m Dump Truck (China VI)(Changtai 8-speed)
EXW
From $14,889
Export quote
FAW Hongta FAW Jiefang Classic 3 Series 130 hp 4X2(6 wheels) 3.75m dump truck (China VI)
EXW
From $14,708
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| FAW Hongta FAW Jiefang Classic 3 Series 102 hp 4X2(6 wheels) 3.28m dump truck | 4x2 / 102hp / China V | From $16,111 | |
| FAW Hongta FAW Jiefang Classic 3 Series 130 hp 4X2(6 wheels) 3.73m Dump Truck (Ratio 4.33) (China VI) | 4x2 / 130hp / China VI | From $14,431 | |
| FAW Hongta FAW Jiefang Classic 3 Series 130 hp 4X2(6 wheels) 3.73m dump truck (China VI) | 4x2 / 130hp / China VI | From $14,431 | |
| FAW Hongta FAW Jiefang Classic 3 Series 116 hp 4X2(6 wheels) 3.35m Dump Truck (WLY 5-speed) | 4x2 / 116hp / China V | From $17,361 | |
| FAW Hongta FAW Jiefang Classic 3 Series 84 hp 4X2(6 wheels) 2.76m Dump Truck (China VI) | 4x2 / 84hp / China V | From $15,278 |
FAW Hongta FAW Jiefang Classic 3 Series 102 hp 4X2(6 wheels) 3.28m dump truck
EXW
From $16,111
Export quote
FAW Hongta FAW Jiefang Classic 3 Series 130 hp 4X2(6 wheels) 3.73m Dump Truck (Ratio 4.33) (China VI)
EXW
From $14,431
Export quote
FAW Hongta FAW Jiefang Classic 3 Series 130 hp 4X2(6 wheels) 3.73m dump truck (China VI)
EXW
From $14,431
Export quote
FAW Hongta FAW Jiefang Classic 3 Series 116 hp 4X2(6 wheels) 3.35m Dump Truck (WLY 5-speed)
EXW
From $17,361
Export quote
FAW Hongta FAW Jiefang Classic 3 Series 84 hp 4X2(6 wheels) 2.76m Dump Truck (China VI)
EXW
From $15,278
Export quote
Series Specs
Basic Info
Model code (announced): CA3110K7L2E6 / CA3040K2L3E5-5 / CA3040K7L2E6 / CA3040K7L2E6VL12 / CA3040K3L1E6 / CA3040K7L2E6-1 / CA3040K11L1RE5J-2 / CA3040K7L2E5-3 / CA3040K7L2E5-4 / CA3040K7L2E5-1 / CA3070K7L2E6 / CA3040K7L2RE5 / CA3040K7L2E5-2 / CA3040K7L2R5E5 / CA3040K7L2E5 / CA3040K7L1R5E4 / CA3040K7L1E4
Drive type: 4X2
Wheelbase: 3100 / 3200 / 2860 / 2800mm
Engine Model: XichaiCA4DB1-13E6 / Yunnei PowerYN33CRE2 / YuchaiYCDV2561-115 / Yunnei PowerYN27CRE10 / Xichai4DW93-84E5 / XichaiCA4DB1-13E5 / Yunnei PowerYN27CRE1 / Yunnei PowerYN33CRD3
Transmission Model: 8-speed gearbox / Changtai SC8S45TL / WLY5-speed / Changtai 8-speed / WLYWLY10H46 / 5-speed transmission / Changtai 8S45TL / Mengwo 5-speed / WLY10-speed / WLYWLY10H35 / WLY WLY10H35 rear auxiliary / WLY WLY10H46 rear auxiliary / WLYWLY5-30 rear auxiliary / WLYWLY535 / WLYWLY6-speed / WLYWLY5-35 rear auxiliary / WLYWLY530H
Rear Axle Ratio: 4.875 / 5.286 / 6.143 / 4.33
Cab length: 5.59 / 5.77 / 5.35 / 5.495 / 5.36 / 5.56 / 5.555 / 5.185m
Cab width: 2.095 / 1.89 / 2.09 / 1.915 / 1.99 / 1.88 / 1700m
Cab height: 2.1 / 2.2 / 2.31 / 2.08 / 2.18 / 2.33 / 2.21 / 2.17 / 2.12 / 2.3 / 2.25m
Front track width: 1560 / 1430 / 1453 / 1470mm
rear track: 1620 / 1630 / 1445 / 1490 / 1410 / 1600 / 1400 / 1425mm
Curb Weight: 3.87 / 2.72 / 2.5 / 4.205 / 2.28ton
Rated payload: 7.2 / 1.645 / 1.45 / 1.495 / 3.025 / 1.99ton
GVWR: 11.2 / 4.495 / 4.125 / 7.36 / 4.4ton
Origin: Qujing, Yunnan
tonnage class: Light Truck
Approach angle: 20 / 18 / 21 / 22 / 25°
departure angle: 19 / 17 / 21 / 20 / 23 / 26°
Remarks: Standard: air deflector, reverse radar, digital instrument cluster, automatic slack adjuster. / Air brake, double-stage double-lift
Version: Luxury Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai / Yunnei Power / Yuchai
Number of cylinders: 4cylinder
Displacement: 2.2 / 3.298 / 2.488 / 2.672 / 2.54 / 2.21L
Emission standard: China VI / China V / China IV
Max output power: 95 / 75 / 85 / 64 / 70 / 65kW
Max hp: 130 / 102 / 115 / 116 / 84 / 95 / 88Horsepower
Max torque: 350 / 265 / 320 / 305 / 220 / 250 / 230N·m
Max torque speed: 1600-2400 / 1400-2400 / 1600-2600 / 1900-2100rpm
Rated speed: 3200 / 3000rpm
Engine Type: Inline 4-cylinder, 4-stroke, water-cooled, turbocharged intercooled, BOSCH 1800BAR common rail system, EGR DOC DPF / 4-cylinder inline, 8-valve, turbocharged intercooled, high-pressure common rail fuel injection / 4-cylinder inline, direct injection, turbocharged & intercooled, electronic common rail / Inline 4-cylinder, 4-stroke, water-cooled, turbocharged intercooled, BOSCH 1800BAR common rail system, EGR+DOC+DPF / Electronic high-pressure common rail diesel engine / Electronically controlled high-pressure common rail
Transmission Parameters
Transmission Brand: Changtai / WLY / Mengwo / WLY rear auxiliary
shift method: Manual
Forward gears: 8 / 5 / 10 / 6Gear
Number of Reverse Gears: 2 / 1pcs
Cargo box parameters
Unloading Type: Dump type / Rear-dump body
Cargo box type: U-shaped box / Dump type / Rear-dump body
Cargo box length: 3.75 / 3.28 / 3.33 / 3.73 / 3.1 / 3.5 / 3.35 / 2.76 / 3.3 / 3.715 / 3.285 / 3 / 3.52 / 3.95 / 3.12 / 3.185 / 3.63 / 2.98 / 3.42m
Cargo box width: 1.9 / 1.77 / 1.8 / 2 / 1.77/1.9 / 1.845m
Cargo box height: 0.8 / 0.6 / 0.4 / 0.4/0.6m
FAQ
What kind of truck is FAW Hongta FAW Hongta FAW Jiefang Classic 3 Series Light Truck Dump Trucks?
FAW Hongta FAW Hongta FAW Jiefang Classic 3 Series Light Truck is an export-oriented Dump Trucks lineup with about 57 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for FAW Hongta FAW Jiefang Classic 3 Series Light Truck?
FAW Hongta FAW Jiefang Classic 3 Series Light Truck export reference is about $11,417 – $17,361. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does FAW Hongta FAW Jiefang Classic 3 Series Light Truck cover?
FAW Hongta FAW Jiefang Classic 3 Series Light Truck mainly covers: Drive: 4x2; Horsepower: 84 hp / 102 hp / 116 hp / 130 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in FAW Hongta FAW Jiefang Classic 3 Series Light Truck?
For FAW Hongta FAW Jiefang Classic 3 Series Light Truck: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does FAW Hongta FAW Jiefang Classic 3 Series Light Truck include?
FAW Hongta FAW Jiefang Classic 3 Series Light Truck currently lists about 57 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for FAW Hongta FAW Jiefang Classic 3 Series Light Truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
