Jingong New Expedition series heavy truck 290hp 6X4(10 wheels) 6.2m dump truck
EXW
Export quote
Jingong Auto Jinggong Yuanzheng Heavy Truck Dump
Main model photos
21 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Jingong New Expedition series heavy truck 290hp 6X4(10 wheels) 6.2m dump truck | 6x4 / 290hp / China III / Euro III | ||
| Jingong New Expedition series heavy truck 290hp 6X4(10 wheels) 5.4m dump truck | 6x4 / 290hp / China III / Euro III |

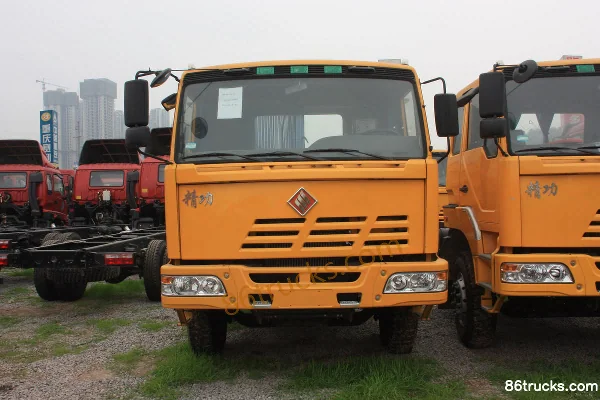

Jingong New Expedition series heavy truck 290hp 6X4(10 wheels) 5.4m dump truck
EXW
Export quote
Series Specs
Basic Info
Model code (announced): ZJZ3251DPT5AZ3 / ZJZ3252DPJ5AZ3
Drive type: 6X4
Wheelbase: 3850+1350 / 3225+1350mm
Engine Model: WeichaiWP10.290E32 / WeichaiWP10.290
Transmission Model: Fast Gear9JS135
Rear Axle Ratio: 5.73
Cab length: 9.02 / 8.35m
Cab width: 2.5m
Cab height: 3.3 / 3.51m
Front track width: 2082 / 2006mm
rear track: 1860/1860 / 1850/1850mm
Curb Weight: 11.965 / 12.17ton
Rated payload: 12.84 / 12.7ton
GVWR: 25ton
Origin: Zhenjiang
tonnage class: Heavy truck
Approach angle: 24 / 23°
departure angle: 27 / 16°
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Number of cylinders: 6cylinder
Displacement: 9.726L
Emission standard: China III / Euro III
Max output power: 213kW
Max hp: 290Horsepower
Max torque: 1160N·m
Max torque speed: 1200-1600rpm
Rated speed: 2200rpm
Engine Type: Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled
Transmission Parameters
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 6.2 / 5.4m
Cargo box width: 2.3m
Cargo box height: 1.1 / 1m
Chassis Specs
rear axle allowable load: 18000kg
Axle ratio: 5.73
FAQ
What kind of truck is Jingong Auto Jinggong Yuanzheng Heavy Truck Dump Trucks?
Jingong Auto Jinggong Yuanzheng Heavy Truck is an export-oriented Dump Trucks lineup with about 2 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Jingong Auto Jinggong Yuanzheng Heavy Truck Dump cover?
Jingong Auto Jinggong Yuanzheng Heavy Truck Dump mainly covers: Drive: 6x4; Horsepower: 290 hp; Emission: China III / Euro III; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Jingong Auto Jinggong Yuanzheng Heavy Truck Dump?
For Jingong Auto Jinggong Yuanzheng Heavy Truck Dump: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Jingong Auto Jinggong Yuanzheng Heavy Truck Dump include?
Jingong Auto Jinggong Yuanzheng Heavy Truck Dump currently lists about 2 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Jingong Auto Jinggong Yuanzheng Heavy Truck Dump?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
