FAW Hongta FAW Jiefang Classic 3 Series 130hp 4X2(6 wheels) 3.75m Dump Truck (China VI)(Changtai 8-speed)

Export reference
From $14,889
MSRP ¥10.72M CNY
Emission: China VI
Fuel: Diesel
Transmission: Changtai
Curb Weight:: 3.87ton
Wheelbase:: 3100mm
Tire Size:: 8.25R16LT 18PR
Rated payload: 7.2ton
Drive 4X2 (6 wheels)
Horsepower 130
Cargo box type: Dump type

Overview

The FAW Hongta FAW Jiefang Classic 3 Series 130hp 4X2(6 wheels) 3.75m Dump Truck (China VI)(Changtai 8-speed) is a Light Truck featuring 7.2t payload, 11.2t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a XichaiCA4DB1-13E6 engine, 130 hp, China VI emissions and Changtai transmission.

China VI 130 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA3110K7L2E6
Drive type: 4X2
Wheelbase: 3100mm
engine: XichaiCA4DB1-13E6
transmission: Changtai 8-speed
Rear Axle Ratio: 5.286
Cab length: 5.59m
Cab width: 2.095m
Cab height: 2.1m
Front track width: 1560mm
rear track: 1620mm
Curb Weight: 3.87ton
Rated payload: 7.2ton
GVWR: 11.2ton
Origin: Qujing, Yunnan
tonnage class: Light Truck
Approach angle: 20°
departure angle: 19°
Remarks: Standard: air deflector, reverse radar, digital instrument cluster, automatic slack adjuster.
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA4DB1-13E6
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.2L
Emission standard: China VI
Max output power: 95kW
Max hp: 130Horsepower
Max torque: 350N·m
Max torque speed: 1600-2400rpm
Rated speed: 3200rpm
Engine Type: Inline 4-cylinder, 4-stroke, water-cooled, turbocharged intercooled, BOSCH 1800BAR common rail system, EGR DOC DPF
Transmission Parameters
Transmission Model: Changtai 8-speed
Transmission Brand: Changtai
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.75m
Cargo box width: 1.9m
Cargo box height: 0.6m
Cab parameters
Cab: Single Row
Cab width: 1700mm
seating capacity: 2Personnel
fuel tank
Fuel tank capacity: 70L
Chassis Specs
Front axle allowable load: 4000kg
rear axle description: 5T
rear axle allowable load: 7200kg
Axle ratio: 5.286
Leaf spring count: 9/10+5
Tire
Tire Size: 8.25R16LT 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Remote key:
Electronic Central Lock:
Exterior features
Aluminum air tank:
Multimedia features
Center Console Color Screen:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

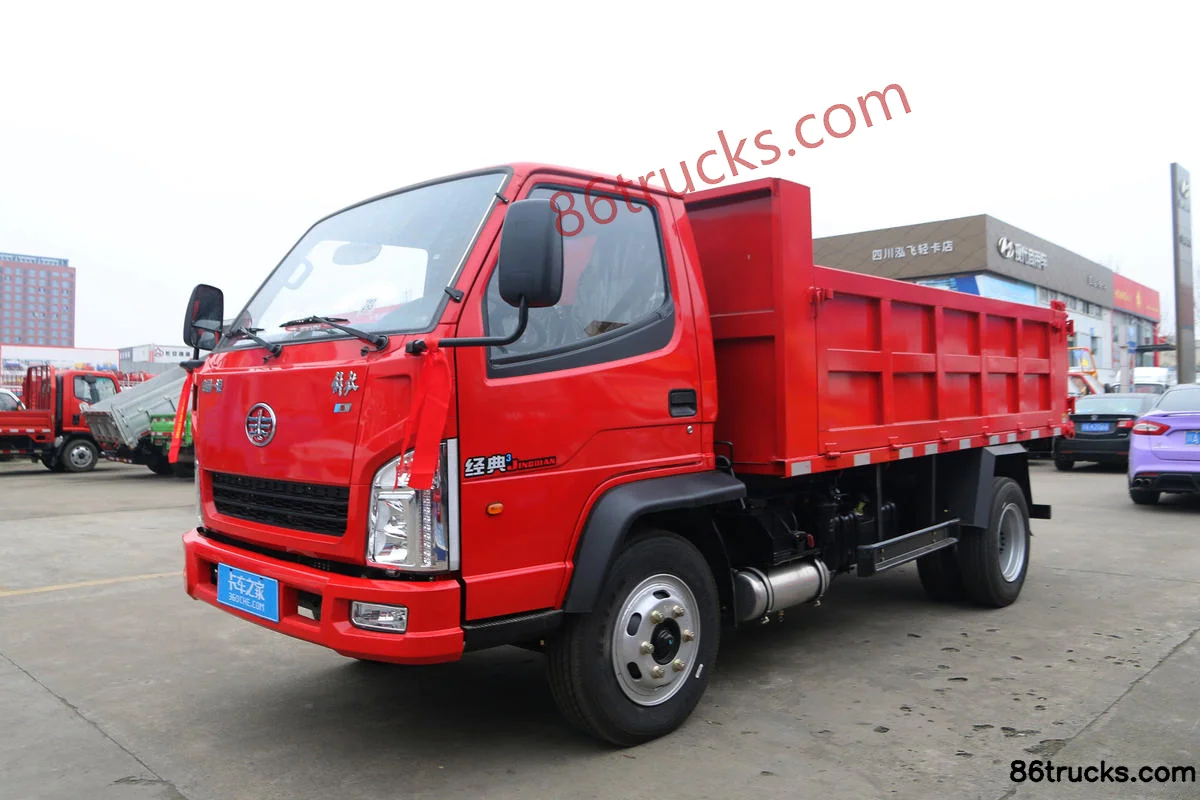

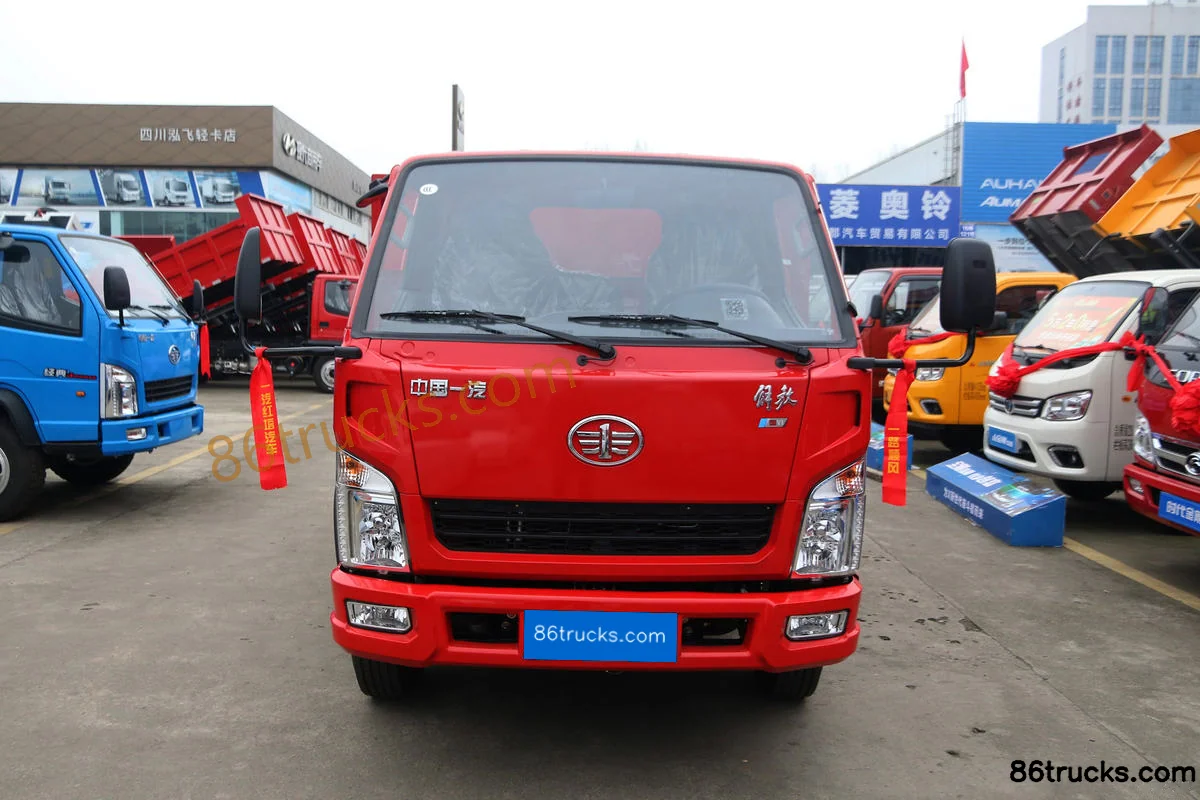

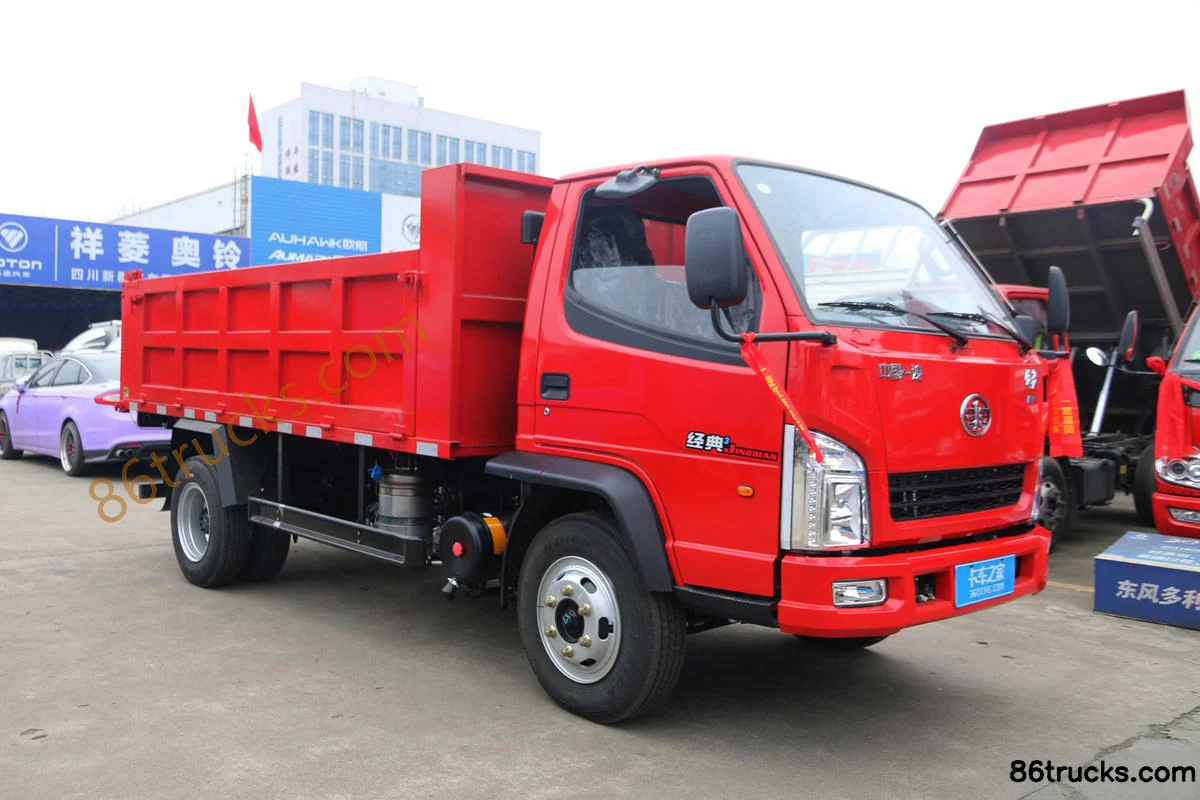

Exterior3

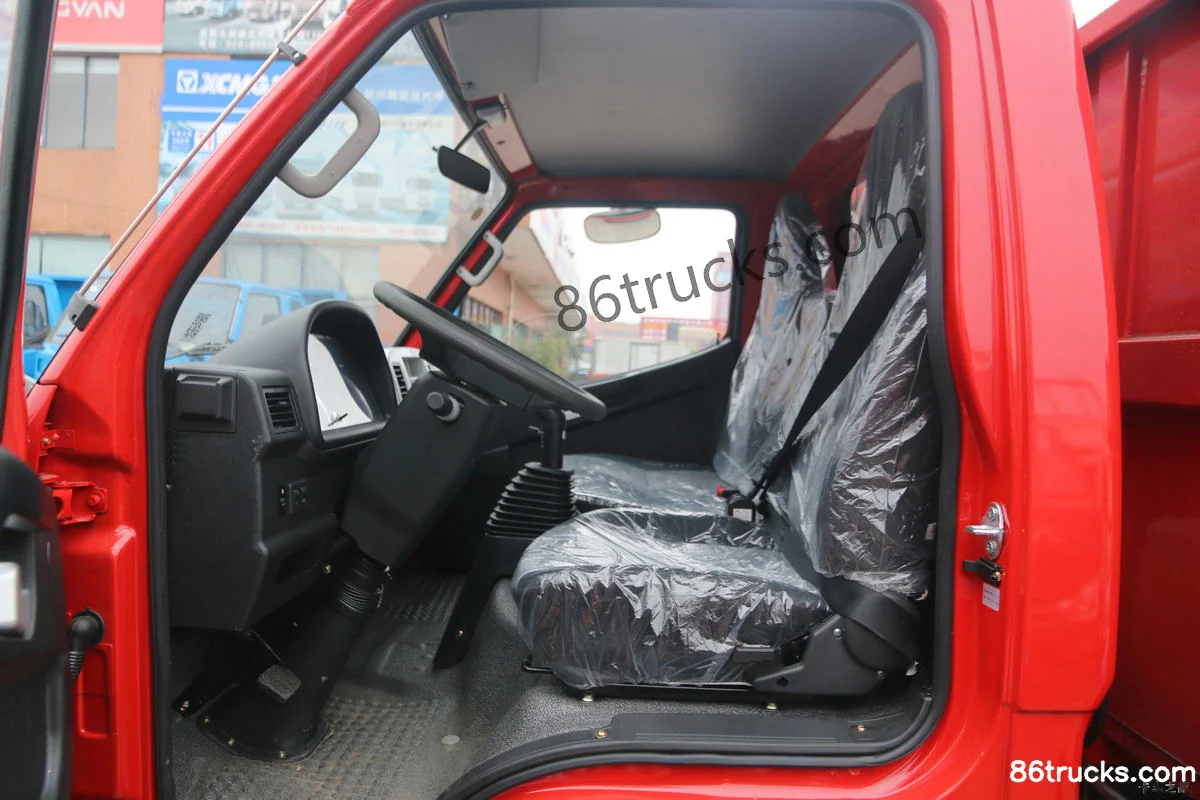

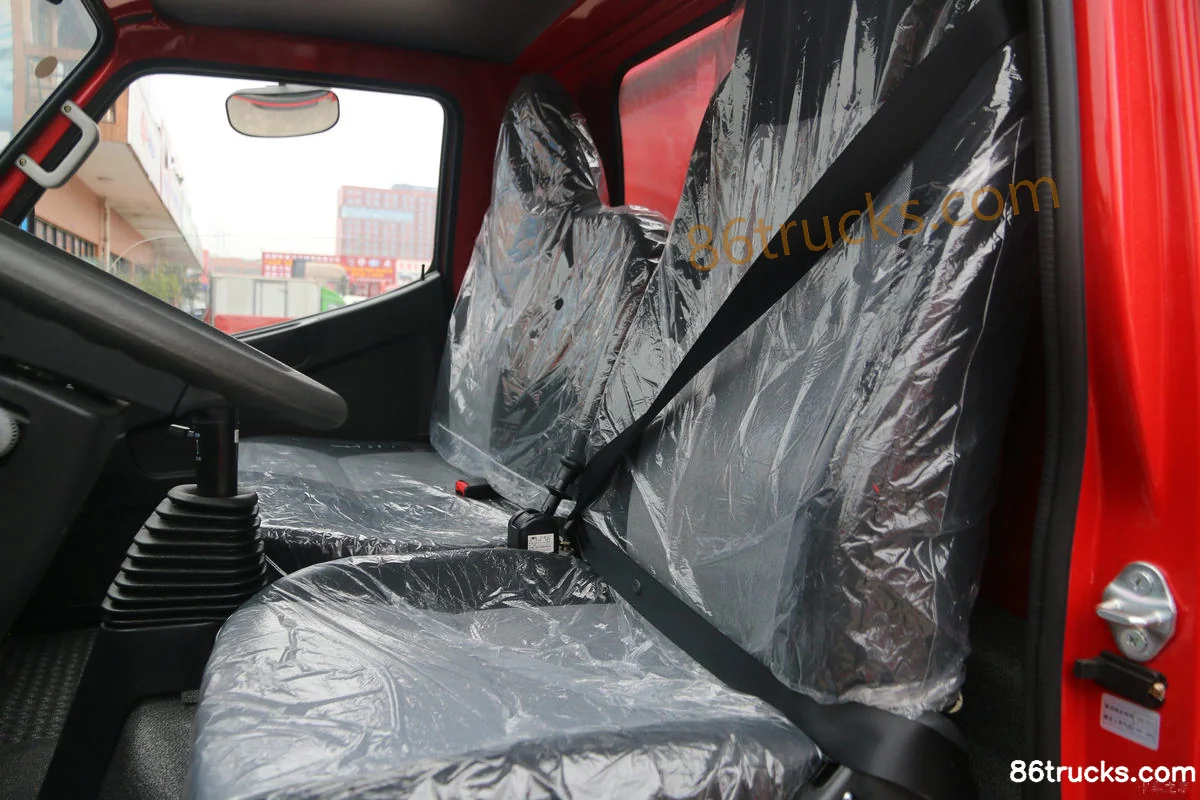

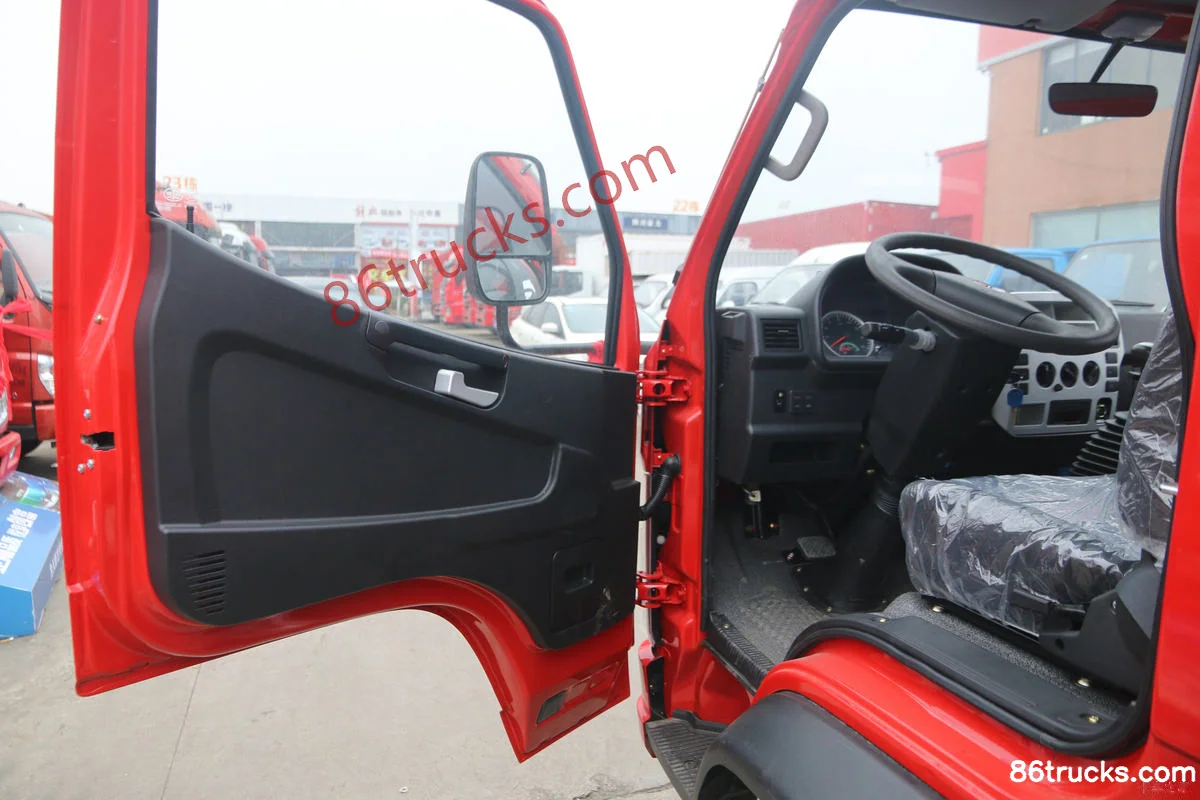

Cab3

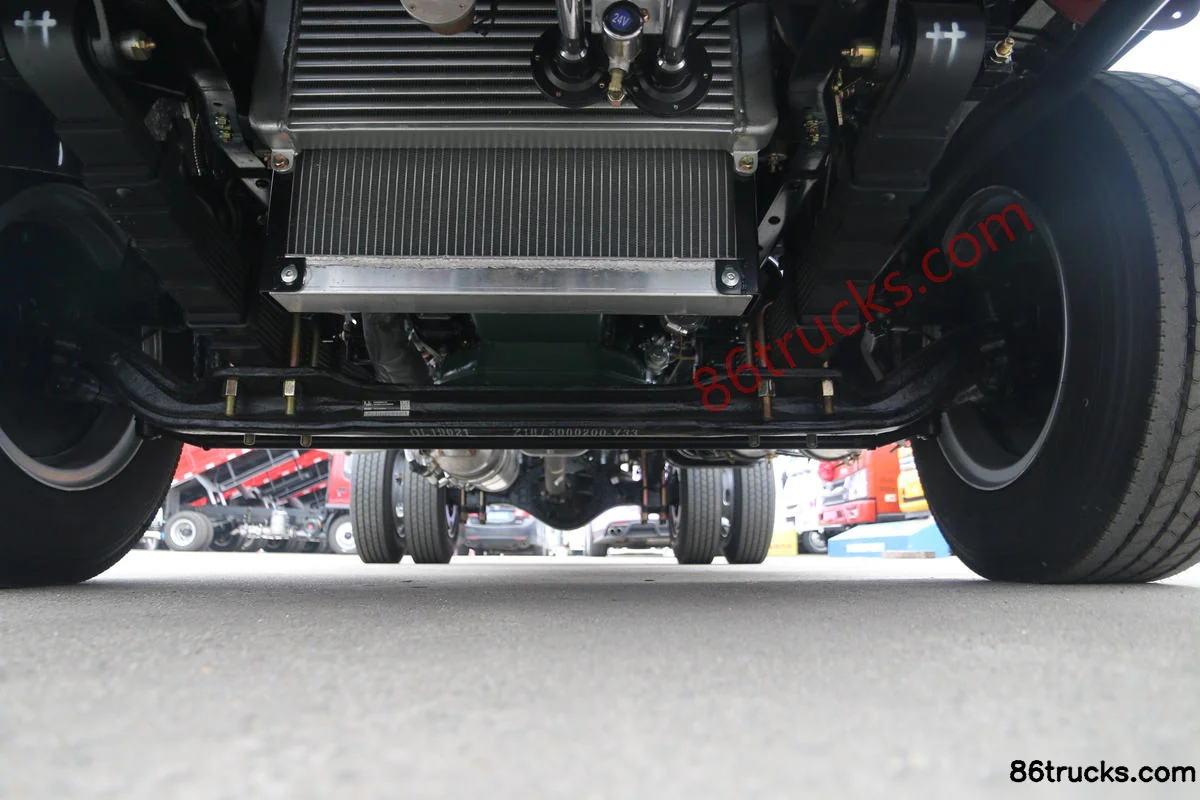

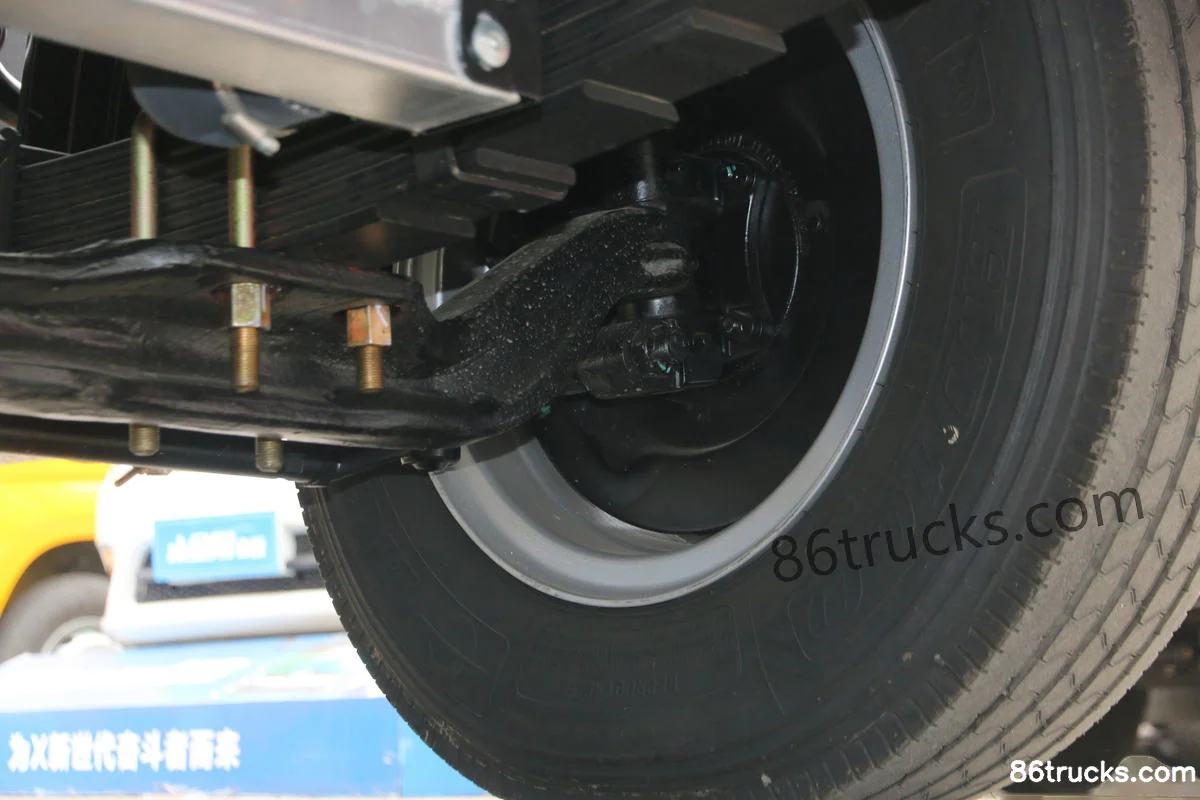

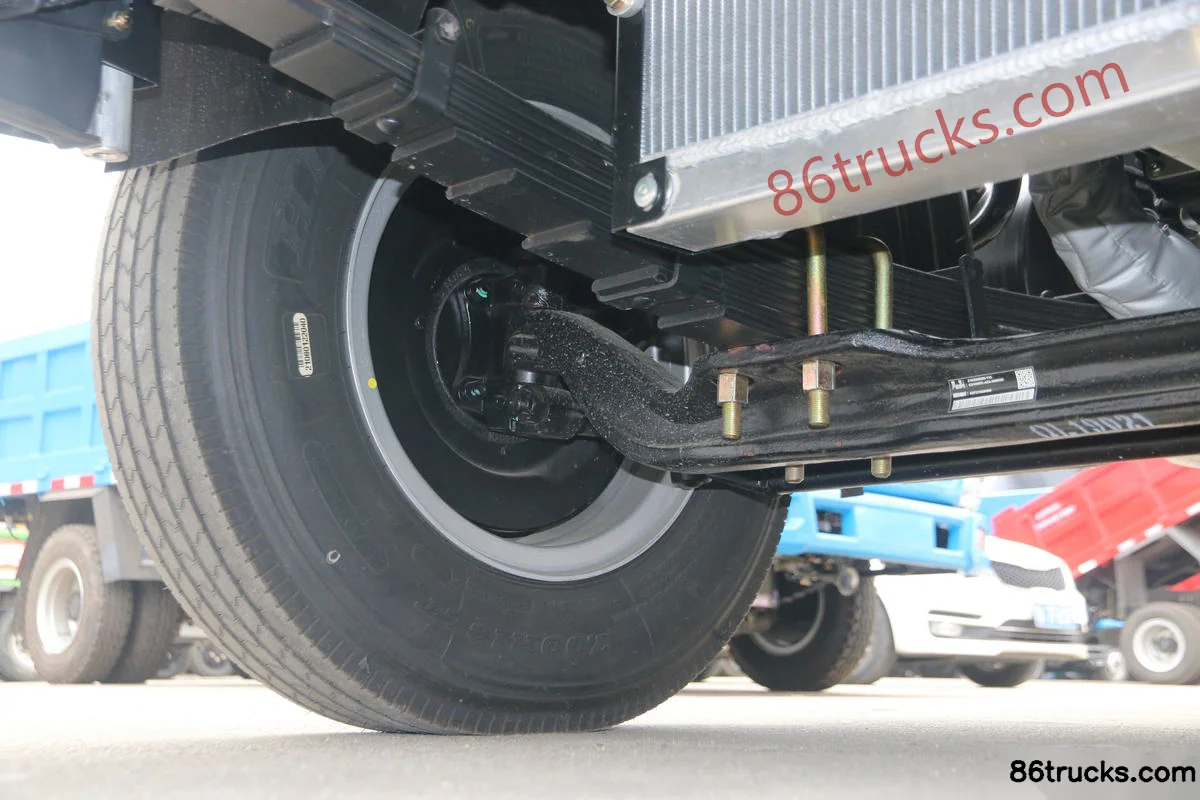

Chassis3

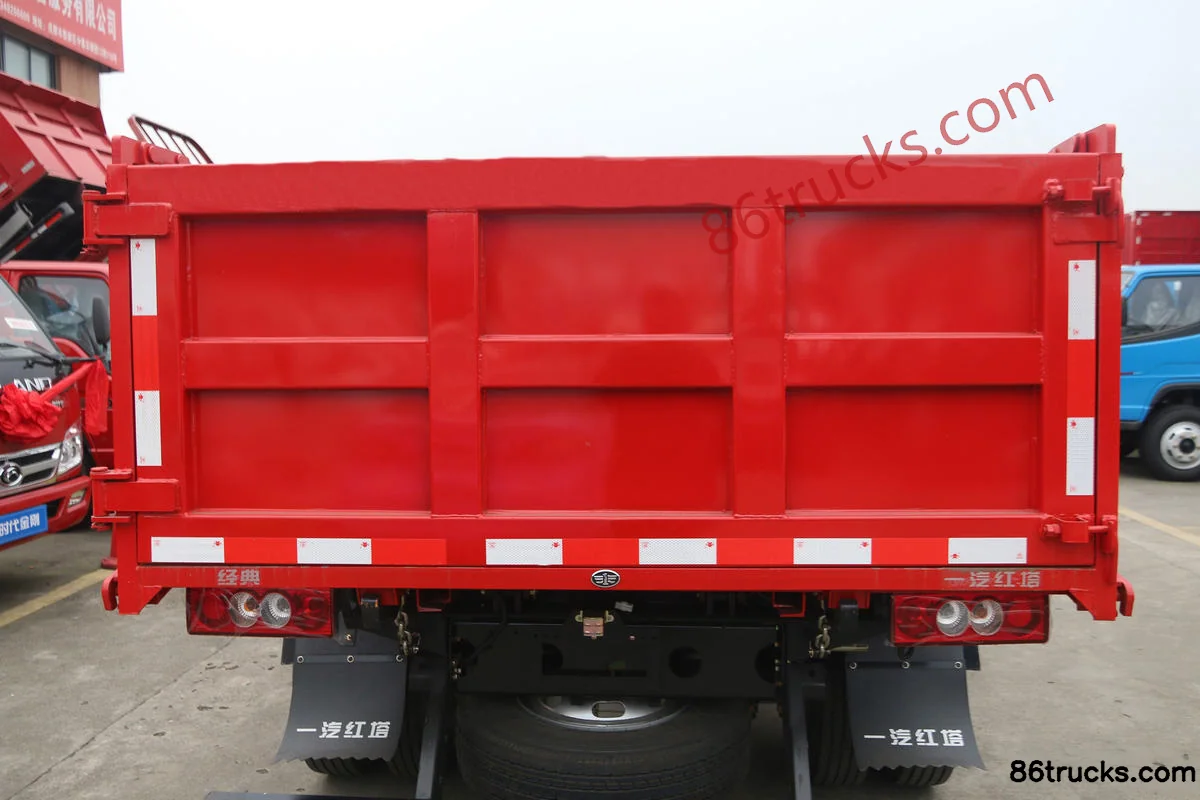

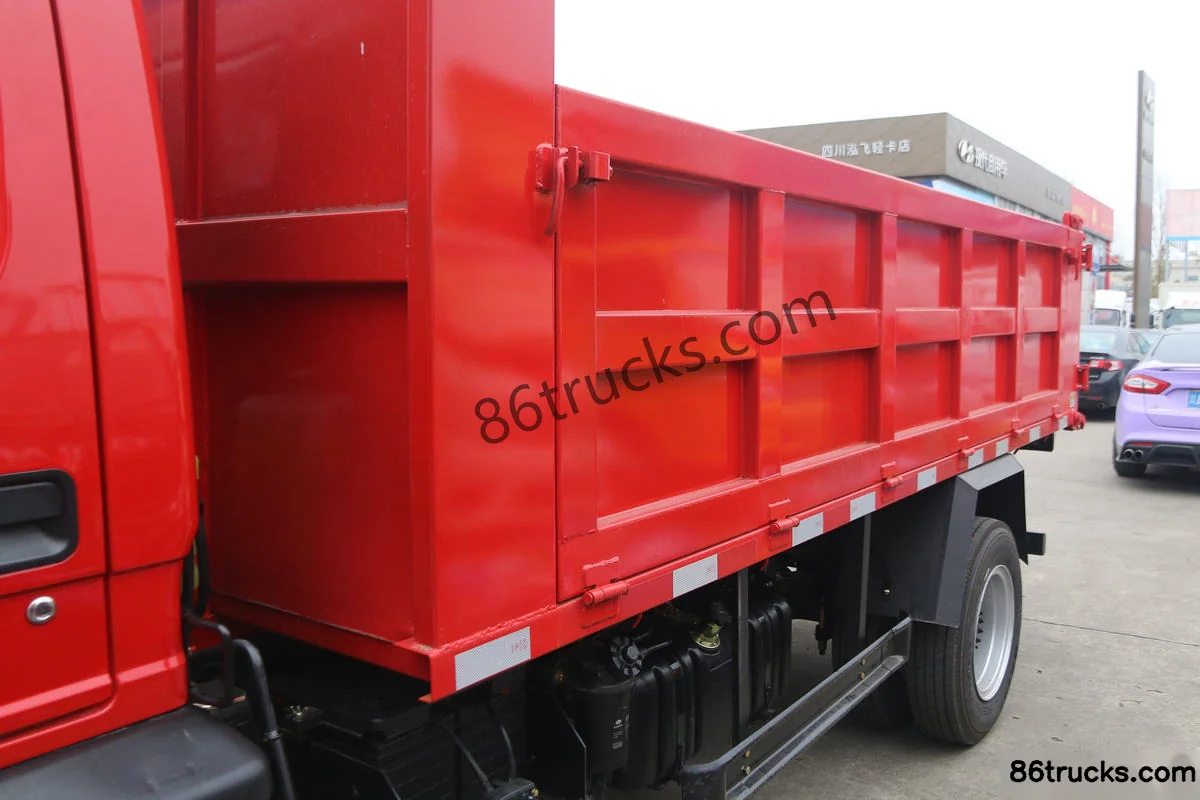

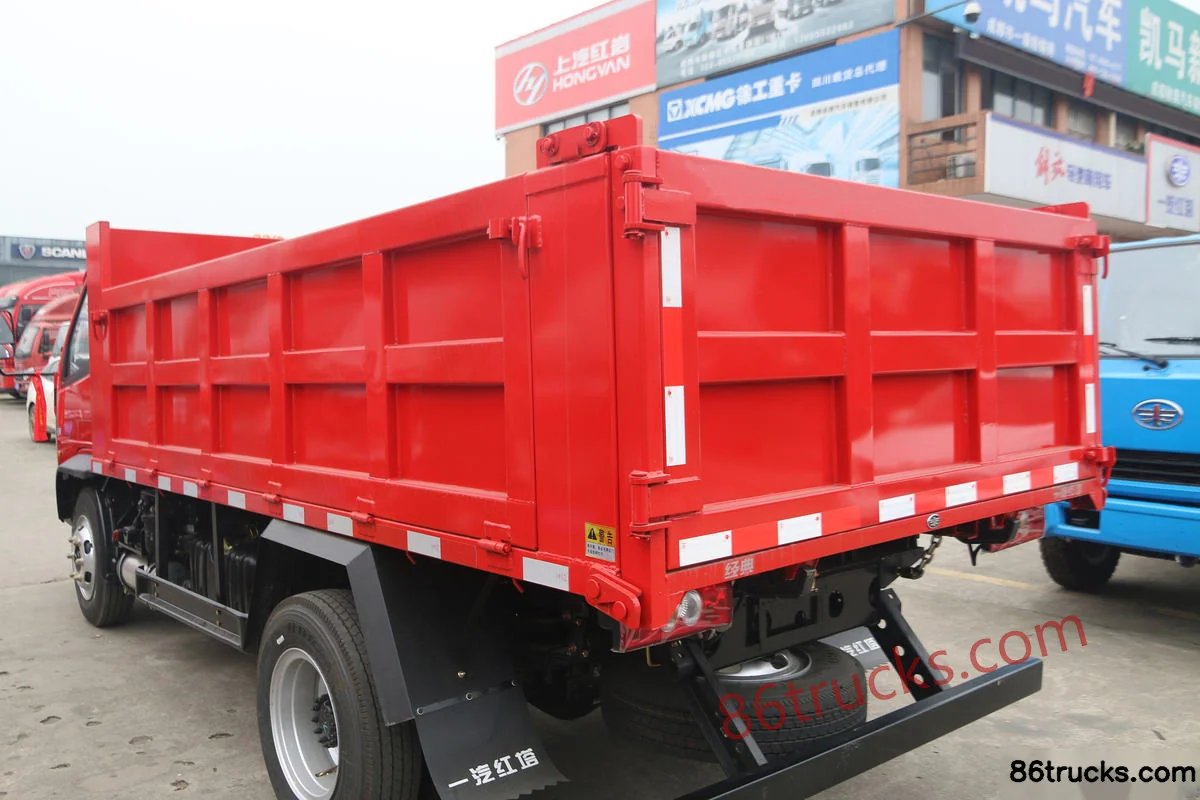

Body3

12 photos

FAQ

What is the export price of FAW Hongta FAW Jiefang Classic 3 Series 130hp 4X2(6 wheels) 3.75m Dump Truck (China VI)(Changtai 8-speed), and what does it include?

FAW Hongta FAW Jiefang Classic 3 Series 130hp 4X2(6 wheels) 3.75m Dump Truck (China VI)(Changtai 8-speed) export reference is about From $14,889; MSRP is ¥10.72M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Hongta FAW Jiefang Classic 3 Series 130hp 4X2(6 wheels) 3.75m Dump Truck (China VI)(Changtai 8-speed) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Hongta FAW Jiefang Classic 3 Series 130hp 4X2(6 wheels) 3.75m Dump Truck (China VI)(Changtai 8-speed)?

Key specs of FAW Hongta FAW Jiefang Classic 3 Series 130hp 4X2(6 wheels) 3.75m Dump Truck (China VI)(Changtai 8-speed): Drive: 4x2; Horsepower: 130 hp; Emission: China VI; Fuel: Diesel; Transmission: Changtai. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Hongta FAW Jiefang Classic 3 Series 130hp 4X2(6 wheels) 3.75m Dump Truck (China VI)(Changtai 8-speed) suited for?

FAW Hongta FAW Jiefang Classic 3 Series 130hp 4X2(6 wheels) 3.75m Dump Truck (China VI)(Changtai 8-speed) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Hongta FAW Jiefang Classic 3 Series 130hp 4X2(6 wheels) 3.75m Dump Truck (China VI)(Changtai 8-speed) differ from other variants in the same series?

FAW Hongta FAW Jiefang Classic 3 Series 130hp 4X2(6 wheels) 3.75m Dump Truck (China VI)(Changtai 8-speed) belongs to FAW Hongta FAW Jiefang Classic 3 Series Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Hongta FAW Jiefang Classic 3 Series 130hp 4X2(6 wheels) 3.75m Dump Truck (China VI)(Changtai 8-speed)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Hongta FAW Jiefang Classic 3 Series 130hp 4X2(6 wheels) 3.75m Dump Truck (China VI)(Changtai 8-speed)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
