FAW Hongta FAW Jiefang Classic 3 Series 102 hp 4X2(6 wheels) 3.28m dump truck

Export reference
From $16,111
MSRP ¥11.6M CNY
Emission: China V
Fuel: Diesel
Transmission: Changtai
Curb Weight:: 2.72ton
Wheelbase:: 3100mm
Tire Size:: 7.00R16LT 10PR
Rated payload: 1.645ton
Drive 4X2 (6 wheels)
Horsepower 102
Cargo box length: 3.28m

Overview

The FAW Hongta FAW Jiefang Classic 3 Series 102 hp 4X2(6 wheels) 3.28m dump truck is a Light Truck featuring 1.645t payload, 4.495t GVW, 3.28m cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerYN33CRE2 engine, 102 hp, China V emissions and Changtai transmission.

China V 102 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA3040K2L3E5-5
Drive type: 4X2
Wheelbase: 3100mm
engine: Yunnei PowerYN33CRE2
transmission: Changtai SC8S45TL
Rear Axle Ratio: 5.286
Cab length: 5.59m
Cab width: 2.095m
Cab height: 2.2m
Front track width: 1560mm
rear track: 1630mm
Curb Weight: 2.72ton
Rated payload: 1.645ton
GVWR: 4.495ton
Origin: Qujing, Yunnan
tonnage class: Light Truck
Approach angle: 18°
departure angle: 19°
Remarks: Standard: air deflector, reverse radar, digital instrument cluster, automatic slack adjuster.
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYN33CRE2
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.298L
Emission standard: China V
Max output power: 75kW
Max hp: 102Horsepower
Max torque: 265N·m
Max torque speed: 1600-2400rpm
Rated speed: 3200rpm
Engine Type: 4-cylinder inline, 8-valve, turbocharged intercooled, high-pressure common rail fuel injection
Transmission Parameters
Transmission Model: Changtai SC8S45TL
Transmission Brand: Changtai
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box length: 3.28m
Cargo box width: 1.77m
Cargo box height: 0.6m
Cab parameters
Cab width: 1700mm
fuel tank
Fuel tank capacity: 70L
Chassis Specs
Front axle allowable load: 1800kg
rear axle description: 1080
rear axle allowable load: 2695kg
Axle ratio: 5.286
Leaf spring count: 9/10+5
Tire
Tire Size: 7.00R16LT 10PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual

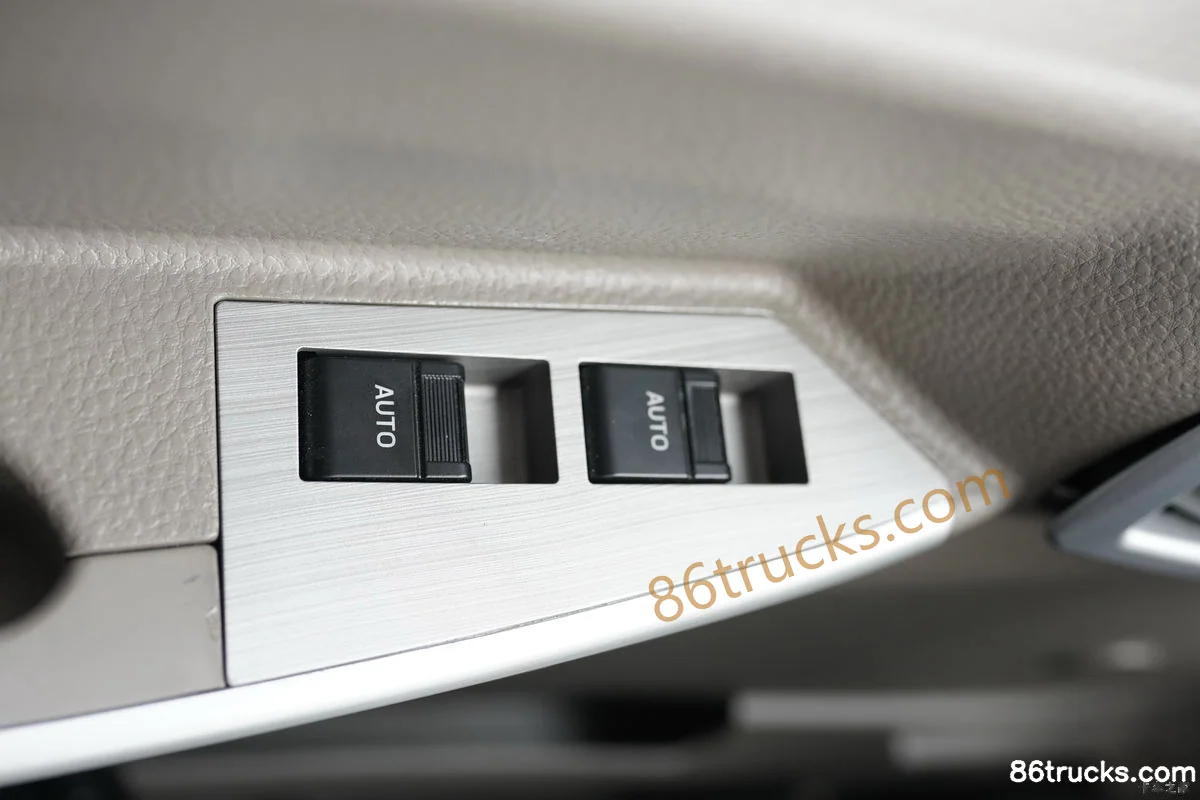

Power Windows:
Remote key:
Electronic Central Lock:
Exterior features
Aluminum air tank:
Multimedia features
Center Console Color Screen:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

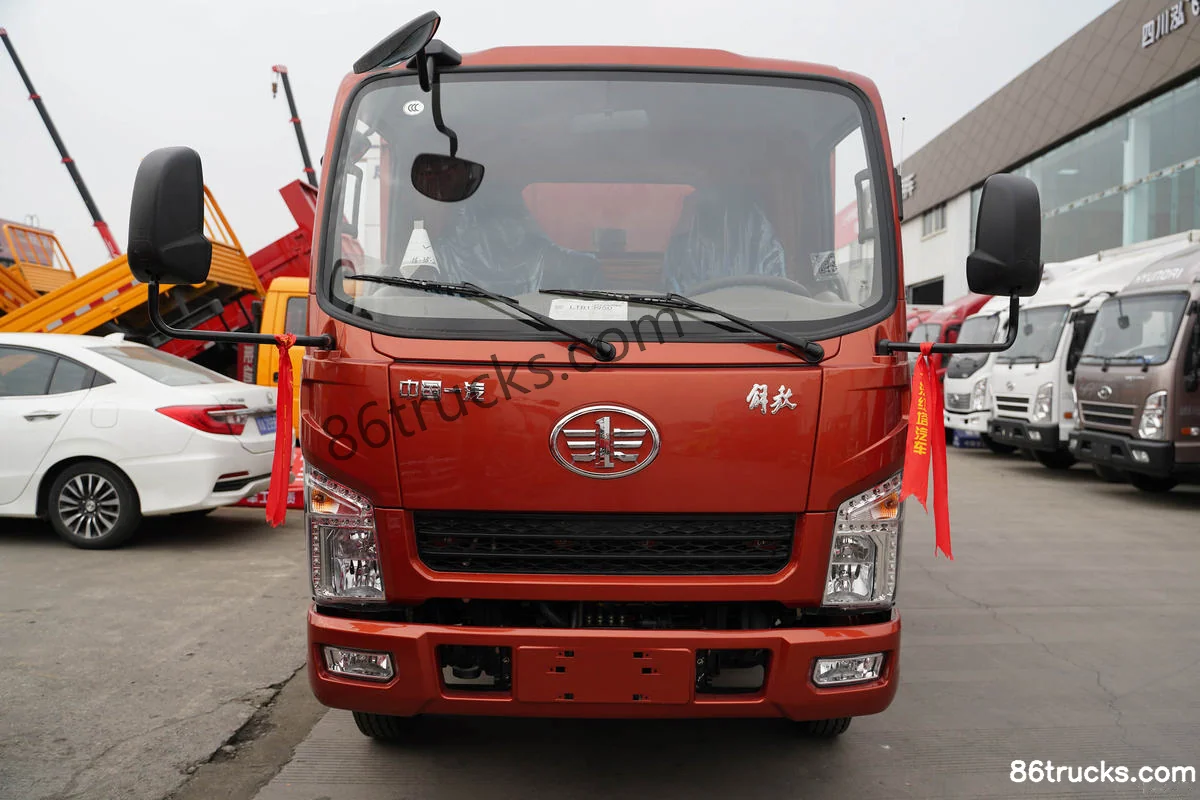

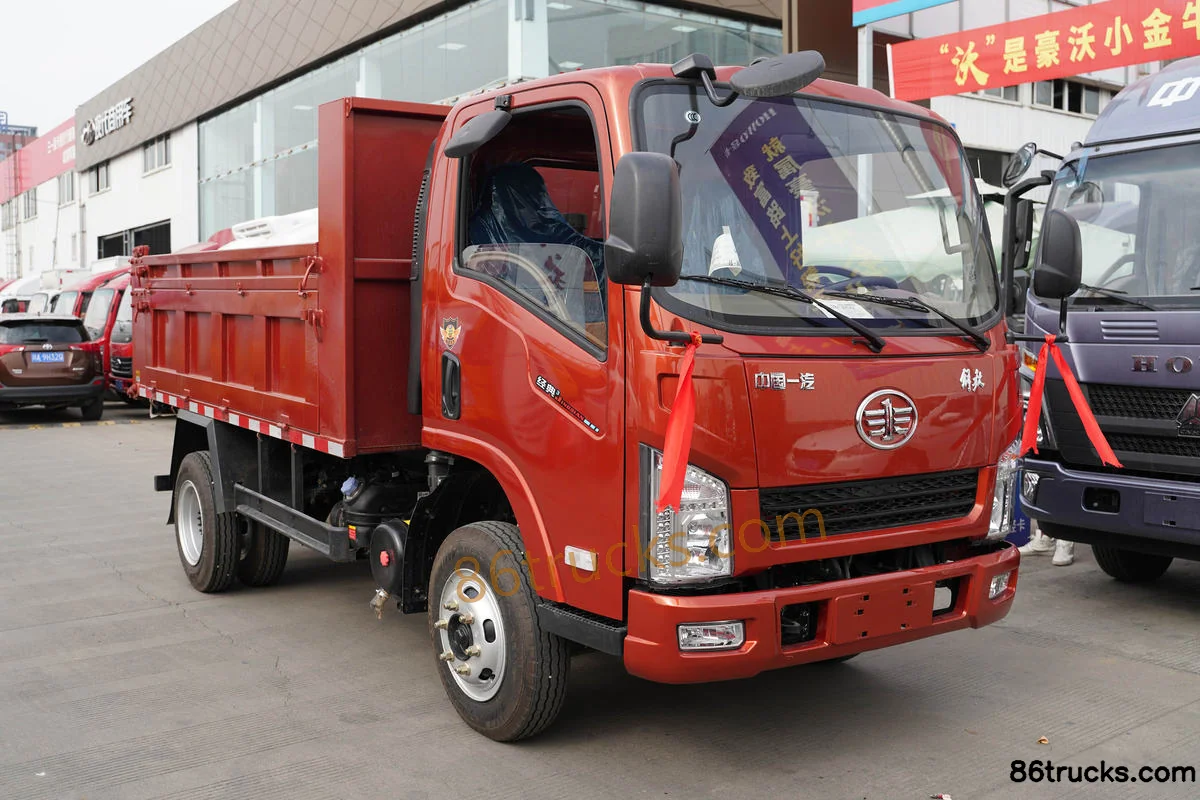

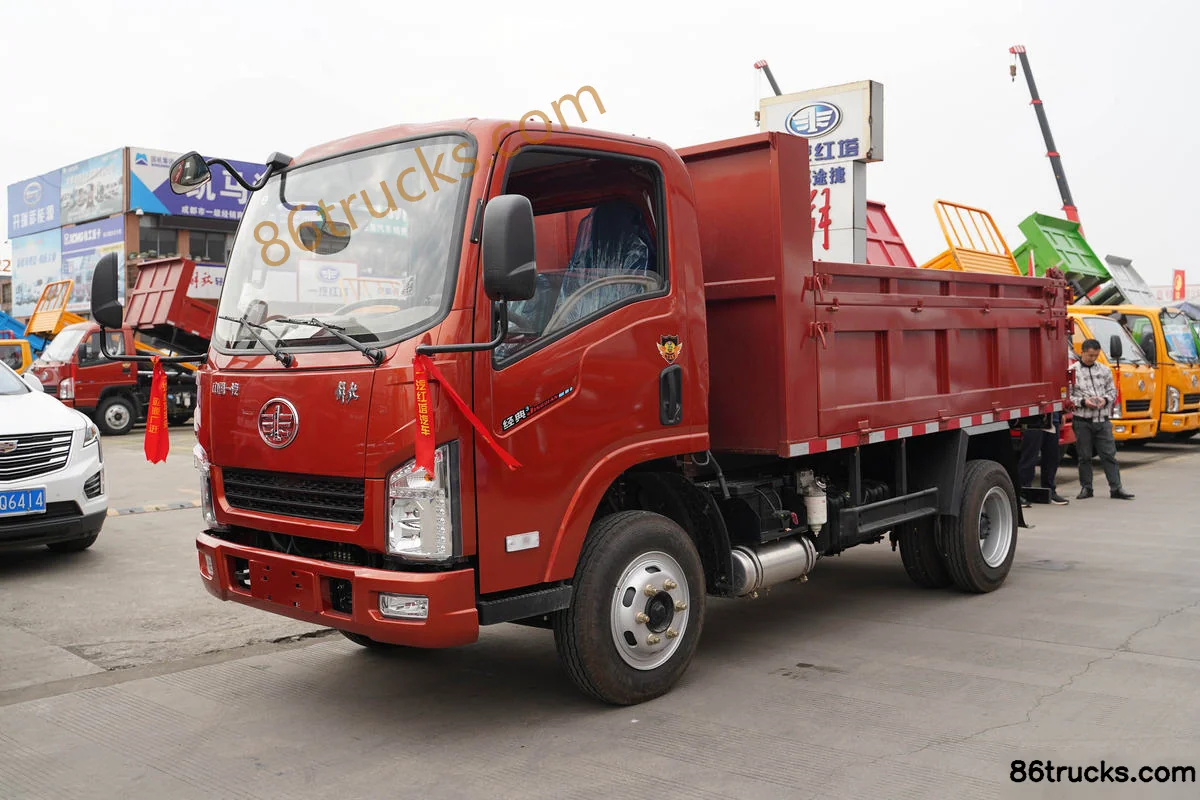

Exterior3

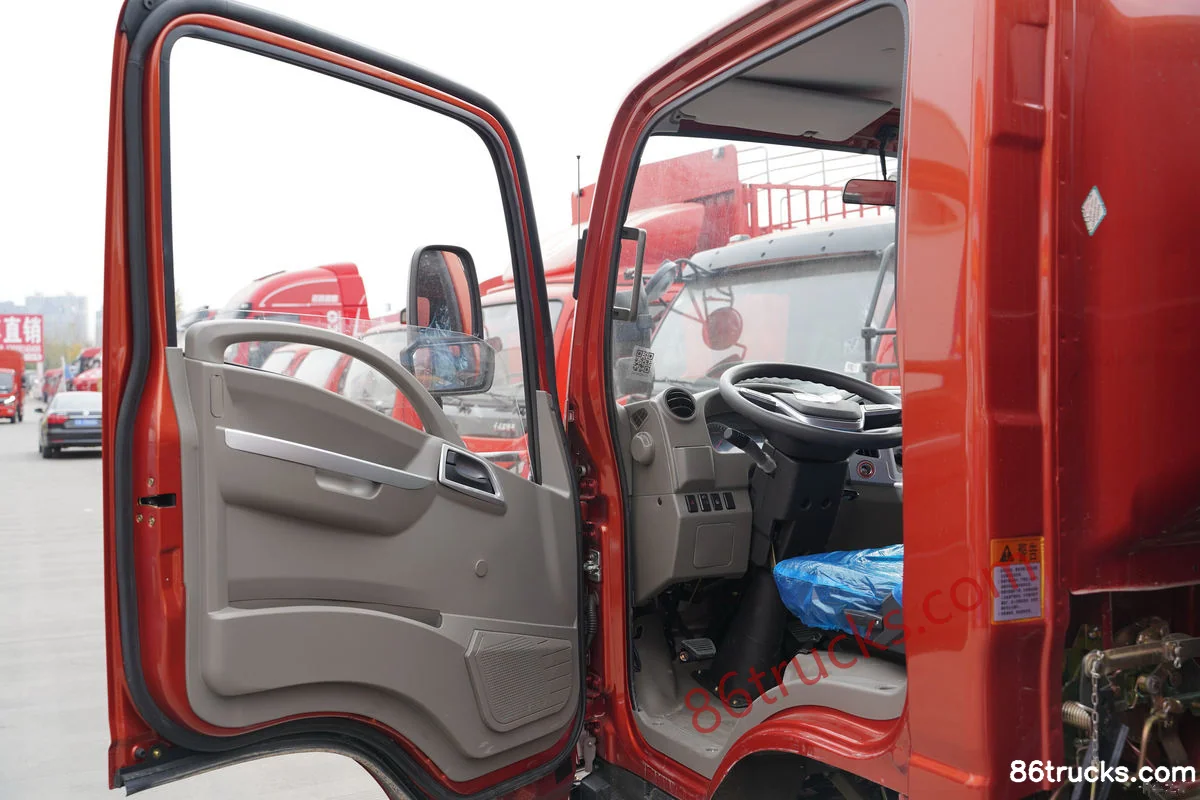

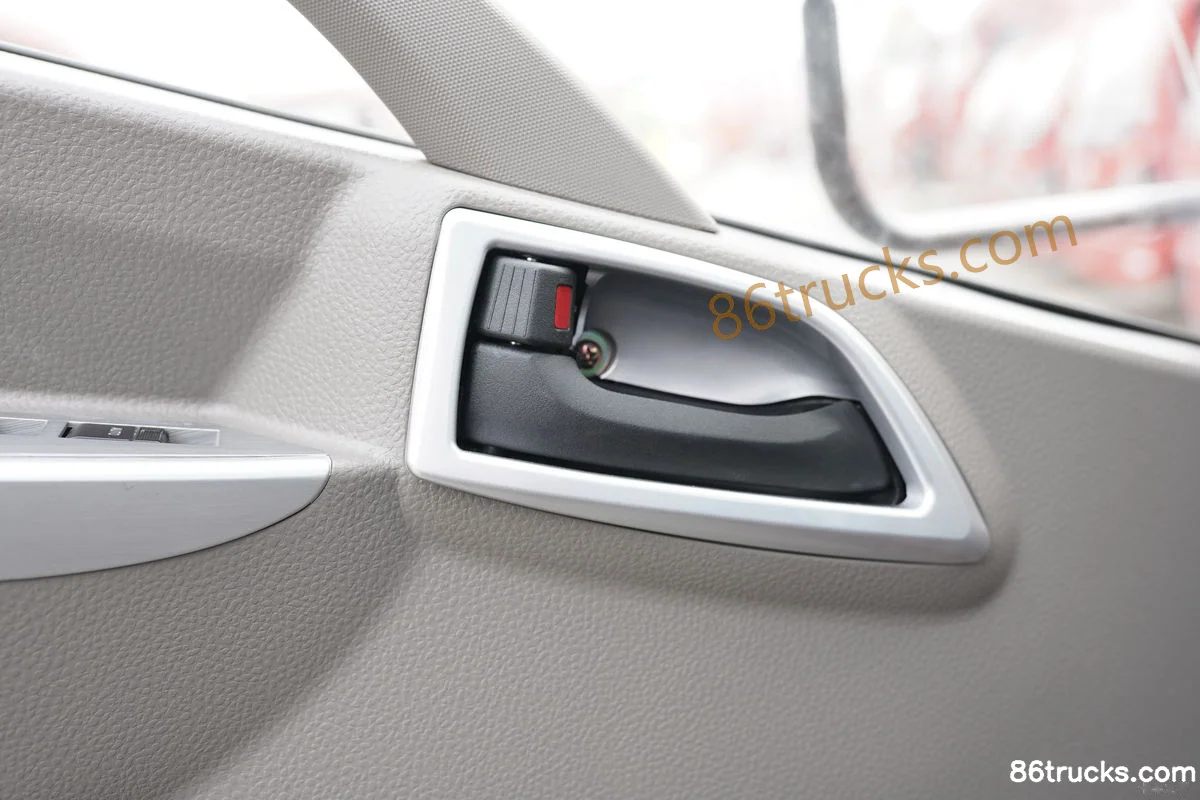

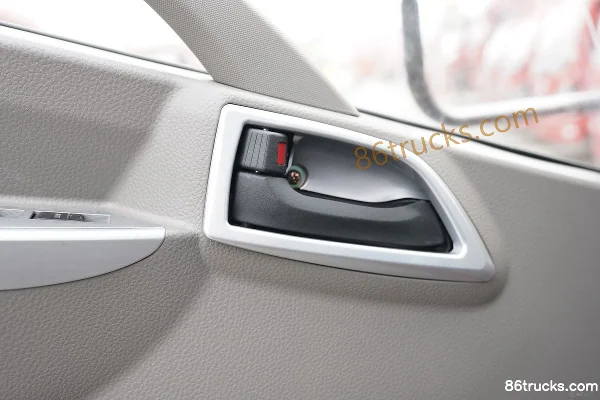

Cab3

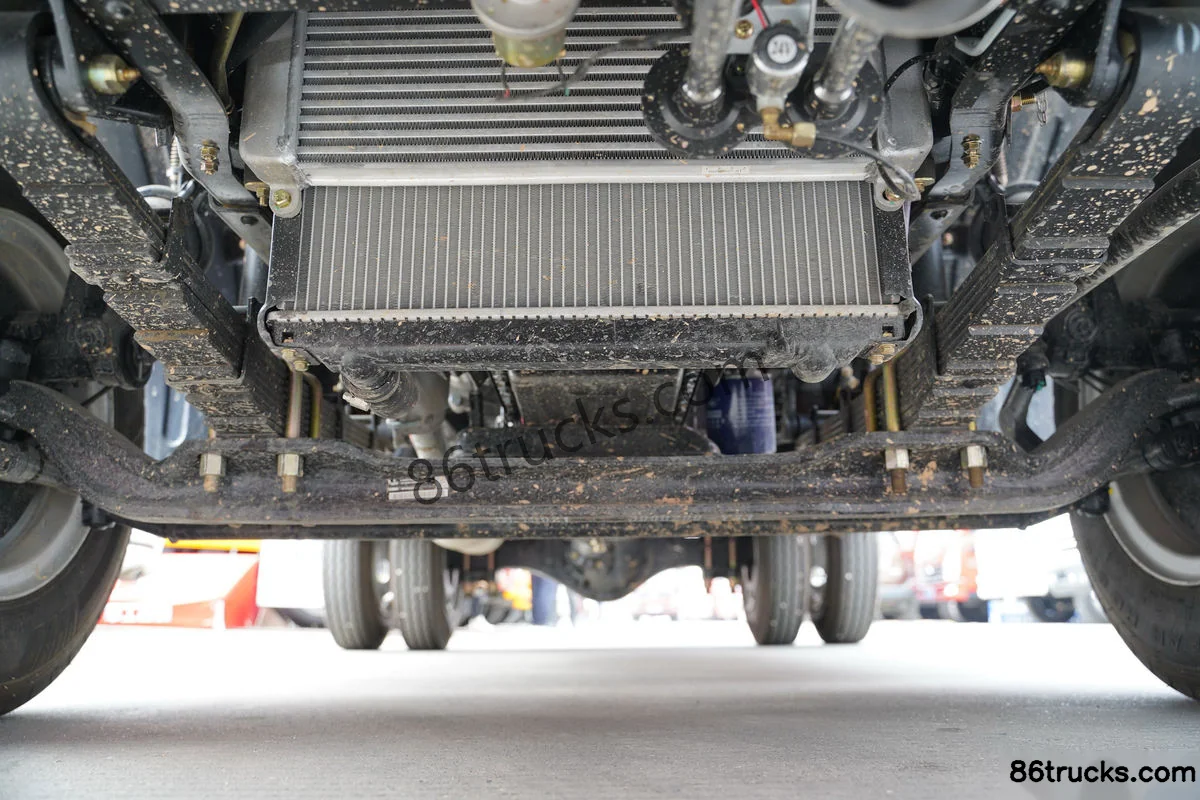

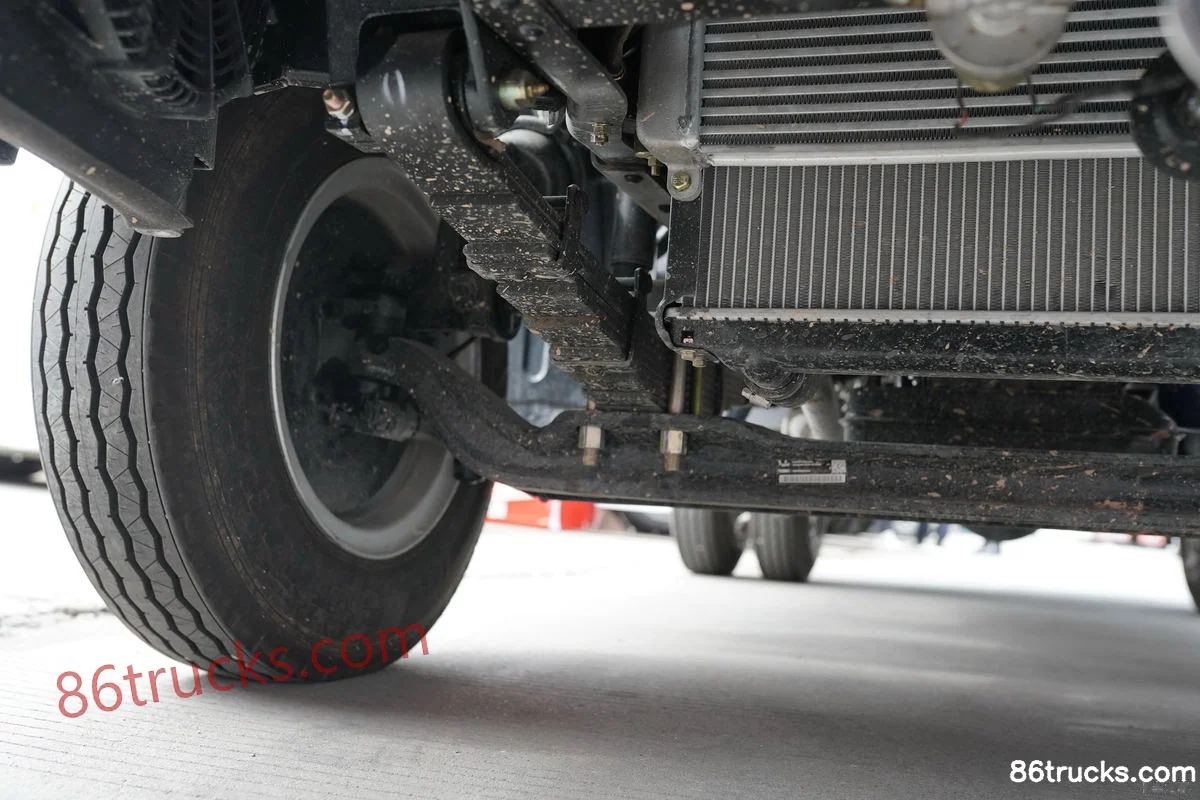

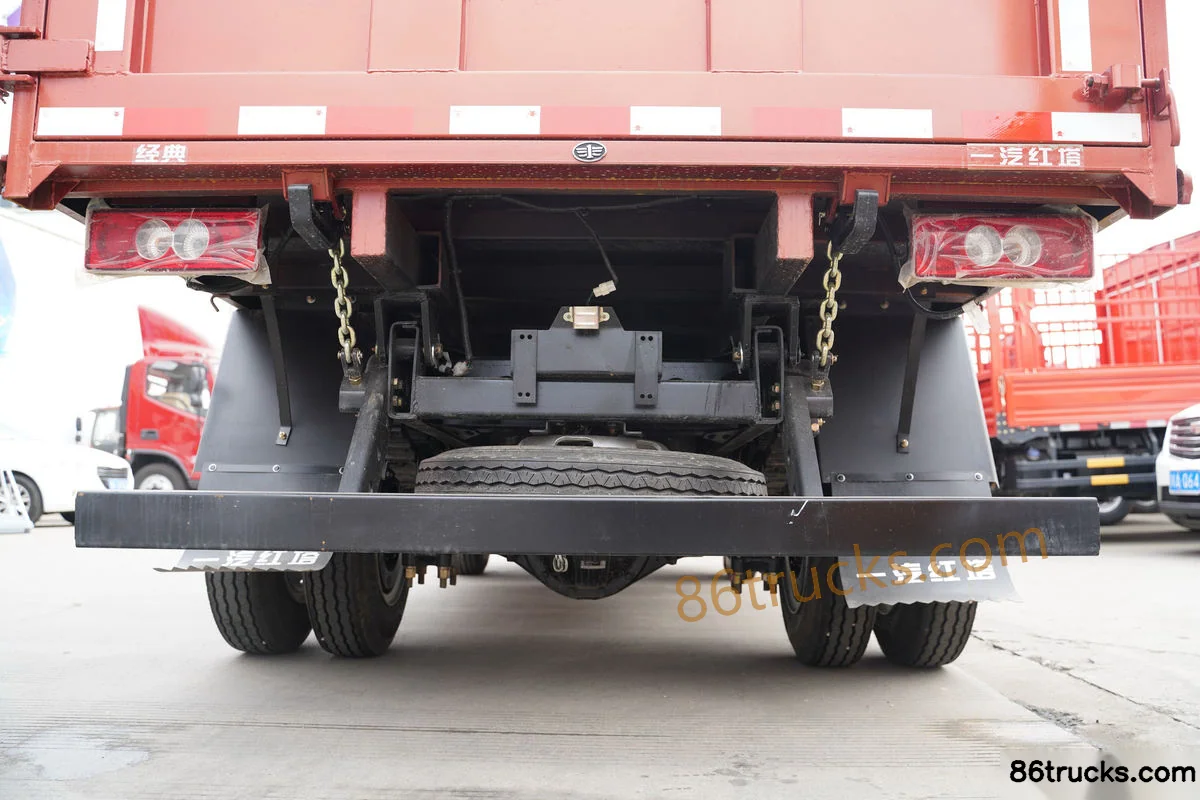

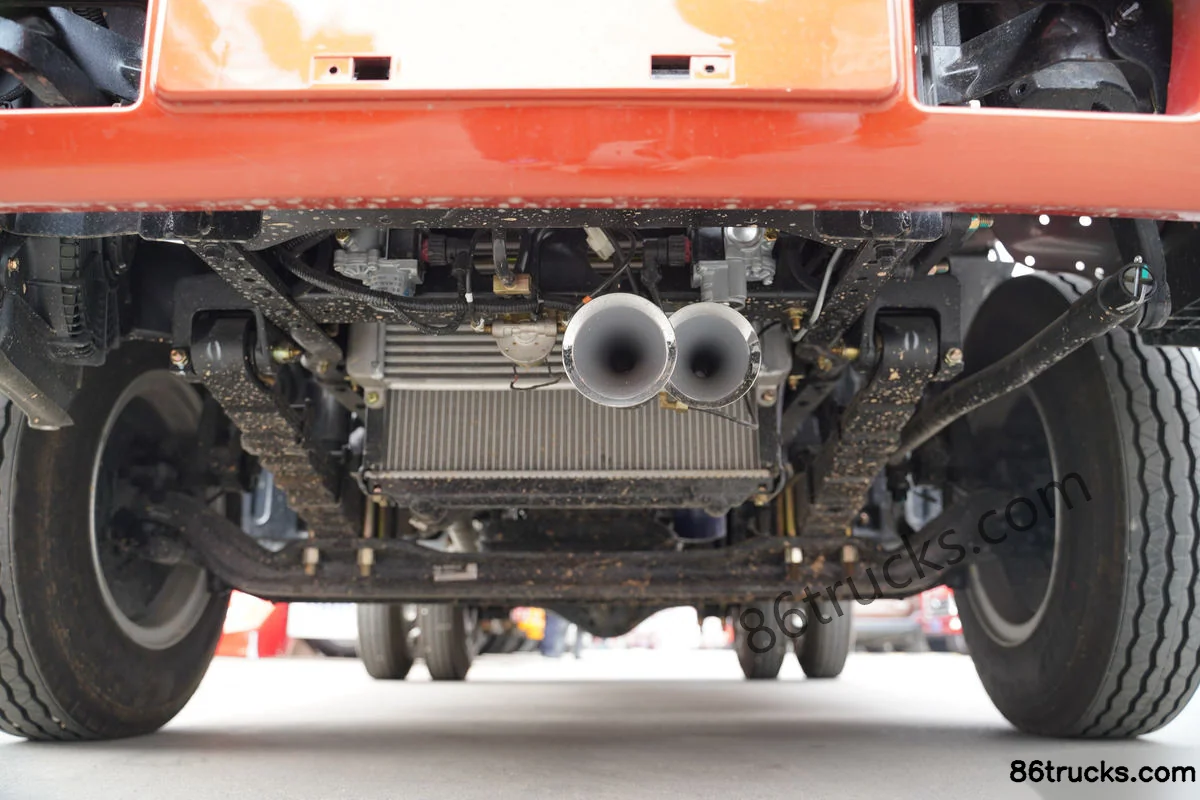

Chassis3

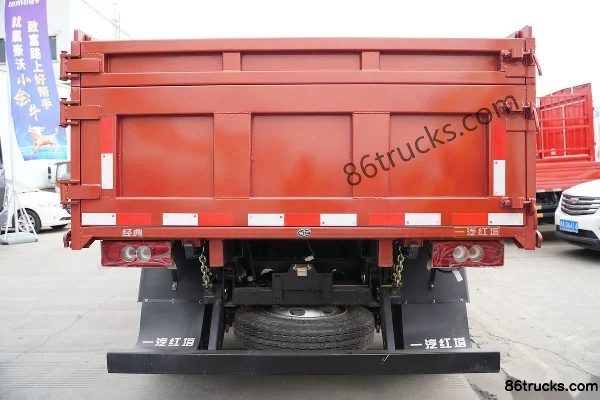

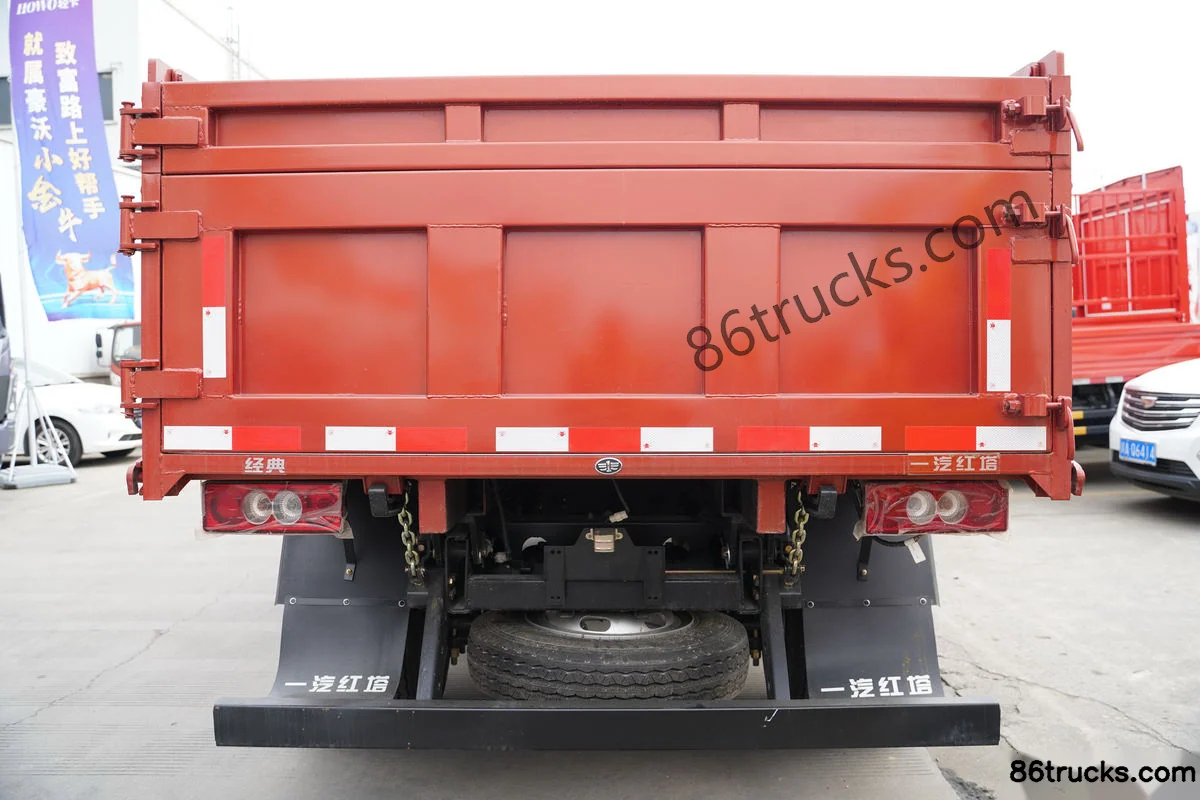

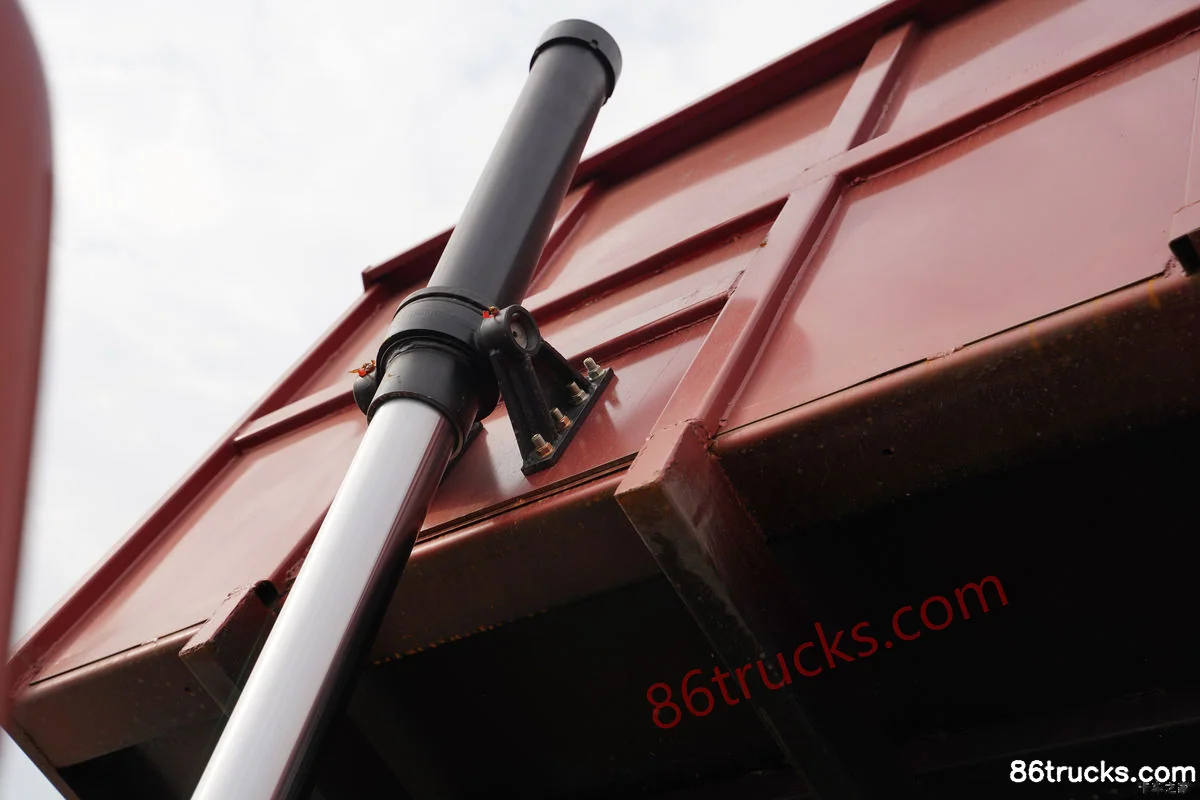

Body3

12 photos

FAQ

What is the export price of FAW Hongta FAW Jiefang Classic 3 Series 102 hp 4X2(6 wheels) 3.28m dump truck, and what does it include?

FAW Hongta FAW Jiefang Classic 3 Series 102 hp 4X2(6 wheels) 3.28m dump truck export reference is about From $16,111; MSRP is ¥11.6M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Hongta FAW Jiefang Classic 3 Series 102 hp 4X2(6 wheels) 3.28m dump truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Hongta FAW Jiefang Classic 3 Series 102 hp 4X2(6 wheels) 3.28m dump truck?

Key specs of FAW Hongta FAW Jiefang Classic 3 Series 102 hp 4X2(6 wheels) 3.28m dump truck: Drive: 4x2; Horsepower: 102 hp; Emission: China V; Fuel: Diesel; Transmission: Changtai. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Hongta FAW Jiefang Classic 3 Series 102 hp 4X2(6 wheels) 3.28m dump truck suited for?

FAW Hongta FAW Jiefang Classic 3 Series 102 hp 4X2(6 wheels) 3.28m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Hongta FAW Jiefang Classic 3 Series 102 hp 4X2(6 wheels) 3.28m dump truck differ from other variants in the same series?

FAW Hongta FAW Jiefang Classic 3 Series 102 hp 4X2(6 wheels) 3.28m dump truck belongs to FAW Hongta FAW Jiefang Classic 3 Series Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Hongta FAW Jiefang Classic 3 Series 102 hp 4X2(6 wheels) 3.28m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Hongta FAW Jiefang Classic 3 Series 102 hp 4X2(6 wheels) 3.28m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
