Dongfeng Yulong 140 hp 4X2(6 wheels) 4.5m Dump Truck (EQ3080GL1)
EXW
Export quote
Dongfeng Yulong Dump Trucks
Main model photos
101 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng Yulong 140 hp 4X2(6 wheels) 4.5m Dump Truck (EQ3080GL1) | 4x2 / 160hp / China IV | ||
| Dongfeng Yulong 340 hp 6X4(10 wheels) 5.2m Dump Truck Chassis (EQ3258GLJ1) | 6x4 / 340hp / China IV |

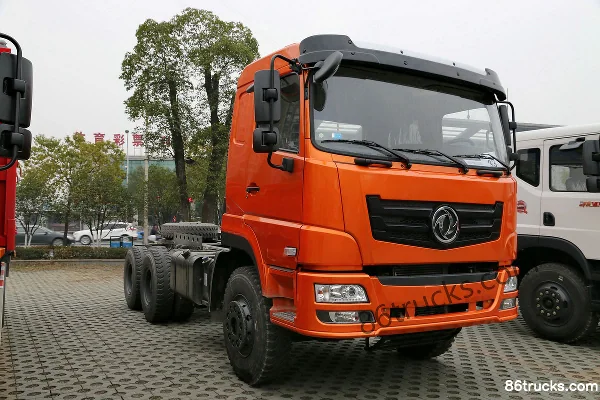

Dongfeng Yulong 340 hp 6X4(10 wheels) 5.2m Dump Truck Chassis (EQ3258GLJ1)
EXW
Export quote
Series Specs
Basic Info
Model code (announced): EQ3080GL1 / EQ3258GL1
Drive type: 4X2 / 6X4
Wheelbase: 3800 / 3200+1350mm
Engine Model: YuchaiYC4E160-45 / YuchaiYC6MK340-40
Transmission Model: Fast Gear10JSD160 / Fast Gear12JSD180T
Rear Axle Ratio: 6.33
Cab length: 7 / 7.9m
Cab width: 2.4 / 2.49m
Cab height: 2.95 / 3.25m
Front track width: 1750 / 1940mm
rear track: 1585 / 1860/1860mm
Curb Weight: 4.305 / 11.905ton
Rated payload: 3.99 / 12.9ton
GVWR: 8.49 / 25ton
Origin: Shiyan, Hubei
tonnage class: Light Truck
Approach angle: 22 / 32°
departure angle: 13 / 26°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Number of cylinders: 4 / 6cylinder
Displacement: 4.26 / 10.338L
Emission standard: China IV
Max output power: 118 / 250kW
Max hp: 160 / 340Horsepower
Max torque: 550 / 1500N·m
Max torque speed: 1300-1600 / 1100-1500rpm
Rated speed: 2600 / 1900rpm
Engine Type: Vertical, inline 4-cylinder, water-cooled, 4-stroke, electronic direct injection / Vertical, inline 6-cylinder, water-cooled, 4-stroke, electronic direct injection
Transmission Parameters
Transmission Brand: Fast Gear
Forward gears: 10 / 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.5 / 5.2m
Cargo box width: 2.3m
Cargo box height: 0.8 / 1.295m
Chassis Specs
rear axle allowable load: 4650 / 18000 (twin axle)kg
Axle ratio: 6.33
Leaf spring count: 8/10+7 / 9/12
FAQ
What kind of truck is Dongfeng Dongfeng Yulong Dump Trucks?
Dongfeng Dongfeng Yulong is an export-oriented Dump Trucks lineup with about 2 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Dongfeng Yulong Dump Trucks cover?
Dongfeng Yulong Dump Trucks mainly covers: Drive: 4x2 / 6x4; Horsepower: 160 hp / 340 hp; Emission: China IV; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Dongfeng Yulong Dump Trucks?
For Dongfeng Yulong Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Dongfeng Yulong Dump Trucks include?
Dongfeng Yulong Dump Trucks currently lists about 2 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Dongfeng Yulong Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
