Dongfeng Yulong 340 hp 6X4(10 wheels) 5.2m Dump Truck Chassis (EQ3258GLJ1)

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 11.905ton
Wheelbase:: 3200+1350mm
Tire Size:: 12.00R20
Rated payload: 12.9ton
Drive 6X4 (10 wheels)
Horsepower 340
Cargo box length: 5.2m

Overview

The Dongfeng Yulong 340 hp 6X4(10 wheels) 5.2m Dump Truck Chassis (EQ3258GLJ1) is a Light Truck featuring 12.9t payload, 25t GVW, 5.2m cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a YuchaiYC6MK340-40 engine, 340 hp, China IV emissions and Fast Gear transmission.

China IV 340 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): EQ3258GL1
Drive type: 6X4
Wheelbase: 3200+1350mm
engine: YuchaiYC6MK340-40
transmission: Fast Gear12JSD180T
Cab length: 7.9m
Cab width: 2.49m
Cab height: 3.25m
Front track width: 1940mm
rear track: 1860/1860mm
Curb Weight: 11.905ton
Rated payload: 12.9ton
GVWR: 25ton
Origin: Shiyan, Hubei
tonnage class: Light Truck
Approach angle: 32°
departure angle: 26°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6MK340-40
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 10.338L
Emission standard: China IV
Max output power: 250kW
Max hp: 340Horsepower
Max torque: 1500N·m
Max torque speed: 1100-1500rpm
Rated speed: 1900rpm
Engine Type: Vertical, inline 6-cylinder, water-cooled, 4-stroke, electronic direct injection
Transmission Parameters
Transmission Model: Fast Gear12JSD180T
Transmission Brand: Fast Gear
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box length: 5.2m
Cargo box width: 2.3m
Cargo box height: 1.295m
Chassis Specs
rear axle allowable load: 18000 (twin axle)kg
Leaf spring count: 9/12
Tire
Tire Size: 12.00R20
Number of tires: 10pcs

Photos

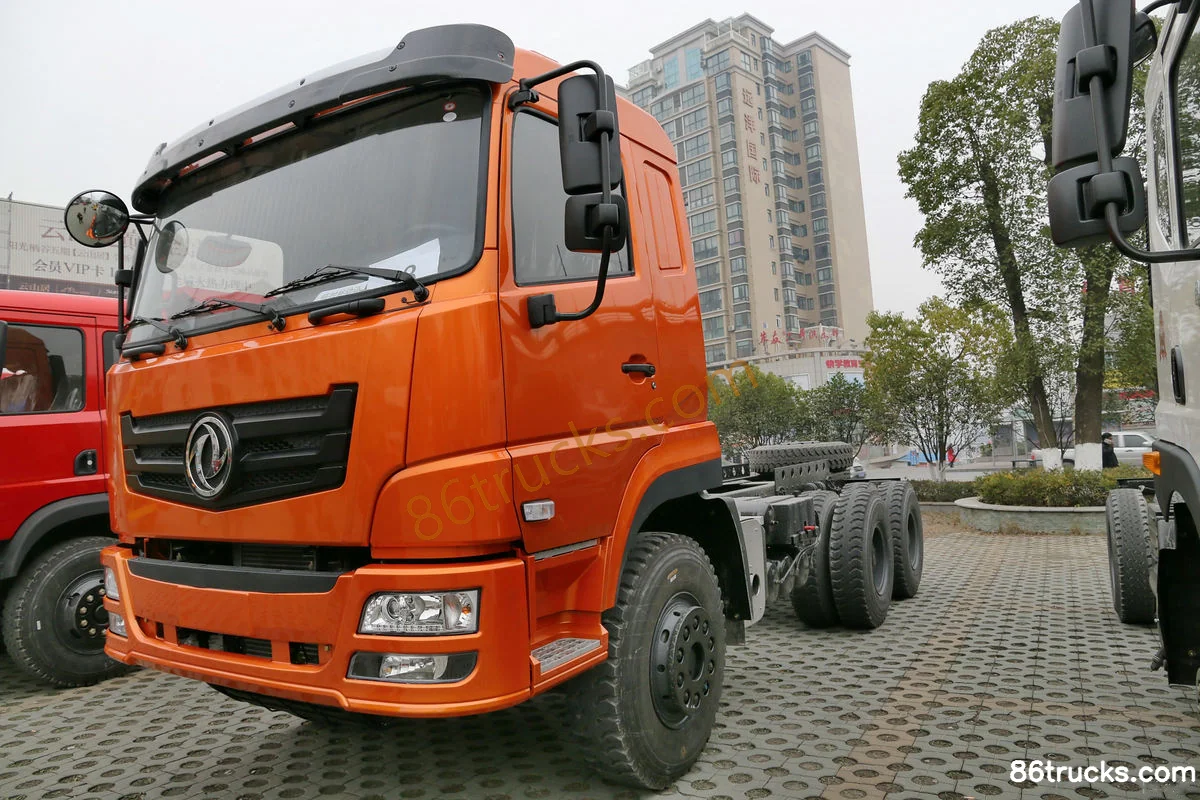

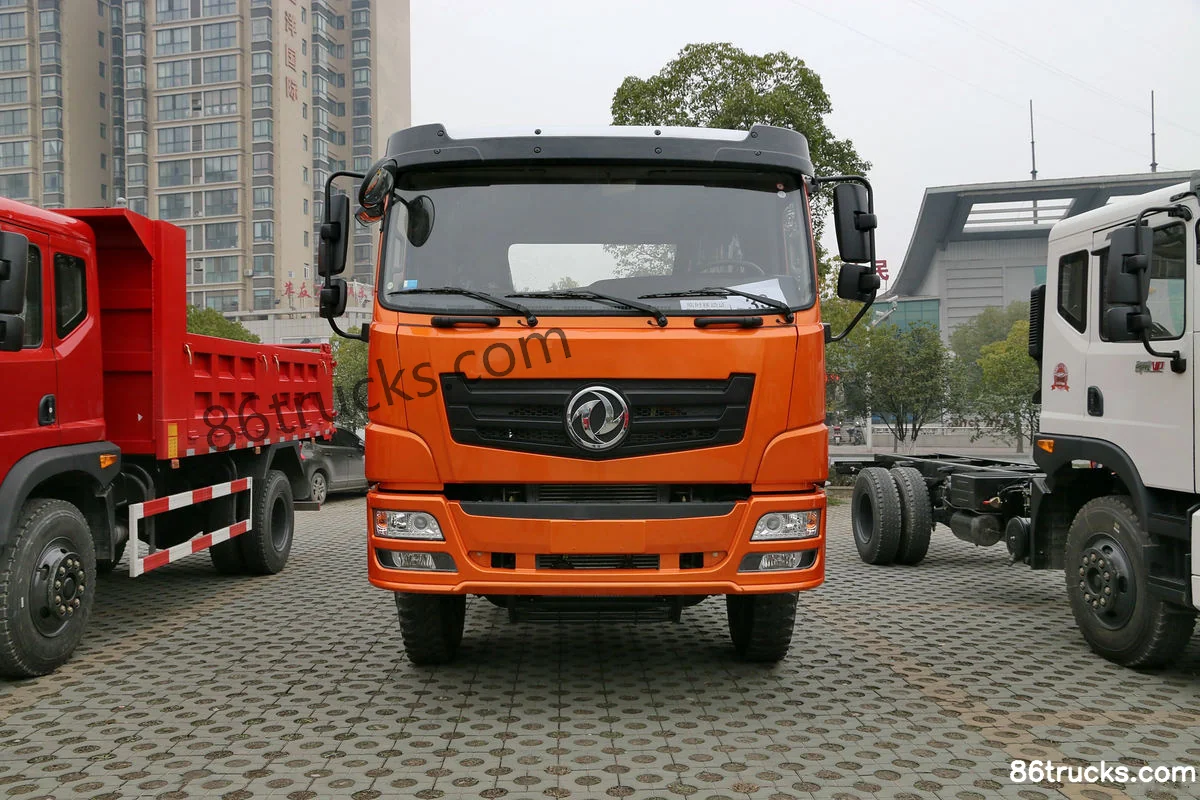

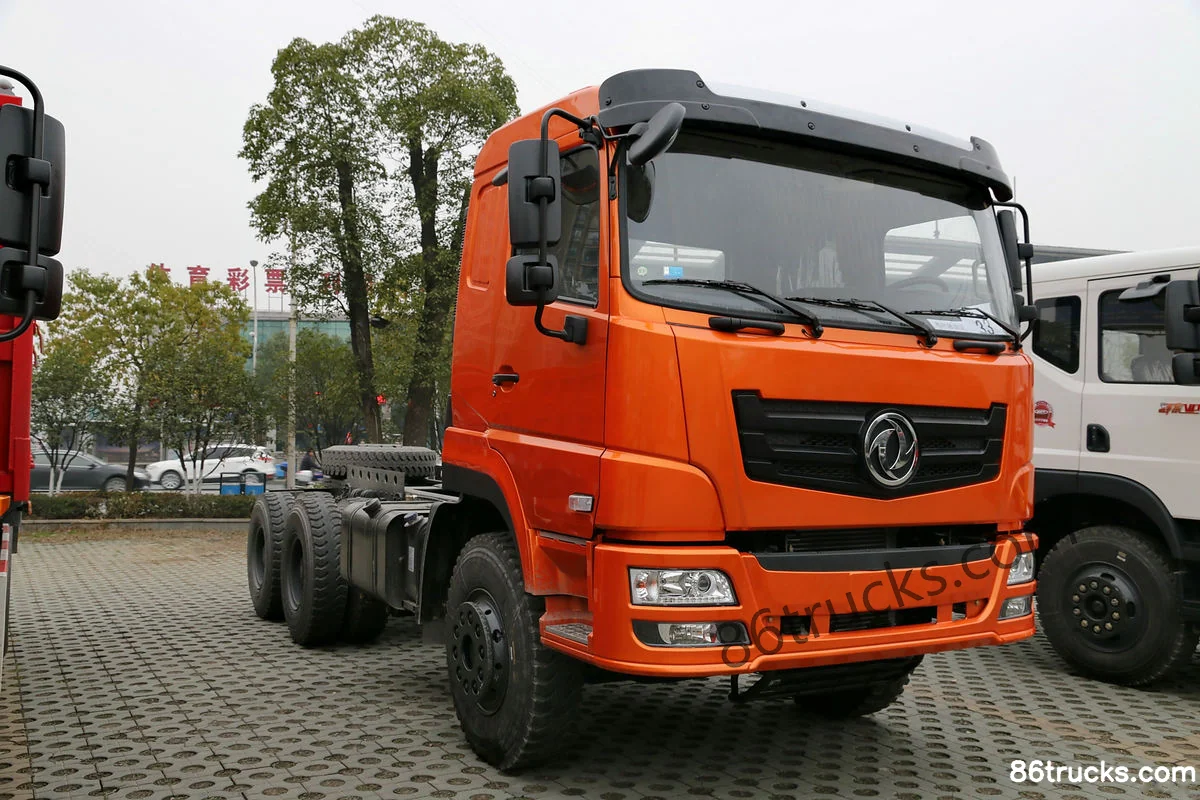

Exterior3

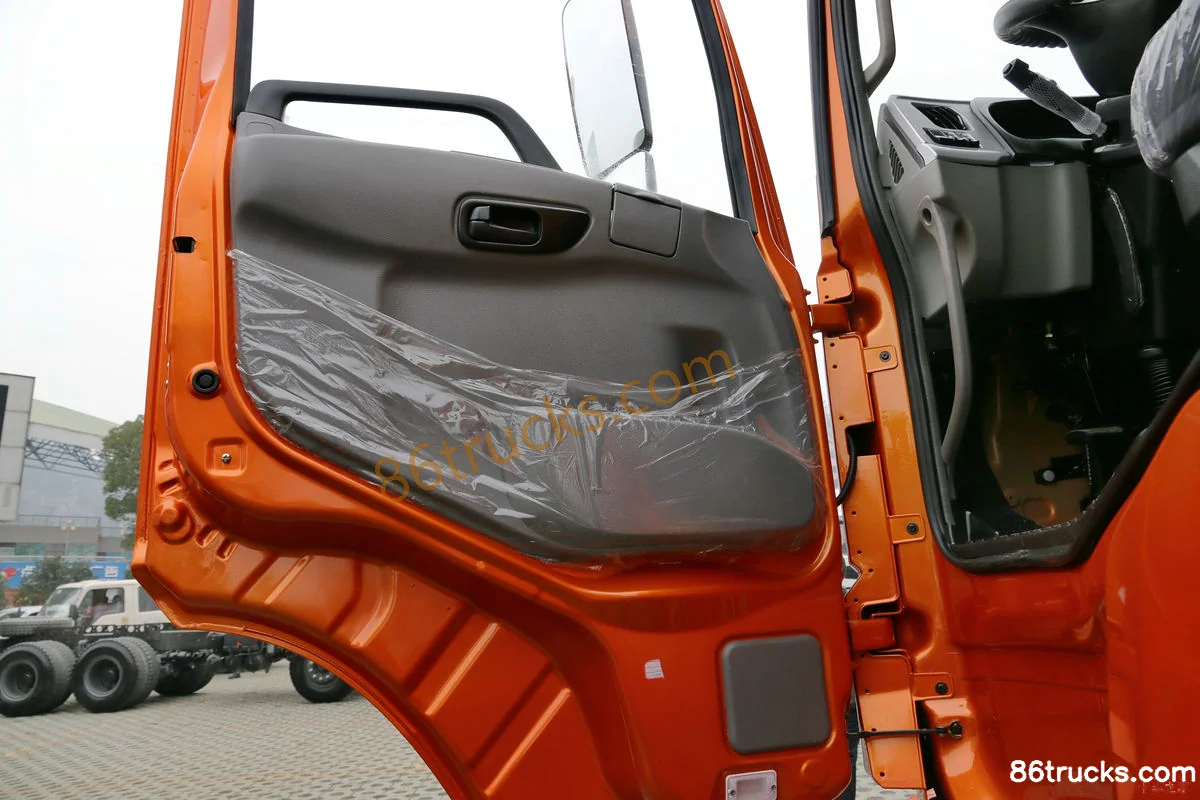

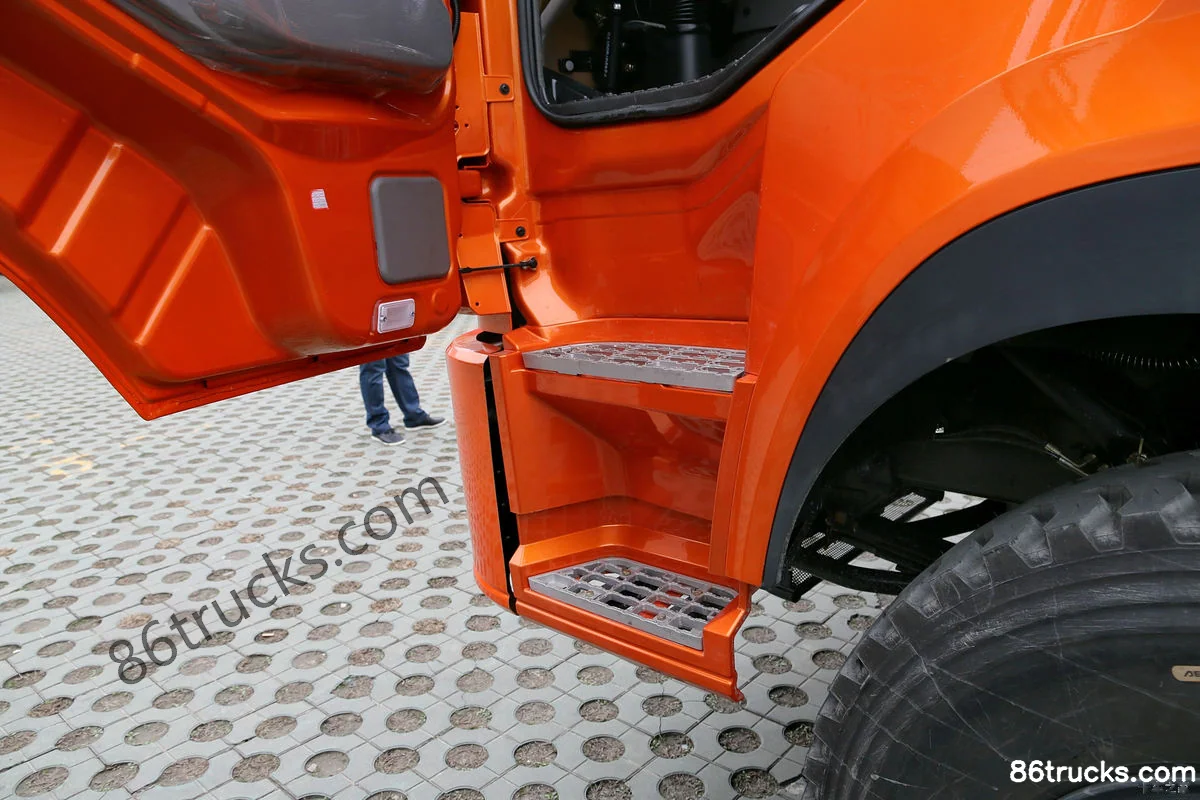

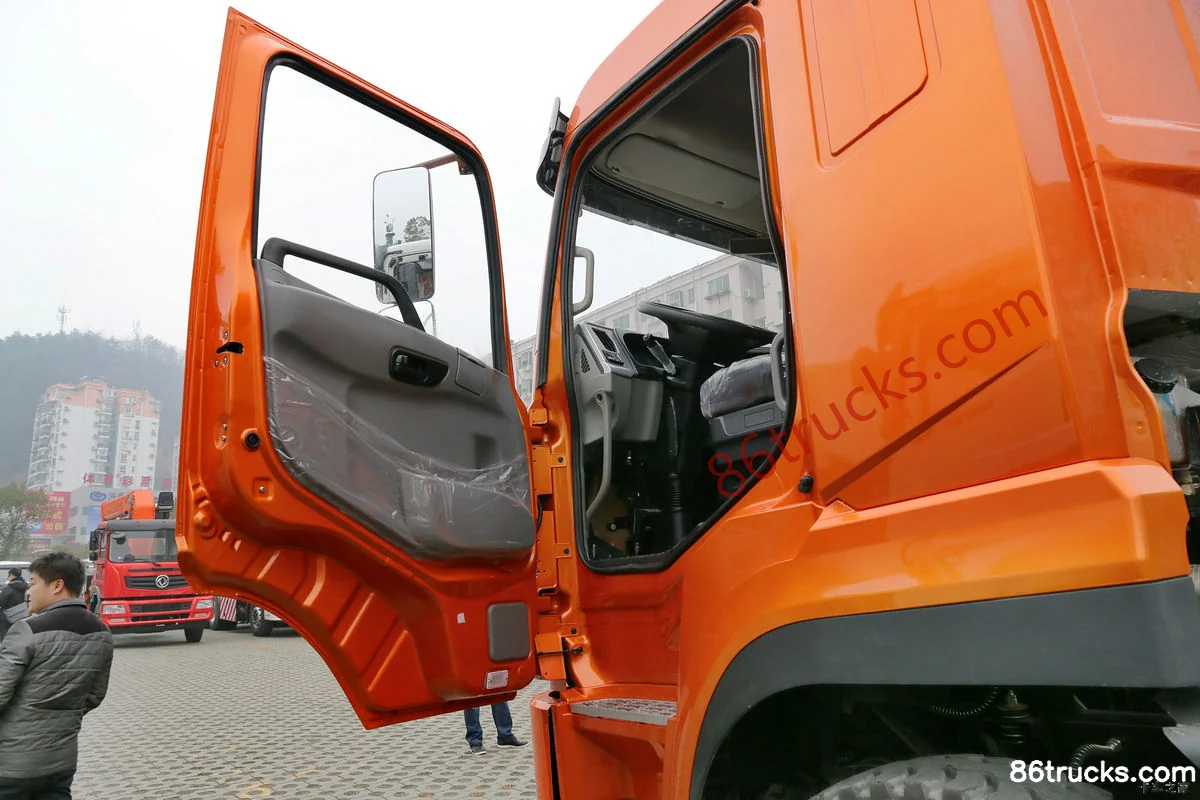

Cab3

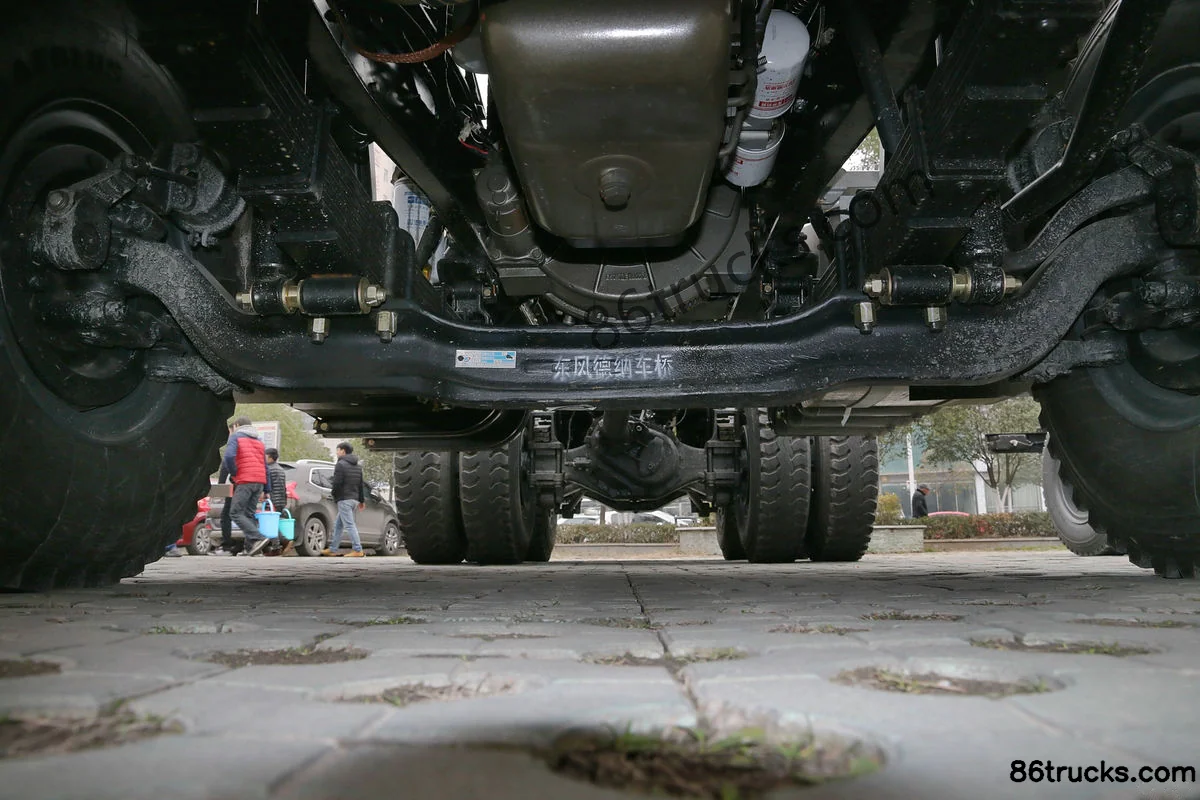

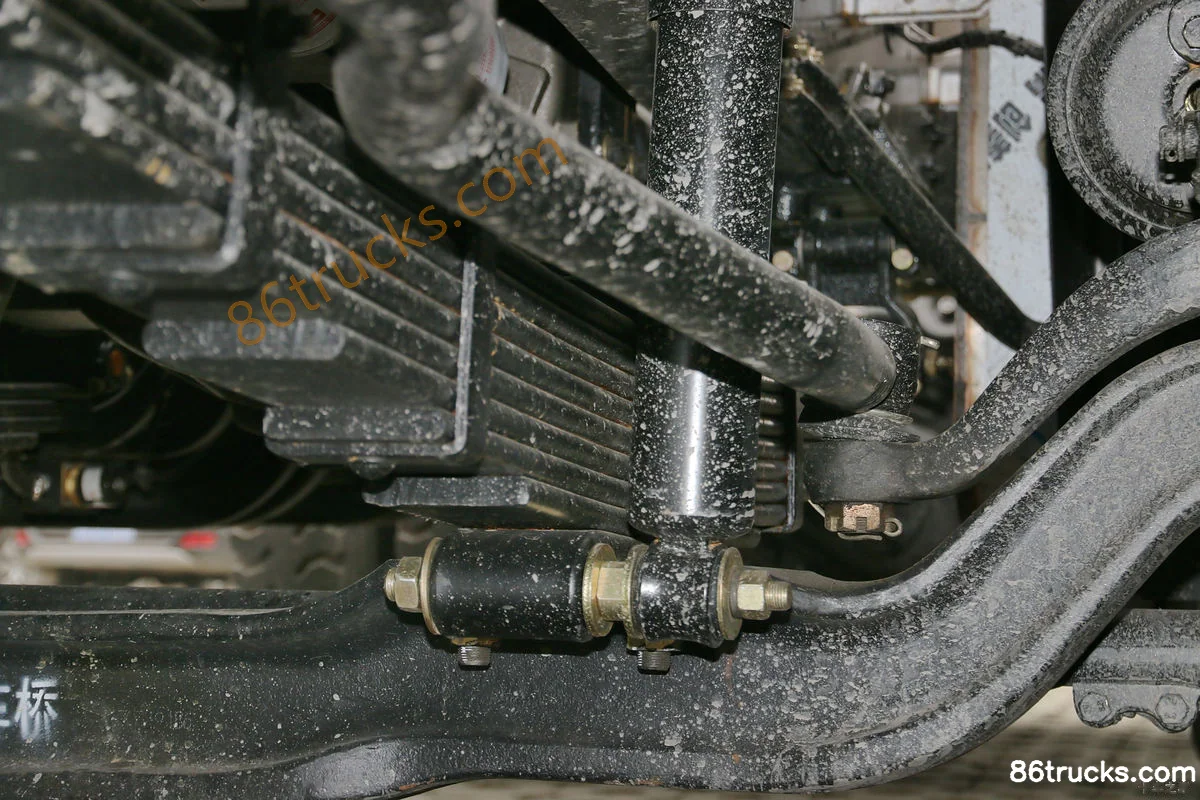

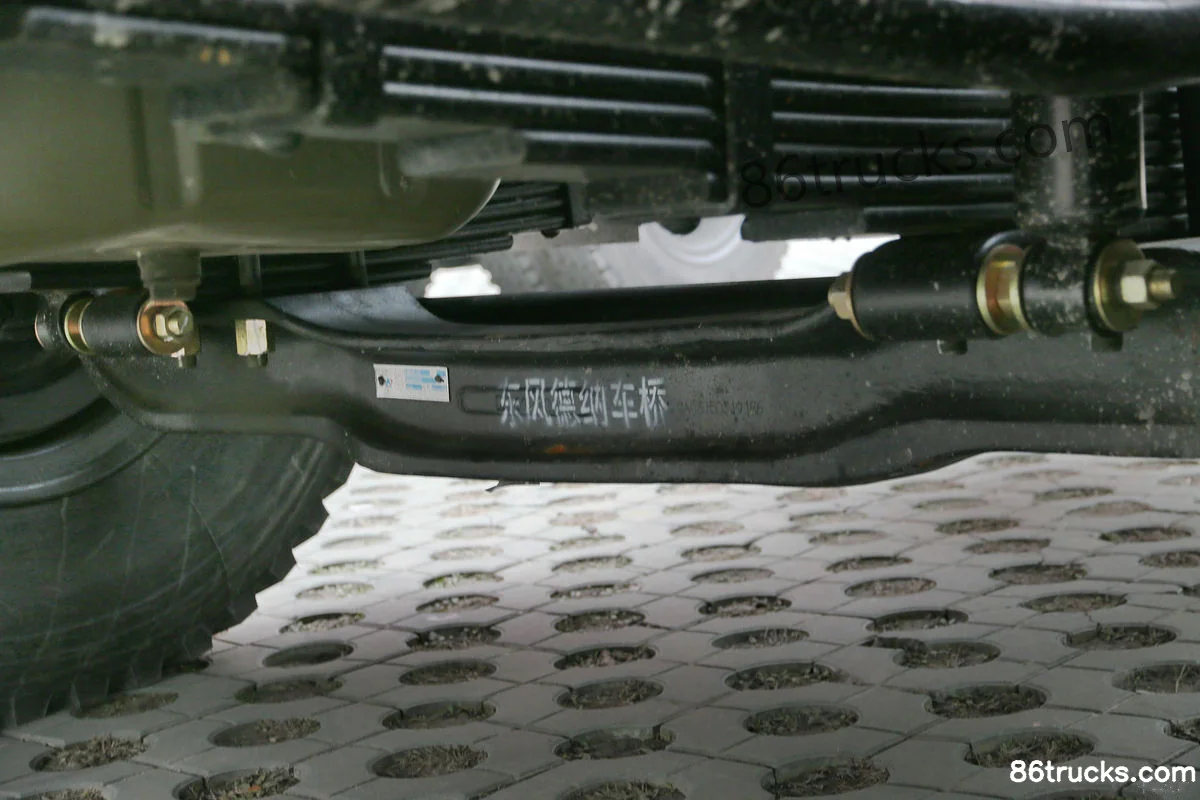

Chassis3

9 photos

FAQ

What emission standard does Dongfeng Yulong 340 hp 6X4(10 wheels) 5.2m Dump Truck Chassis (EQ3258GLJ1) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Yulong 340 hp 6X4(10 wheels) 5.2m Dump Truck Chassis (EQ3258GLJ1)?

Key specs of Dongfeng Yulong 340 hp 6X4(10 wheels) 5.2m Dump Truck Chassis (EQ3258GLJ1): Drive: 6x4; Horsepower: 340 hp; Emission: China IV; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Yulong 340 hp 6X4(10 wheels) 5.2m Dump Truck Chassis (EQ3258GLJ1) suited for?

Dongfeng Yulong 340 hp 6X4(10 wheels) 5.2m Dump Truck Chassis (EQ3258GLJ1) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng Yulong 340 hp 6X4(10 wheels) 5.2m Dump Truck Chassis (EQ3258GLJ1) differ from other variants in the same series?

Dongfeng Yulong 340 hp 6X4(10 wheels) 5.2m Dump Truck Chassis (EQ3258GLJ1) belongs to Dongfeng Yulong (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Yulong 340 hp 6X4(10 wheels) 5.2m Dump Truck Chassis (EQ3258GLJ1)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Yulong 340 hp 6X4(10 wheels) 5.2m Dump Truck Chassis (EQ3258GLJ1)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
