Foton King Kong S1 2.5L Diesel 150hp 4X2(6 wheels) Fast Gear 10-Speed 1092 Rear Axle 3.18m Single Row Dump Truck
EXW
From $13,611
Export quote
Foton Jingang S1 Light Truck Dump Trucks

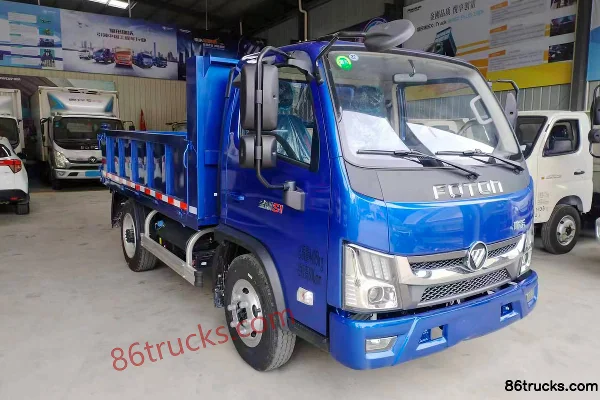

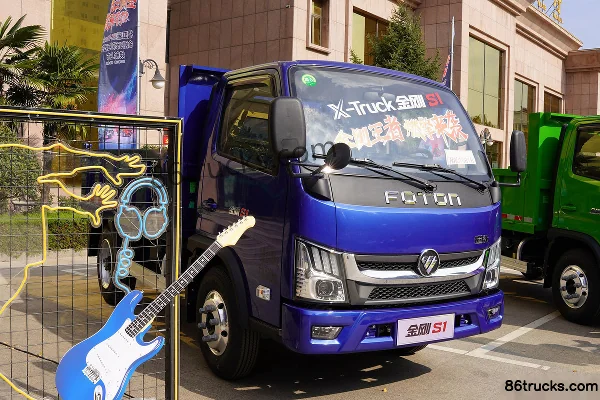

Main model photos
54 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton King Kong S1 2.5L Diesel 150hp 4X2(6 wheels) Fast Gear 10-Speed 1092 Rear Axle 3.18m Single Row Dump Truck | 4x2 / 150hp / China VI | From $13,611 | |
| Foton King Kong S1 2.5L Diesel 150hp 4X2(6 wheels) Fast Gear 10-Speed 3.18m Single Row Dump Truck | 4x2 / 150hp / China VI | From $13,611 | |
| Foton King Kong S1 2.5L Diesel 150hp 4X2(6 wheels) WLY 8-Speed 1092 Rear Axle 3.18m Single Row Dump Truck | 4x2 / 150hp / China VI | From $13,611 | |
| Foton King Kong S1 2.5L Diesel 150hp 4X2(6 wheels) WLY 8-Speed 3.18m Single Row Dump Truck | 4x2 / 150hp / China VI | From $13,611 | |
| Foton King Kong S1 2.5L Diesel 150hp 4X2(6 wheels) Fast Gear 8-Speed 1092 Rear Axle 3.18m Single Row Dump Truck | 4x2 / 150hp / China VI | From $13,611 |
Foton King Kong S1 2.5L Diesel 150hp 4X2(6 wheels) Fast Gear 10-Speed 3.18m Single Row Dump Truck
EXW
From $13,611
Export quote
Foton King Kong S1 2.5L Diesel 150hp 4X2(6 wheels) WLY 8-Speed 1092 Rear Axle 3.18m Single Row Dump Truck
EXW
From $13,611
Export quote
Foton King Kong S1 2.5L Diesel 150hp 4X2(6 wheels) WLY 8-Speed 3.18m Single Row Dump Truck
EXW
From $13,611
Export quote
Foton King Kong S1 2.5L Diesel 150hp 4X2(6 wheels) Fast Gear 8-Speed 1092 Rear Axle 3.18m Single Row Dump Truck
EXW
From $13,611
Export quote
Series Specs
Basic Info
Model code (announced): BJ3045D9JBA-27 / BJ3045D9JBA-34 / BJ3045D9JBA-32 / BJ3045D9PBA-31 / BJ3045D9JBA-31
Drive type: 4X2
Wheelbase: 2800 / 2850mm
Engine Model: Yunnei PowerD25TCIF1 / YuchaiYCF25175-66 / Yunnei PowerDEV200A / QuanchaiH20-120E60 / YCF25175-66 / DEV200A
Transmission Model: Fast Gear10JS90A-B / WLY8GS46 / Fast Gear8JS8571 / 10-speed transmission / IsuzuMSB-5MT / WLYWLY8G45 / 8-speed gearbox / WLY8G45 / 10JS90A-B / 8JS8571
Rear Axle Ratio: 6.833 / 6.142 / 5.833 / 6.167 / 5.286
Cab length: 4.995 / 4.975m
Cab width: 1.96 / 2 / 1730m
Cab height: 2.14 / 2.19 / 2.095 / 2.165m
Front track width: 1550 / 1535mm
rear track: 1740 / 1480 / 1550mm
Curb Weight: 2.72ton
Rated payload: 1.645ton
GVWR: 4.495ton
Origin: Shandong Zhucheng / Weifang
tonnage class: Light Truck
Approach angle: 20°
departure angle: 26 / 25°
Remarks: Optional ratio 6.167. / Optional ratio 6.142.
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power / Quanchai
Number of cylinders: 4cylinder
Displacement: 2.5 / 2.488 / 2.499 / 2L
Emission standard: China VI
Max output power: 110 / 127 / 147 / 90kW
Max hp: 150 / 175 / 200 / 120Horsepower
Max torque: 400 / 325N·m
Max torque speed: 1400-2400 / 2000rpm
Rated speed: 3000 / 3200rpm
Engine Type: Electronic control common rail system HEGR + DOC + DPF + SCR + ASC / Inline 4-cylinder, water-cooled, 4-stroke, turbocharged with intercooler, high-pressure common rail
Transmission Parameters
Transmission Brand: Fast Gear / WLY / Isuzu
shift method: Manual
Forward gears: 10 / 8 / 5Gear
Number of Reverse Gears: 2 / 1pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.18 / 3.15 / 2.9m
Cargo box width: 1.8m
Cargo box height: 0.6 / 0.8 / 0.45 / 0.45/0.6m
Body Parameters
Lifting type: 90 dual lift
FAQ
What kind of truck is Foton Foton Jingang S1 Light Truck Dump Trucks?
Foton Foton Jingang S1 Light Truck is an export-oriented Dump Trucks lineup with about 16 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Foton Jingang S1 Light Truck Dump Trucks?
Foton Jingang S1 Light Truck Dump Trucks export reference is about $13,472 – $20,833. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Foton Jingang S1 Light Truck Dump Trucks cover?
Foton Jingang S1 Light Truck Dump Trucks mainly covers: Drive: 4x2; Horsepower: 150 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Foton Jingang S1 Light Truck Dump Trucks?
For Foton Jingang S1 Light Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Foton Jingang S1 Light Truck Dump Trucks include?
Foton Jingang S1 Light Truck Dump Trucks currently lists about 16 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Foton Jingang S1 Light Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
