Foton King Kong S1 150hp 4X2(6 wheels) 3.15m Dump Truck (Ratio 5.833)

Export reference
From $20,833
MSRP ¥15M CNY
Emission: China VI
Fuel: Diesel
Transmission: WLY
Curb Weight:: 2.72ton
Wheelbase:: 2800mm
Tire Size:: 7.00R16LT 12PR
Rated payload: 1.645ton
Drive 4X2 (6 wheels)
Horsepower 150
Cargo box length: 3.15m

Overview

The Foton King Kong S1 150hp 4X2(6 wheels) 3.15m Dump Truck (Ratio 5.833) is a Light Truck featuring 1.645t payload, 4.495t GVW, 3.15m cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerD25TCIF1 engine, 150 hp, China VI emissions and WLY transmission.

China VI 150 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ3045D9JBA-27
Drive type: 4X2
Wheelbase: 2800mm
engine: Yunnei PowerD25TCIF1
transmission: WLYWLY8G45
Rear Axle Ratio: 5.833
Cab length: 4.995m
Cab width: 1.96m
Cab height: 2.14m
Front track width: 1550mm
rear track: 1740mm
Curb Weight: 2.72ton
Rated payload: 1.645ton
GVWR: 4.495ton
Origin: Shandong Zhucheng
tonnage class: Light Truck
Approach angle: 20°
departure angle: 26°
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD25TCIF1
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.5L
Emission standard: China VI
Max output power: 110kW
Max hp: 150Horsepower
Max torque: 400N·m
Max torque speed: 1400-2400rpm
Rated speed: 3000rpm
Engine Type: Electronic control common rail system HEGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: WLYWLY8G45
Transmission Brand: WLY
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box length: 3.15m
Cargo box width: 1.8m
Cargo box height: 0.45m
Cab parameters
Cab width: 1730mm
seating capacity: 2Personnel
Chassis Specs
Front axle allowable load: 1900kg
rear axle allowable load: 2595kg
Axle ratio: 5.833
Leaf spring count: 3/4+3
Tire
Tire Size: 7.00R16LT 12PR
Number of tires: 4pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Electronic Central Lock:

Photos

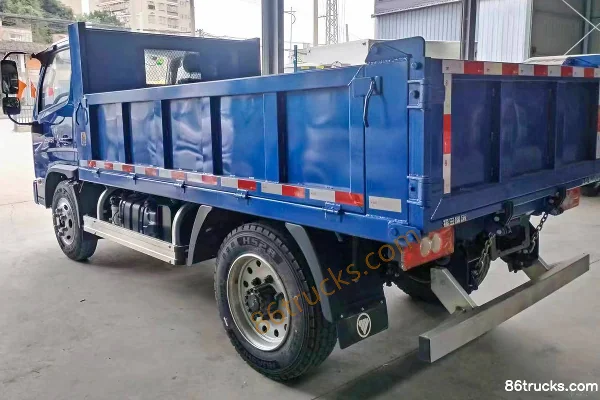

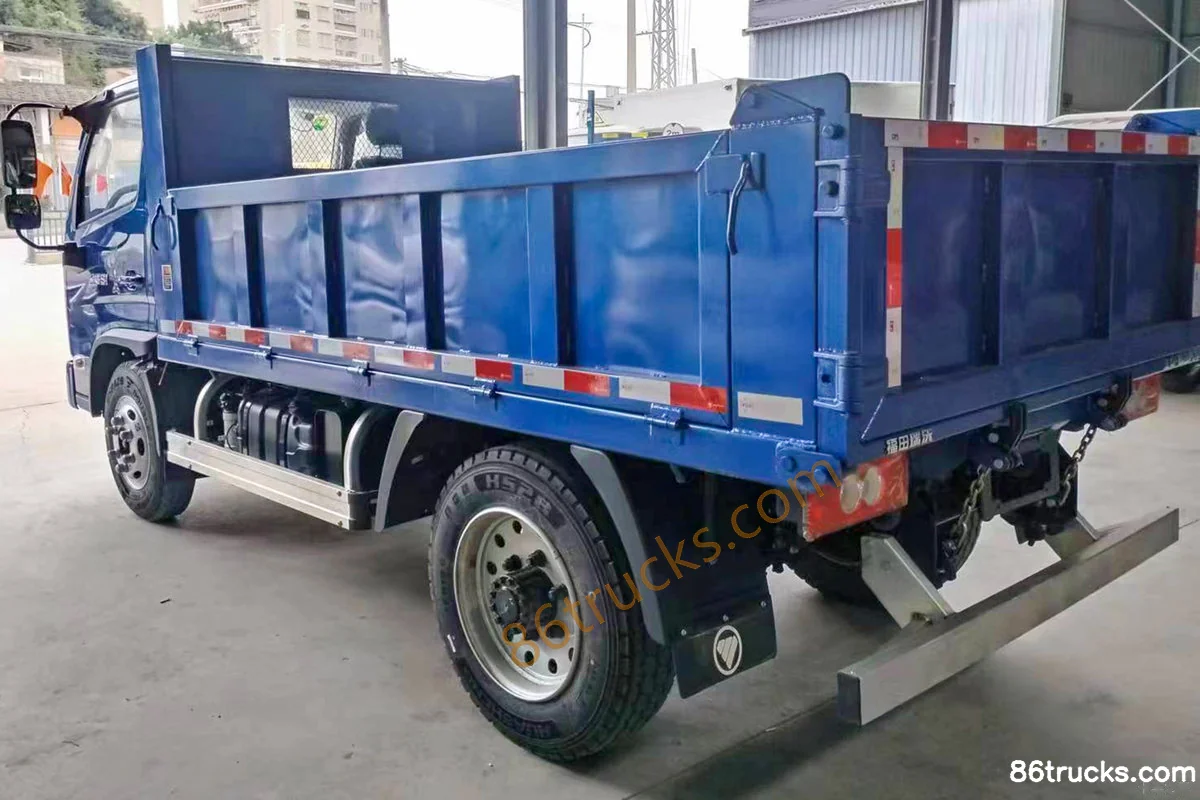

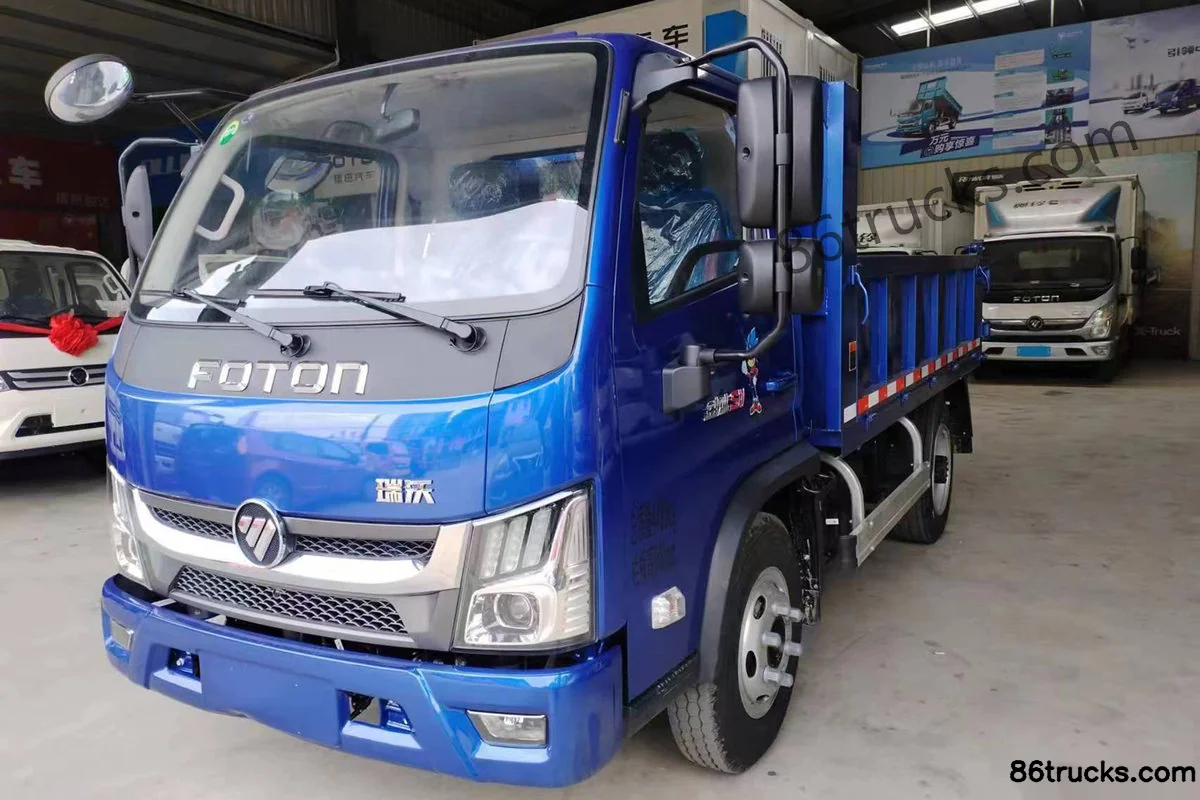

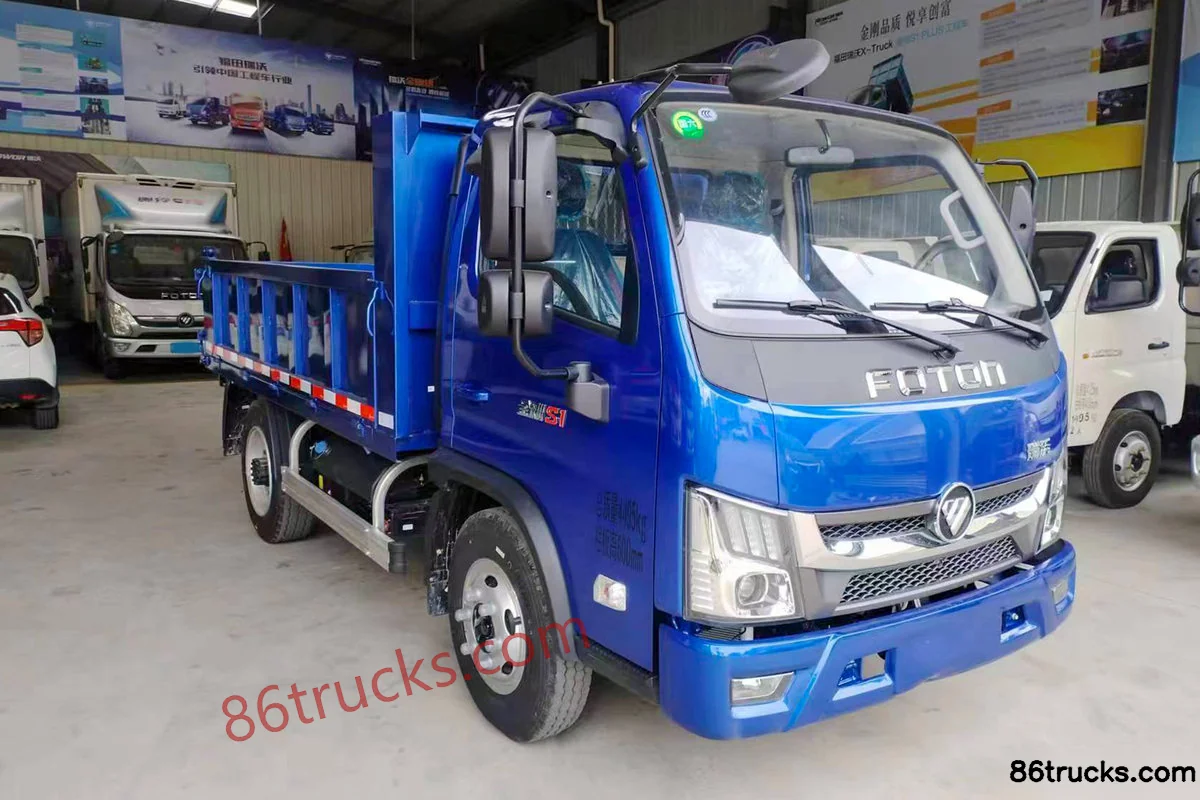

Exterior3

3 photos

FAQ

What is the export price of Foton King Kong S1 150hp 4X2(6 wheels) 3.15m Dump Truck (Ratio 5.833), and what does it include?

Foton King Kong S1 150hp 4X2(6 wheels) 3.15m Dump Truck (Ratio 5.833) export reference is about From $20,833; MSRP is ¥15M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton King Kong S1 150hp 4X2(6 wheels) 3.15m Dump Truck (Ratio 5.833) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton King Kong S1 150hp 4X2(6 wheels) 3.15m Dump Truck (Ratio 5.833)?

Key specs of Foton King Kong S1 150hp 4X2(6 wheels) 3.15m Dump Truck (Ratio 5.833): Drive: 4x2; Horsepower: 150 hp; Emission: China VI; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton King Kong S1 150hp 4X2(6 wheels) 3.15m Dump Truck (Ratio 5.833) suited for?

Foton King Kong S1 150hp 4X2(6 wheels) 3.15m Dump Truck (Ratio 5.833) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Foton King Kong S1 150hp 4X2(6 wheels) 3.15m Dump Truck (Ratio 5.833) differ from other variants in the same series?

Foton King Kong S1 150hp 4X2(6 wheels) 3.15m Dump Truck (Ratio 5.833) belongs to Foton Jingang S1 Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton King Kong S1 150hp 4X2(6 wheels) 3.15m Dump Truck (Ratio 5.833)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton King Kong S1 150hp 4X2(6 wheels) 3.15m Dump Truck (Ratio 5.833)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
