Heibao 3030 series 68 hp 4X2(6 wheels) 2.73m dump truck
EXW
From $8,056
Export quote
Heibao Auto Heibao Mini Truck Dump Trucks
Main model photos
32 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Heibao 3030 series 68 hp 4X2(6 wheels) 2.73m dump truck | 4x2 / 68hp / China IV | From $8,056 | |
| Heibao 3030 Series 68 hp 4X2(6 wheels) 2.73m Dump Truck (Mengwo520) | 4x2 / 68hp / China IV | ||
| Heibao 3036 Series 68 hp 4X2(6 wheels) 2.52m Dump Truck | 4x2 / 68hp / China IV | ||
| Heibao 3030 series 68 hp 4X2(6 wheels) 2.73m dump truck | 4x2 / 68hp / China IV | From $8,056 |
Heibao 3030 Series 68 hp 4X2(6 wheels) 2.73m Dump Truck (Mengwo520)
EXW
Export quote

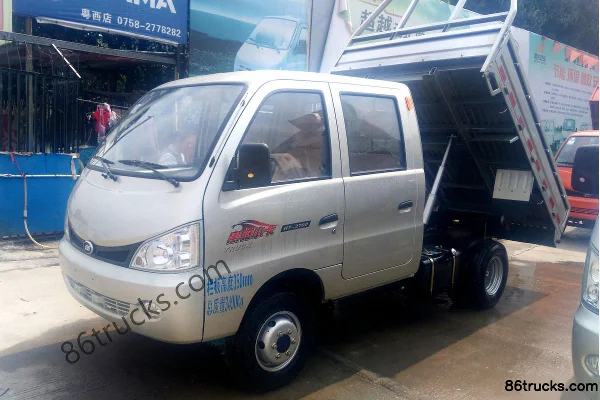

Heibao 3036 Series 68 hp 4X2(6 wheels) 2.52m Dump Truck
EXW
Export quote

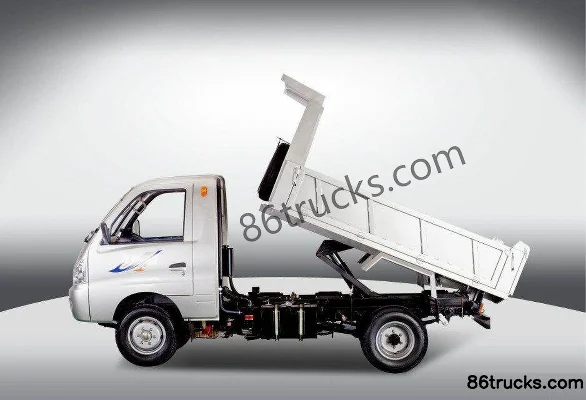

Heibao 3030 series 68 hp 4X2(6 wheels) 2.73m dump truck
EXW
From $8,056
Export quote
Series Specs
Basic Info
Model code (announced): BJ3030D30FS / BJ3030D31FS / WDQ3036W10FW
Drive type: 4X2
Wheelbase: 2500 / 2700mm
Engine Model: Huayuan Laidong4L18CF / Quanchai4A1-68C43
Transmission Model: MengwoLG521 / Mengwo520
Rear Axle Ratio: 5.375
Cab length: 4.53 / 5.03m
Cab width: 1.75 / 1.712m
Cab height: 2.1 / 2.05 / 2.02m
Front track width: 1299 / 1280mm
rear track: 1370 / 1200mm
Curb Weight: 1.87 / 1.8 / 1.67ton
Rated payload: 1.495 / 0.995ton
GVWR: 3.495 / 2.925 / 3.49ton
Origin: Beijing / Weihai, Shandong
tonnage class: mini truck
Approach angle: 29°
departure angle: 27 / 17°
Energy Type: Diesel
Engine parameters
Engine Brand: Huayuan Laidong / Quanchai
Number of cylinders: 4cylinder
Displacement: 1.809L
Emission standard: China IV
Max output power: 50kW
Max hp: 68Horsepower
Max torque: 170N·m
Max torque speed: 2000-2400 / 1800rpm
Rated speed: 3200rpm
Engine Type: Direct injection high-pressure common rail, turbocharged & intercooled, EGR (intercooled), aftertreatment (DOC) / Inline, vertical, water-cooled, high-pressure common rail, turbocharged intercooled
Transmission Parameters
Transmission Brand: Mengwo
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 2.73 / 2.52m
Cargo box width: 1.58 / 1.59m
Cargo box height: 0.44 / 0.35m
Cab parameters
Cab: Single Row / Double cab
fuel tank
Fuel tank capacity: 50 / 45L
Chassis Specs
Front axle allowable load: 1325kg
FAQ
What kind of truck is Heibao Auto Heibao Mini Truck Dump Trucks?
Heibao Auto Heibao Mini Truck is an export-oriented Dump Trucks lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Heibao Auto Heibao Mini Truck Dump Trucks?
Heibao Auto Heibao Mini Truck Dump Trucks export reference is about From $8,056. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Heibao Auto Heibao Mini Truck Dump Trucks cover?
Heibao Auto Heibao Mini Truck Dump Trucks mainly covers: Drive: 4x2; Horsepower: 68 hp; Emission: China IV; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Heibao Auto Heibao Mini Truck Dump Trucks?
For Heibao Auto Heibao Mini Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Heibao Auto Heibao Mini Truck Dump Trucks include?
Heibao Auto Heibao Mini Truck Dump Trucks currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Heibao Auto Heibao Mini Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
