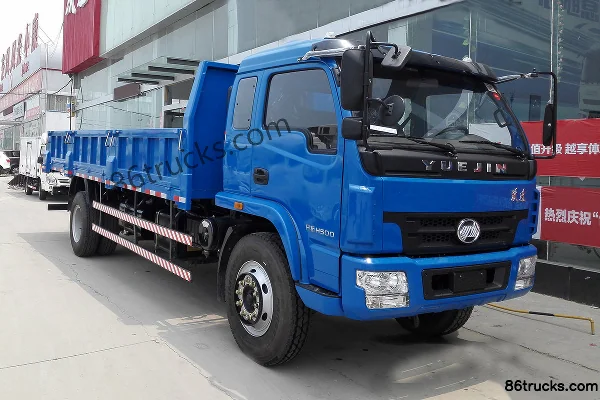

Yuejin Kaituo H500 Multi-Purpose Type 102hp 4X2(6 wheels) 4.2m Dump Truck
EXW
Export quote
Yuejin Kaituo H500 Light Truck Dump Trucks
Main model photos
22 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Yuejin Kaituo H500 Multi-Purpose Type 102hp 4X2(6 wheels) 4.2m Dump Truck | 4x2 / 102hp / China V | ||
| Yuejin Kaituo H500 Multi-Purpose Type 102hp 4X2(6 wheels) 3.8m Dump Truck | 4x2 / 102hp / China V | ||
| Yuejin Kaituo H500 Heavy-Duty Transport Type 130hp 4X2(6 wheels) 5.2m Dump Truck | 4x2 / 130hp / China V | ||
| Yuejin Kaituo H500 Transport 130hp 4X2(6 wheels) 5.2m dump truck | 4x2 / 130hp / China V | ||
| Yuejin Kaituo H500 Transport 130hp 4X2(6 wheels) 4.6m dump truck | 4x2 / 130hp / China V |
Yuejin Kaituo H500 Multi-Purpose Type 102hp 4X2(6 wheels) 3.8m Dump Truck
EXW
Export quote
Yuejin Kaituo H500 Heavy-Duty Transport Type 130hp 4X2(6 wheels) 5.2m Dump Truck
EXW
Export quote
Yuejin Kaituo H500 Transport 130hp 4X2(6 wheels) 5.2m dump truck
EXW
Export quote
Yuejin Kaituo H500 Transport 130hp 4X2(6 wheels) 4.6m dump truck
EXW
Export quote
Series Specs
Basic Info
Model code (announced): SH3082VEDCNZ / SH3162VHDCWW4 / SH3162VGDCMW / SH3042VFDCMW1 / SH3162VPDCWW4 / NJ3101VHDCWW4 / NJ3161VGDCWW / NJ3161VPDCWW4 / NJ3250VGDDWW4
Drive type: 4X2 / 6X2
Wheelbase: 3300 / 4100 / 3850 / 3500 / 3400 / 5150 / 3600 / 1730+3610mm
Engine Model: Yunnei PowerYN33CRE2 / YuchaiYC4S130-50 / WeichaiWP4.1Q140E50 / YuchaiYC4D130-41 / YuchaiYC4D130-45 / YuchaiYC4E160-45
Transmission Model: WLYWLY530HF / Fast Gear8JS55E / Fast Gear8JS85E / Changtai SC8T50C / WLYWLY545HF / 8S60 / WLYWLY985
Cab length: 5.995 / 7.6 / 6.99 / 6.33 / 6.145 / 8.995 / 6.53 / 9.455m
Cab width: 2.18 / 2.48 / 2.43 / 2.28 / 2.4 / 2.5m
Cab height: 2.5 / 2.63 / 2.66 / 2.86 / 2.6 / 2.9 / 2.85m
Front track width: 1650 / 1835 / 1740 / 1940 / 1824 / 1800/1800mm
rear track: 1540 / 1800 / 1725 / 1860 / 1650 / 1750mm
Curb Weight: 3.16 / 7.605 / 2.725 / 4.8 / 11.805ton
Rated payload: 4.925 / 7.995 / 1.577 / 4.995 / 12.75ton
GVWR: 8.28 / 15.795 / 4.497 / 9.99 / 24.75ton
Origin: Nanjing, Jiangsu
tonnage class: Light Truck
Approach angle: 21 / 30 / 29°
departure angle: 17 / 13 / 14 / 26°
Remarks: Seats 3 / Seats 3, cab with forward tilt, power steering, spare tire included
Version: Dual-purpose / Heavy-haul transport type / Transport type / Heavy-duty type
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power / Yuchai / Weichai
Number of cylinders: 4cylinder
Displacement: 3.298 / 3.767 / 4.088 / 4.214 / 4.26L
Emission standard: China V / China IV
Max output power: 75 / 96 / 103 / 118kW
Max hp: 102 / 130 / 140 / 160Horsepower
Max torque: 265 / 430 / 450 / 420 / 550N·m
Max torque speed: 1600-2400 / 1300-1800 / 1400-1800 / 1300-1600rpm
Rated speed: 3200 / 2600 / 2800rpm
Engine Type: 4-cylinder inline, 8-valve, turbocharged intercooled, high-pressure common rail fuel injection / Vertical, inline, water-cooled, four-stroke / Common Rail+SCR / Electronic unit pump SCR / Electronic unit pump EGR + POC + DOC / Vertical, inline 4-cylinder, water-cooled, 4-stroke, electronic direct injection
Transmission Parameters
Transmission Brand: WLY / Fast Gear / Changtai
shift method: Manual
Forward gears: 5 / 8Gear
Number of Reverse Gears: 1 / 2pcs
Cargo box parameters
hydraulic cylinder brand & model: 90 / 180 / 160
Unloading Type: Dump type / Rear-dump body
Cargo box thickness: floor 2.5mm side 1.5mm / floor 4mm side 3mm
Cargo box length: 4.2 / 3.8 / 5.2 / 4.6 / 4 / 6.5 / 6.7m
Cargo box width: 2 / 2.25 / 2.2 / 2.1 / 2.28m
Body Parameters
Lifting type: Double Lift Cylinder / Construction top / 180 engineering top / 160 construction top / 160 front-mounted lift
FAQ
What kind of truck is Yuejin Yuejin Kaituo H500 Light Truck Dump Trucks?
Yuejin Yuejin Kaituo H500 Light Truck is an export-oriented Dump Trucks lineup with about 13 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Yuejin Kaituo H500 Light Truck Dump Trucks?
Yuejin Kaituo H500 Light Truck Dump Trucks export reference is about $21,111 – $23,889. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Yuejin Kaituo H500 Light Truck Dump Trucks cover?
Yuejin Kaituo H500 Light Truck Dump Trucks mainly covers: Drive: 4x2; Horsepower: 102 hp / 130 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Yuejin Kaituo H500 Light Truck Dump Trucks?
For Yuejin Kaituo H500 Light Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Yuejin Kaituo H500 Light Truck Dump Trucks include?
Yuejin Kaituo H500 Light Truck Dump Trucks currently lists about 13 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Yuejin Kaituo H500 Light Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
