CHUANJIAO 160 hp 4X2(6 wheels) 4.2m dump truck
EXW
From $20,667
Export quote
CHUANJIAO medium truck Dump Trucks
Main model photos
220 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| CHUANJIAO 160 hp 4X2(6 wheels) 4.2m dump truck | 4x2 / 160hp / China V | From $20,667 | |
| CHUANJIAO 220 hp 6X2(8 wheels) 5.8m dump truck | 6x2 / 220hp / China V | From $27,056 | |
| CHUANJIAO 280 hp 8X4(12 wheels) 6.8m Dump Truck | 8x4 / 280hp / China V | ||
| CHUANJIAO 180 hp 6X2(8 wheels) 4.8m Dump Truck | 6x2 / 180hp / China V | From $25,667 | |
| CHUANJIAO 160hp 4X2(6 wheels) 4m dump truck (wide body) | 4x2 / 160hp / China V | From $19,972 |

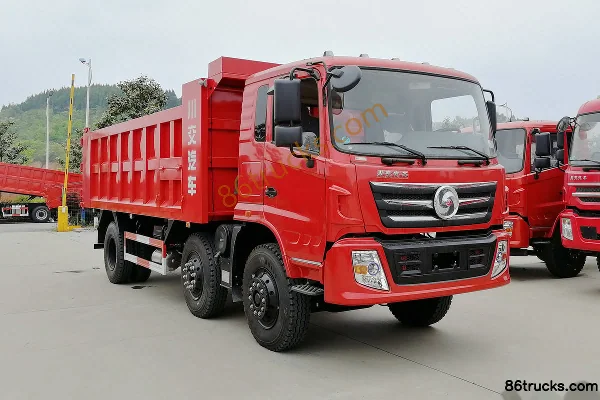

CHUANJIAO 220 hp 6X2(8 wheels) 5.8m dump truck
EXW
From $27,056
Export quote

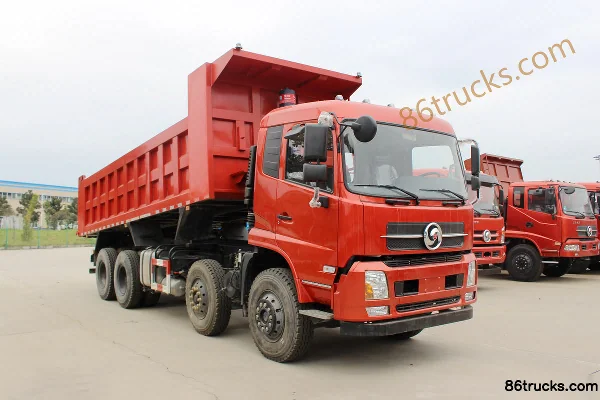

CHUANJIAO 280 hp 8X4(12 wheels) 6.8m Dump Truck
EXW
Export quote
CHUANJIAO 180 hp 6X2(8 wheels) 4.8m Dump Truck
EXW
From $25,667
Export quote
CHUANJIAO 160hp 4X2(6 wheels) 4m dump truck (wide body)
EXW
From $19,972
Export quote
Series Specs
Basic Info
Model code (announced): CJ3160D5AB / CJ3250D5CC / CJ3310D5FB / CJ3250D5CB / CJ3041D5AB / CJ3040D5AB / CJ3040D4UA / CJ3129D48A / CJ3129D4SA / CJ3250D41E / CJ3250D41C / CJ3250D4TB / CJ3030HBB34D / CJ3310D4RD
Drive type: 4X2 / 6X2 / 8X4 / 6X6 / 6X4
Wheelbase: 3600 / 1800+3400 / 1800+3000+1350 / 1800+2800 / 3800 / 3400 / 3300 / 3900 / 4700 / 3600+1300 / 3600+1350 / 1950+3400 / 1800+3300+1350mm
Engine Model: YuchaiYC4E160-56 / YuchaiYC6JA220-50 / YuchaiYC6L280-50 / YuchaiYC6JA180-50 / YuchaiYC4EG185-50 / YuchaiYCD4F4S-130 / WeichaiWP7.300E51 / YuchaiYC4E160-45 / YuchaiYC4E160-42 / YuchaiYC4E140-42 / YuchaiYC6J220-42 / YuchaiYC6A260-40 / YuchaiYC6J180-42 / YuchaiYC4FA90-40 / WeichaiWP7.270E40
Transmission Model: Fast Gear10JS90A / Fast Gear8JS118 / Fast Gear10JSD120B / Fast Gear 10-Speed / WLY 6-speed with auxiliary 653 / Fast Gear 8-speed / Fast Gear8JS85F / WLY 6-speed / Fast Gear9JS119 / WLYWLY6-speed / Fast Gear8JS85E
Rear Axle Ratio: 6.5 / 4.875 / 5.57 / 6.83 / 6.33 / 6.72 / 5.571
Cab length: 6.78 / 8.6 / 9.62 / 7.6 / 5.995 / 7.08 / 5.965 / 6.98 / 7.9 / 7.34 / 7.85 / 8 / 8.56 / 5.45 / 9.48 / 6.68 / 9.23m
Cab width: 2.49 / 2.55 / 2.5 / 2.44 / 2.45 / 2.34 / 2.35 / 2.48 / 2.02m
Cab height: 3.15 / 3.86 / 3.5 / 2.98 / 2.7 / 2.45 / 3.16 / 3.163 / 3.2 / 3.35 / 3.25 / 3.19 / 2.6m
Front track width: 1970 / 1875/1875 / 1970/1970 / 1875 / 1740 / 1825/1825 / 1770 / 1940 / 1920 / 1910/1910 / 1590 / 2021/2021mm
rear track: 1860 / 1750 / 1860/1860 / 1650 / 1700 / 1640 / 1800/1800 / 1540mm
Curb Weight: 7.855 / 11.905 / 14.77 / 8.5 / 2.6 / 2.58 / 6.76 / 11.93 / 1.995ton
Rated payload: 7.95 / 12.9 / 16.035 / 16.305 / 1.495 / 4.995 / 12.875 / 0.93 / 16.1ton
GVWR: 16 / 25 / 31 / 4.29 / 4.27 / 11.95 / 3.12ton
Origin: Shiyan, Hubei
tonnage class: Medium-duty truck / Heavy truck
Approach angle: 20 / 24 / 25 / 30 / 34 / 26°
departure angle: 19 / 21 / 22 / 25 / 23 / 20 / 32 / 16°
Remarks: Standard: Hydraulic tilt, dual hydraulic lift, three-way opening, center double lift; Optional: A/C, air-suspension seat, sun visor, anti-collision beam, extension plate, front lift. / Standard hydraulic lift, automatic slack adjuster, B2D3 high-strength plate; optional air conditioning, air-suspension seat, anti-collision beam, cargo box construction, flat roof cab, sun visor. / Standard: Hydraulic tilt, single hydraulic lift, three-way opening, B2D3 high-strength plate, 130 front lift; Optional: A/C, air-suspension seat, anti-collision beam, 140 front lift, aluminum fuel tank. / Standard: Hydraulic mechanical tilt, dual hydraulic lift, B3D4, three-way opening, 130 front lift; Optional: A/C, air-suspension seat, anti-collision beam, extension plate, center lift, center double lift. / Standard: Hydraulic mechanical tilt, single hydraulic lift, three-way opening, B2D3 high-strength plate, 140 front lift; Optional: A/C, air-suspension seat, anti-collision beam, extension plate, 160 front lift. / Optional WLY6-speed with auxiliary
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai / Weichai
Number of cylinders: 4 / 6cylinder
Displacement: 4.26 / 6.87 / 8.424 / 4.73 / 3.922 / 7.47 / 6.494 / 7.255 / 2.982 / 7.14L
Emission standard: China V / China IV
Max output power: 118 / 162 / 206 / 132 / 136 / 97 / 220 / 103 / 191 / 66 / 199kW
Max hp: 160 / 220 / 280 / 180 / 185 / 130 / 300 / 140 / 260 / 90 / 270Horsepower
Max torque: 600 / 860 / 1100 / 700 / 430 / 1250 / 550 / 800 / 1000 / 650 / 240N·m
Max torque speed: 1300-1600 / 1200-1800 / 1200-1700 / 1300-1800 / 1500-1950 / 1400-1600 / 1600-2400 / 1200-1600rpm
Rated speed: 2600 / 2300 / 2200 / 2500 / 2800 / 3200rpm
Engine Type: Vertical, inline, water-cooled, four-stroke / Vertical, Water-cooled, Four-stroke, Inline six-cylinder, Electronically controlled direct injection / Vertical, inline, water-cooled, four-stroke, high-pressure common rail / Inline 6-cylinder, electronic high-pressure common rail, SCR / Vertical, inline 4-cylinder, water-cooled, 4-stroke, electronic direct injection / Vertical, inline 6-cylinder, water-cooled, 4-stroke, electronic direct injection / BOSCH high-pressure common rail SCR / BOSCH common rail EGR+POC+DOC / Electronic high-pressure common rail + SCR
Transmission Parameters
Transmission Brand: Fast Gear / WLY
shift method: Manual
Forward gears: 10 / 8 / 6 / 9Gear
Number of Reverse Gears: 2 / 1pcs
Cargo box parameters
hydraulic cylinder brand & model: 160
Unloading Type: Dump type
Cargo box type: square box / Dump type
Cargo box length: 4.2 / 5.8 / 6.8 / 4.8 / 4 / 4.5 / 3.75 / 3.8 / 3.6 / 3.85 / 5.4 / 5.7 / 7.1m
Cargo box width: 2.3 / 2.25 / 2.1 / 2.2 / 2.345m
Body Parameters
Lifting type: Front lift cylinder / Hydraulic lifting / Dual hydraulic lift / 125 front lift
FAQ
What kind of truck is CHUANJIAO CHUANJIAO medium truck Dump Trucks?
CHUANJIAO CHUANJIAO medium truck is an export-oriented Dump Trucks lineup with about 30 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for CHUANJIAO medium truck Dump Trucks?
CHUANJIAO medium truck Dump Trucks export reference is about $16,639 – $36,361. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does CHUANJIAO medium truck Dump Trucks cover?
CHUANJIAO medium truck Dump Trucks mainly covers: Drive: 4x2 / 6x2 / 8x4; Horsepower: 160 hp / 180 hp / 220 hp / 280 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in CHUANJIAO medium truck Dump Trucks?
For CHUANJIAO medium truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does CHUANJIAO medium truck Dump Trucks include?
CHUANJIAO medium truck Dump Trucks currently lists about 30 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for CHUANJIAO medium truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
