CHUANJIAO 280 hp 8X4(12 wheels) 6.8m Dump Truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 14.77ton
Wheelbase:: 1800+3000+1350mm
Tire Size:: 11.00R20
CHUANJIAO 280 hp 8X4(12 wheels) 6.8m Dump Truck exterior
View more photos (9)
Rated payload: 16.035ton
Drive 8X4 (12 wheels)
Horsepower 280
Cargo box type: Dump type

Overview

The CHUANJIAO 280 hp 8X4(12 wheels) 6.8m Dump Truck is a Heavy truck featuring 16.035t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a YuchaiYC6L280-50 engine, 280 hp, China V emissions and Fast Gear transmission.

China V 280 Diesel 8X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): CJ3310D5FB
Drive type: 8X4
Wheelbase: 1800+3000+1350mm
engine: YuchaiYC6L280-50
transmission: Fast Gear10JSD120B
Rear Axle Ratio: 5.57
Cab length: 9.62m
Cab width: 2.5m
Cab height: 3.15m
Front track width: 1970/1970mm
rear track: 1860/1860mm
Curb Weight: 14.77ton
Rated payload: 16.035ton
GVWR: 31ton
Origin: Shiyan, Hubei
tonnage class: Heavy truck
Approach angle: 24°
departure angle: 22°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6L280-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 8.424L
Emission standard: China V
Max output power: 206kW
Max hp: 280Horsepower
Max torque: 1100N·m
Max torque speed: 1200-1700rpm
Rated speed: 2200rpm
Engine Type: Vertical, Water-cooled, Four-stroke, Inline six-cylinder, Electronically controlled direct injection
Transmission Parameters
Transmission Model: Fast Gear10JSD120B
Transmission Brand: Fast Gear
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 6.8m
Cargo box width: 2.3m
Cargo box height: 1.19m
Cab parameters
Cab suspension: Four-point air suspension
Chassis Specs
Front axle allowable load: 6500/6500kg
Frame Dimensions: 300(8+6)mm
rear axle description: 153 Shortened Axle
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.57
Leaf spring count: 9/10/8
Tire
Tire Size: 11.00R20
Number of tires: 12pcs
Control configuration
ABS:
Multimedia features
GPS/Beidou driving recorder:

Photos

Exterior3

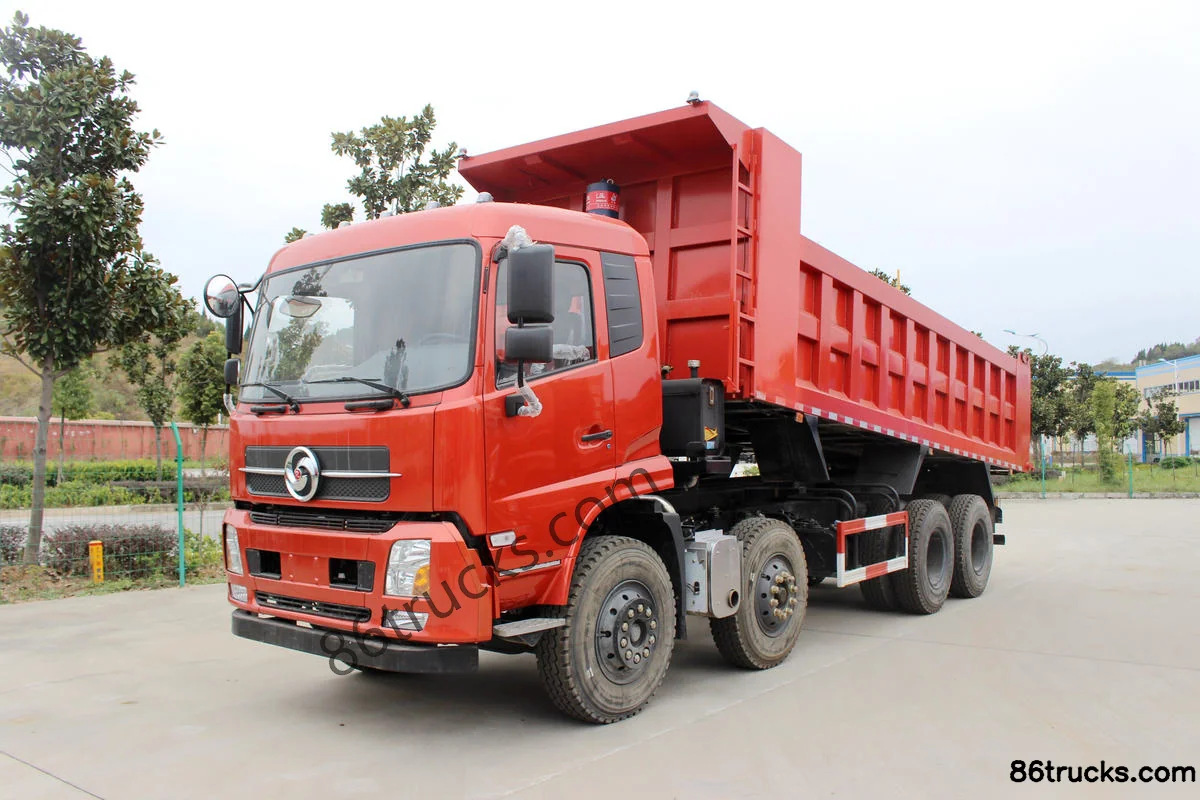

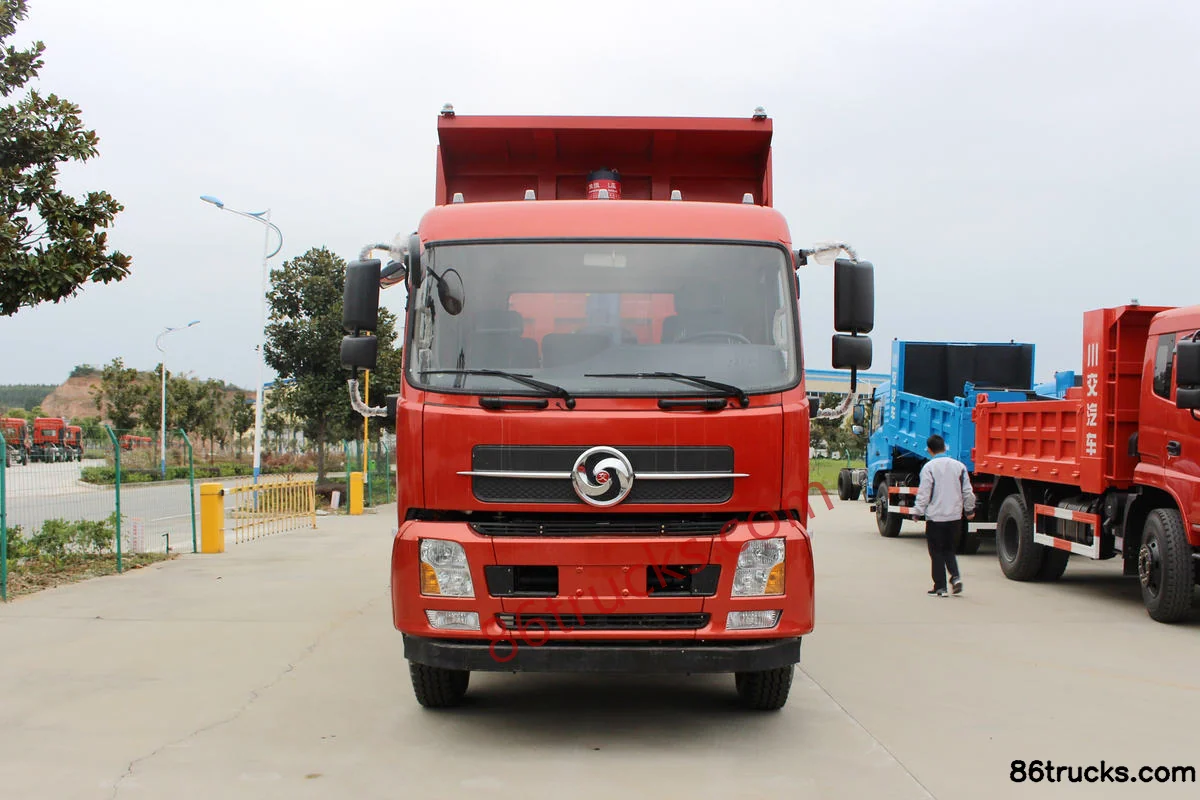

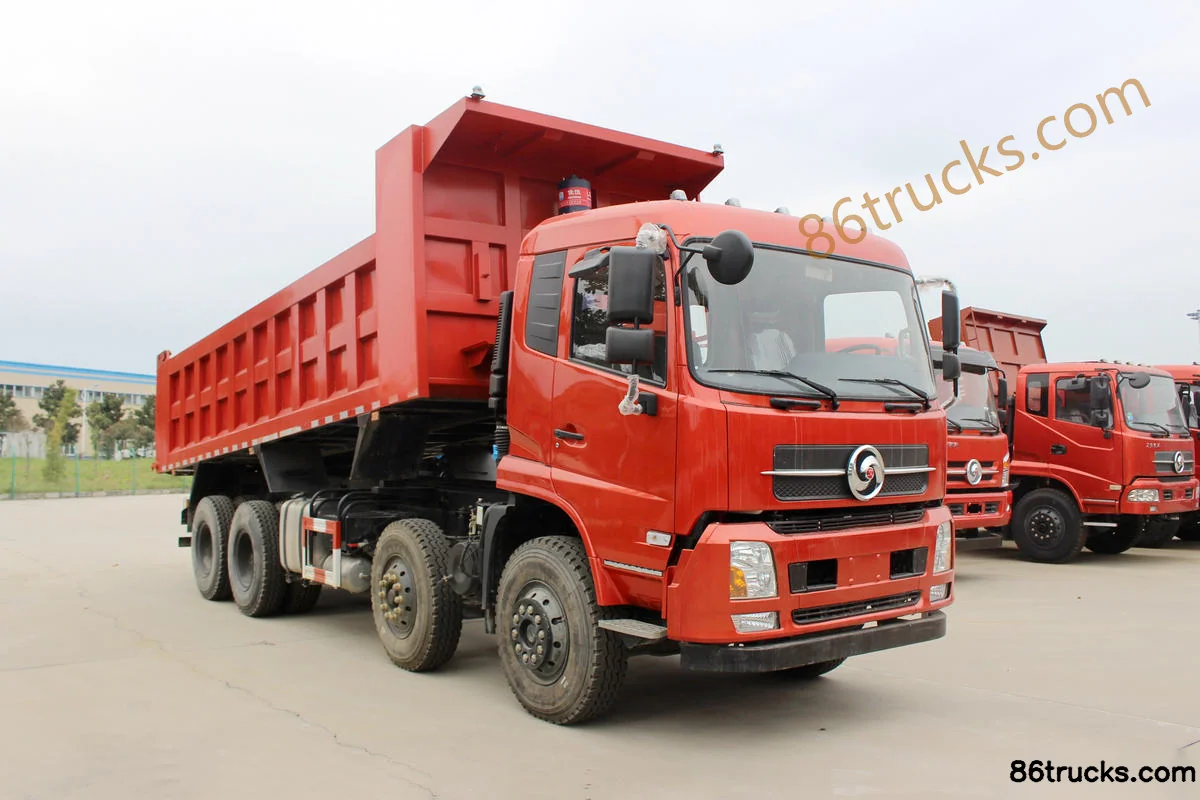

CHUANJIAO 280 hp 8X4(12 wheels) 6.8m Dump Truck Exterior (1) | 86Trucks CHUANJIAO 280 hp 8X4(12 wheels) 6.8m Dump Truck Exterior (2) | 86Trucks CHUANJIAO 280 hp 8X4(12 wheels) 6.8m Dump Truck Exterior (3) | 86Trucks

Cab3

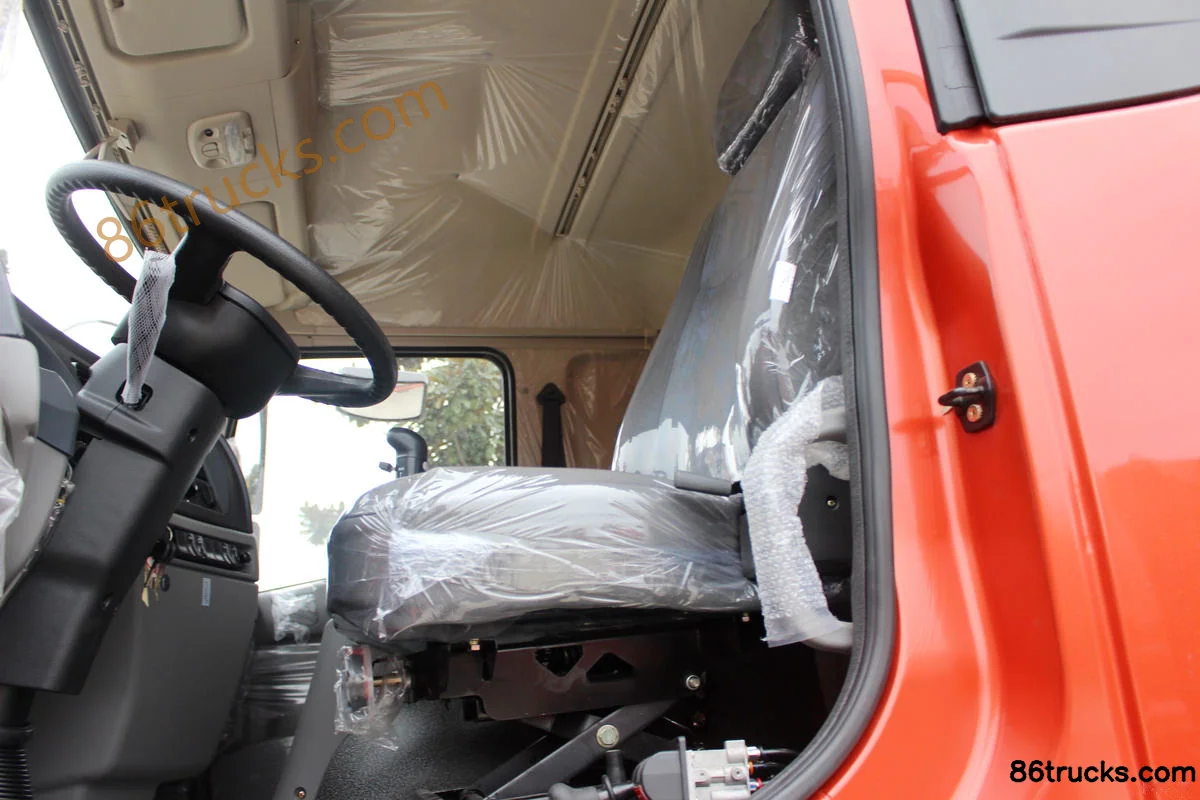

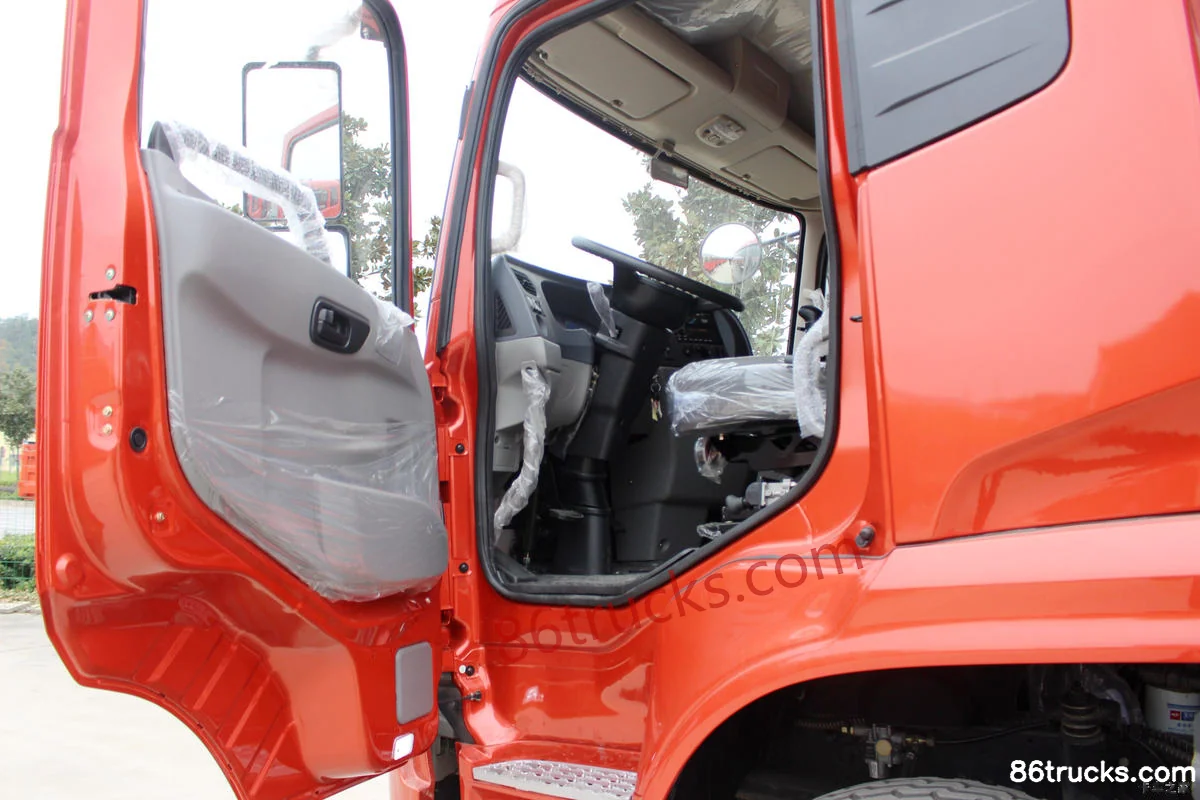

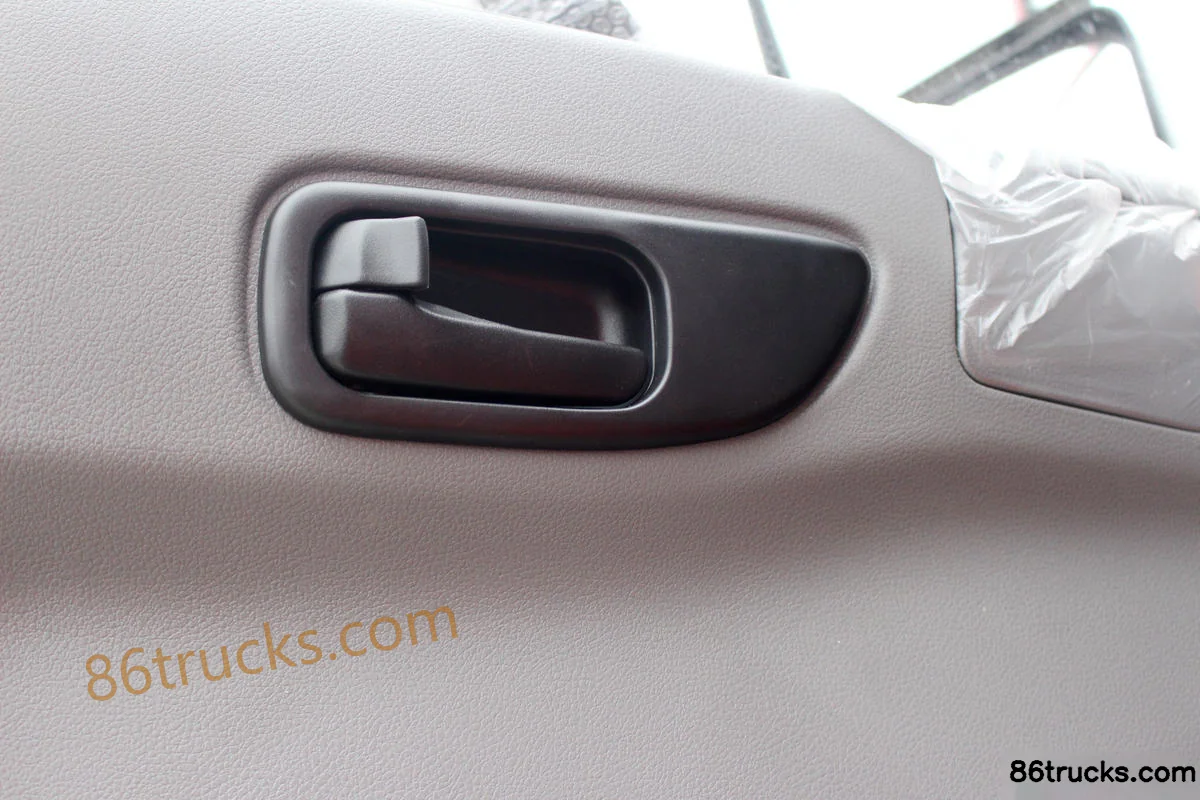

CHUANJIAO 280 hp 8X4(12 wheels) 6.8m Dump Truck Cab (1) | 86Trucks CHUANJIAO 280 hp 8X4(12 wheels) 6.8m Dump Truck Cab (2) | 86Trucks CHUANJIAO 280 hp 8X4(12 wheels) 6.8m Dump Truck Cab (3) | 86Trucks

Chassis3

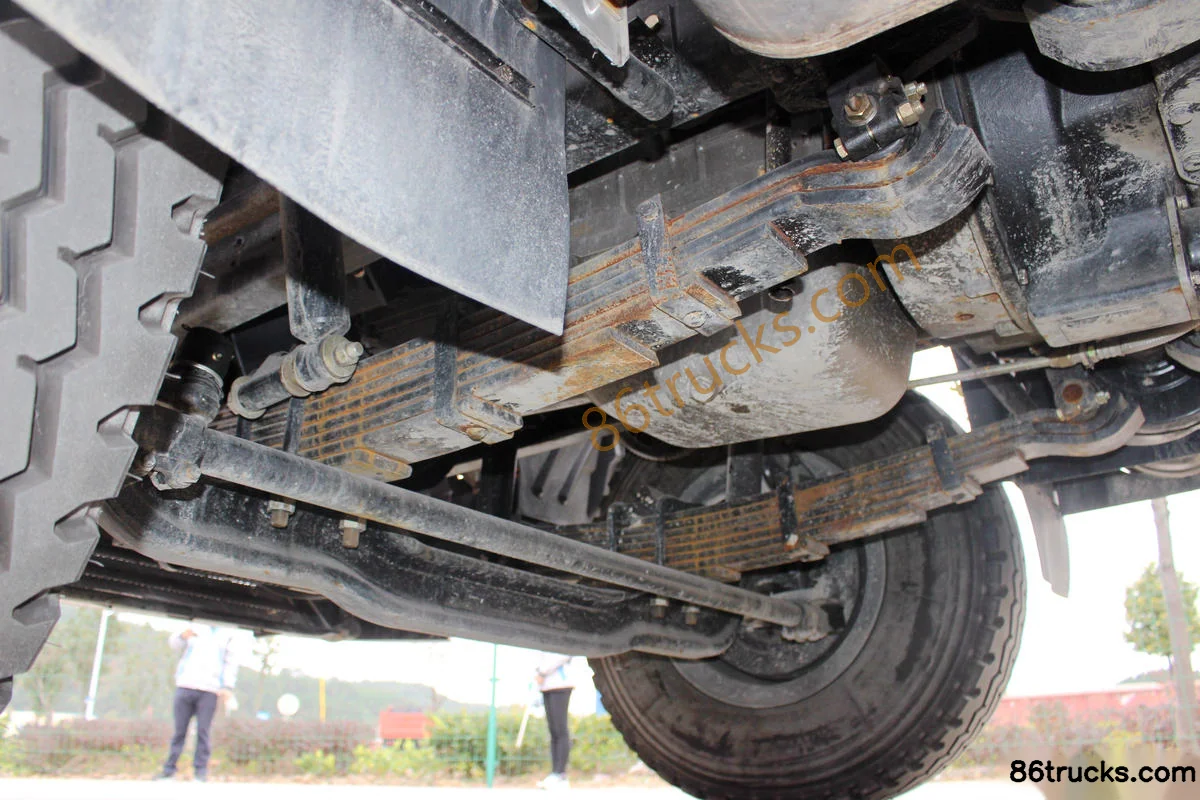

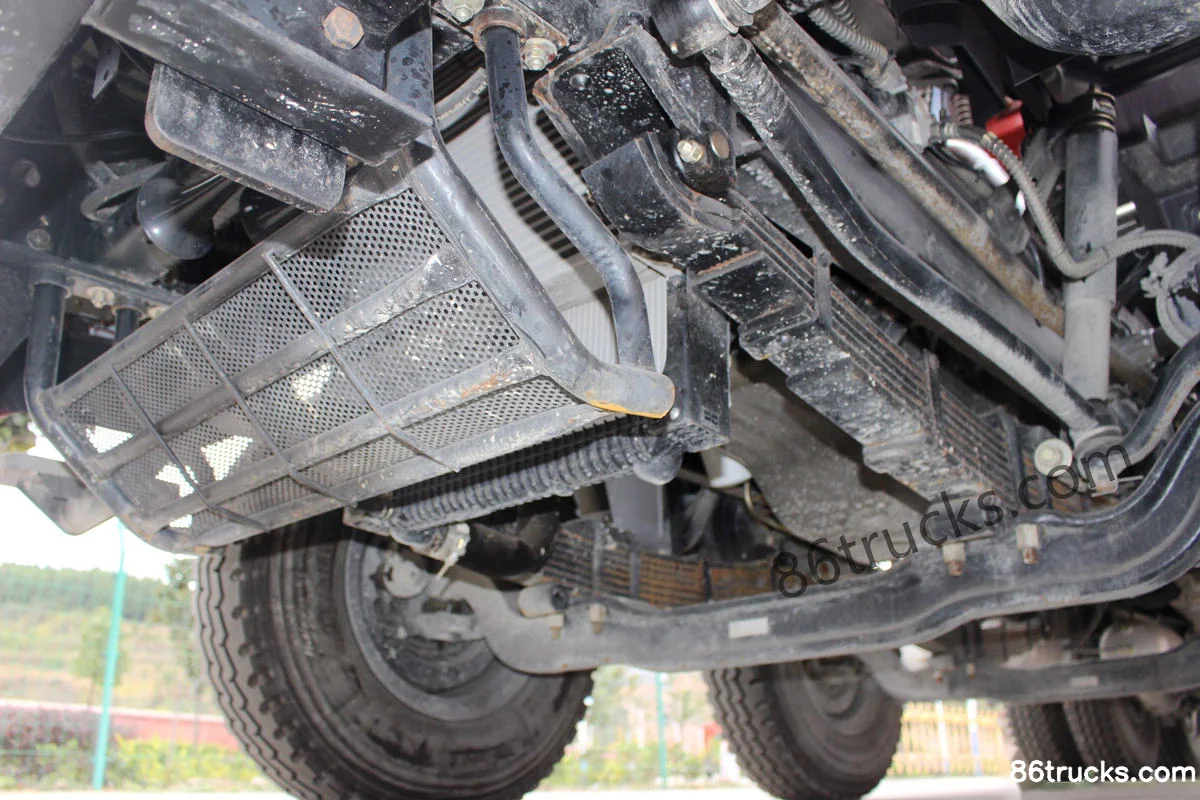

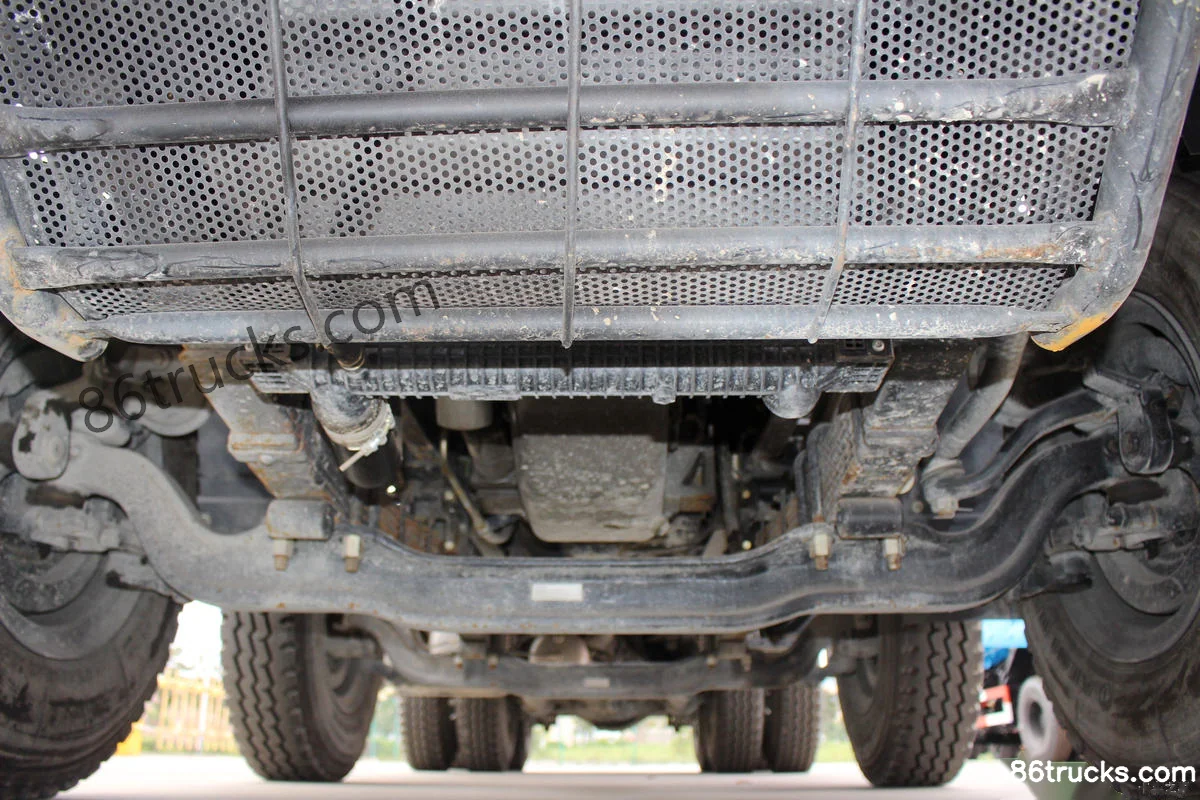

CHUANJIAO 280 hp 8X4(12 wheels) 6.8m Dump Truck Chassis (1) | 86Trucks CHUANJIAO 280 hp 8X4(12 wheels) 6.8m Dump Truck Chassis (2) | 86Trucks CHUANJIAO 280 hp 8X4(12 wheels) 6.8m Dump Truck Chassis (3) | 86Trucks

9 photos

FAQ

What emission standard does CHUANJIAO 280 hp 8X4(12 wheels) 6.8m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of CHUANJIAO 280 hp 8X4(12 wheels) 6.8m Dump Truck?

Key specs of CHUANJIAO 280 hp 8X4(12 wheels) 6.8m Dump Truck: Drive: 8x4; Horsepower: 280 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is CHUANJIAO 280 hp 8X4(12 wheels) 6.8m Dump Truck suited for?

CHUANJIAO 280 hp 8X4(12 wheels) 6.8m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does CHUANJIAO 280 hp 8X4(12 wheels) 6.8m Dump Truck differ from other variants in the same series?

CHUANJIAO 280 hp 8X4(12 wheels) 6.8m Dump Truck belongs to CHUANJIAO medium truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for CHUANJIAO 280 hp 8X4(12 wheels) 6.8m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export CHUANJIAO 280 hp 8X4(12 wheels) 6.8m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
