FAW Linghe F200G 375hp 6X4(10 wheels) 5.8m dump truck
EXW
From $50,972
Export quote
FAW Linghe F200 Heavy Truck Dump Trucks
Main model photos
52 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| FAW Linghe F200G 375hp 6X4(10 wheels) 5.8m dump truck | 6x4 / 375hp / China V (Beijing) | From $50,972 | |
| FAW Linghe F200G 375hp 6X4(10 wheels) 5.6m dump truck | 6x4 / 375hp / China V (Beijing) | From $50,694 | |
| FAW Linghe F200G 350hp 6X4(10 wheels) 5.8m dump truck | 6x4 / 350hp / China V (Beijing) | From $50,278 | |
| FAW Linghe F200G 350 hp 6X4(10 wheels) 5.6m dump truck | 6x4 / 350hp / China V (Beijing) | From $50,000 | |
| FAW Linghe F200G 350hp 6X4(10 wheels) 5.4m dump truck | 6x4 / 350hp / China V (Beijing) | From $49,722 |
FAW Linghe F200G 375hp 6X4(10 wheels) 5.6m dump truck
EXW
From $50,694
Export quote
FAW Linghe F200G 350hp 6X4(10 wheels) 5.8m dump truck
EXW
From $50,278
Export quote

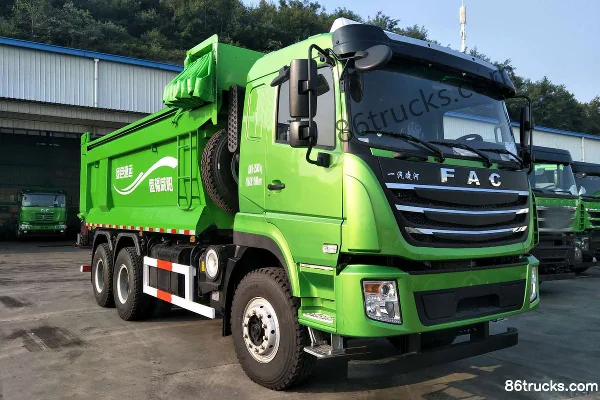

FAW Linghe F200G 350 hp 6X4(10 wheels) 5.6m dump truck
EXW
From $50,000
Export quote

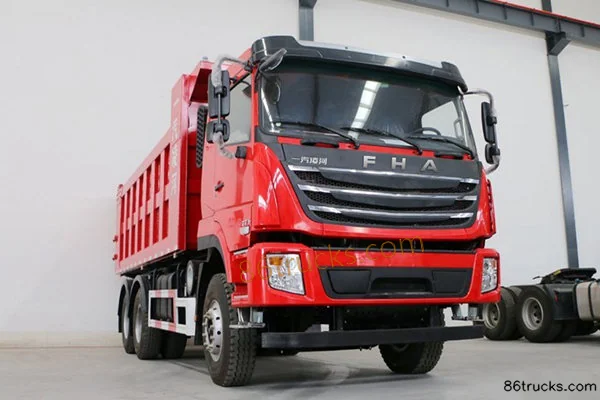

FAW Linghe F200G 350hp 6X4(10 wheels) 5.4m dump truck
EXW
From $49,722
Export quote
Series Specs
Basic Info
Model code (announced): CAL5251ZLJE5 / CAL3312C4PF6E5 / CAL3312C4NF6E5 / CAL3312C4MF6E5 / CAL3252C3KF4E5 / CAL3252C3MF4E5 / CAL3252C3LF4E5
Drive type: 6X4 / 8X4
Wheelbase: 3975+1400 / 3800+1400 / 1800+4975+1400 / 1800+4775+1400 / 1800+4575+1400 / 1800+4375+1400 / 1800+4175+1400 / 1800+3975+1400 / 1800+3775+1400 / 1800+3575+1400 / 3800+1350 / 4775+1400 / 4575+1400 / 4375+1400 / 4175+1400mm
Engine Model: WeichaiWP10H375E50 / WeichaiWP10.350E53 / WeichaiWP12.430E50 / WeichaiWP12.375E50
Transmission Model: Fast Gear12JSD180T / Fast Gear10JSD180T / Fast Gear12JSD240TA / Fast Gear12JSD200TA / Fast Gear12JSD240TA+QH70 / Fast Gear 12-speed
Rear Axle Ratio: 5.262 / 5.92 / 4.769
Cab length: 8.8 / 8.6 / 8.425 / 11.8 / 11.6 / 11.2 / 11 / 10.8 / 10.6 / 10.4 / 10.2 / 10 / 8.575 / 9.8 / 9.5 / 9.2 / 9m
Cab width: 2.55m
Cab height: 3.5m
Front track width: 2045 / 2010/2010 / 2045/2045 / 2010mm
rear track: 1865/1865mm
Curb Weight: 12.5 / 14.77 / 15.5 / 11.4ton
Rated payload: 12.305 / 16.035 / 15.37 / 13.47ton
GVWR: 25 / 31ton
Origin: Lingyuan, Liaoning / Qingdao, Shandong
tonnage class: Heavy truck
Approach angle: 23°
departure angle: 18 / 20°
Remarks: PTO QH70 / QH50 PTO / QH70 PTO, optional rear axle ratio 4.769/5.262 / Rear axle ratio optional 5.262/5.92, PTO QH70 / Rear axle ratio optional 4.769/5.262
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Number of cylinders: 6cylinder
Displacement: 9.5 / 9.726 / 11.596L
Emission standard: China V (Beijing) / China V
Max output power: 276 / 257 / 316kW
Max hp: 375 / 350 / 430Horsepower
Max torque: 1800 / 1600 / 2060N·m
Max torque speed: 1000-1400 / 1200-1600rpm
Rated speed: 1900rpm
Engine Type: Electronic high-pressure common rail + SCR / Inline 6-cylinder, electronically controlled high-pressure common rail + SCR / Inline, water-cooled, six-cylinder, electronically controlled high-pressure common rail + SCR
Technology route: Common Rail SCR
Transmission Parameters
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12 / 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type / Rear-dump body
Cargo box length: 5.8 / 5.6 / 5.4 / 8.8 / 8.6 / 8.2 / 8 / 7.8 / 7.6 / 7.4 / 7.2 / 7 / 6.8 / 6.5 / 6.2 / 6m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
Cab: Sleeper cab
FAQ
What kind of truck is FAW Linghe FAW Linghe F200 Heavy Truck Dump Trucks?
FAW Linghe FAW Linghe F200 Heavy Truck is an export-oriented Dump Trucks lineup with about 25 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for FAW Linghe F200 Heavy Truck Dump Trucks?
FAW Linghe F200 Heavy Truck Dump Trucks export reference is about $49,722 – $62,778. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does FAW Linghe F200 Heavy Truck Dump Trucks cover?
FAW Linghe F200 Heavy Truck Dump Trucks mainly covers: Drive: 6x4; Horsepower: 350 hp / 375 hp; Emission: China V (Beijing); Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in FAW Linghe F200 Heavy Truck Dump Trucks?
For FAW Linghe F200 Heavy Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does FAW Linghe F200 Heavy Truck Dump Trucks include?
FAW Linghe F200 Heavy Truck Dump Trucks currently lists about 25 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for FAW Linghe F200 Heavy Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
