FAW Linghe F200G 350hp 6X4(10 wheels) 5.8m dump truck

Export reference
From $50,278
MSRP ¥36.2M CNY
Emission: China V (Beijing)
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 12.5ton
Wheelbase:: 3975+1400mm
Tire Size:: 11.00R20 18PR,11.00-20 18PR,12.00R20 16PR,12.00-20 18PR,12R22.5 18PR
Rated payload: 12.305ton
Drive 6X4 (10 wheels)
Horsepower 350
Cargo box type: Dump type

Overview

The FAW Linghe F200G 350hp 6X4(10 wheels) 5.8m dump truck is a Heavy truck featuring 12.305t payload, 25t GVW, Dump type cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a WeichaiWP10.350E53 engine, 350 hp, China V (Beijing) emissions and Fast Gear transmission.

China V (Beijing) 350 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CAL5251ZLJE5
Drive type: 6X4
Wheelbase: 3975+1400mm
engine: WeichaiWP10.350E53
transmission: Fast Gear10JSD180T
Rear Axle Ratio: 5.262
Cab length: 8.8m
Cab width: 2.55m
Cab height: 3.5m
Front track width: 2045mm
rear track: 1865/1865mm
Curb Weight: 12.5ton
Rated payload: 12.305ton
GVWR: 25ton
Origin: Lingyuan, Liaoning
tonnage class: Heavy truck
Approach angle: 23°
departure angle: 18°
Remarks: QH50 PTO
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10.350E53
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China V (Beijing)
Max output power: 257kW
Max hp: 350Horsepower
Max torque: 1600N·m
Max torque speed: 1200-1600rpm
Rated speed: 1900rpm
Engine Type: Electronic high-pressure common rail + SCR
Transmission Parameters
Transmission Model: Fast Gear10JSD180T
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5.8m
Cargo box width: 2.35m
Cargo box height: 1.5m
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 300L
Chassis Specs
Front axle description: 7.5T
Front axle allowable load: 7000kg
Frame Dimensions: 850×300×(8+6)mm
rear axle description: 13T
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.262
Leaf spring count: 9/13,10/12,10/13
Tire
Tire Size: 11.00R20 18PR,11.00-20 18PR,12.00R20 16PR,12.00-20 18PR,12R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:

Photos

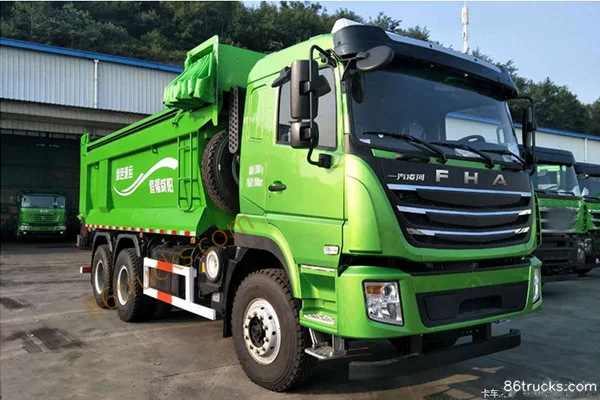

Exterior1

1 photos

FAQ

What is the export price of FAW Linghe F200G 350hp 6X4(10 wheels) 5.8m dump truck, and what does it include?

FAW Linghe F200G 350hp 6X4(10 wheels) 5.8m dump truck export reference is about From $50,278; MSRP is ¥36.2M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Linghe F200G 350hp 6X4(10 wheels) 5.8m dump truck use, and can it enter my country?

This model is listed as China V (Beijing). Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Linghe F200G 350hp 6X4(10 wheels) 5.8m dump truck?

Key specs of FAW Linghe F200G 350hp 6X4(10 wheels) 5.8m dump truck: Drive: 6x4; Horsepower: 350 hp; Emission: China V (Beijing); Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Linghe F200G 350hp 6X4(10 wheels) 5.8m dump truck suited for?

FAW Linghe F200G 350hp 6X4(10 wheels) 5.8m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Linghe F200G 350hp 6X4(10 wheels) 5.8m dump truck differ from other variants in the same series?

FAW Linghe F200G 350hp 6X4(10 wheels) 5.8m dump truck belongs to FAW Linghe F200 Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Linghe F200G 350hp 6X4(10 wheels) 5.8m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Linghe F200G 350hp 6X4(10 wheels) 5.8m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
