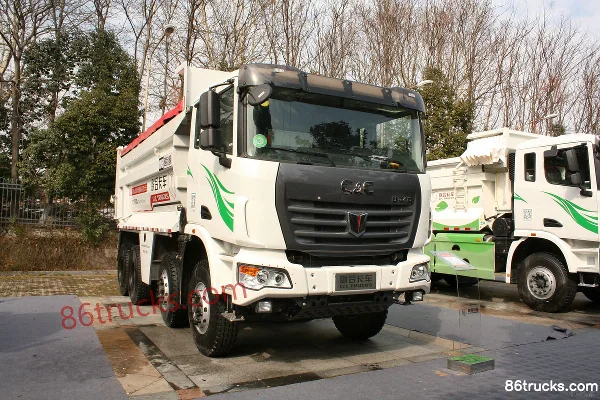

Union Truck U380 380 hp 8X4(12 wheels) 5.8m dump truck (China VI)
EXW
From $57,889
Export quote
Union Truck U-Series Heavy Truck Dump Trucks
Main model photos
924 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Union Truck U380 380 hp 8X4(12 wheels) 5.8m dump truck (China VI) | 8x4 / 380hp / China VI | From $57,889 | |
| Union Truck U380 380 hp 8X4(12 wheels) 5.6m dump truck (China VI) | 8x4 / 380hp / China VI | From $57,889 | |
| Union Truck U350 Heavy Truck 350hp 8X4(12 wheels) Dump Truck Chassis (China VI) | 8x4 / 350hp / China VI | ||
| Union Truck U400 400 hp 8X4(12 wheels) 5.6m Dump Truck (China VI) | 8x4 / 400hp / China VI | From $69,444 |
Union Truck U380 380 hp 8X4(12 wheels) 5.6m dump truck (China VI)
EXW
From $57,889
Export quote
Union Truck U350 Heavy Truck 350hp 8X4(12 wheels) Dump Truck Chassis (China VI)
EXW
Export quote
Union Truck U400 400 hp 8X4(12 wheels) 5.6m Dump Truck (China VI)
EXW
From $69,444
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Union Truck U380 380 hp 8X4(12 wheels) 5.8m LNG Dump Truck (China VI) (Fast Gear 12-speed) | 8x4 / 380hp / China VI | ||
| Union Truck U380 380 hp 8X4(12 wheels) 7.6m Dump Truck | 8x4 / 380hp / China V | From $47,056 | |
| Union Truck U350 350 hp 8X4(12 wheels) 5.8m Dump Truck | 8x4 / 350hp / China V | From $49,833 | |
| Union Truck U480 480hp 8X4(12 wheels) 6.8m Dump Truck | 8x4 / 480hp / China V | From $52,778 | |
| Union Truck U380 380hp 8X4(12 wheels) 5.8m LNG dump truck (China VI) | 8x4 / 380hp / China VI | From $66,917 |
Union Truck U380 380 hp 8X4(12 wheels) 5.8m LNG Dump Truck (China VI) (Fast Gear 12-speed)
EXW
Export quote
Union Truck U380 380 hp 8X4(12 wheels) 7.6m Dump Truck
EXW
From $47,056
Export quote
Union Truck U350 350 hp 8X4(12 wheels) 5.8m Dump Truck
EXW
From $49,833
Export quote
Union Truck U480 480hp 8X4(12 wheels) 6.8m Dump Truck
EXW
From $52,778
Export quote
Union Truck U380 380hp 8X4(12 wheels) 5.8m LNG dump truck (China VI)
EXW
From $66,917
Export quote
Series Specs
Basic Info
Model code (announced): QCC3313N666 / QCC3312D656-2 / QCC3312D656-7 / QCC3312D656 / QCC5313ZLJD666 / QCC3312D656N / QCC3312D656-6 / QCC3252D654-3 / QCC3252D654-1 / QCC3312D656-3 / QCC5252ZLJD654 / QCC3312N656 / SQR5252ZLJN6T4-1 / SQR3252N6T4 / QCC3252N654 / QCC3312D656-4 / QCC3312D656P
Drive type: 8X4 / 6X4 / 6X2
Wheelbase: 2100+2650+1350 / 1950+3850+1350 / 1950+2450+1350 / 1950+3050+1350 / 1800+3100+1300 / 1800+2550+1300 / 1950+4800+1350 / 4200+1350 / 3600+1350 / 2100+2750+1350 / 1950+4350+1350 / 3825+1350 / 1950+2350+1350 / 1950+2200+1350 / 1800+2200+1350mm
Engine Model: YuchaiYCK11380N-60 / United PowerYC6K1038-50 / YuchaiYC6L350-50 / United PowerYC6K1248-50 / YuchaiYCK09380-60 / WeichaiWP7.300E51 / United PowerYC6K1244-50 / YuchaiYC6K1035-50 / United PowerYC6K1035-50 / YuchaiYCK08350-60 / YuchaiYCK09400-60 / United PowerYC6K1239-50 / United PowerYC6K1040-50 / United PowerYC6K1034N-50 / WeichaiWP12.430E50 / United PowerYC6K1037N-50
Transmission Model: Fast Gear12JSD180T / Fast Gear12JSD180TA / Fast Gear10JSD140T / Fast Gear12JSDX240TA / Fast Gear10JSD180T / Fast Gear12JSDX220T-B / Fast Gear10JSD160T / Fast Gear10JSD160 / Fast Gear9JSD150T-B / Fast Gear12T200TA / Fast Gear12JSD200TA / Fast Gear12JSD200TA-B / Fast Gear12JSD160 / Fast Gear 12-speed / Fast Gear10JSD180 / Fast Gear12JSD200T-B / Fast Gear12JSD160T / Fast Gear10JSD140
Rear Axle Ratio: 4.769 / 5.921 / 5.571 / 4.8 / 5.26 / 5.262 / 5.92
Cab length: 9.575 / 10.52 / 8.8 / 9.72 / 9.375 / 8.7 / 8.6 / 9.6 / 9.05 / 11.47 / 8.91 / 8.457 / 10.02 / 11.22 / 10.72 / 8.557 / 9.29 / 11.02 / 8.4 / 11.2m
Cab width: 2.55 / 2.5m
Cab height: 3.65 / 3.56 / 3.25 / 3.3m
Front track width: 2040/2040 / 2040 / 2038mm
rear track: 1860/1860mm
Curb Weight: 15.5 / 14.8 / 14.845 / 14.785 / 13.5 / 11.905 / 12.5 / 12.05 / 15.49ton
Rated payload: 15.37 / 16.07 / 16.025 / 16.085 / 17.305 / 12.965 / 12.37 / 12.82 / 15.38ton
GVWR: 31 / 25ton
Origin: Wuhu, Anhui / Xuancheng, Anhui
tonnage class: Heavy truck
Approach angle: 23°
departure angle: 24 / 27 / 21 / 25°
Remarks: Optional ratio 5.262 / Optional ratio 4.769, 5.921 / Optional ratio 4.769 / body: 8m optional, domestic clutch / Optional 7.6m superstructure, rear axle ratio optional 4.769 / Rear axle ratio optional 5.26 / Optional ratio 5.26 / Rear axle ratio optional 4.769 / Domestic clutch / High-position front bumper / Rear axle ratio optional 4.769, 5.921 / Optional ratio 5.26, rear axle optional Pengxiang LC300 / body: 5.6m optional, domestic clutch / Imported clutch
Version: LNG Edition
Energy Type: LNG (liquefied natural gas) / Diesel
Engine parameters
Engine Brand: Yuchai / United Power / Weichai
Number of cylinders: 6cylinder
Displacement: 10.98 / 10.338 / 8.424 / 12.155 / 9.41 / 7.47 / 7.7 / 12.15 / 11.596 / 10.388L
Emission standard: China VI / China V
Max output power: 280 / 285 / 257 / 353 / 220 / 324 / 258 / 294 / 287 / 250 / 316 / 276kW
Max hp: 380 / 350 / 480 / 300 / 440 / 400 / 390 / 340 / 430 / 376 / 351Horsepower
Max torque: 1800 / 1400 / 2250 / 1250 / 2160 / 1570 / 1450 / 1900 / 1350 / 2060 / 1466N·m
Max torque speed: 1000-1400 / 1100-1500 / 1200-1700 / 1000-1500 / 1100-1450 / 1100 / 1400 / 1300-1500 / 1200-1500 / 1500rpm
Rated speed: 1700 / 1900 / 2200 / 2300 / 2100rpm
Engine Type: Theoretical air-fuel ratio + EGR + TWC + ASC / Vertical, inline, water-cooled, four-stroke / Vertical in-line, water-cooled, 4-stroke / High-pressure common rail + EGR + DOC + DPF + SCR + ASC / Inline 6-cylinder, electronic high-pressure common rail, SCR / Inline, water-cooled, four-stroke, electronically controlled direct injection / Inline 6-cylinder, electronically controlled high-pressure common rail + SCR
Transmission Parameters
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12 / 10 / 9Gear
Number of Reverse Gears: 2 / 1pcs
Housing Material: aluminum housing
Cargo box parameters
Unloading Type: Dump type / Rear-dump body
Cargo box type: U-shaped box / Dump type / Rear-dump body
Cargo box length: 5.8 / 7.6 / 6.8 / 5.6 / 6 / 8.6 / 5.4 / 8 / 8.2 / 7.8m
Cargo box width: 2.35 / 2.3m
FAQ
What kind of truck is Union Truck Union Truck U-Series Heavy Truck Dump Trucks?
Union Truck Union Truck U-Series Heavy Truck is an export-oriented Dump Trucks lineup with about 95 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Union Truck U-Series Heavy Truck Dump Trucks?
Union Truck U-Series Heavy Truck Dump Trucks export reference is about $36,111 – $69,444. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Union Truck U-Series Heavy Truck Dump Trucks cover?
Union Truck U-Series Heavy Truck Dump Trucks mainly covers: Drive: 8x4; Horsepower: 350 hp / 380 hp / 400 hp / 480 hp; Emission: China V / China VI; Fuel: Diesel / LNG (liquefied natural gas). Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Union Truck U-Series Heavy Truck Dump Trucks?
For Union Truck U-Series Heavy Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Union Truck U-Series Heavy Truck Dump Trucks include?
Union Truck U-Series Heavy Truck Dump Trucks currently lists about 95 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Union Truck U-Series Heavy Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
