Union Truck U380 380 hp 8X4(12 wheels) 5.8m LNG Dump Truck (China VI) (Fast Gear 12-speed)

Export reference
MSRP N/A
Emission: China VI
Fuel: LNG (liquefied natural gas)
Transmission: Fast Gear
Curb Weight:: 15.5ton
Wheelbase:: 2100+2650+1350mm
Tire Size:: 12.00R20 18PR
Rated payload: 15.37ton
Drive 8X4 (12 wheels)
Horsepower 380
Cargo box type: Dump type

Overview

The Union Truck U380 380 hp 8X4(12 wheels) 5.8m LNG Dump Truck (China VI) (Fast Gear 12-speed) is a Heavy truck featuring 15.37t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a YuchaiYCK11380N-60 engine, 380 hp, China VI emissions and Fast Gear transmission.

China VI 380 LNG (liquefied natural gas) 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): QCC3313N666
Drive type: 8X4
Wheelbase: 2100+2650+1350mm
engine: YuchaiYCK11380N-60
transmission: Fast Gear12JSD180T
Rear Axle Ratio: 4.769
Cab length: 9.575m
Cab width: 2.55m
Cab height: 3.65m
Front track width: 2040/2040mm
rear track: 1860/1860mm
Curb Weight: 15.5ton
Rated payload: 15.37ton
GVWR: 31ton
Origin: Wuhu, Anhui
tonnage class: Heavy truck
Approach angle: 23°
departure angle: 24°
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCK11380N-60
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Displacement: 10.98L
Emission standard: China VI
Max output power: 280kW
Max hp: 380Horsepower
Max torque: 1800N·m
Max torque speed: 1000-1400rpm
Rated speed: 1700rpm
Engine Type: Theoretical air-fuel ratio + EGR + TWC + ASC
Transmission Parameters
Transmission Model: Fast Gear12JSD180T
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5.8m
Cargo box width: 2.35m
Cargo box height: 1.5m
fuel tank
Fuel tank capacity: 500L
Chassis Specs
Front axle allowable load: 6500/6500kg
Frame Dimensions: 300×80×8+5mm
rear axle description: HandeMAN
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 4.769
Leaf spring count: 10/10/12
Suspension (front/rear): Front multi-leaf, rear multi-leaf
Tire
Tire Size: 12.00R20 18PR
Number of tires: 12pcs
Control configuration
ABS:
Multimedia features
Radio:
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

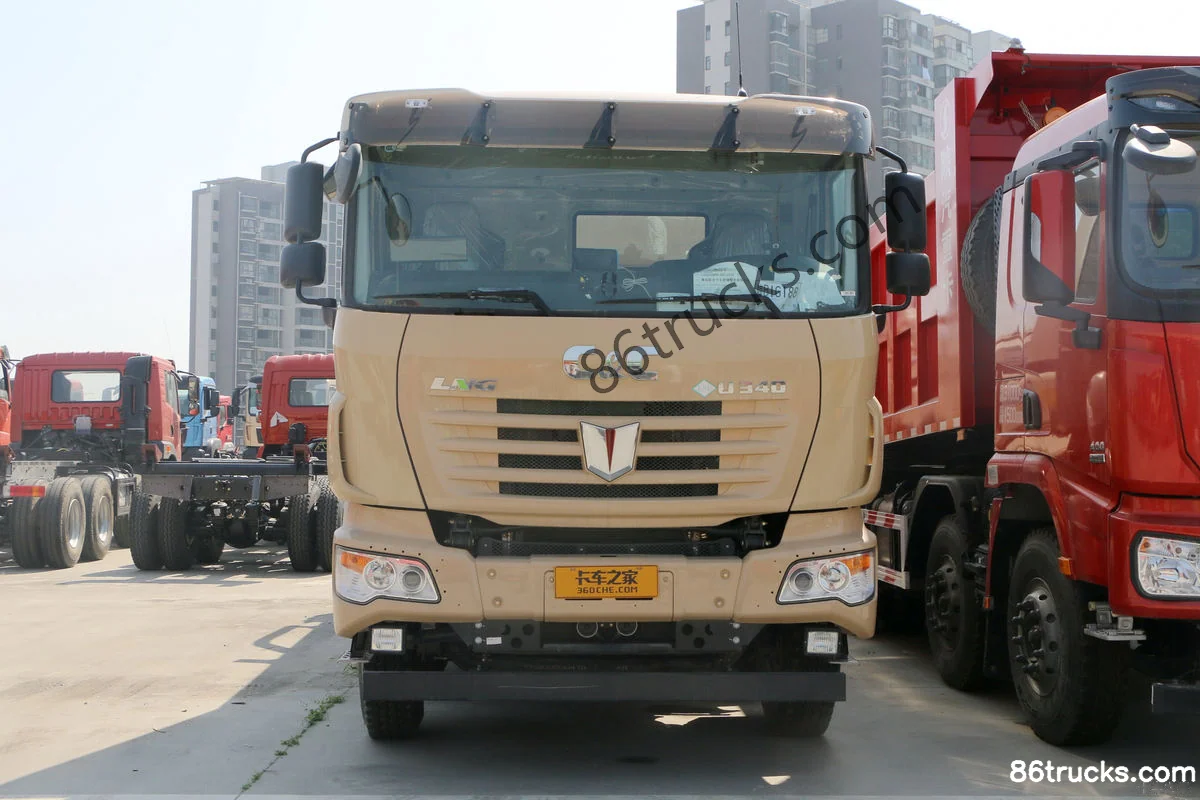

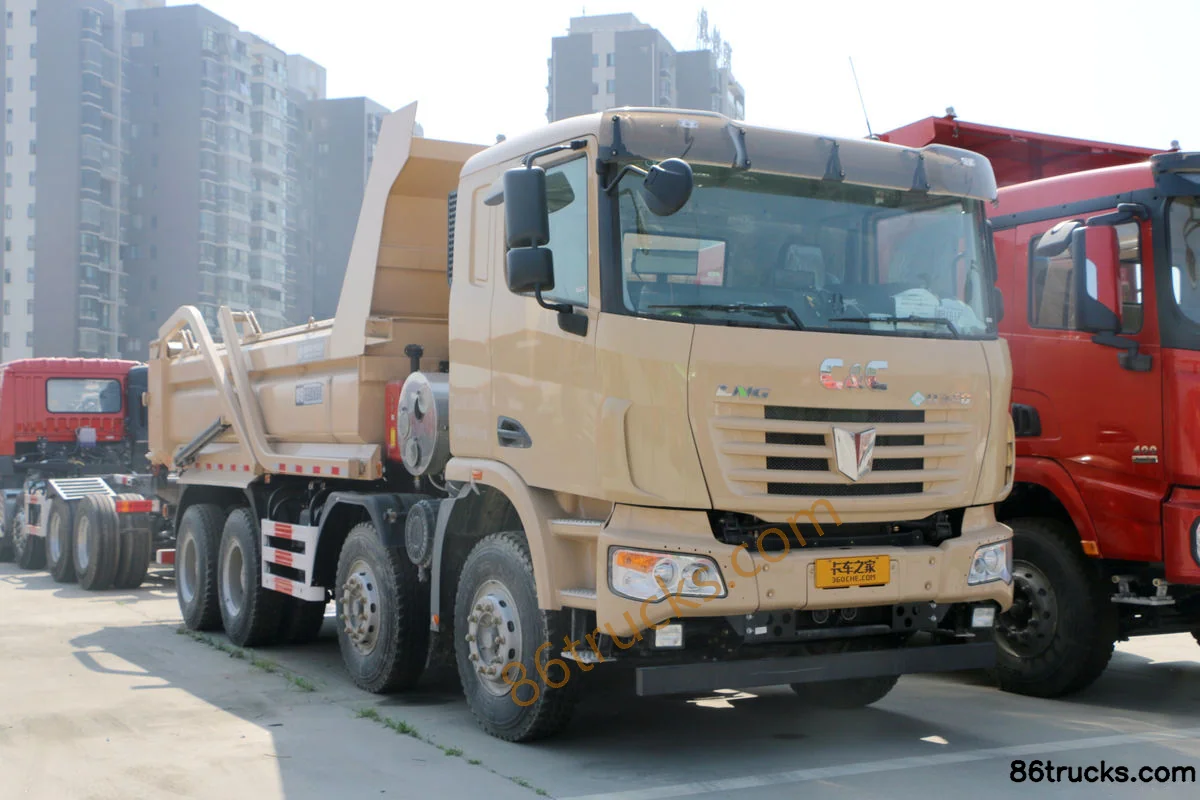

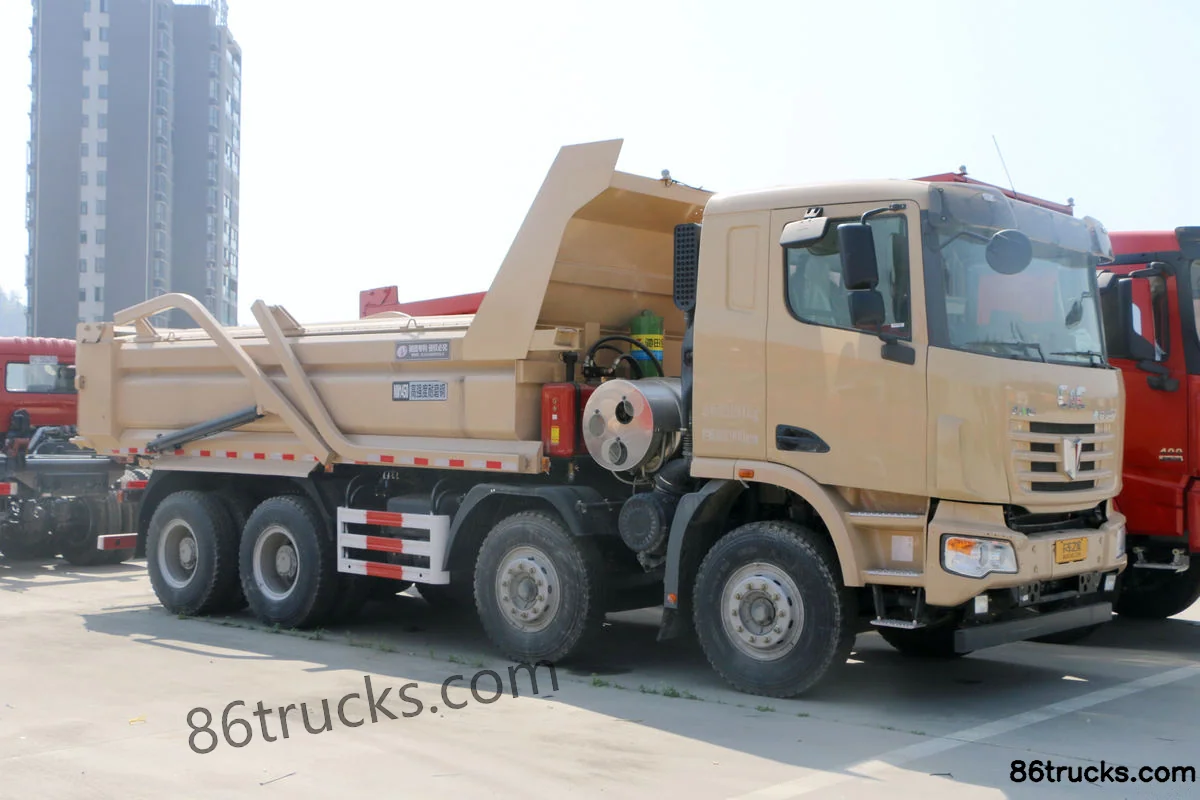

Exterior3

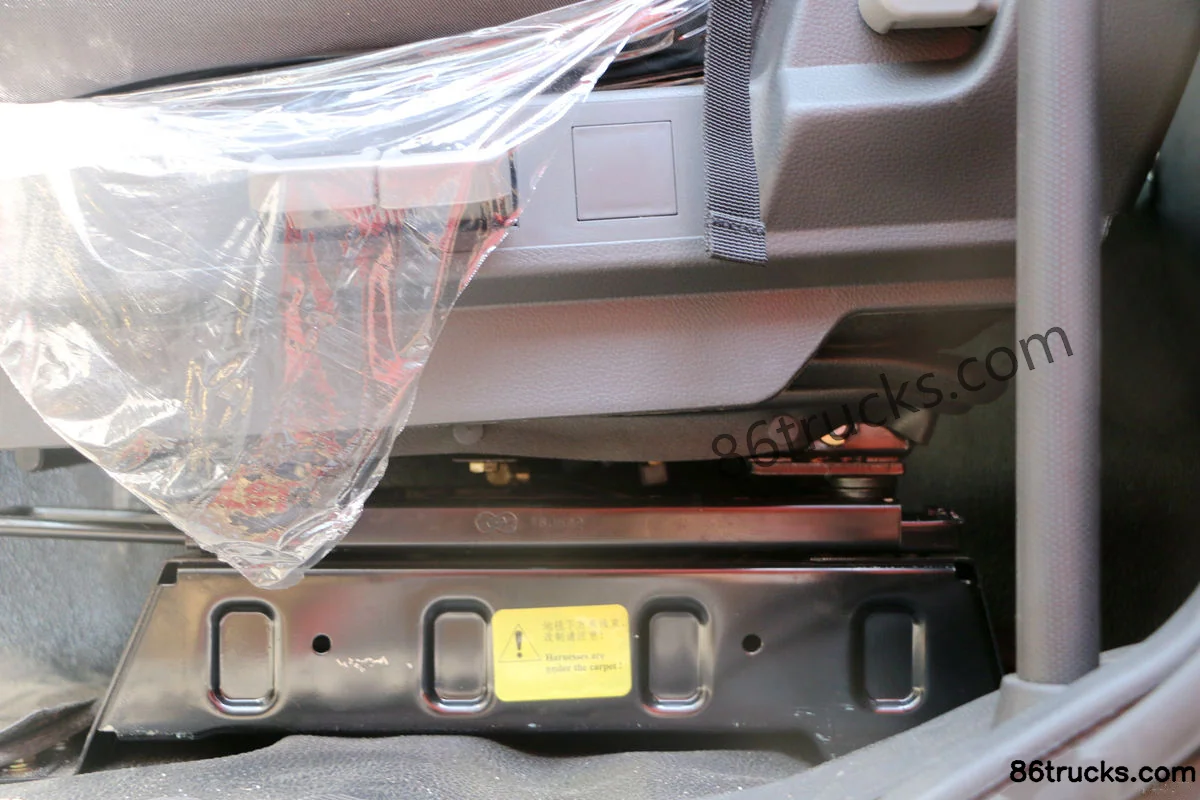

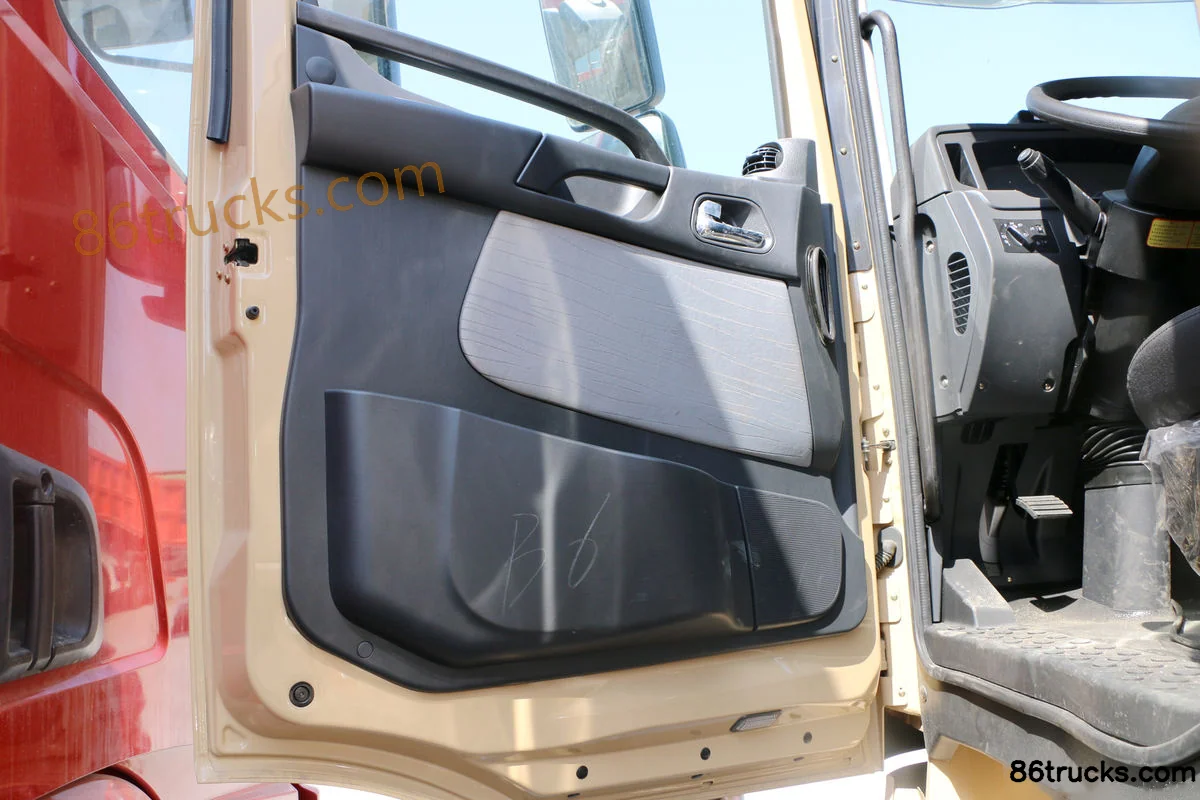

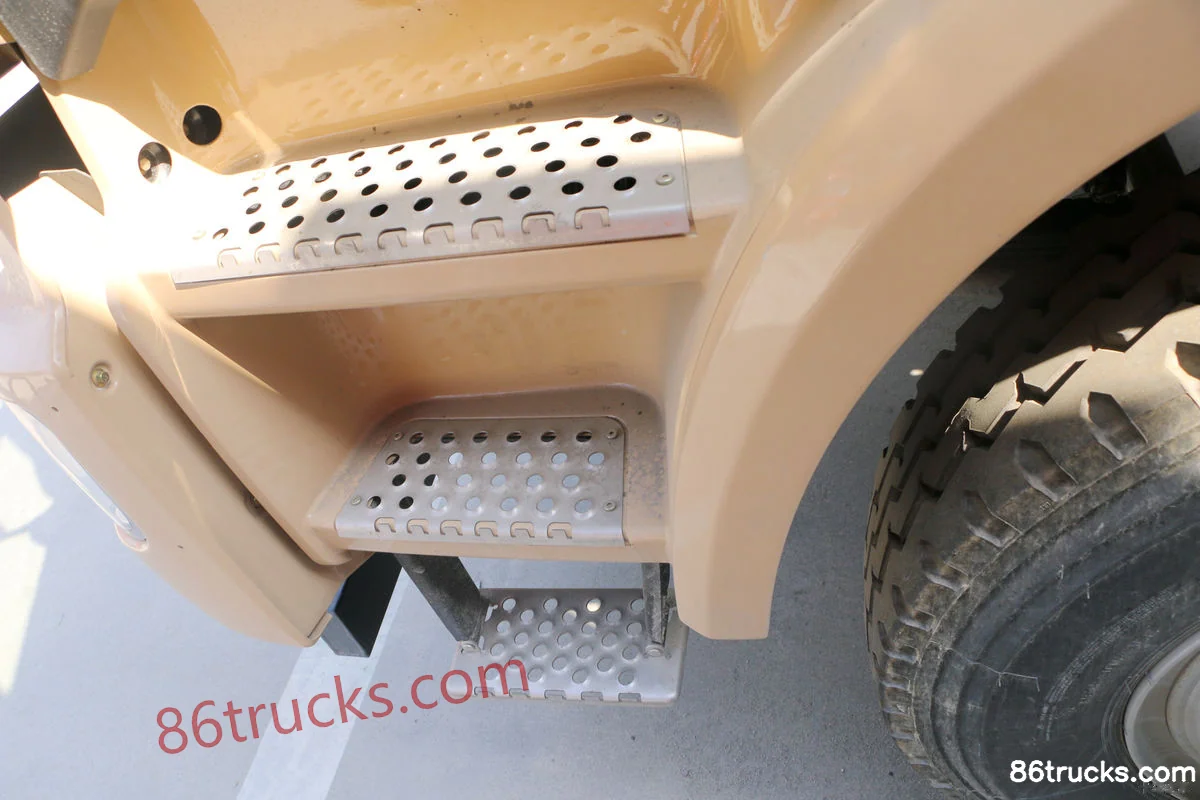

Cab3

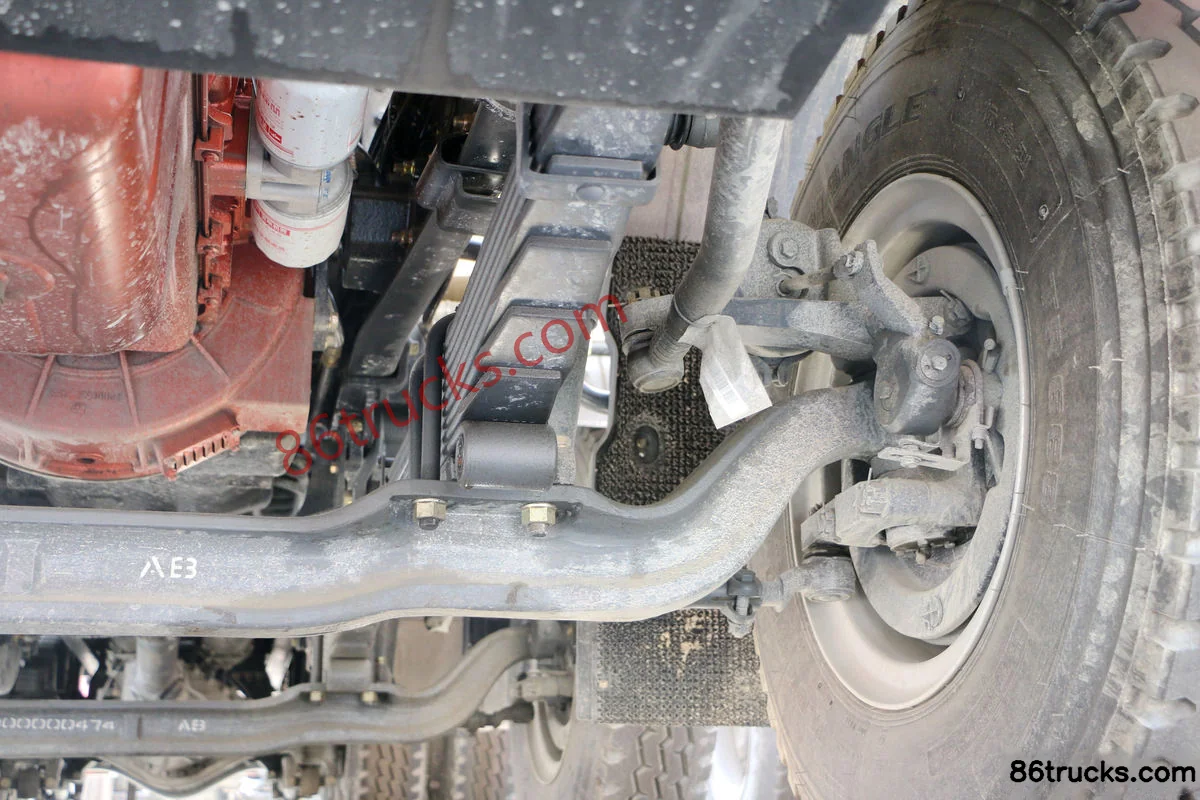

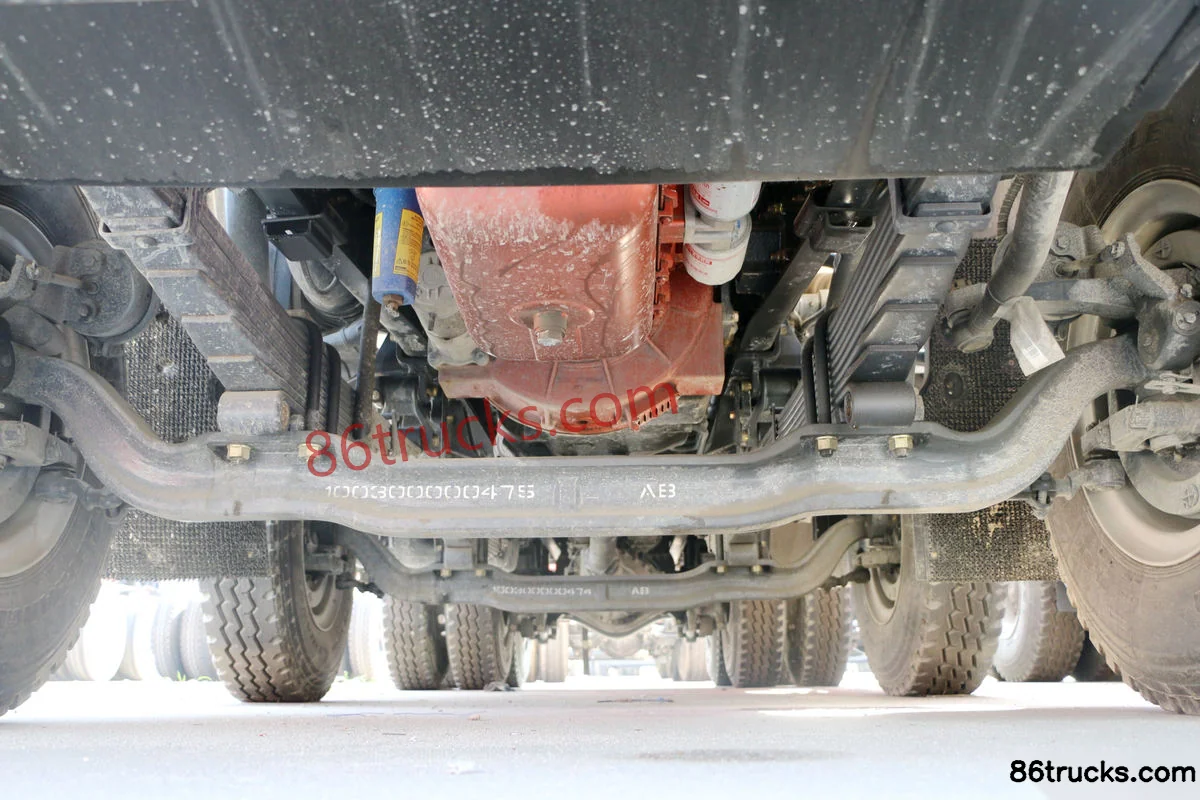

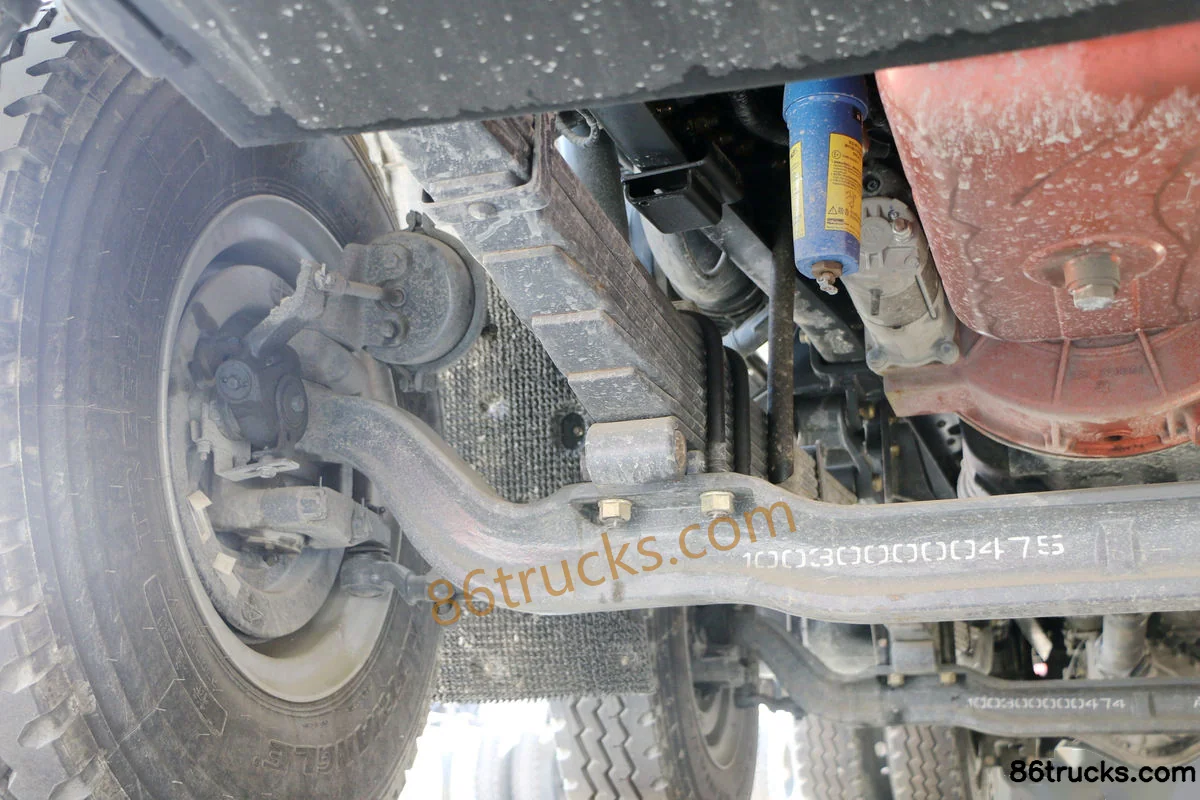

Chassis3

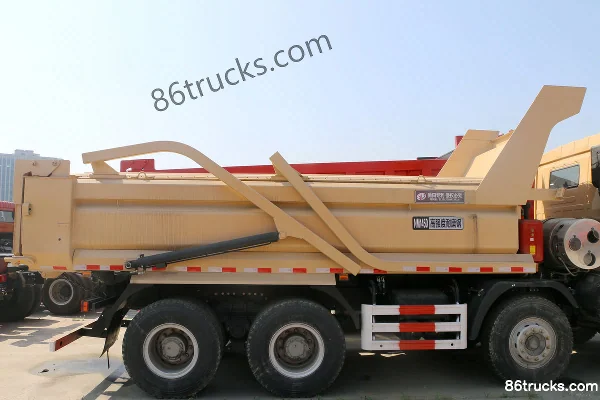

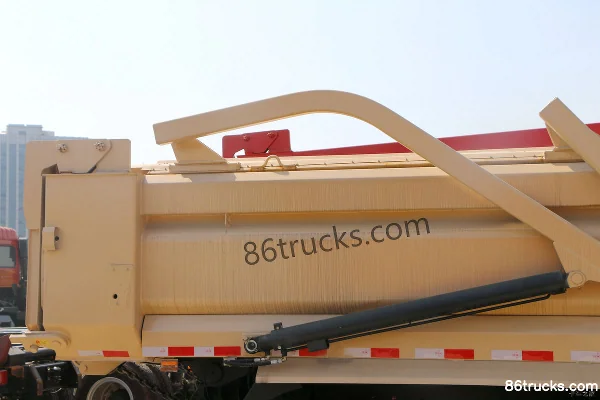

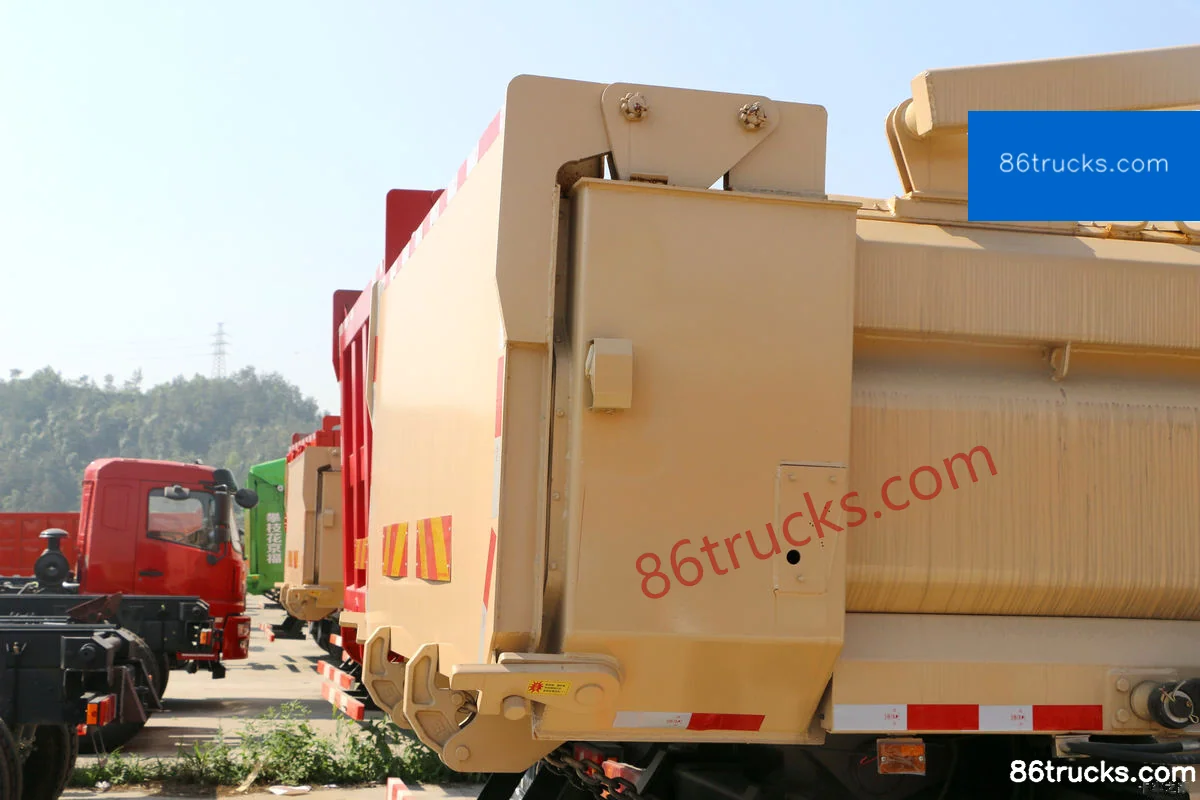

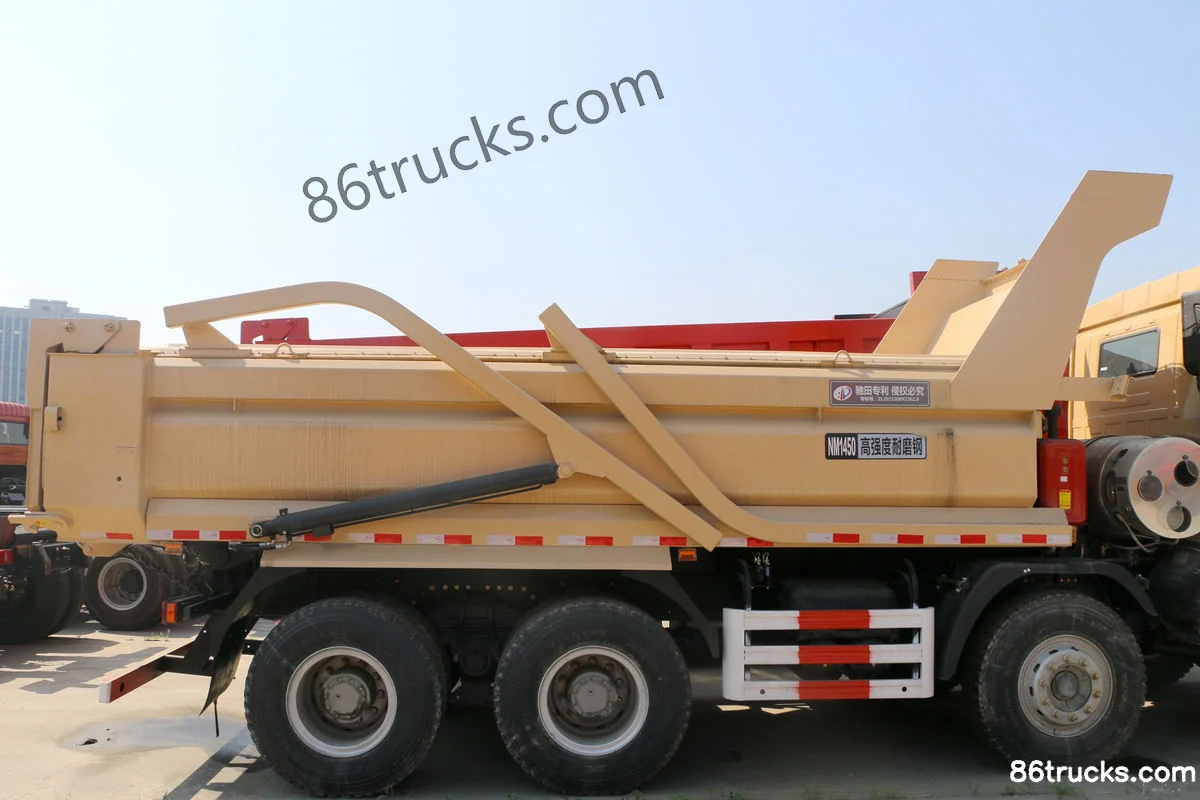

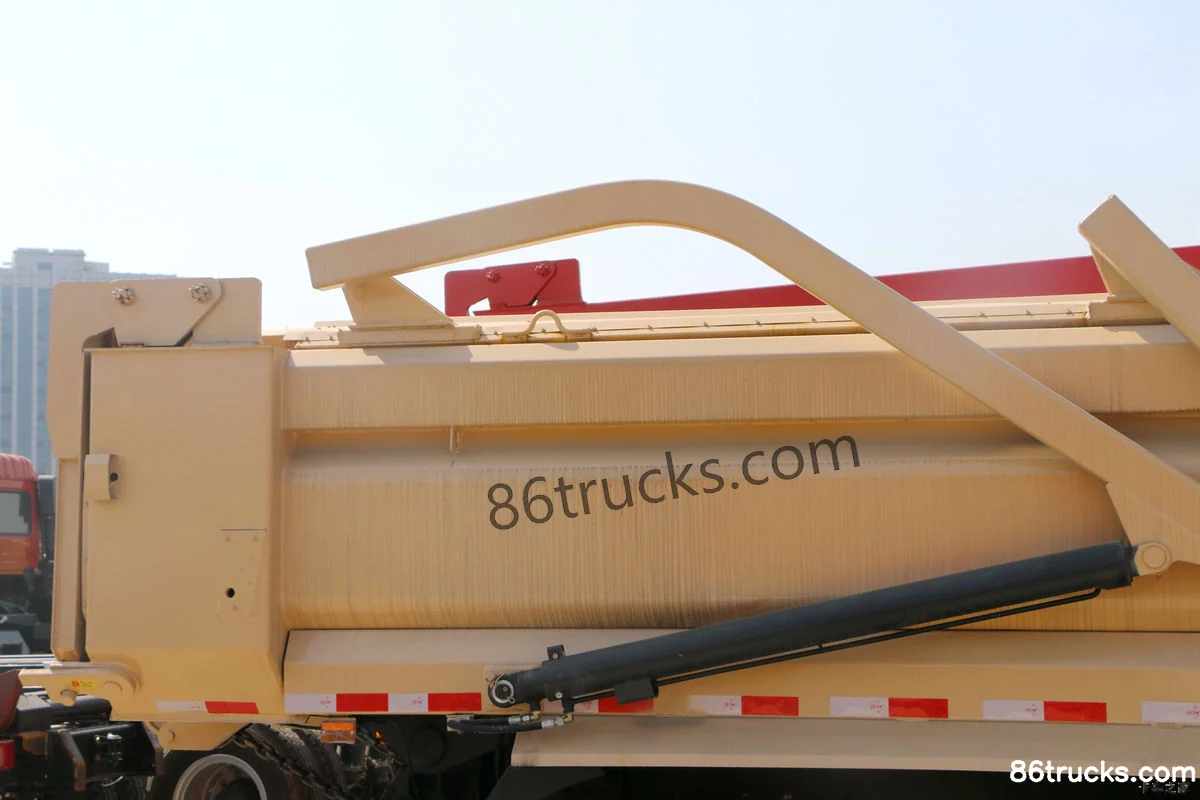

Body3

12 photos

FAQ

What emission standard does Union Truck U380 380 hp 8X4(12 wheels) 5.8m LNG Dump Truck (China VI) (Fast Gear 12-speed) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Union Truck U380 380 hp 8X4(12 wheels) 5.8m LNG Dump Truck (China VI) (Fast Gear 12-speed)?

Key specs of Union Truck U380 380 hp 8X4(12 wheels) 5.8m LNG Dump Truck (China VI) (Fast Gear 12-speed): Drive: 8x4; Horsepower: 380 hp; Emission: China VI; Fuel: LNG (liquefied natural gas); Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Union Truck U380 380 hp 8X4(12 wheels) 5.8m LNG Dump Truck (China VI) (Fast Gear 12-speed) suited for?

Union Truck U380 380 hp 8X4(12 wheels) 5.8m LNG Dump Truck (China VI) (Fast Gear 12-speed) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Union Truck U380 380 hp 8X4(12 wheels) 5.8m LNG Dump Truck (China VI) (Fast Gear 12-speed) differ from other variants in the same series?

Union Truck U380 380 hp 8X4(12 wheels) 5.8m LNG Dump Truck (China VI) (Fast Gear 12-speed) belongs to Union Truck U-Series Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Union Truck U380 380 hp 8X4(12 wheels) 5.8m LNG Dump Truck (China VI) (Fast Gear 12-speed)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Union Truck U380 380 hp 8X4(12 wheels) 5.8m LNG Dump Truck (China VI) (Fast Gear 12-speed)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
